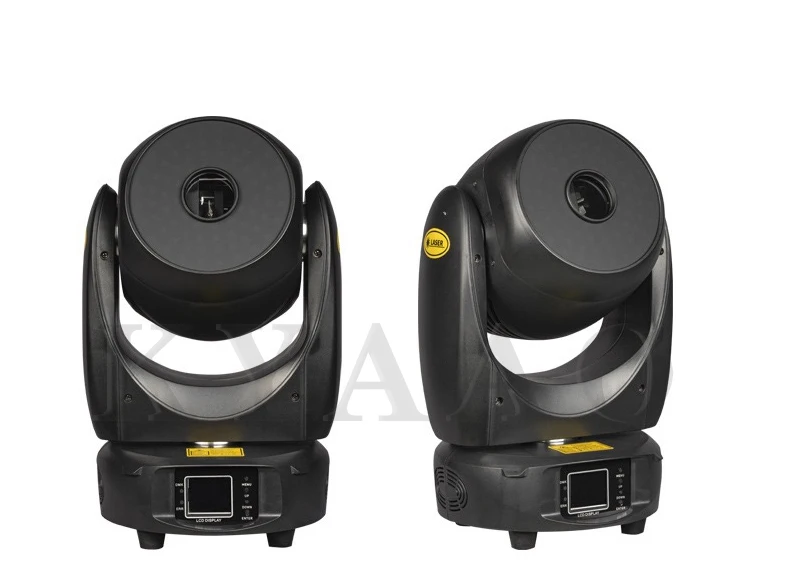

Powerful LED 5w Moving Head Stage Light Versatile DJ Equipment Dmx Lighting Effect Animation Disco Club Laser Projector

Please read the instruction manual carefully before use

1.Safety guidance:
Thank you for using our product. In order to use this product safely and effectively, you use this product,Please read the entire contents of this manual carefully before.This manual contains: an introduction to this product and Important information such as safe installation and use, please keep it for reference.
Note：The equipment is packed in good condition when leaving the factory. Please operate according to the user manual. Failure to follow the manual operation will cause failures and problems, or human failure will cause the machine to fail.
●Before using the product, please open it and check carefully to ensure that the lamp has no damage caused by transportation.
●The lamp is suitable for use in dry environments.
●Installation and operation of lamps should be performed by professionals.
●Use a secure rope when fixing the device, and hold the bottom when moving the light.
●The equipment must be installed in a well-ventilated area.
●Make sure that the vents are clear to prevent the lamp from overheating during operation.
●Before operation, ensure that the power supply voltage matches the power supply voltage required by the device.
●Ground the conductor to prevent electric shock.
●Do not use the lamp in the environment above 40 ℃.
●There may be a small amount of smoke or odor when the new lamp is working, and it will disappear after 15 minutes of operation.
●Do not place flammable objects next to the lamp during operation to prevent fire.
●Before turning on the lamp, please carefully check the power cord for damage, and replace it immediately if damaged.
●The surface temperature of the lamp can reach 75°C during operation. Do not touch it with bare hands.
●Avoid flammable liquid, water or metal conductors entering the lamp to avoid electric shock or fire. If foreign objects enter the lamp, please cut off the power immediately.
●Avoid operating in dirty and messy environments, and regularly clean and maintain the lamps.
●Do not touch the wires when the lamp is running to prevent electric shock.
●Avoid twisting the power cord with other wires.
●A serious operational failure has occurred, please stop using it immediately.
●Do not operate the machine by yourself. Operation by non-professional personnel will cause damage to the equipment or malfunction. If repair is required, please contact the nearest authorized service center.
●If the lamp is not used for a long time or please cut off the power during maintenance
●To avoid fire hazards or electric shock, do not expose the luminaire to rain or wet areas.

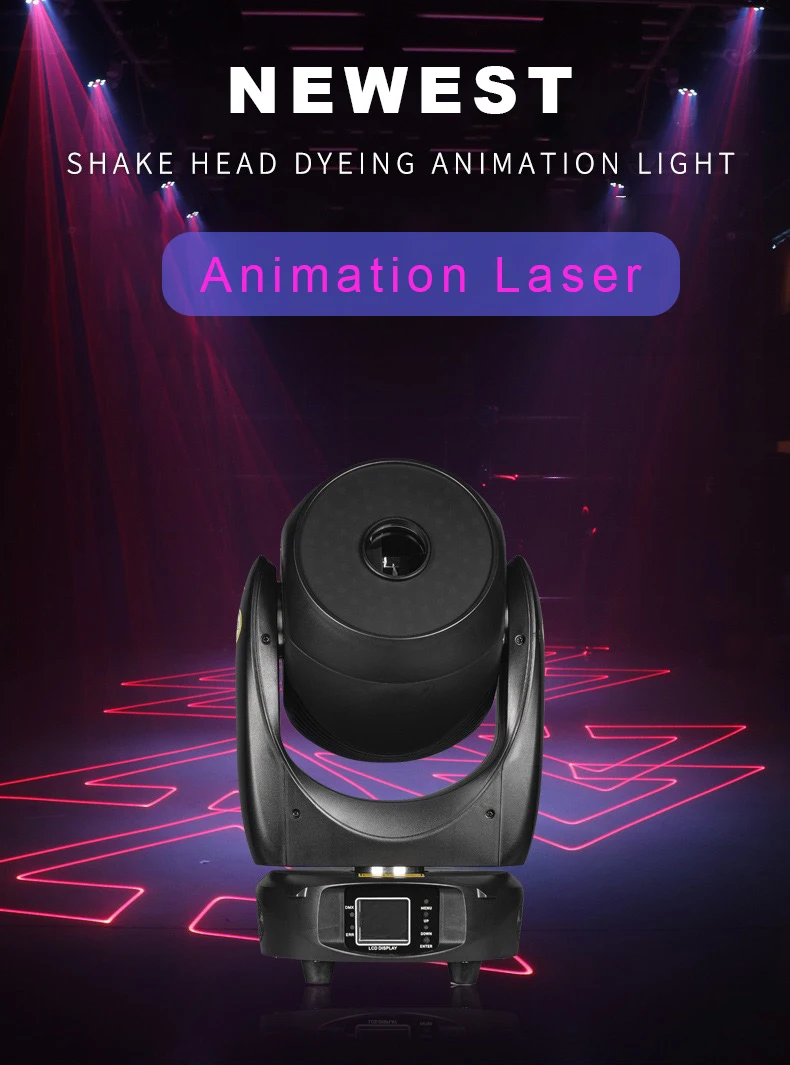

2.Product description：
The full-color moving head laser lamp is a kind of animated laser moving head lamp with small size and excellent performance. It has the following features: RDM function, controllable platform adjusting address code, small size, convenient transportation, RGB laser, low power, high light efficiency, long life, and environmental protection; Faster speed, hundreds of animation programs, strong and sharp beam in smoke state, auxiliary aperture, intelligent temperature controlled fan, more silent; It is very suitable for: bars, nightclubs, music restaurants, KTV halls, indoor multi-function halls and other places.
● Technical parameters：
● Voltage: AC100-240V 50/60HZ
● Power configuration: 2-7W
● Laser power: 3W (red light: 800mw/green light: 800mw/blue light: 1400mw)
● Laser power: 5W (red light: 1500mw/green light: 1500mw/blue light: 2000mw)
● Laser power: 6W (red light: 1500mw/green light: 1500mw/blue light: 3000mw)
● Laser power: 10W (red light: 3000mw/green light: 3000mw/blue light: 4000mw)

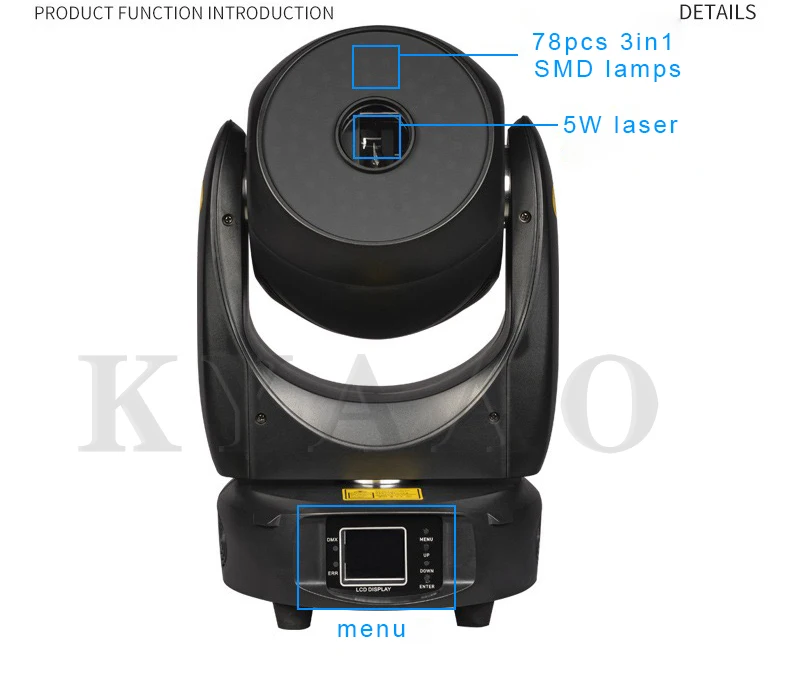

● Light source: 78 RGB three in one SMD lamp beads
● Operation mode: DMX512, master slave, self-propelled, voice control
● Control channel: 20 and 22 channels
● Playback system: linear distortion of input signal at 20 K scanning angle of high-speed galvanometer; Horizontal and vertical: 540 ° and 270 °; 16bit effect: various beams, complex graphics, hundreds of animation programs in memory Effect scaling: electronic scaling, adjustable aperture size, can be used for dyeing at the maximum, and can be used for beam at the minimum
● Display panel: color LCD display, which can be switched between Chinese and English, forward display and reverse display
● Lamp size: 22.5 * 21 * 36CM
● Net weight: 5.3kg
● One set: 42 * 29 * 28 (gross weight: 6.4 kg)
● Two sets: 44 * 31 * 60 (gross weight: 14kg)
