An exceptional electroplating machine has the prowess to imbue your jewelry with a lustrous sheen, elevating its allure to ethereal heights. This sophisticated process not only embellishes but also encapsulates the essence of artistry, transforming mundane trinkets into radiant masterpieces that captivate the beholder’s gaze
Application：
It is widely used in jewelry, clocks and watches, handicrafts as well as electronics, instruments, meters, aviation, aerospace and other industrial fields. It is effective for copper, nickel, chromium, gold, silver, electrophoresis, etc
Platinum Plating Method：
Positive (+): titanium mesh
Negative (-): clip jewelry
Voltage: 3-4V
Temperature: 86-104°F
The electroplated items need to be shaken at the beginning, the recommended platinum time: is 90-120 seconds
Gold Plating Method (14K. 18K. 24K)：
Temperature: 158-176°F
The electroplated items need to be shaken, and the recommended gold plating time is: 20-50 seconds
Accessories for electroplating: beaker, titanium mesh, gold plating machine, water line, electric furnace, thermometer
Silver Plating Method：
Positive (+): titanium mesh
Negative (-): clip jewelry
1: Follow the electrolytic cleaning salt procedure to clean first
2: After electrolysis, 3 beaker cleanings are required
3: 54 grams of silver salt, 54% 500cc distilled water(not included).
Temperature: 104°F, Voltage: 3V
The electroplated items need to be shaken, the recommended electroplating time: 3-5 seconds
Electroplating Steps：
1. Polished with a cloth wheel and sander(not included)
2. Ultrasonic cleaning machine plus dewaxing water (heating) cleaning(not included)
3. Polishing with a polishing machine(not included)
4. Steam cleaner cleaning(not included)
5. Electrolysis and electroplating procedures completed
Key Features:
Compact and Lightweight: With its compact size (6.38*6.69*4.61 inches) and light weight (4.85 lbs), you can use it well on the countertop without taking up too much space

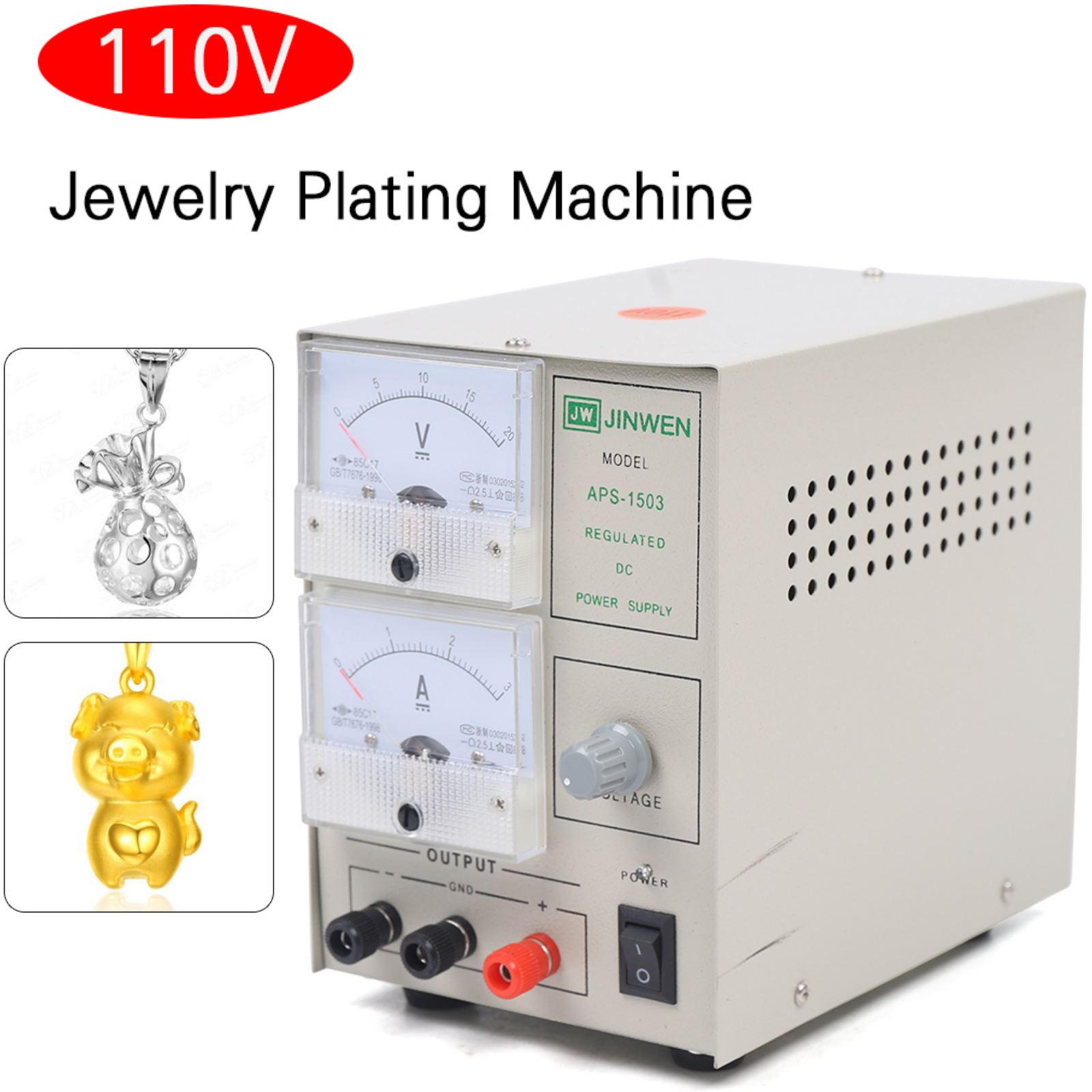

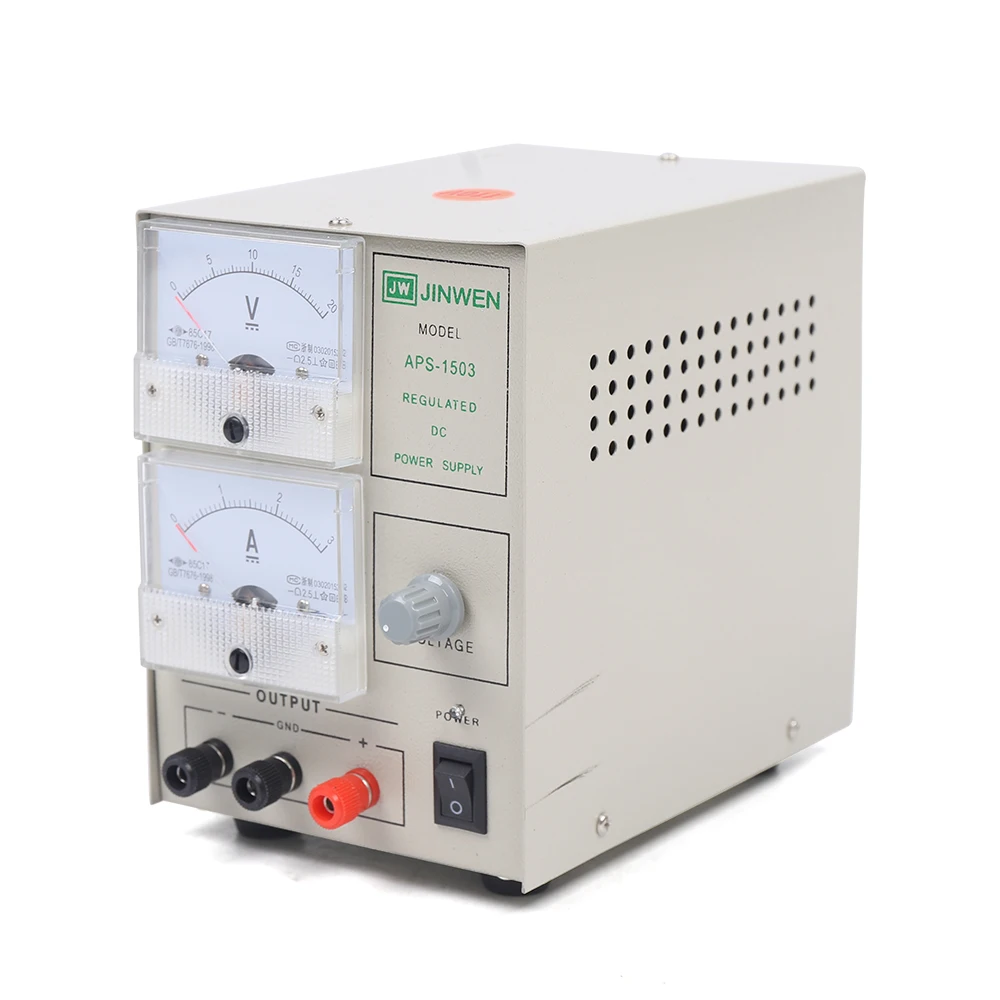

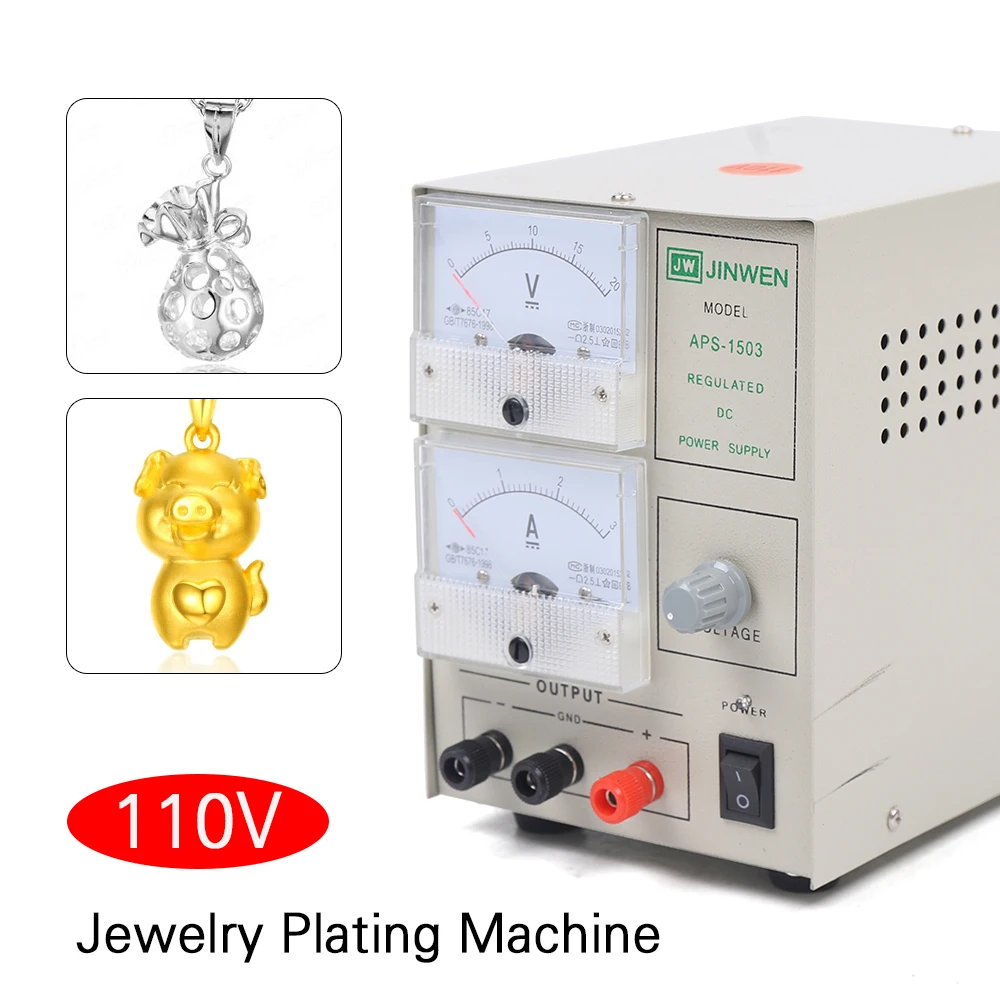

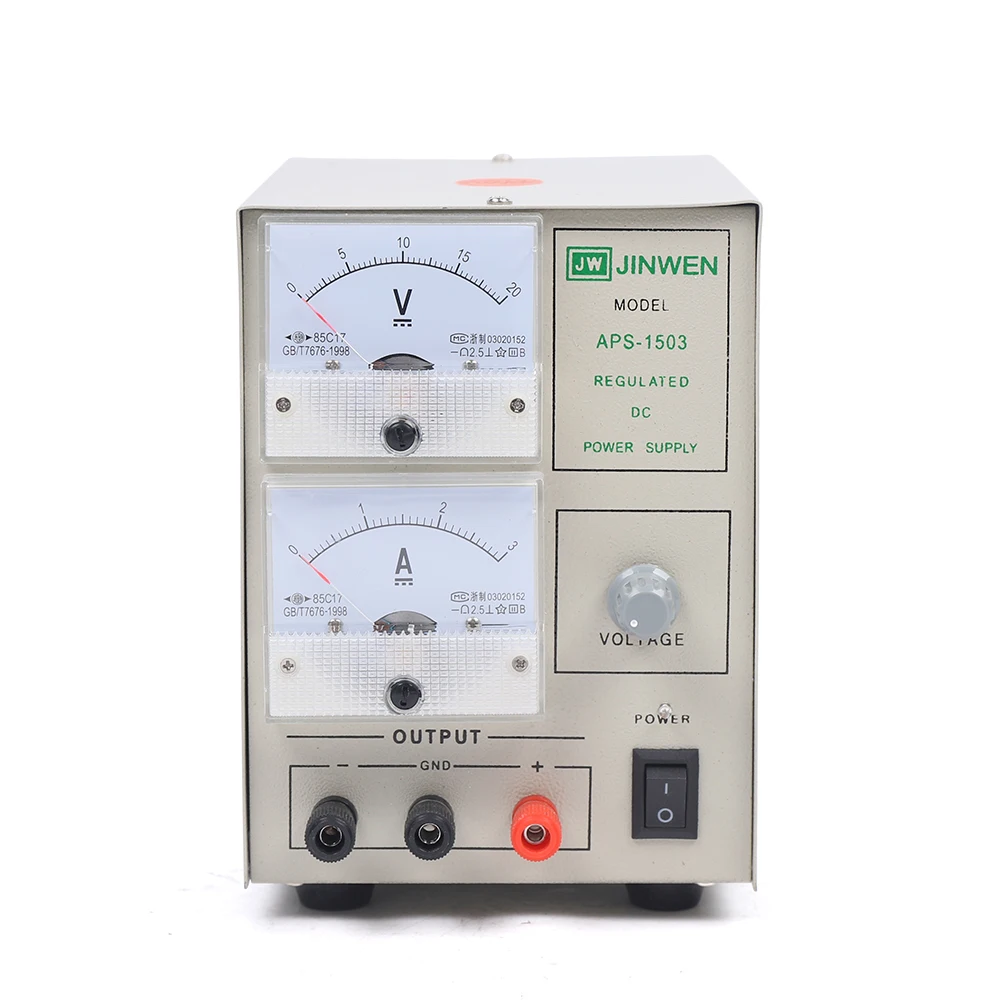

Thoughtful Design: The clear voltage meter and amperage meter show you the values for easy reading and convenient use, the one-touch switch makes it easy for you to start up, and you can adjust the voltage with the knob to accommodate jewelry made of different materials

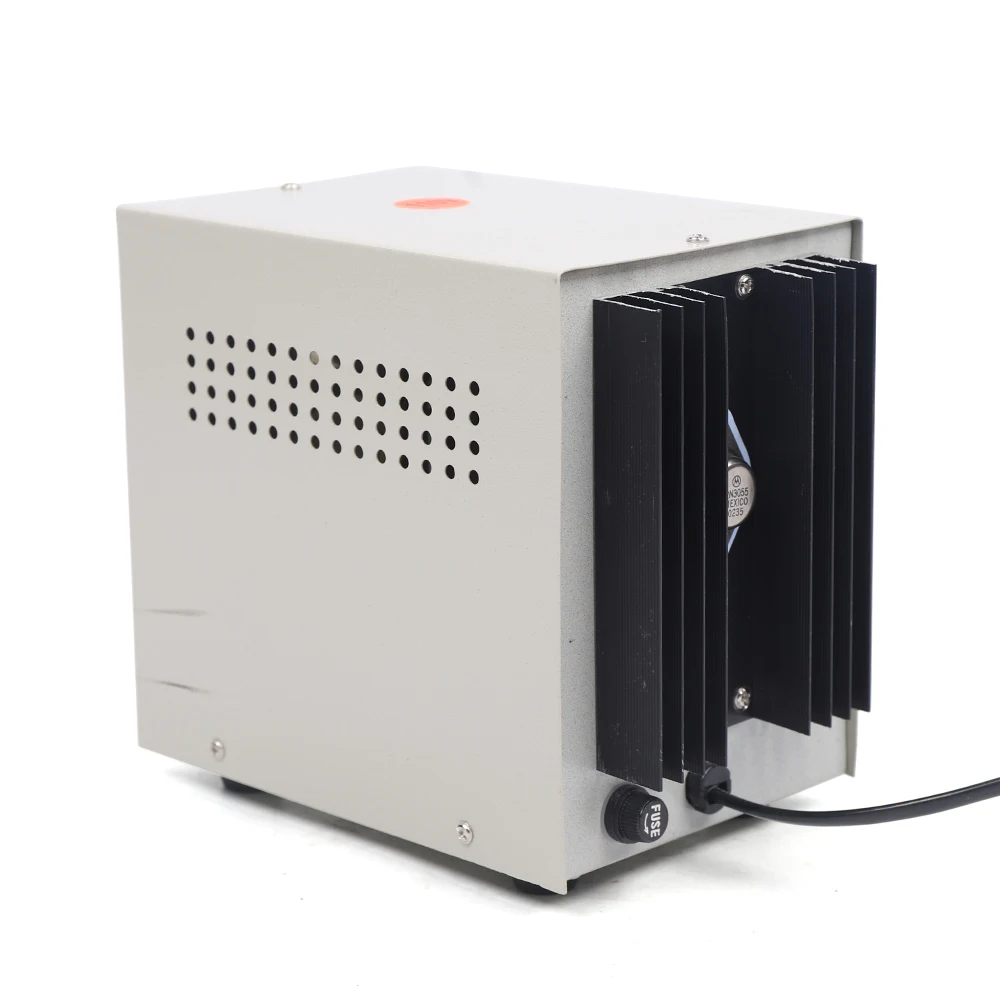

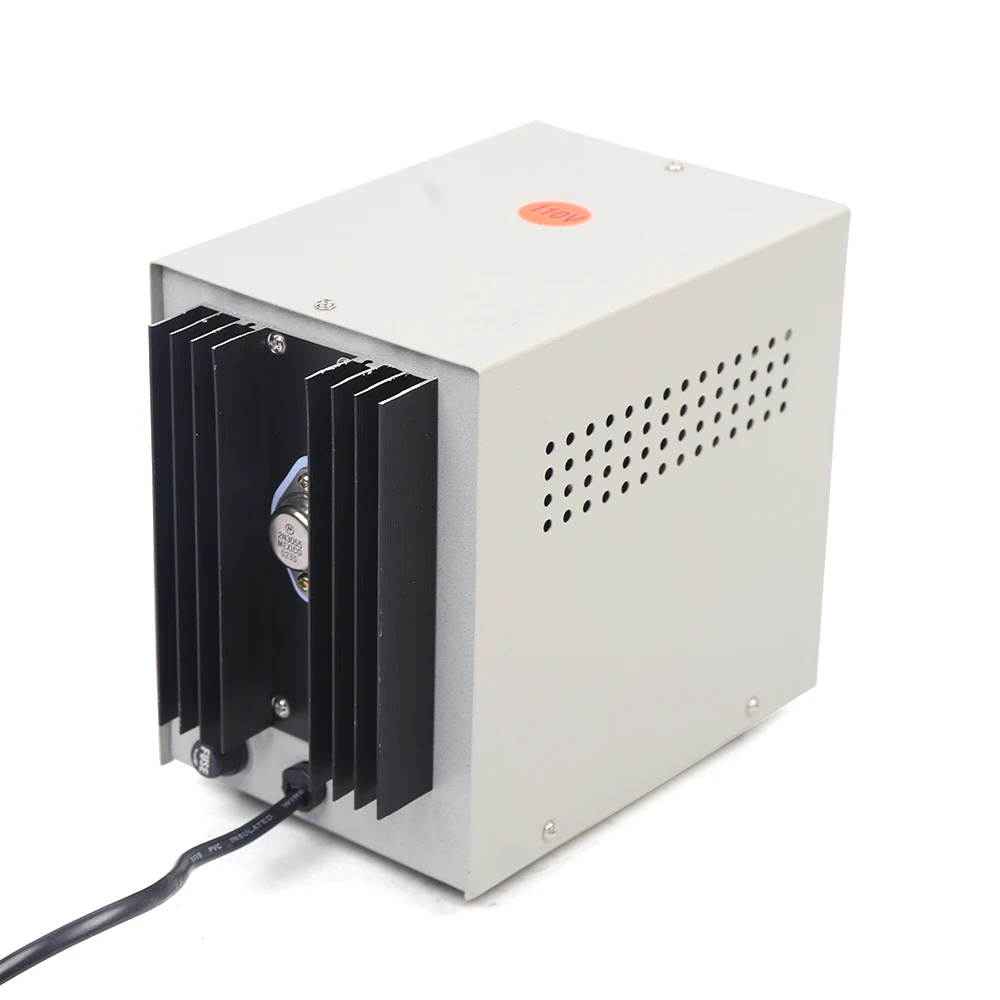

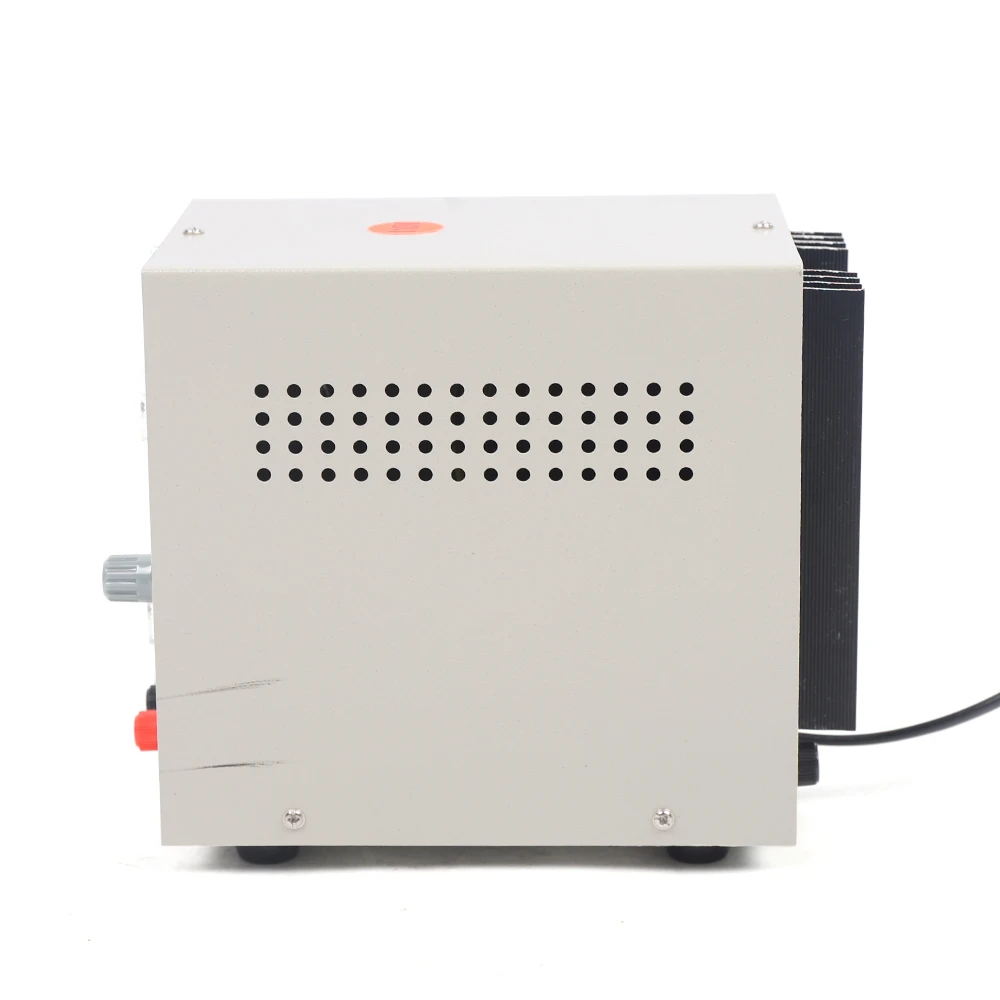

High Safety: The heat dissipation holes on both sides can dissipate heat for the product in time to ensure the stable operation of the product. In addition, it has automatic voltage regulation, over-current protection, under-voltage, and phase loss protection to ensure the safety of use
Specification：
Model: 1503
Material: Iron
Color: Grey White
Process: Spraying and Baking Paint
Mounting Type: Tabletop
Power Source: Corded Electric
Plug Type: US Standard
Max. AMP: 3A
Voltage: 110V
Gross Weight: 3kg/6.6lbs
Net Weight: 2.2kg/4.85lbs
Package Size: 26*15.5*21cm/10.24*6.1*8.27inch
Product Size: 16.2*17*11.7cm/6.38*6.69*4.61inch
Details：
Stable Feet: Four anti-slip feet on the bottom ensure the stability of this machine while reducing scratches on the countertop
Round Edges: Smooth edges without burrs are not only comfortable to touch, but also care for your skin

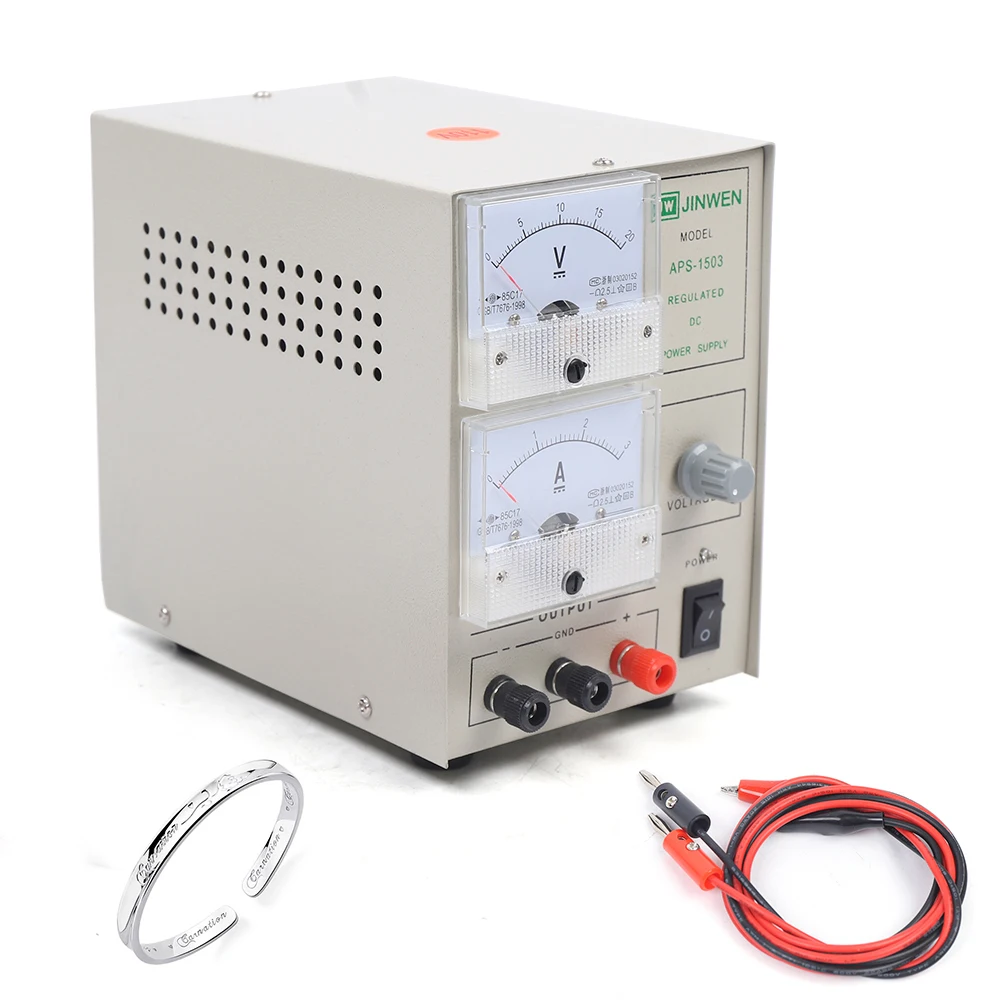

Package Included：
1* Electroplating Machine
2* Conductive Wires
Notes：
1.Please note that this product does not include jewelry, etc
2.Please note that all silver salt, electrolytic cleaning salt, and beaker cleaning must use pure distilled water
Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering
