Specifications:
Colour: Black
Material: aluminum alloy structure + plastic shell
Input voltage: AC110V-240V 50/60HZ
Rated power: 285W
Light source: 19PCS 15W RGBW LEDs
Strobe: 1-50Hz
Fuse: 3A
X axis ：540°
Y axis ：270°
Color temperature: 8500K

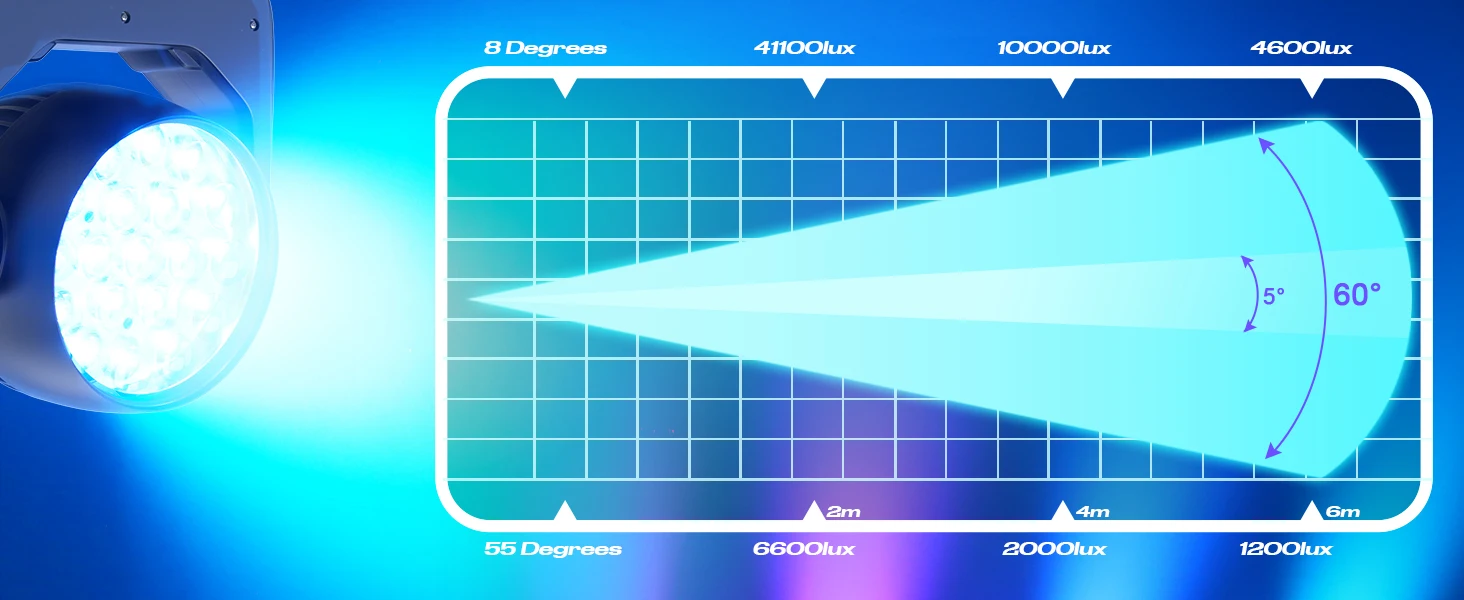

Zoom angle：7°-60°
Control mode: self-propelled, voice control, master-slave, DMX
Protocol: standard DMX512 protocol
Channel number: 16CH/24CH/32CH
Number of motors: 3 silent motors in total
Plug type: ohm head input/output (up to 4 units)
Illuminance: 4200Lux@5 meters
LED average life: 10000H
Data connection: three core XLR input/output
Display: LCD liquid crystal display
Working environment: -10℃-50℃
Dimming: 0-100% linear adjustment
Heat dissipation mode: temperature-controlled intelligent heat dissipation
Strobe: Strobe speed (1-30 times/second), complete linear dimming and variable strobe speed
Focusing: Using optical combination, the effect is far better than ordinary wash lights, and can project HD effect
Protection class: IP20
Product Features:
1. Focusing function: The focusing dyeing shaking head is equipped with the ability to adjust the focus, users can realize the focusing and defocusing of the light and adjust the angle and range of light projection through the console or manual operation according to the needs.
2. Dyeing effect: The luminaire is equipped with dyeing function, which can create rich and diverse lighting color effects and provide more lighting options.
3. Rocking Head Function: The focusing and dyeing rocking head is equipped with a rocking head function, which can realize horizontal and vertical rotation and scanning motion. Through the console or automatic program, you can set the range and speed of the fixture’s panning head movement, allowing the lights to scan and display flexibly on the stage or venue.
4. Multiple working modes: The luminaire supports multiple working modes, such as automatic mode, voice-activated mode, DMX control mode, etc. Users can choose the right mode according to their needs to realize different lighting effects.
5. High Brightness Lighting: The focusing coloring moving head adopts high brightness light source to provide strong and bright lighting effect, which is suitable for stage performances, concerts, speeches and other places that need high brightness lighting.
6. High-speed response: The control system of the luminaire has high-speed response capability, which can accurately respond to the user’s operating instructions and adjust the parameters and effects of the light in real time to ensure smooth and accurate lighting changes.
7. Multiple installation methods: the focusing coloring moving head is designed to be flexible and can be installed on the boom, bracket or hook. Suitable for different venues and requirements, convenient for users to install and carry as needed.
Safety warning!
In order to ensure your safe and correct use of lamps, please read the following safety tips carefully before use to avoid unnecessary failures and injuries.
1. Non-professionals, do not disassemble the lamps and accessories inside the lamps without authorization.
2. AC power supply: check whether the local power supply meets the rated voltage requirements of the product.
3. The luminaire is designed according to the type of electric shock protection. The luminaire must be connected to a fully grounded power supply system, and the ground wire of the luminaire must be connected to the ground wire of the power supply system. Do not use a power cord with damaged insulation, and do not use it The power cord is bonded to other wires.
4. When installing and positioning the lamp, keep a minimum distance of 10 meters from any point on the surface of the lamp and any flammable and explosive materials, and 2.5 meters from the irradiated object. Please do not install the lamp directly on the surface of burnable materials.
5. The ambient temperature of the lamp: (- 10 degrees + 40 degrees), the maximum surface temperature of the lamp is 80 degrees, and the lamp should be kept away from liquid substances and humid environments.
6. Before using the lamp, make sure that the lamp is well grounded, and do not install or remove any parts of the lamp while it is live.
7. When installing lamps, the fixing screws must be tightened, and a safety cable must be added, and regular inspections must be made.
8. It is recommended that the continuous working time of the lamp should not exceed 10 hours, and the interval between continuous startup of the lamp should not be less than 10 minutes. Otherwise, it will not be triggered normally due to the overheating protection of the bulb.
9. During use, if the lamp is abnormal, stop using the lamp in time.
10. When the bulb reaches the rated service life, it should be replaced in time, otherwise there will be a dangerous accident of bubble explosion.
11. The rotating parts of the lamps and the pasting accessories must be checked regularly, and if they are loose or shaken, they should be reinforced in time to prevent accidents.
12. The lamps are cooled by strong wind, which is easy to accumulate dust. It must be cleaned once a month, especially the cooling air outlet, otherwise it will be blocked by accumulated dust, resulting in poor heat dissipation and abnormal lamps.

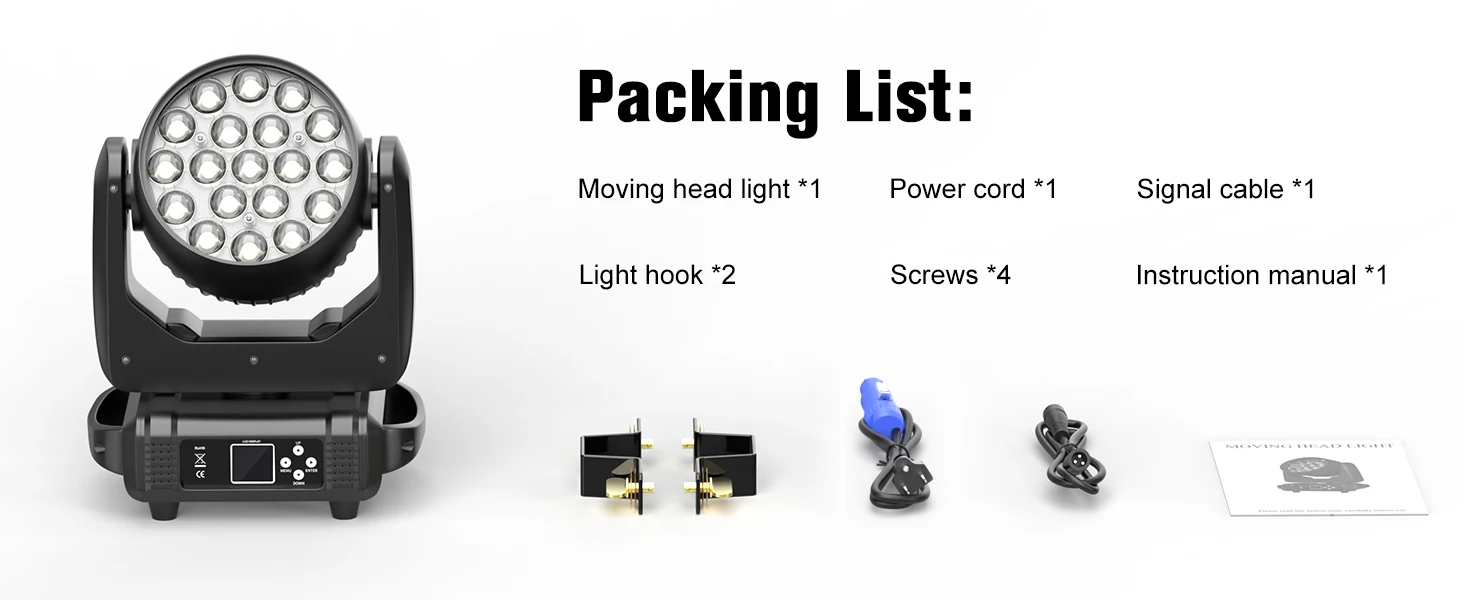

Packing List:
Moving head light *1
Power cord *1
Signal cable *1
Light hook *2
Screws *4
Instruction manual *1
