Description:
※ Specialized Switch for High Power Home Appliances
High quality 20A Relay, more stable and safety, max. 4400W
※ Tempered Glass Touch Panel
High sensitivity touch button, fast response, no delay
※ App Remote Control from Anywhere
Control(Turn on/off, set timer) your appliance remotely by using “Smart Life”/”Tuya Smart” APP in your smartphone with Wi-Fi or 4G/5G network, no hub/gateway required.
※ Voice Control
Works with Amazon Alexa, Google Home and Siri(iOS 12.0 or later), you can voice control the home appliance through voice commands.
※ Multifunction Timer:
Countdown/Schedule/Circulate/Random/Inching
– You can set 1 or more timer to make the boiler turn on/off automatically, or running for a period of time and then close automatically.
※ Share Device & Group Control
Multiple cellphones can control the same boiler switch; one cellphone can control multiple switches at the same time.
Features:
* Real-time feedback of switch status
* Low power standby,energy saving and safe;fast response,no delay
* Max. load 20A/4400W, can support high power boiler.
* Strong signal ensures the connection between the network and switches.
* Surge resistance and effective protection of circuits.
Specifications:
* Model Number: CS-SS-WB
* Material: Tempered Glass + ABS Plastic
* Input Voltage: AC100-240V~50/60Hz
* Max. Load: 20A/4400W
* Standby Consumption: Less than 0.5W
* Wi-Fi Standard: IEEE 802.11 b/g/n 2.4GHz
* APP:Tuya Smart /Smart Life
* Certifications: CE/FCC/RoHs
* Type: US Standard Size / EU Standard Size
* Dimensions: 120*72*37mm(US); 86*86*35mm(EU)

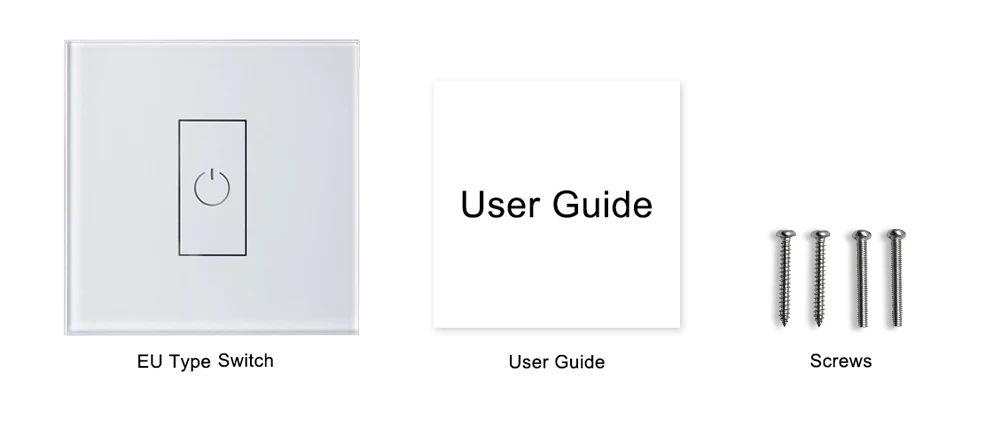

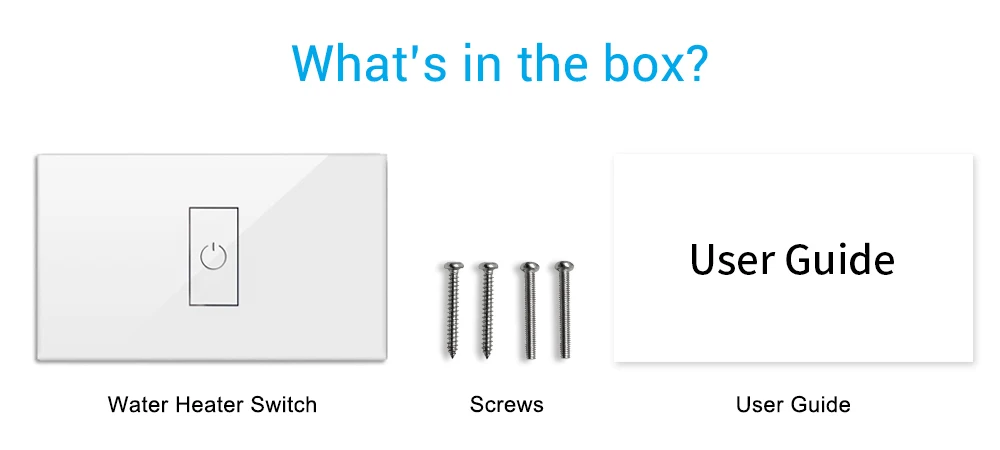

Package include:
1 x Smart Boiler Switch
1 x User Manual
4 x Screws
Purchase Notes:

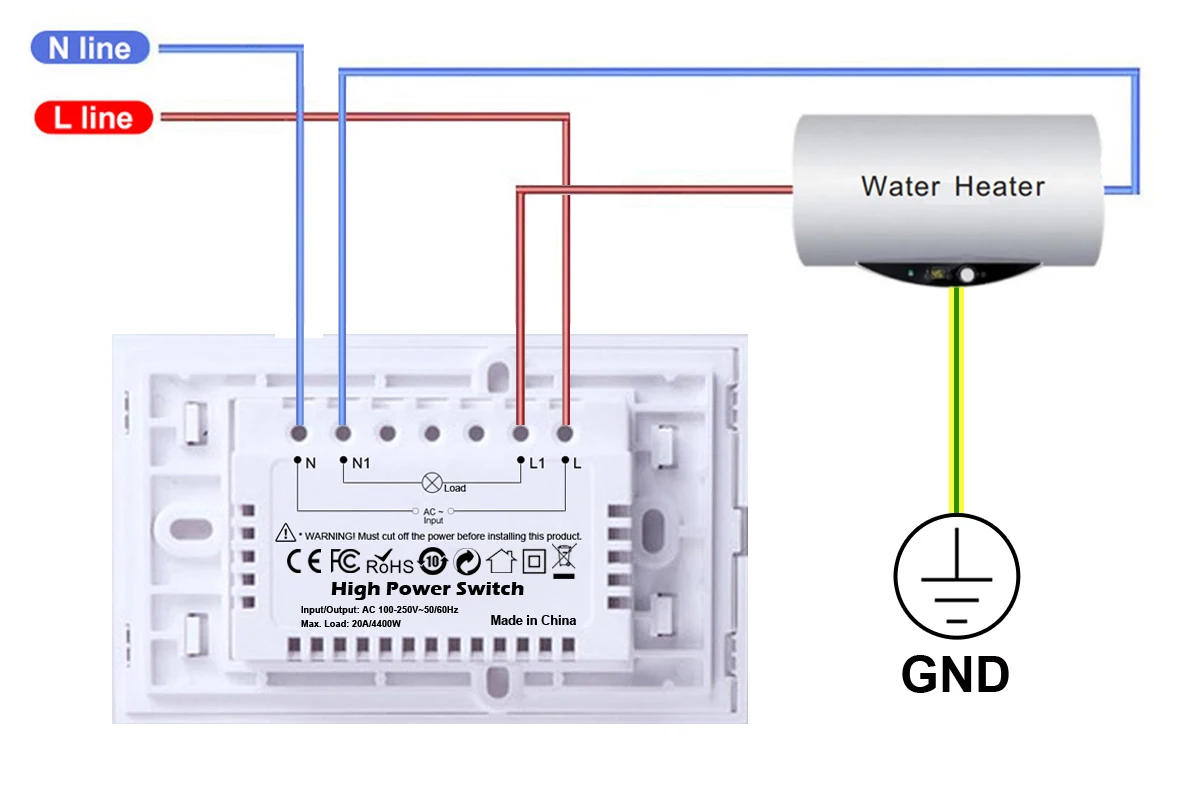

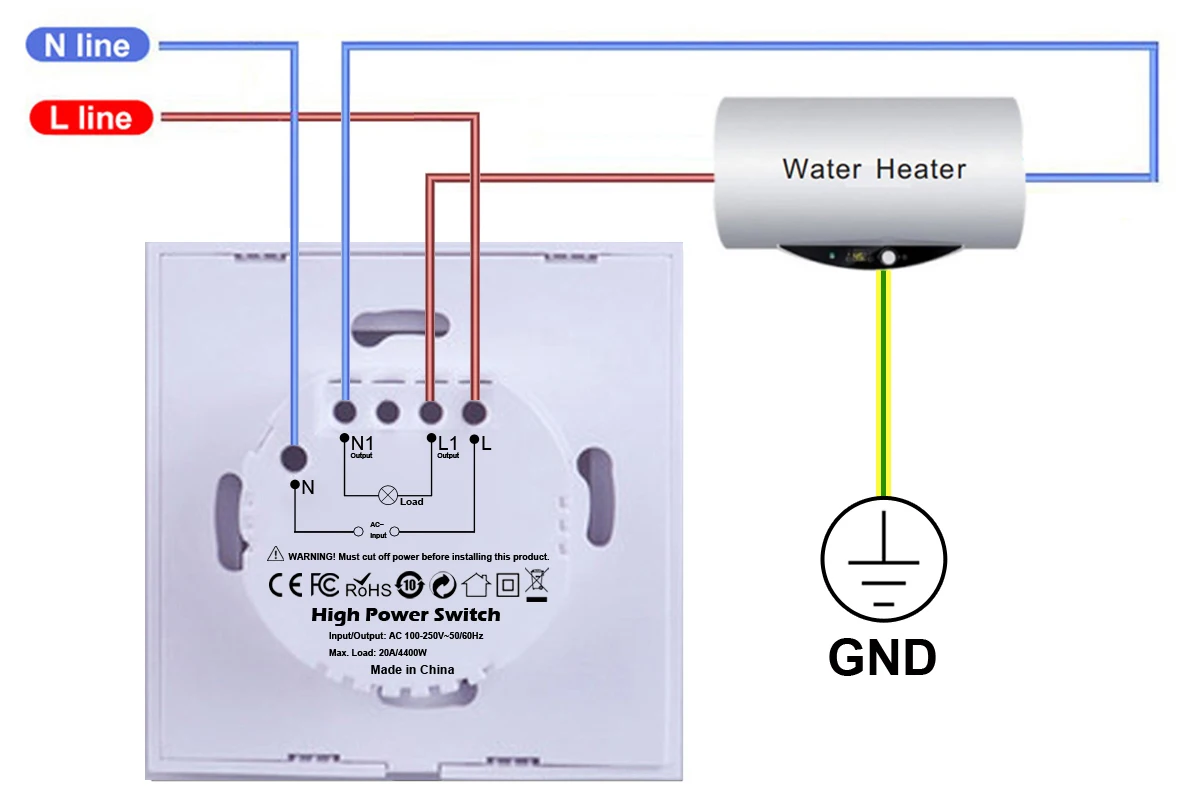

1. A neutral line is a must to install this boiler switch.
2. Only supports 2.4GHz Wi-Fi network,not compatible with 5GHz Wi-Fi.
3.The boiler switch can’t adjust the temperature.
4. Amazon Echo or Google Home or iPhone(iOS 12.0 or later) is required if you want to use voice control.
CE/RoHS/FCC Certificates
CS-SS-WB Smart Boiler Switch had been verified by CE/FCC/RoHS, CE Certificate Number: DL-2020125402C. If you need the CE/FCC/RoHS Test report,Declarations of conformity Technical descriptions or other information, please contact with us.
Specialized Switch for High Power Home Appliances
This switch uses 20A Relay, support max. 4400W, more stable and safety.
Power input: AC 100-240V~50/60Hz

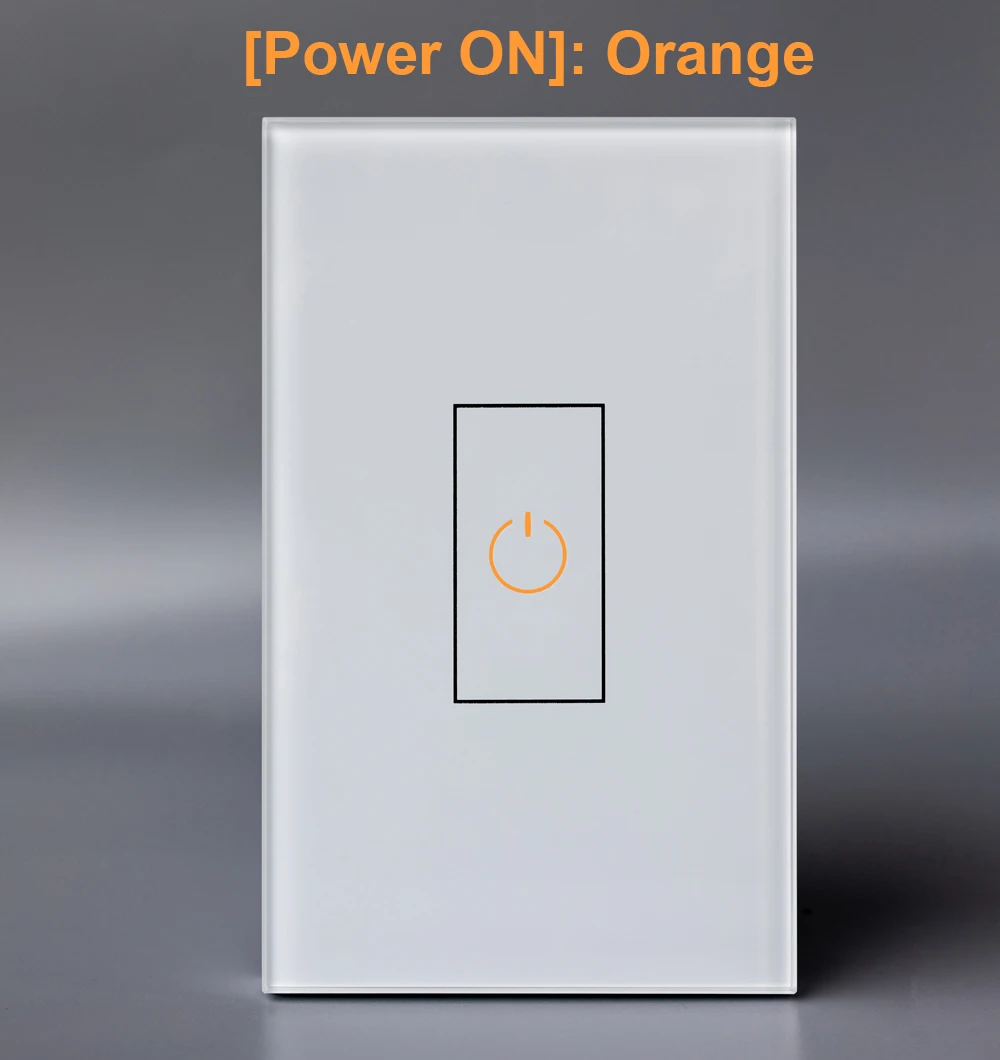

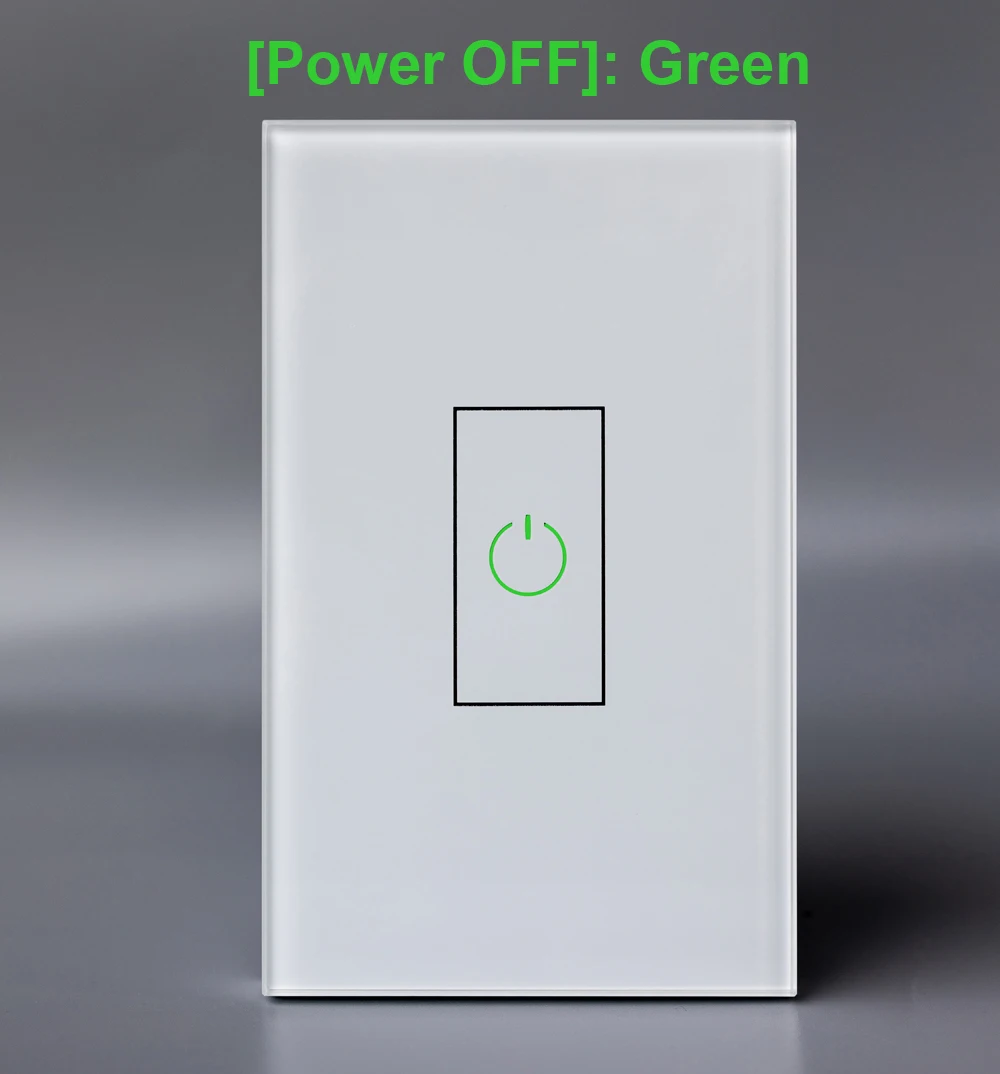

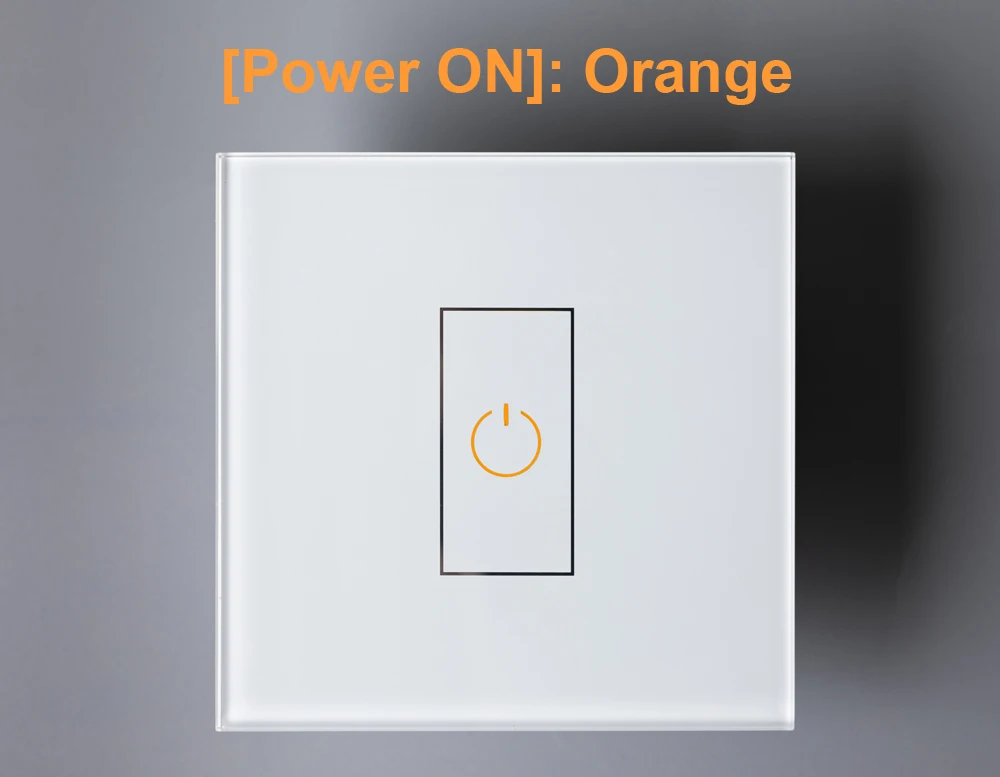

Tempered Glass Touch Panel
High sensitivity touch button, fast response, no delay
App Remote Control
Control(Turn on/off, set timer) your appliance remotely by using “Smart Life”/”Tuya Smart” APP in your smartphone with Wi-Fi or 4G/5G network, no hub/gateway required.
Multifunction Timer:
Countdown/Schedule/Circulate/Random/Inching
You can set 1 or more timer to make the boiler turn on/off automatically, or running for a period of time and then close automatically.
– Countdown
– Schedule
– Circulate
– Random
– Inching: Enable the feature will make the device in an automatic state: After opening the device each time, it will automatically close after running for a period of time.
Especially Introduce: Inching Timer Function
– Set inching time for your boiler on App, when time is up, the boiler can be off automatically , for example, if you set 30 minutes, so after 30 minutes working time since you touch on the glass panel or mobile App, the boiler will be off by itself.
Setting Interface and Functions
Third-Party Voice Control
Works with Amazon Alexa, Google Home and Siri(iOS 12.0 or later), you can voice control the home appliance through voice commands.

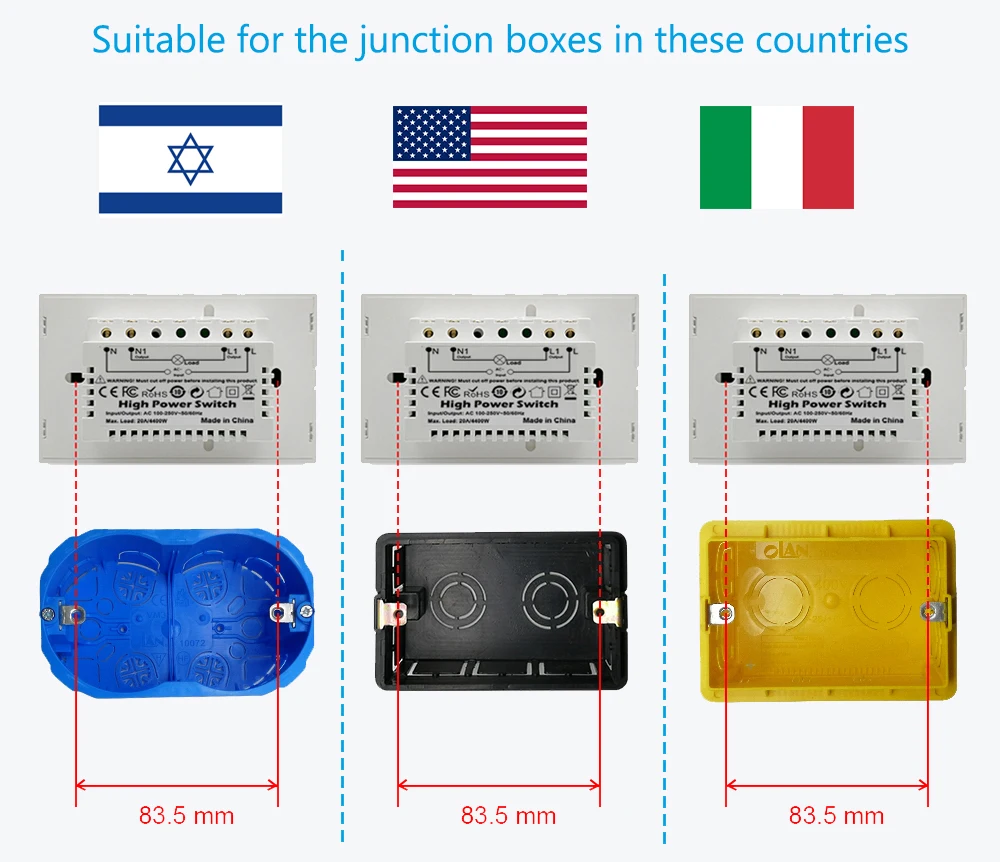

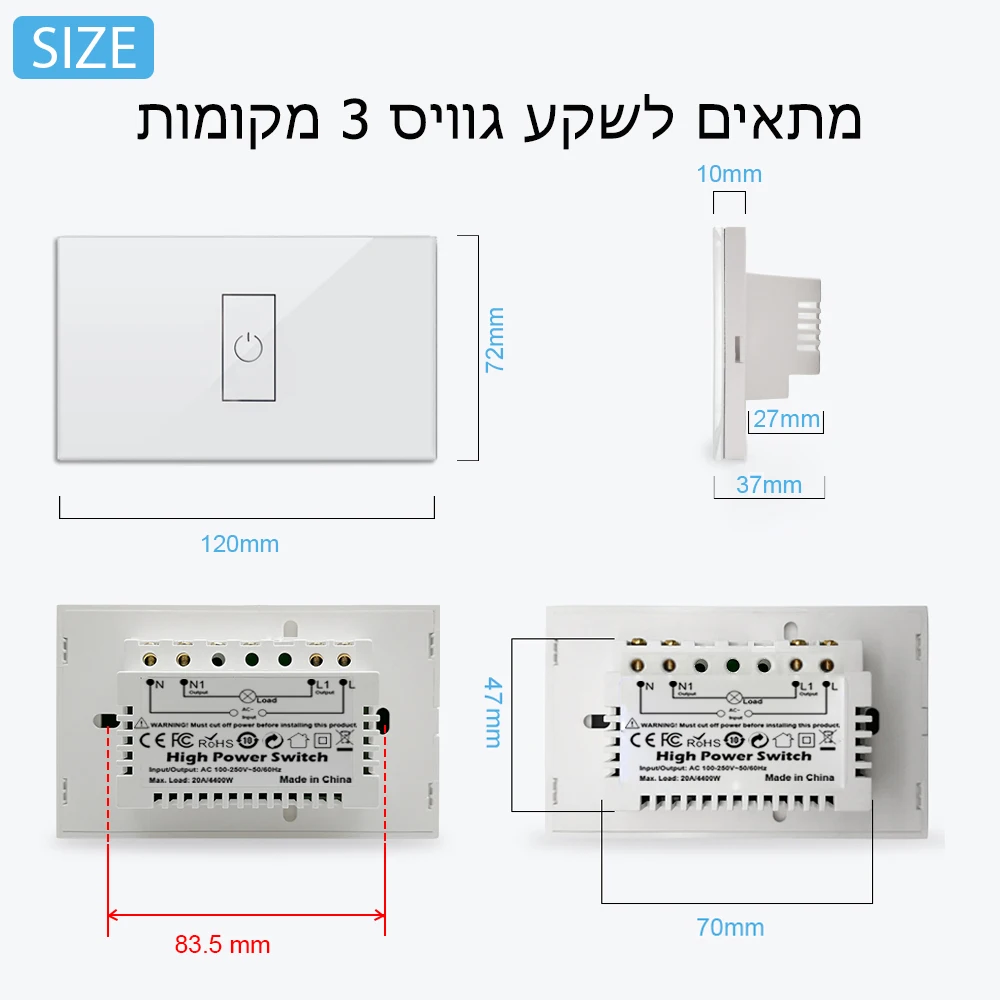

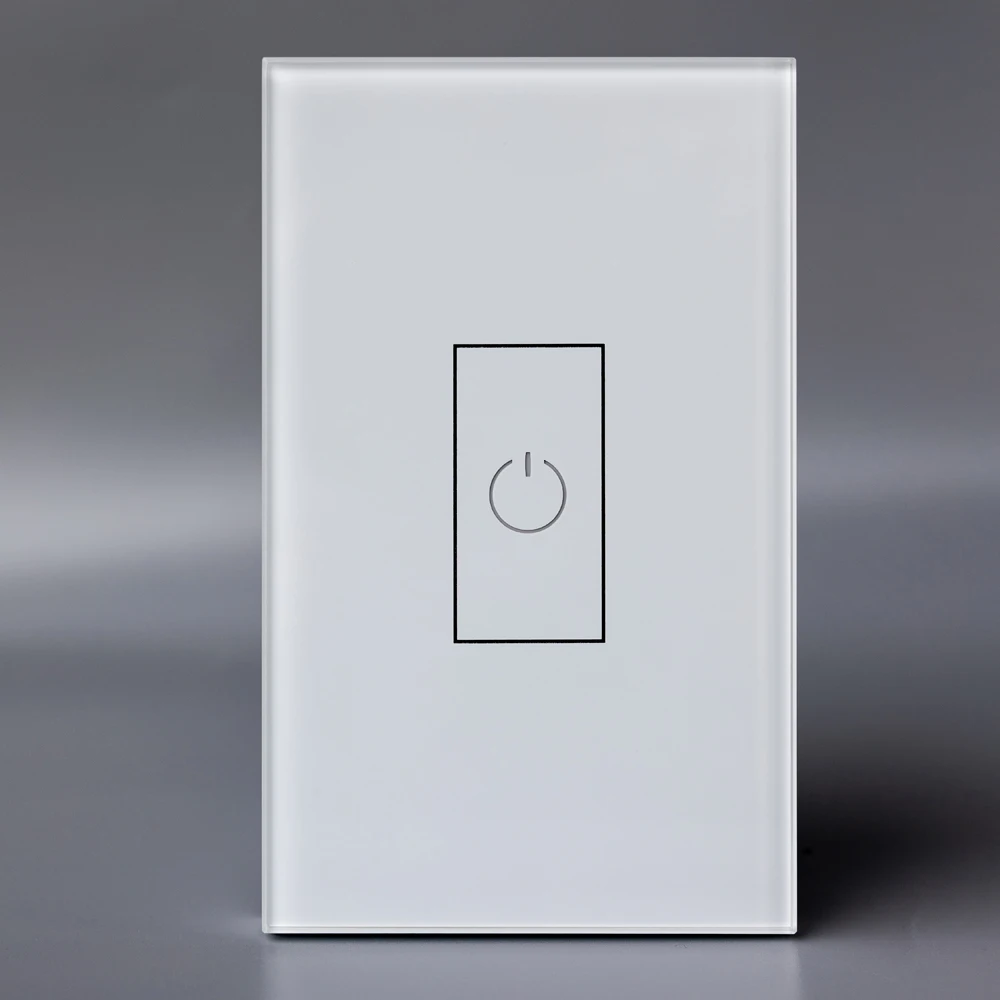

US Standard Size:
120*72*37mm(Rectangle)

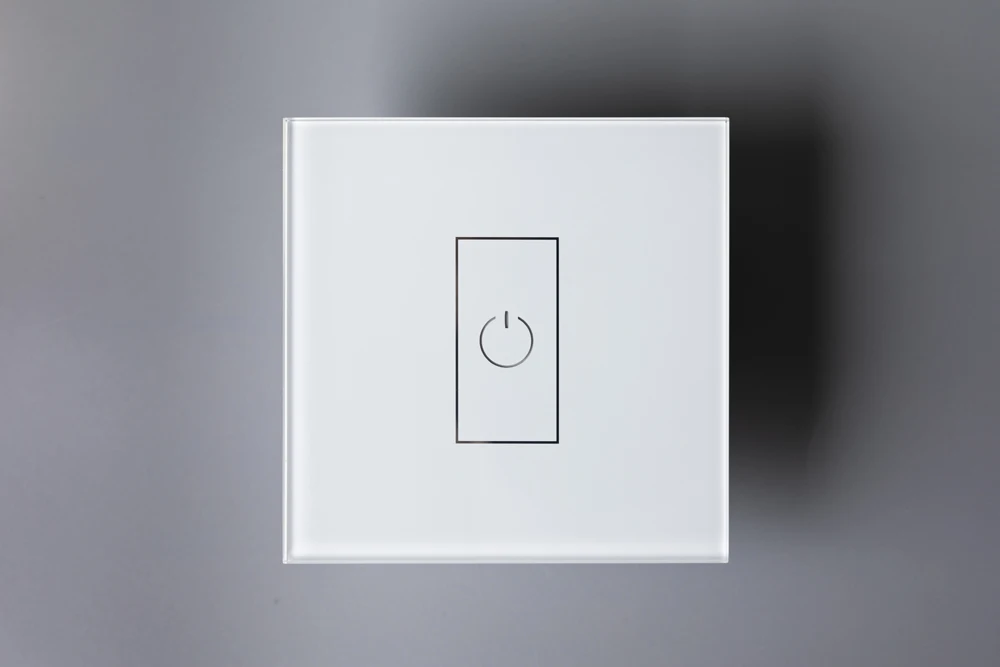

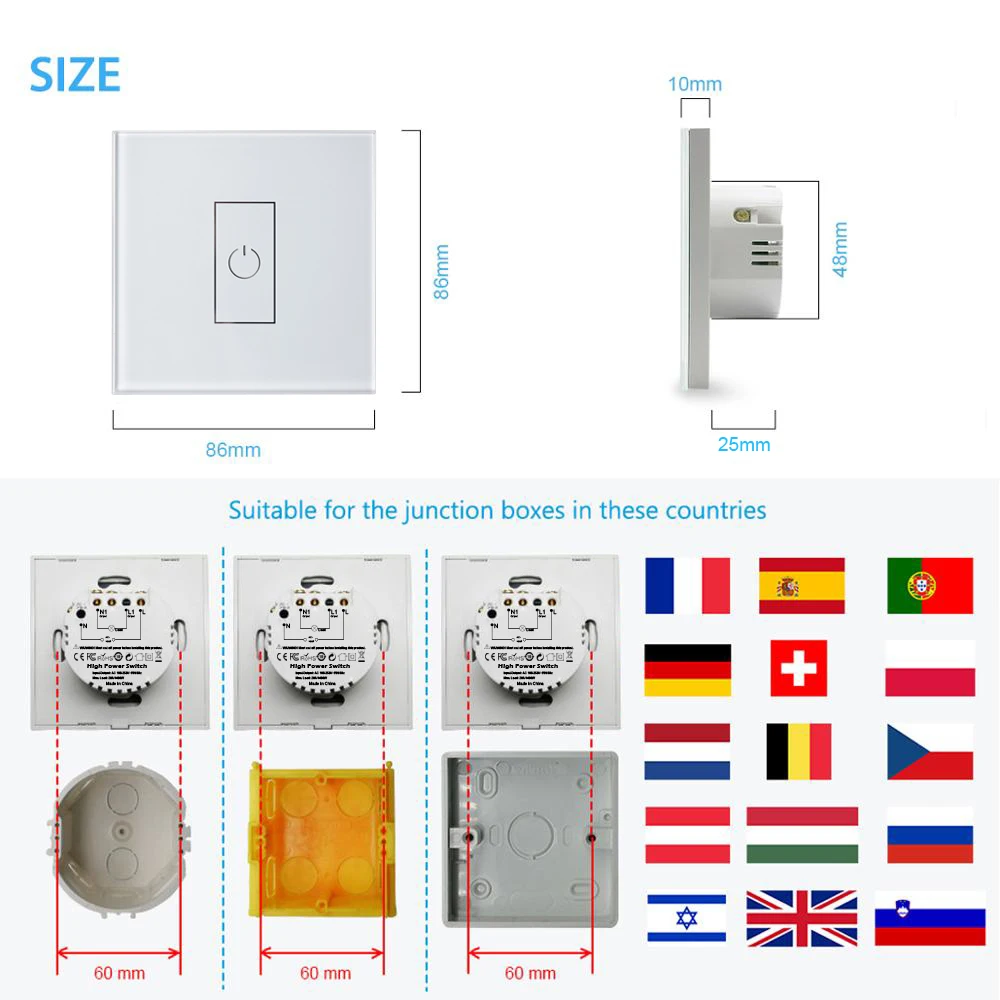

EU Standard Size:
86*86*35mm(Square)
How to install App
Scan the QR code below, or search “Tuya Smart” or “Smart Life” in App Store or Google Play to install it. Sign up an account and then log in.
▼Choose either one App to install: Tuya Smart(Recommended) or Smart Life. No need to install both APPs.

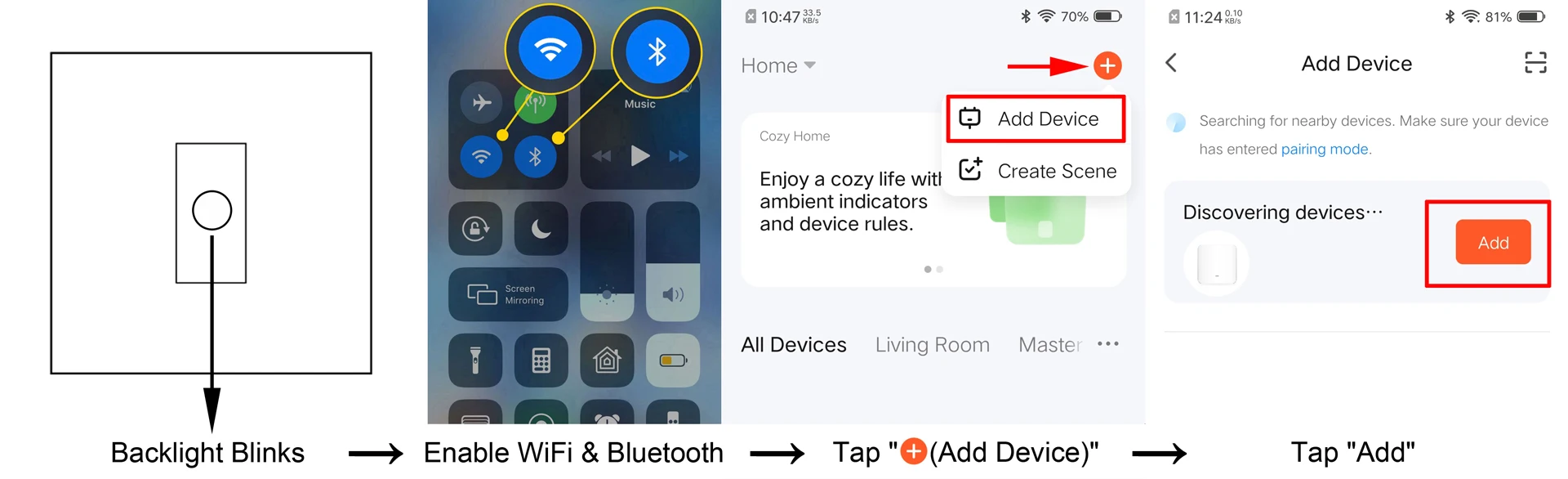

How to Add Device in App
Enable cellphone WiFi and Bluetooth, confirm the indicator light is blinking rapidly, open App, tap “Add Device” or “+”, several seconds later, App will pop-up a window, tap “Go to add” to add device. Then follow the steps in App.
FAQ:
Q: What’s the Max power load of the switch?
A: It can load 20 Amp max, the max power is 4400W.
Q: What’s the switch shape?
A: Two size for choice: Square shape(Dimensions: 86mm*86mm*35mm), Rectangle shape(Dimensions: 120*72*37mm)
Q: What’s the App name?
A: Tuya Smart, or Smart Life, both available
Q: How soon can you send the item after I make order?
A: We have lots of stock for this item, we can send it very soon.
Q: Can you do OEM for us?
A: Yes, we are the manufacturer, if you have large quantity requirement, please feel free to contact us, we will offer you wholesale price. We have laser engraving machine, can print logo and customized text on product for customers. It’s also available to print Logo/Customized text on retail box.
