Description:

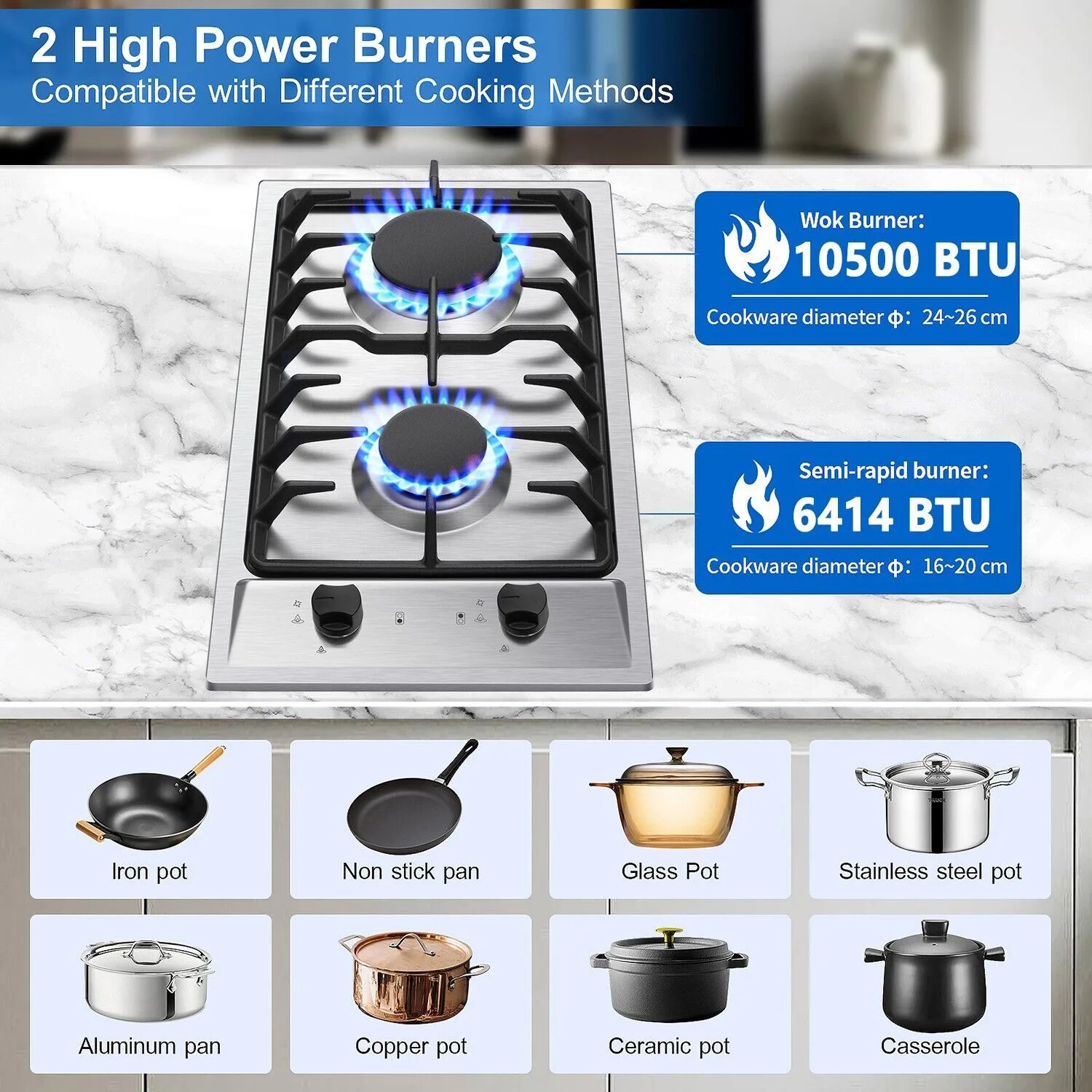

2 Burners Power: 10,500 BTU + 6,414 BTU
Fuel Type: Natural Gas (NG) nozzles are preset and can be replaced with Liquefied Petroleum Gas (LPG) nozzles.
Melt-proof Knobs
Melt-proof and anti-scalding bakelite knob controls, with child protection lock, need to press and rotate at the same time to ignite, preventing children from accidentally touching.

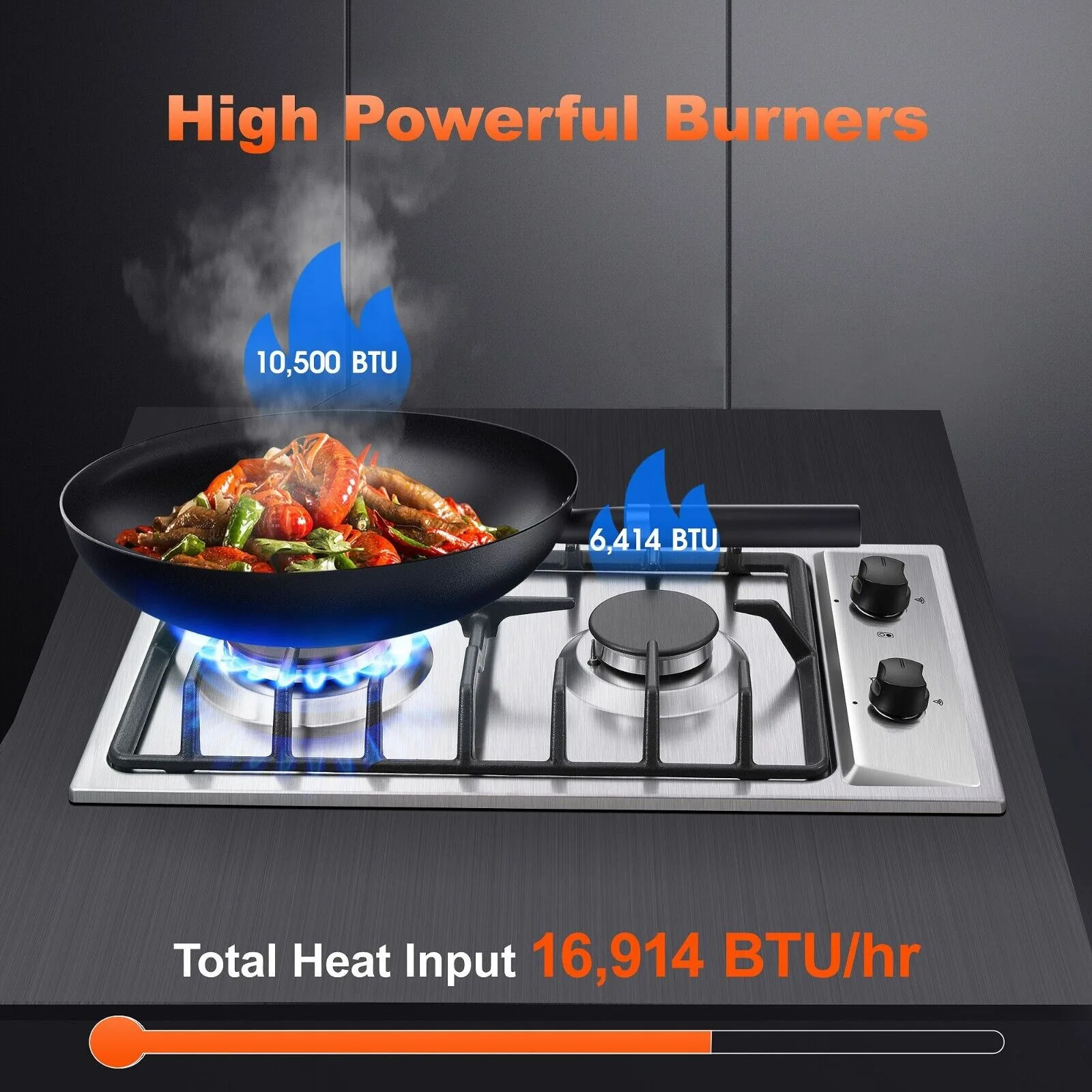

Powerful Burners
Made of high-quality material, this propane cooktop assure you poweful and stable flames. Total 16,914 BTU to meet the cooking needs of the whole family.

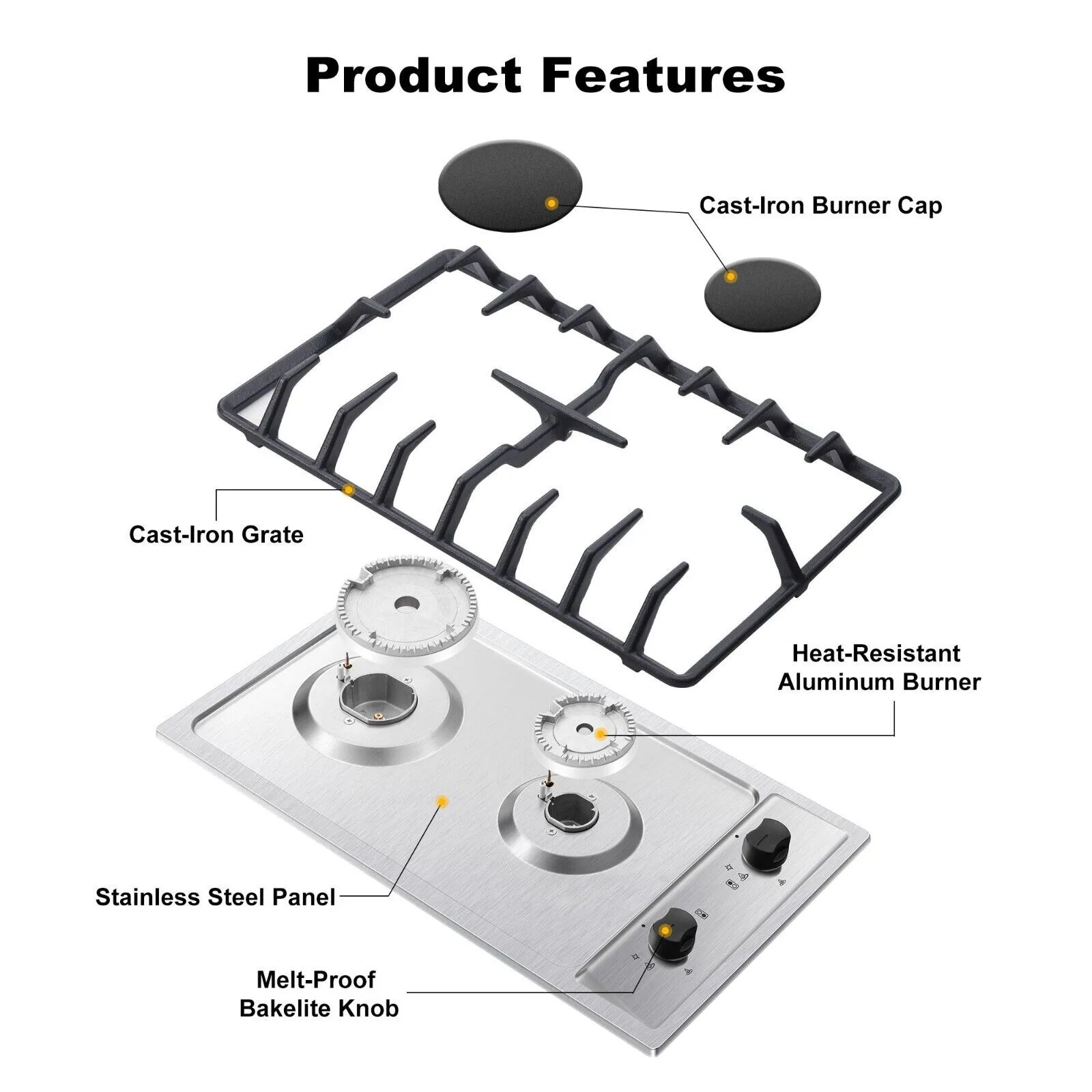

Heavy-duty Cast Iron Grate
One-piece heavy cast iron grate, easy to assemble and remove, will not deformed. The unique 8 claw structure is suitable for all kinds of pots and pans, can support the pot firmly, avoid letting the pan slip off.
Feature:
Melt-proof Knobs
Powerful Burners
Heavy-duty Cast Iron Grate

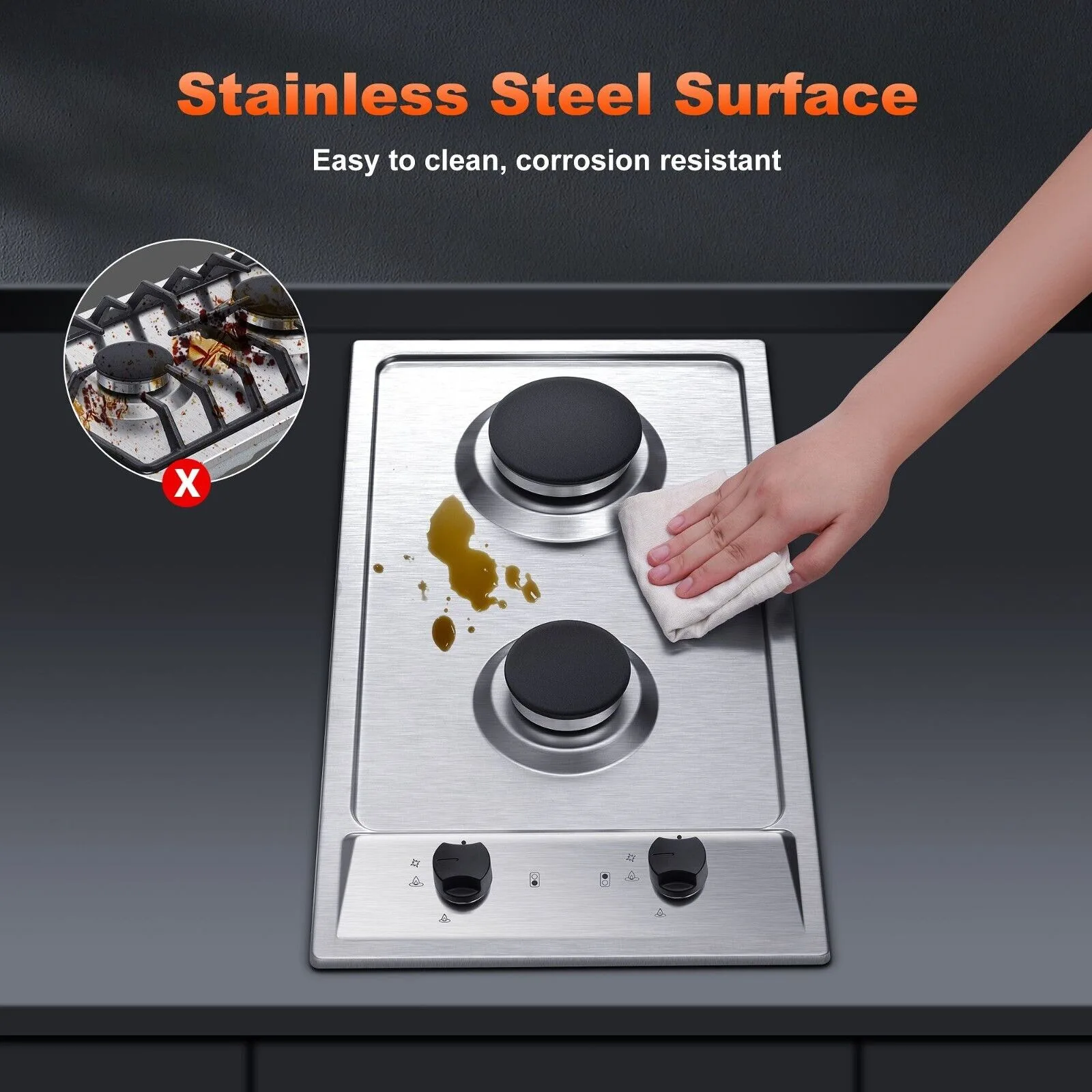

Stainless Steel Surface

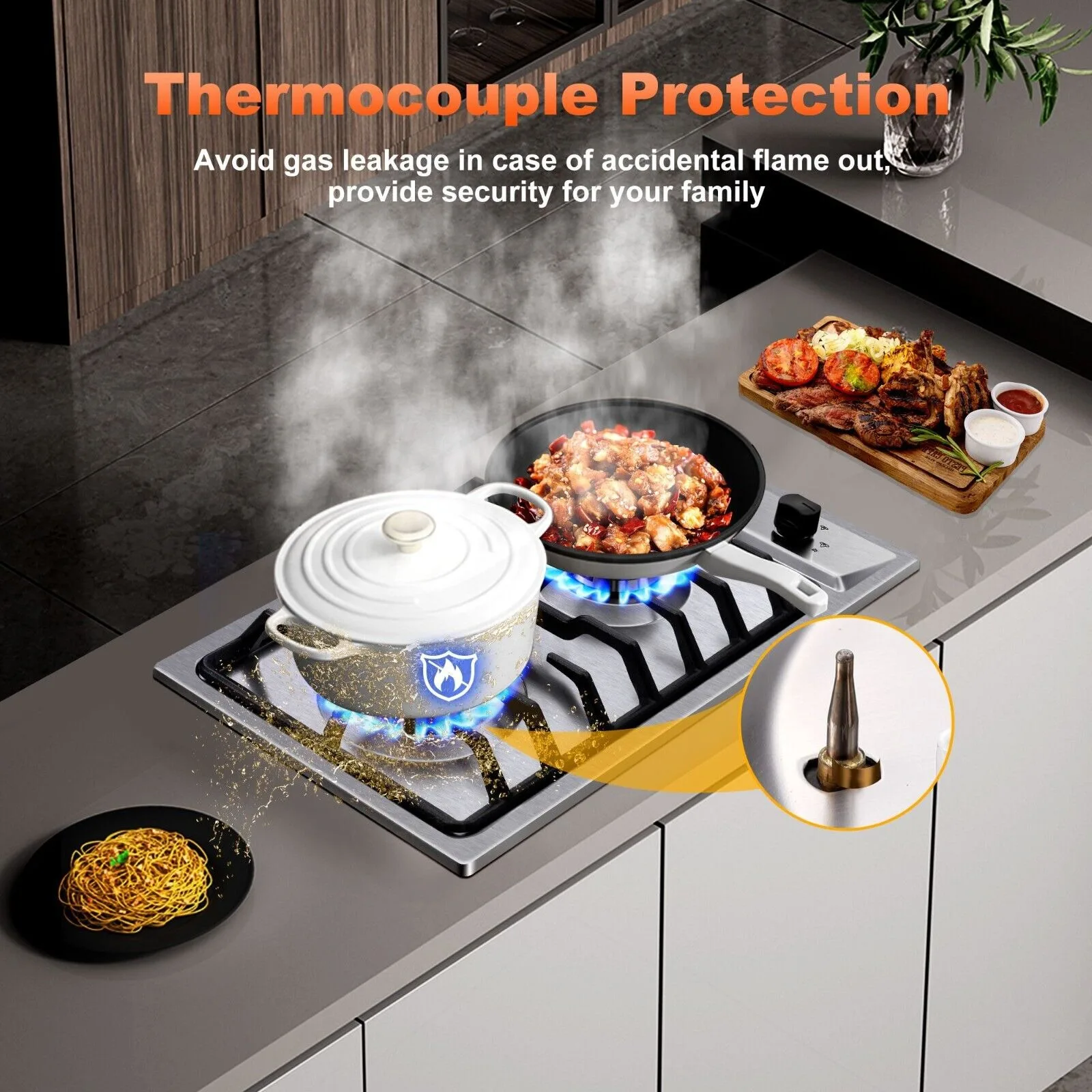

Thermocouple Protection

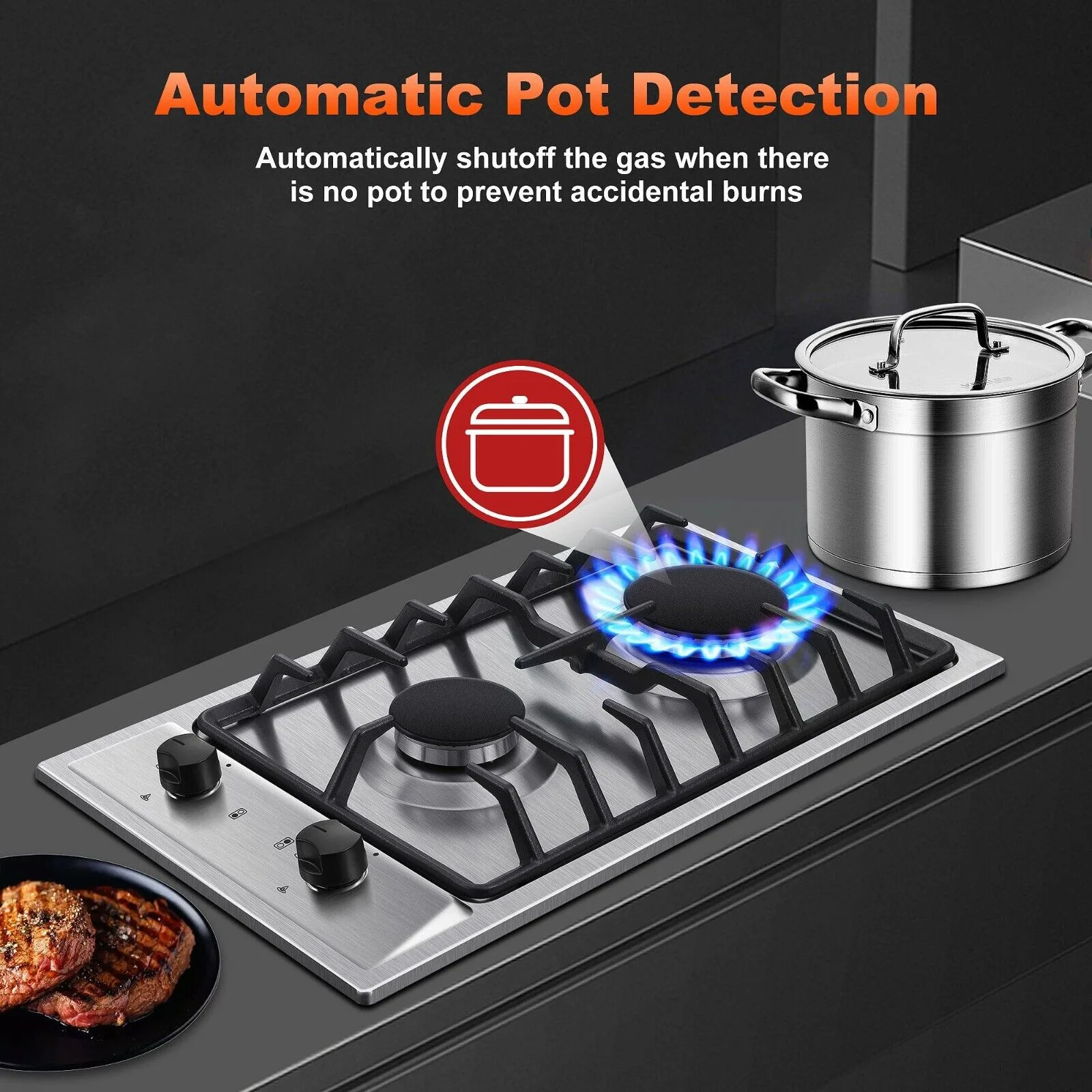

Automatic Pot Detection
Details:
Cut out Dimensions:10.47″ Wx 18.81″ L
Installation:Built-In/Integrated
Number of Burners:2
Control Design:Knob Control
Color:Silver
Material:Stainless Steel
Product Dimensions:11.42″ W x 19.69″ L x 3.54″H
Item Depth:19.69 in
Fuel Type:Dual Fuel
Surface:Burner
Brand:Amzgachfktch
Design:Cooktop
Type:Gas Cooker
Manufacturer Warranty:2 Year Part Warranty
Item Height:3.9 in
Model:GH001-122S

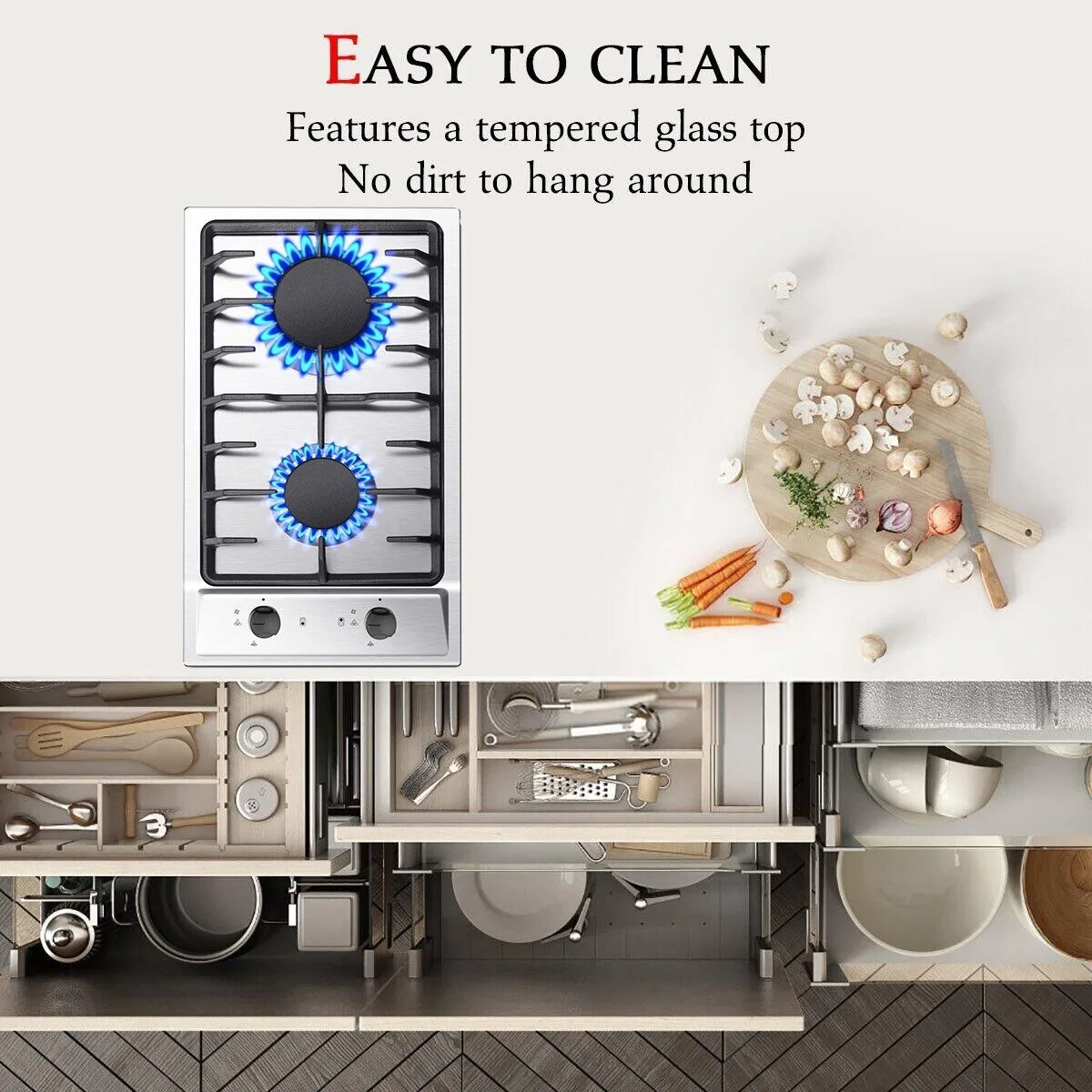

Features:Easy Clean, Front Control
Power Requirement:120 V
Country/Region of Manufacture:China
Item Width:12 inch
Please Note That:
Extra LPG Nozzles are included in the package, but the natural gas pressure regulator and the gas pipe are NOT included.
It is recommended that the gas stove top be installed and tested by professionals.
Please tear off the film on the surface before using to avoid fire.
This gas cooktop is for bulit-in use only, please verify the gas cooktop is the right size for you.

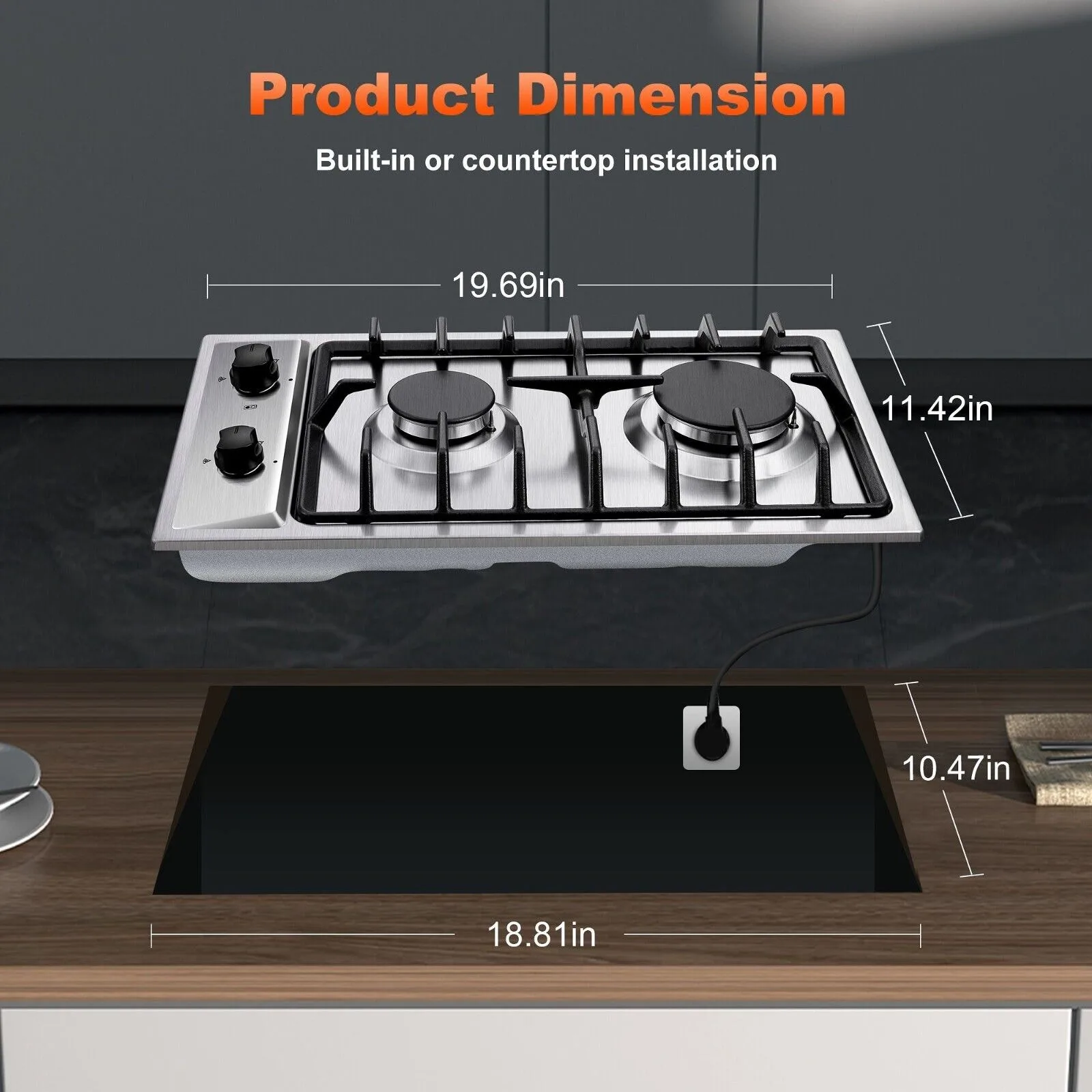

Product Dimensions: 11.42″ W x 19.69″ L x 3.54″H
Cut out Dimensions: 10.47″ Wx 18.81″ L
For a correct installation, the following precautions must be followed:
The gas stove should be connected to the gas-supply by a registered installer. During installation it is essential to fit an approved gas tap to isolate the supply from the stove for the convenience of any subsequent removal or servicing.
Once the stove was installed, make sure all the connections are properly sealed, use a soapy water to test, never use flame.
Fixing fittings (brackets, screws) are provided to place the gas cooktop on work top, measure 0.79 to 1.58 inch in thickness.
In the event the gas cooktop is not installed on a built-in oven, a wooden panel must be inserted for insulation.This panel must be placed at least 0.79 inch distance from the bottom of cooktop.
When installing the gas cooktop on a built-in oven, the oven should be placed on two wooden strips, in the case of a joining cabinet surface, remember to leave a space of 1.78 x 22 inch at least from the back side.
DO NOT install the stove in a damp closed environment, because long-term moisture will cause rust in the stainless steel panel.
NG/LPG Convertible
Initial setting is for NG. Follow the steps below to replace LPG
1.Replace NG nozzles with LPG nozzles.
2.Replace NG elbow connector to LPG ones, please use sealing gasket.

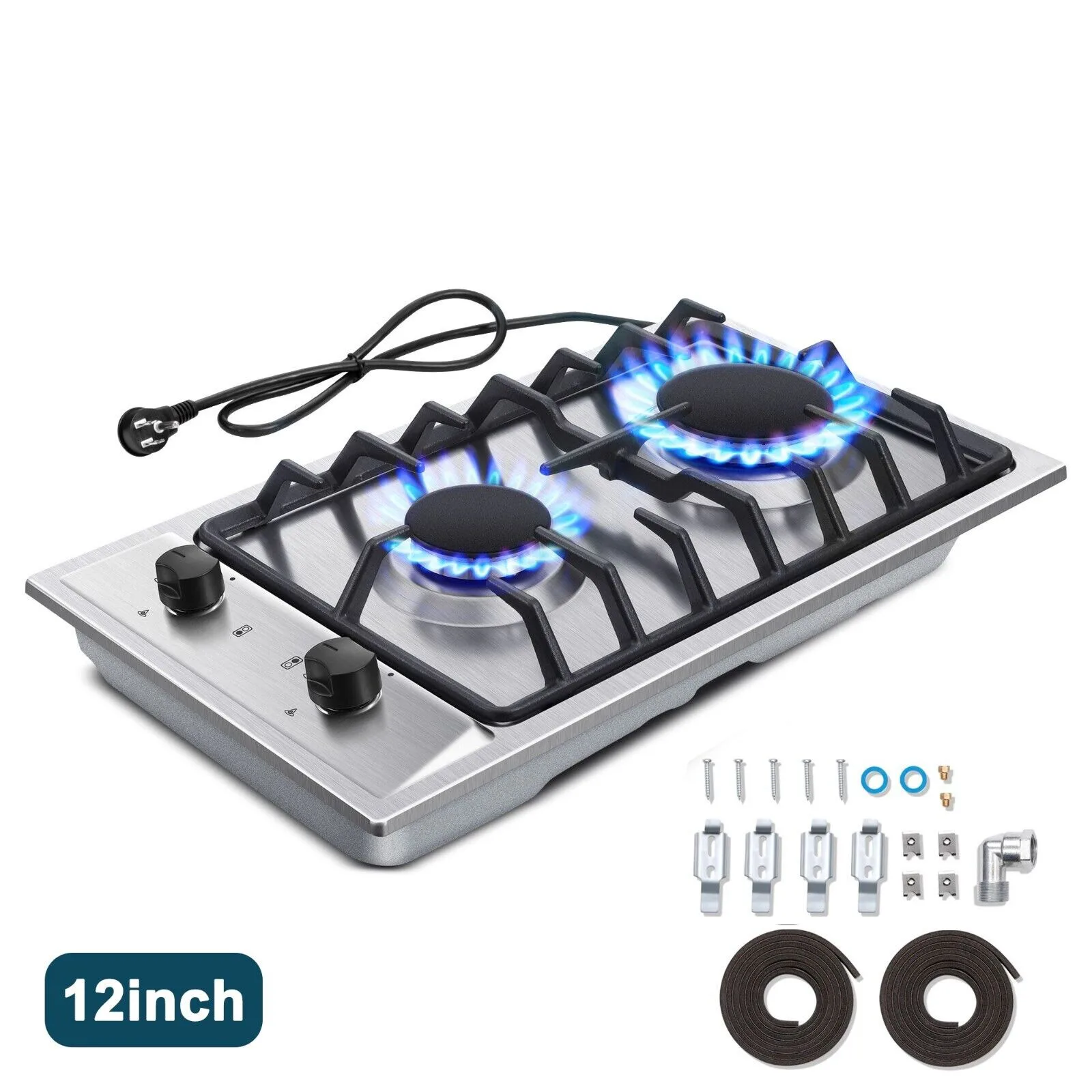

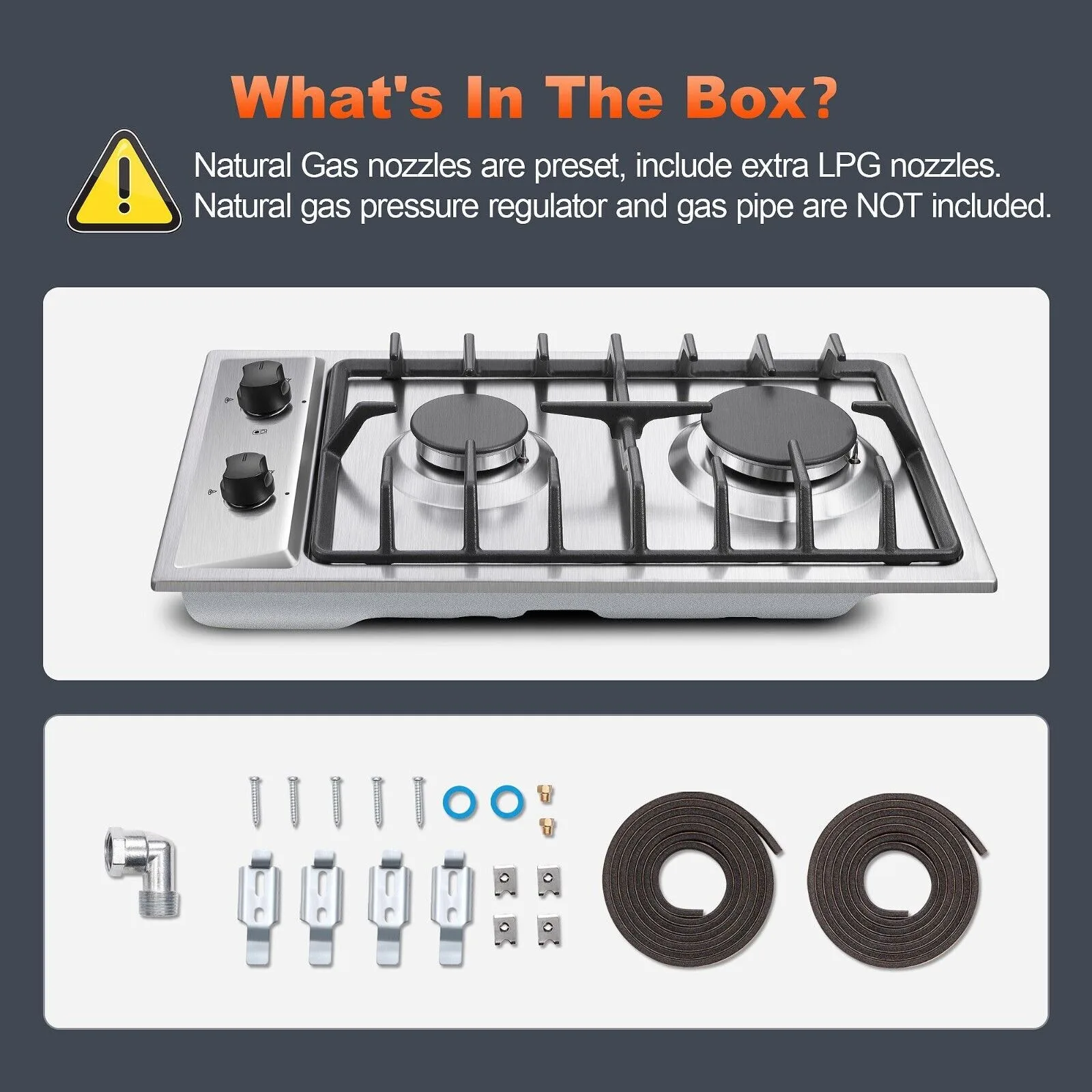

Package Included:
12 inch Gas Cooktop
Preset NG Nozzles(Extra 2 Propane Nozzles)
Elbow Connector with Sealing Rings
Mounting Brackets and Screws
Sealing Strip
Cut-out Template Board
User Manual
