About this item:
●Combined use of analog mixer and digital sound card

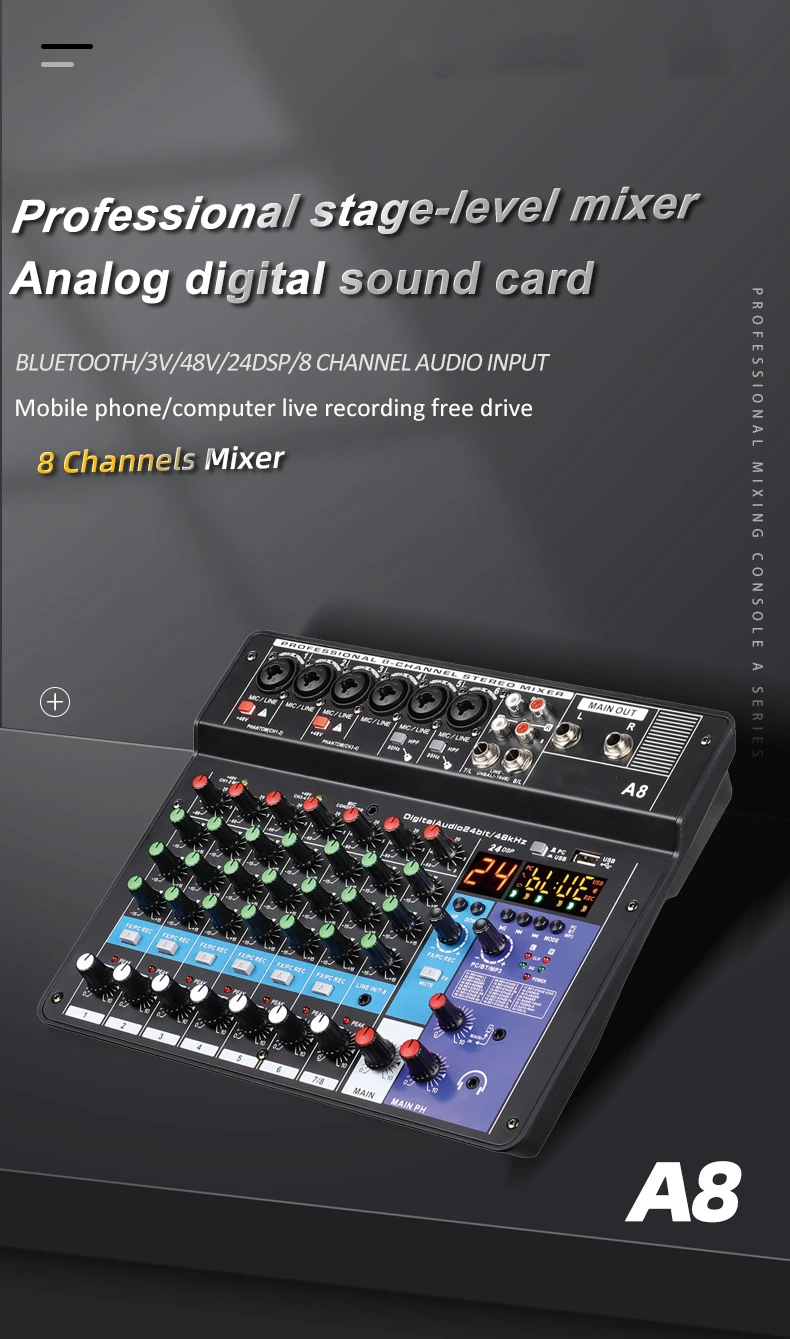

●8-channel mixer
●6 microphones/2 lines input
●Sampling rate:24 bit/48khz
●High resolution, dual track recording and playback
●Built-in high-speed ARM chip, with unique processing technology, such as low noise,sound change, pitch change, reverberation,
delay, electro-acoustic effects, etc.

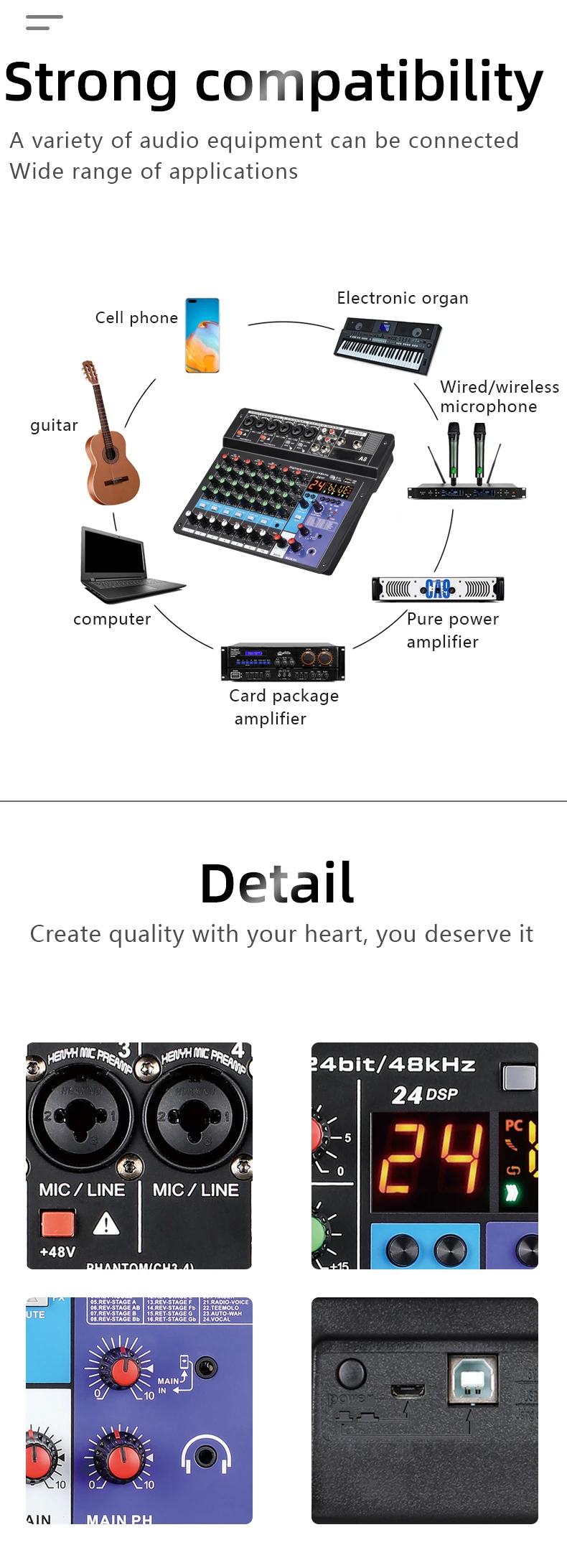

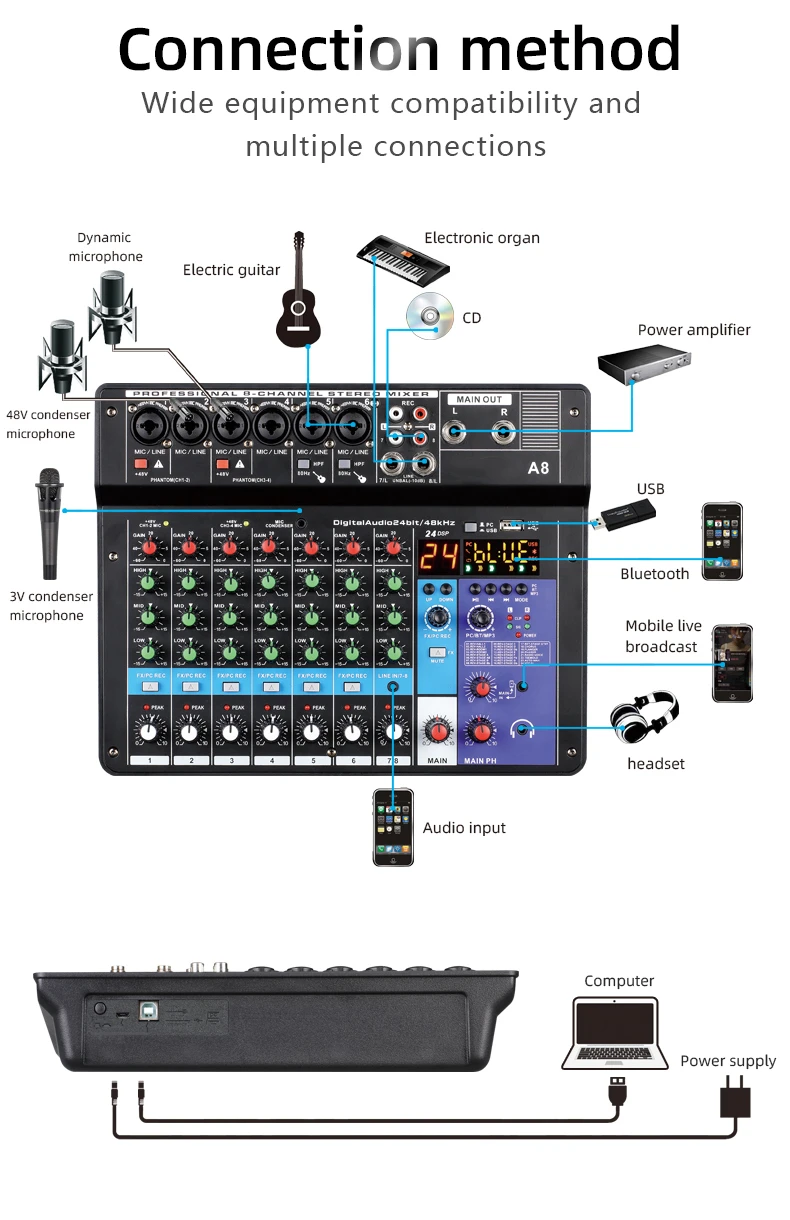

●Multiple input/output combined interfaces, multiple recording methods are available
●Highly available power input mode and switch mode 48V phantom power
●High-quality equalizer and high-pass filter
●Multiple record groups are optional, dual monitor mode is optional
●Flexible LOOPBACK function, very suitable for recording and network broadcasting
●Combined use of analog mixer and digital sound card
●8-channel mixer
●6 microphones/2 lines input
●Sampling rate:24 bit/48khz
●High resolution, dual track recording and playback
●Built-in high-speed ARM chip, with unique processing technology, such as low noise,sound change, pitch change, reverberation,
delay, electro-acoustic effects, etc.
●Multiple input/output combined interfaces, multiple recording methods are available
●Highly available power input mode and switch mode 48V phantom power
●High-quality equalizer and high-pass filter
●Multiple record groups are optional, dual monitor mode is optional
●Flexible LOOPBACK function, very suitable for recording and network broadcasting
|
Frequency response
|
Input STEREO OUT0.5dB/-1.0dB(20Hz~20kHz), test rated output level @1kHz, GAlN knob: Medium
|
|
Distortion
|
0.02%@+10dBu(20Hz~20kHz)
|
|
Residual noise
|
-85dBu
|
|
Channel crosstalk
|
(1Hz)-83dB
|
|
Input
|
MIC*6, 2RCA, PC, 2LINE. USB, BT, 3.5MINI
|
|
Output
|
STEREO OUT:2, PHONES:3.5MINI Headphone output: 1,3.5MINI mobile phone live output
|
|
Bus
|
StereO:1
|
|
Input channel function
|
80Hz, 12dB/ Octave EQ high gain:+15dB/-15dB
Treble 10kHz, midrange 2.5kHz, bass 100Hz PeakLED: When the signal after EQ reaches 3dB below the distortion, the LED lights up |
|
Level indicates the MAIN STEREO LEVEL knob.When the signallight after MAINLEVEL turns on and the green light reaches OdB, when the
signal reaches OdB below the distortion, the red light will be clipped, and the LED will light up. |
|
|
Input and output level: MIC(-60dB)LNE ONPUT(-40dB)
|
|
