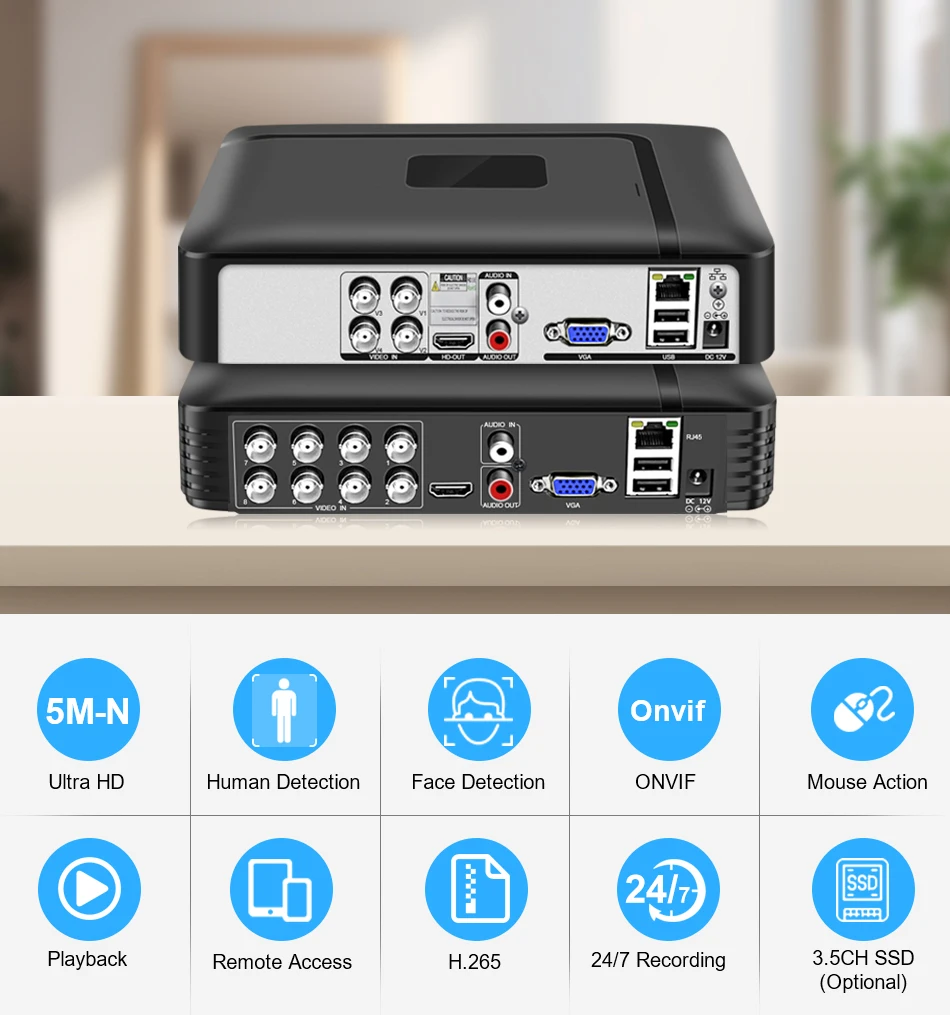

Main Features:

– Support H.265+ encoding, ultra-low bitrates, compatible with H.264 surroundings;

– Support VGA, HDMI-Compatible full HD output simultaneously;

– Support ONVIF; access third party;

– Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions;

– Support web, CMS, center platform management software MYEYE, provide SDK development;

– Support various mobile monitoring (iPhone, Android);

– Remote Access, With DNS (ARSP),easy to monitor remotely

– Support AHD/TVI/CVI/CVBS/IP five signals;

– Support Digital to analog conversion,Instant playback

– Encode ability: 4*5M-N (4CH)/ 8*5M-N(8CH)

– Decode ability: 4*5M-N (4CH)/ 8*5M-N(8CH)

– Record mode :Manual>alarm>motion detection>timing

– Video input:4 BNC(4CH)/8BNC(8CH)

– Video output :1ch VGA,1ch HDMI

– Audio input :1CH RAC

– Audio output :1CH RAC

– USB:2 USB Port

– Hard disk: 1 SATA(Each maximum support 6T )(HDD is optional)

– Power Supply:12V/2A

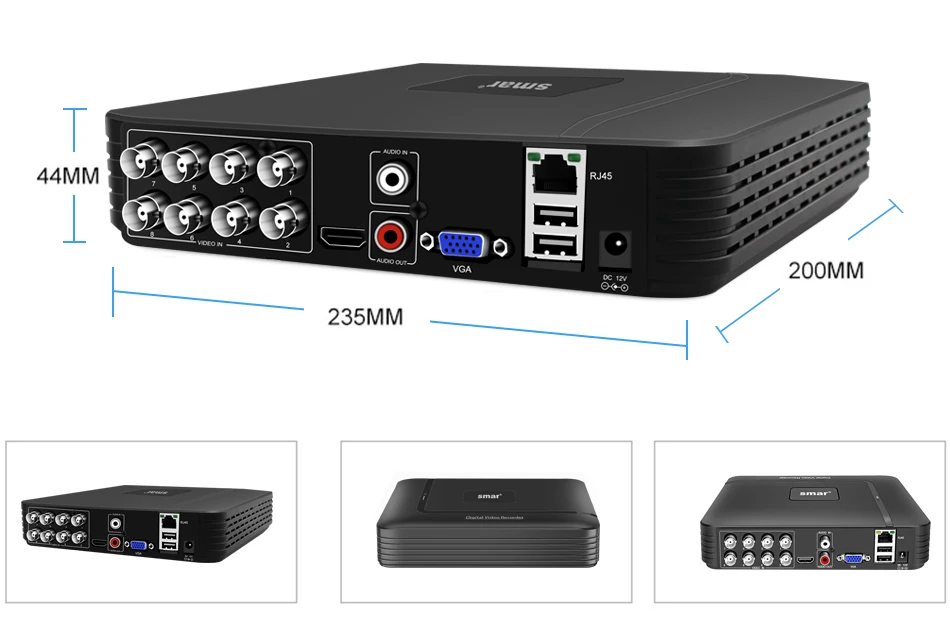

4CH 5M-N For 4 Channel Hybrid DVR(5 IN 1)

1. Video Compression: H.265+

2. Encode Capacity: 4 * 5M-N @25FPS, NTSC @30FPS

3. Video Input/Output: 4CH BNC/1CH VGA Input,1CH HDMI/VGA Output

4. Audio Input/Output: 1CH RCA Input, 1CH RCA Output

5. Recording,Playback,Backup Resolution：2* 5M-N

6. USB:2*USB 2.0

7. HDD:1*3.5″ SATA Port(Max support UP TO 8TB)

8. P2P Remote View：Support IOS,Android

9. Three Different Channel Type Optional:

Analog ChannelType: 4CH 5MP-N XVI/AHD/CVI/TVI

Network ChannelType: 16CH IP 1080P or 8CH IP 5MP

Analog+Network ChannelType:4CH 5MP-N XVI/AHD/CVI/TVI+2CH IP 1080P

10. Language: Support 20+languages: It has English, Chinese, Italian, Spanish, Japanese, Russian, French, German, Portuguese, Turkish, Polish,
Romanian, Hungarian, Finnish, Farsi, Thai, Estonia, Vietnamese, Brazilian, Hebrew, Indonesian, Arabic, Swedish, Czech,Slovenian, Dutch…

Note: Default Display of Resulution:1920*1080,Your monitor must be has the same display of Resolution, otherwise it will not image output.

Kind Reminder:

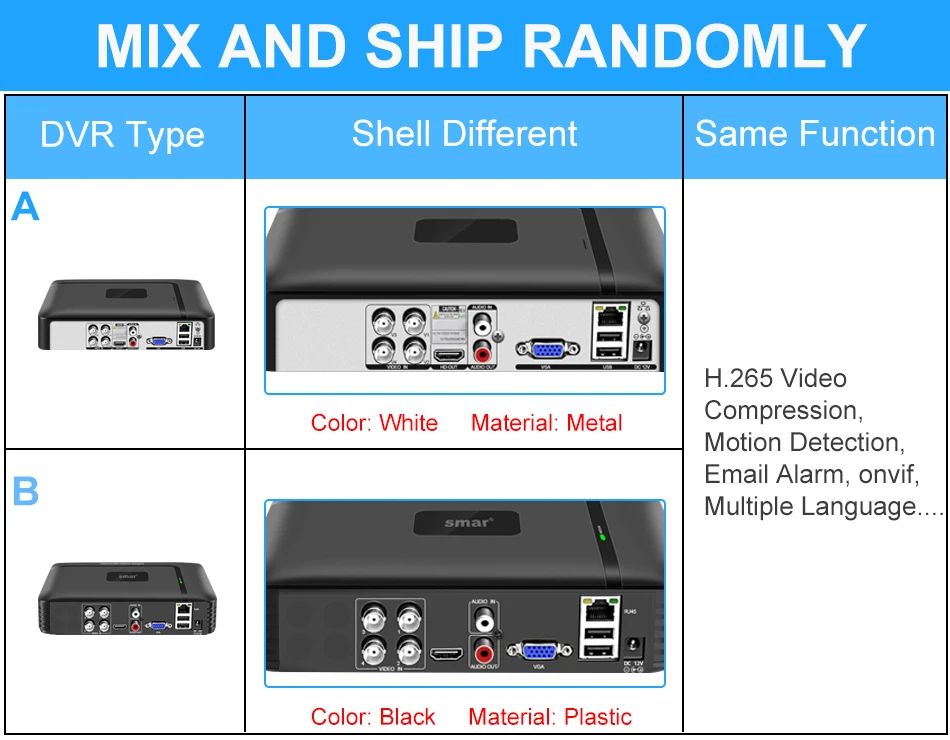

The 8 Channel DVR has been upgraded. The old version maximun support 4CH 5M-N, and the new version maximum support of 8CH 5M-N;

(The goods shipped from Moscow warehouse include both old and new versions, MIX AND SHIP RANDOMLY, If you only want to 8 channel of new version, please choose ship from China when you order; Please read this information carefully before purchasing, and we reject any disputes arising from this issue.)

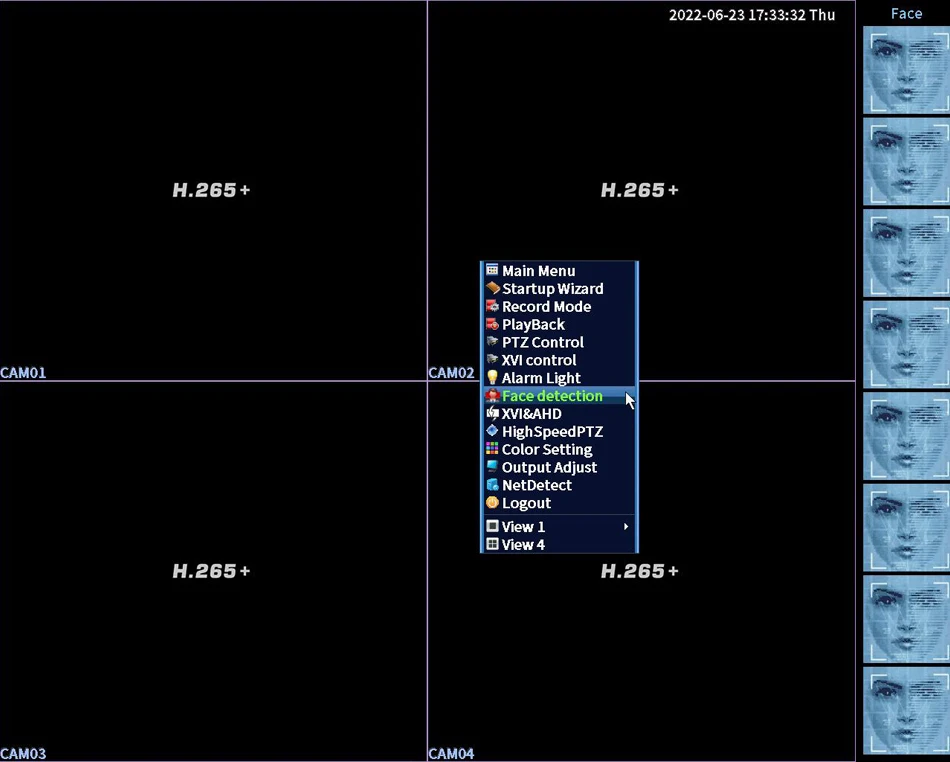

Ai Human Detection Alerts

When Human is detected the DVR will save the footage into hard disk without missing any important events. then immediately sends App notifications to your phone so you can see what’s happening anywhere.

Advanced H.265+ Video Compression

H.265 (HEVC) doubles the coding efficiency compared with its predecessor H.264. That means H.265+ video saves around 70% of the bit rate at the same quality of coding, HD resolution offer you best image quality in a lower bit rate,save your HDD storage space and reduce your purchase cost.

Please refer to the following picture for how to install the hard disk:

HDD Recommend:

1.It support 3.5″ SATA HDD ,Max support 1*4TB HDD.

2. We can Recommend Professional 3.5″ SATA Interface 1TB/2TB/3TB/4TB HDD For you ,please click below picture:

NoteWhen the hard disk is full, the system will automatically delete the oldest recorded video, thus achieving intelligent loop recording.

Data are for reference only, subject to actual use.

Support PAL and NTSC Mode



Version Information

When you need firmware, you can send this photo to us. Usually, the firmware needs to be updated every 3-4 monuthes, So please don’t ask us again this time. When you send photos, please add your email address, and we will send firmware to your address.



Support ONVIF

You can connect any brand’s Onvif IP Cameras to our this NVR;

Reminder:

Smar’s Video Recorder all support ONVIF and NETIP Protocol;

Netip: It is a Private protocol, only applicable to Network Video Products of XM Scheme；

Onvif: It is an international open network video product standard network interface protocol；

Onvif Advantages:

Onvif likes a communication bridge, It can implement multiple devices(IP Camera and Video Recorder) from different manufacturers connected to each other, mutual Communication.

Onvif Disadvantages:

The standards of onvif protocol are also different for video network products of different manufacturers;

So,Their communication with each other will cause some bad problems, such as: motion detection can not work normally; Audio and video can’t be synchronized; Loss of video data, etc……

(Note: We recommend that when you buying the Network Video Recorder, also buying the IP Camera from our store, Because they have perfect private protocol between them, it can fully display products all of the functions.)





HDMI & VGA Output

Default Display of Resulution:1920*1080,Your monitor must be has the same display of Resolution, otherwise it will not image output



Easy access via multi-platform

Support Mobile Phone iOS, Android System，Remote view of mobile phones, any time… any where…

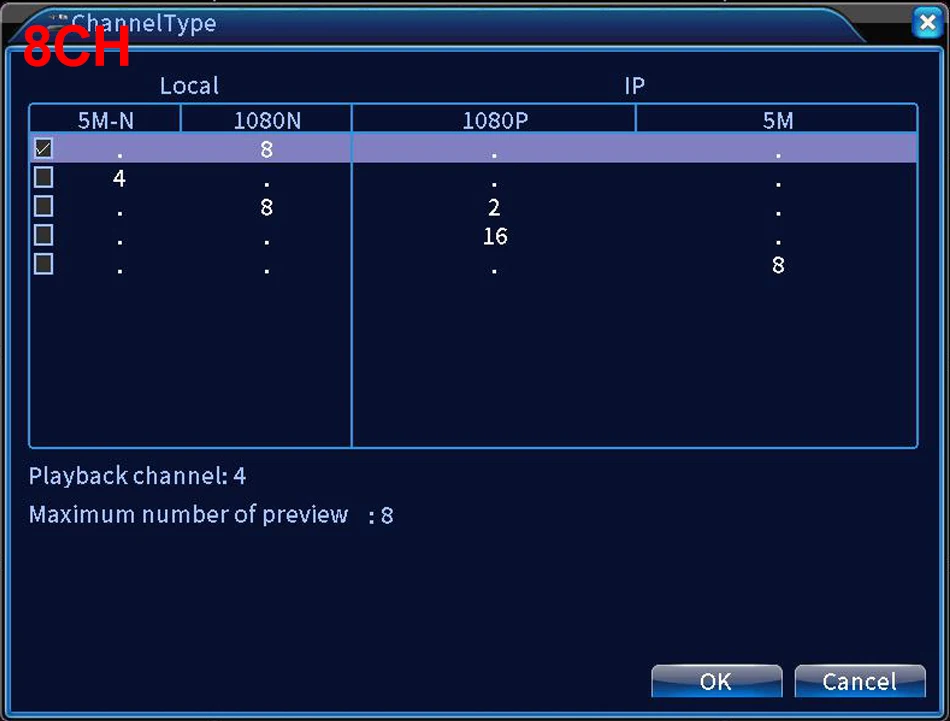

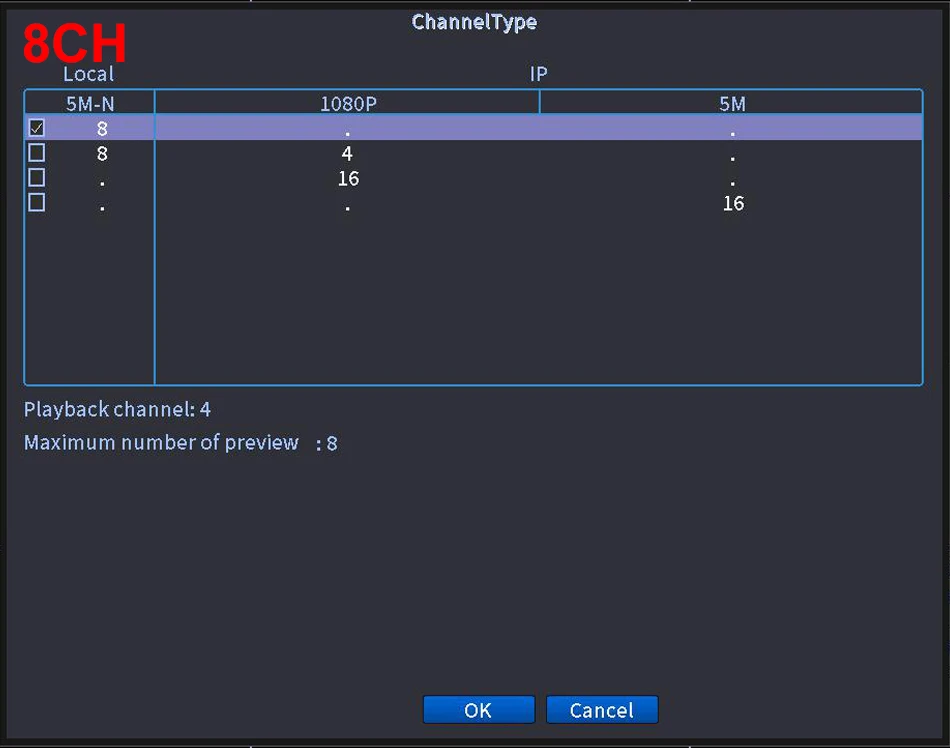

Our hybrid DVR function is very stronger, It has three Different ChannelType Optional:

1. Pure Analog/AHD ChannelType(Factory Default) ;

2. Pure Network ChannelType,;

3. Analog/AHD+Network Hybrid ChannelType；

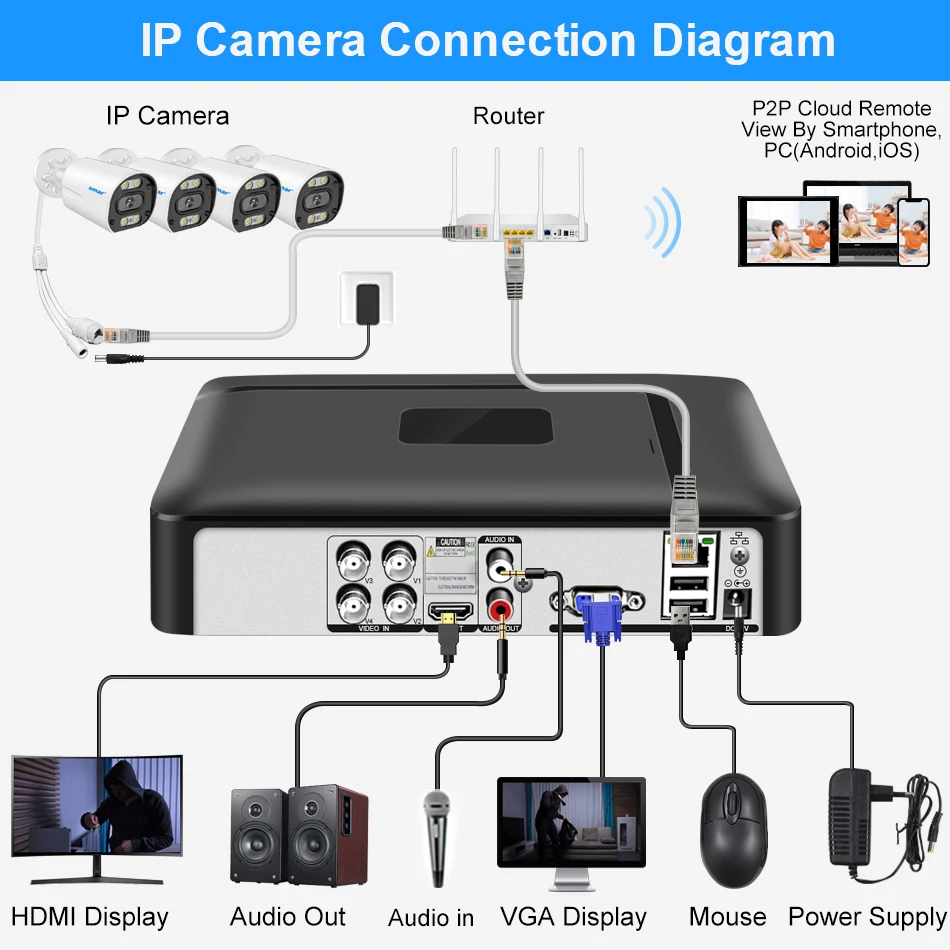

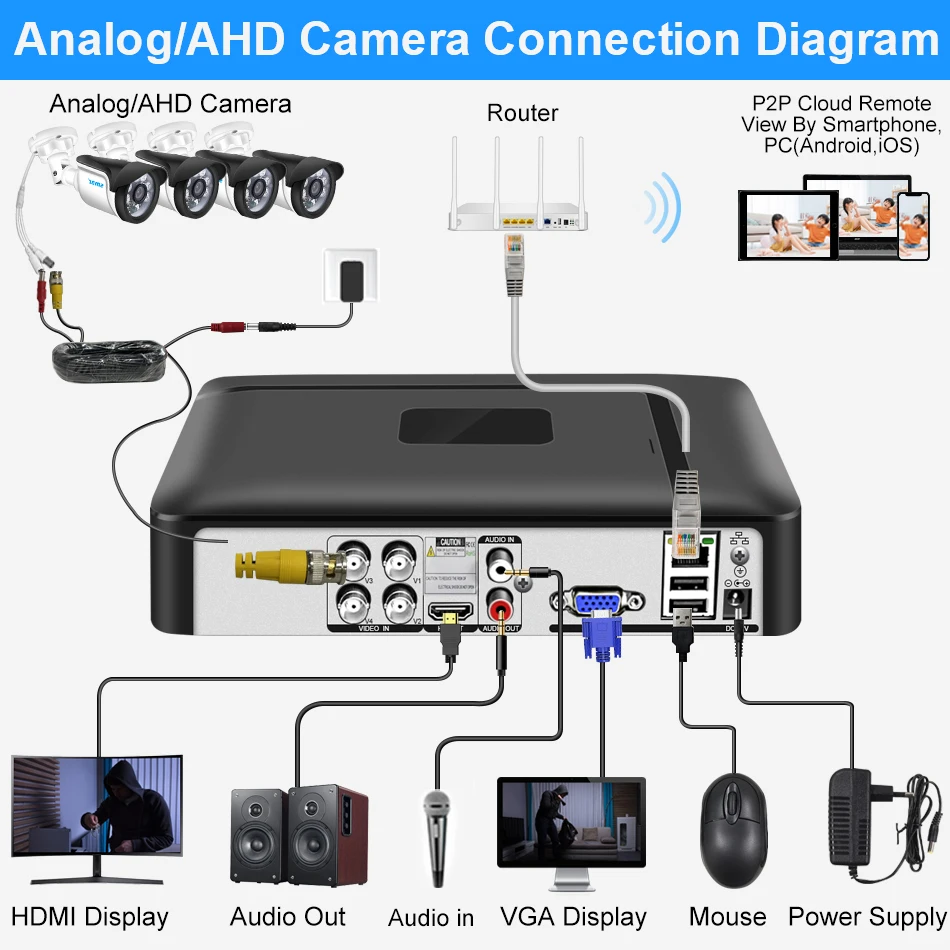

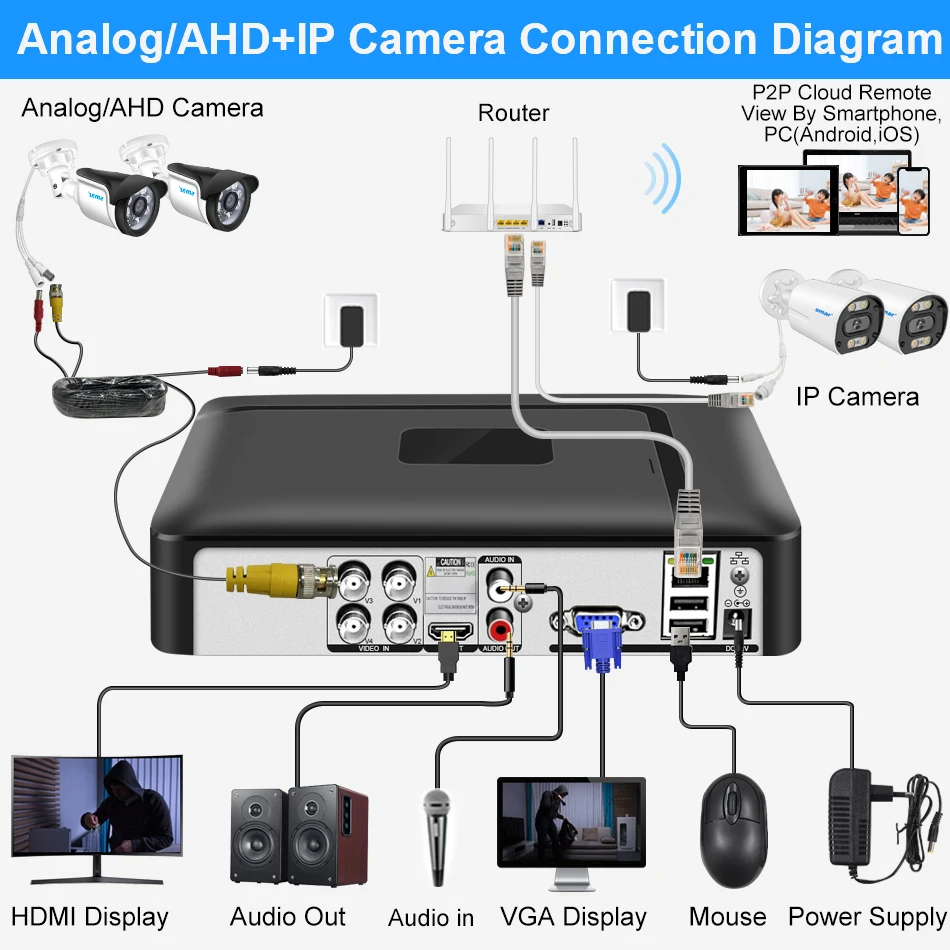

Please refer to the system connection diagram below;

Note:If you want to used Pure Network ChannelType, or used Analog/AHD+Network Hybrid ChannelType, you must be change the ChannelType first, Otherwise, it will not work normally.

How to remote view through Mobile phone?

How to manage the cameras through PC client?

1. Please used your mobile phone to scan the QR code as below, and then click to download；

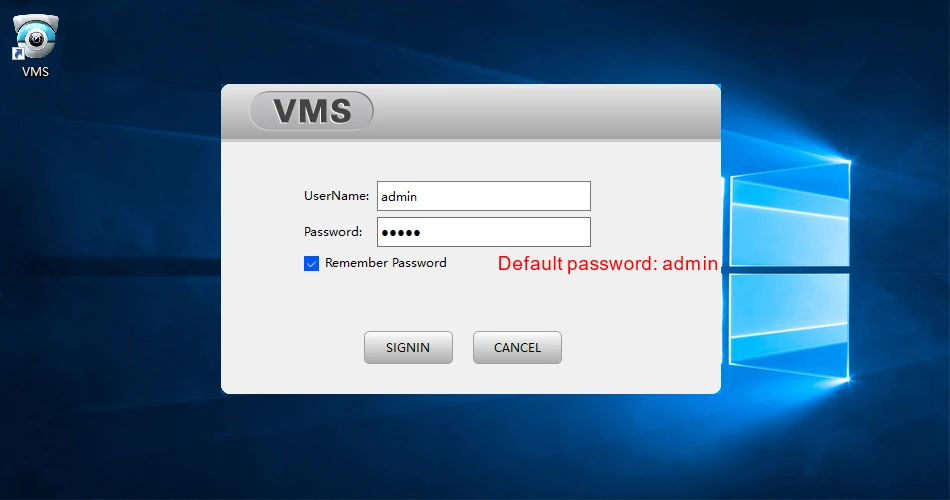

2. Please install VMS software on your computer, then login VMS Software, Username: admin, Password:admin

3. Please click the Device Manager-IPV4 Search-choose address of IP Camera- ADD-SAVE,Search and Camera successfully;
4. Click t he Live View, then click IP Address of Default Group, then you will can Watching Video.

How to access the Cameras through Website?

Please login your Google or IE or Firefox browser,

Then input default address 192.168.1.10 in your browser

Username:amdin

Password:null (empty)

Remind: If you use the software first time, you need to install a plugin in your computer.

How to access the Cameras through P2P Cloud?

If you want to remote view through P2P Cloud,Please search the P2P cloud website in IE/ Firefox / Google browser://www.xmeye.net/index

then enter your P2P ID and Password, then login in.

Remind: If your computer can’t open this website, please install all the Plug-ins in your computer, otherwise, Otherwise, you will not be able to remotely access this DVR.
