Power supply requirements:

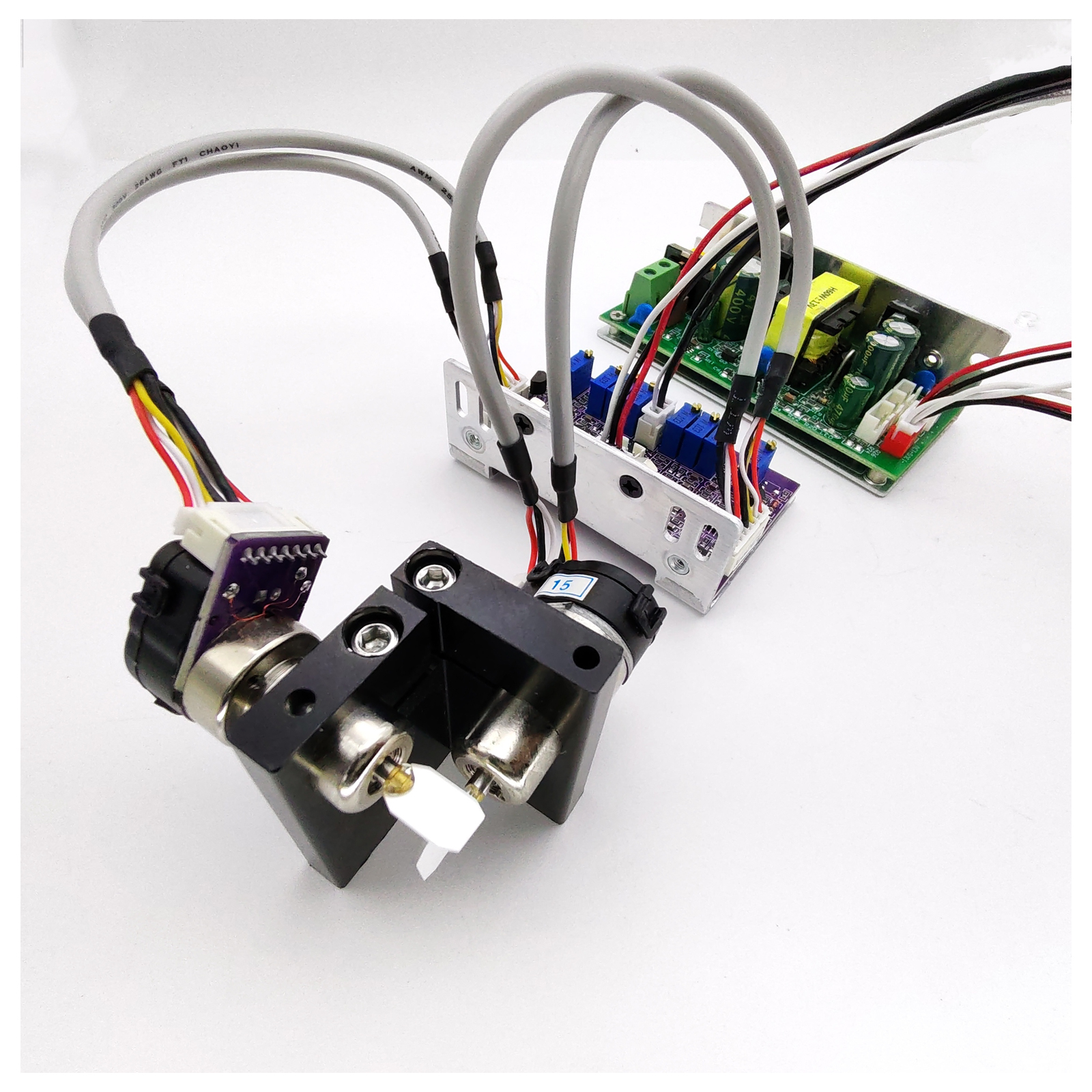

+ 15V 1A,-15V 1A X Y galvanometer motor, L-shaped galvanometer bracket,
integrated galvanometer drive, signal line excluding power supply.
Features:
This product only needs you a light source to work conveniently and easily.
The 15 degree angle of the galvanometer adjusted according to the 15K standard.
Can play general animation, not video.
This product is for animation laser stage lights, does not provide other internal technical support, principles, and so on.
Galvo Mirror Referecne.
Power source computer: ±15V.
Specific signal input impedance: 200K ±1% Ω (differential input), 100K ±1% Ω (single end input).
Position output impedance: 1K ±1% Ω.
Position input ratio: 0.5 V / °.
Mold position input range: ±5V.
Location range: ±2V.
Position output ratio: 0.5 V / °.
Deviation output ratio: 0.5 V / °.
Electronic temperature stability: 40PPM/ ℃.
Peak current: 2A.
Average current: 0.5A (related to power source, electrical load and bulk current).
Ideal imaging position (plane).
Working temperature: 0 ℃ 40 ℃ Dimension: 81.5mm × 40.5mm × 28mm.
Maximum scanning angle (mechanical angle): ±30 °optical angle (exit setting ±20 °).
The weight of the rotor is 0.025 gm*cm2, ±10%
Specific signal input impedance: 200K ±1% Ω (differential input), 100K ±1% Ω (single end input).
Position output impedance: 1K ±1% Ω.
Position input ratio: 0.5 V / °.
Mold position input range: ±5V.
Location range: ±2V.
Position output ratio: 0.5 V / °.
Deviation output ratio: 0.5 V / °.
Electronic temperature stability: 40PPM/ ℃.
Peak current: 2A.
Average current: 0.5A (related to power source, electrical load and bulk current).
Ideal imaging position (plane).
Working temperature: 0 ℃ 40 ℃ Dimension: 81.5mm × 40.5mm × 28mm.
Maximum scanning angle (mechanical angle): ±30 °optical angle (exit setting ±20 °).
The weight of the rotor is 0.025 gm*cm2, ±10%
package：
1*SLA 3D 15KHZ Animation Laser Lamp Stage Laser Lamp DIY Laser Galvo Mirror
