Driver Download:
Keyboard driver link: //www.jikedingzhi.com/downloadlist?driverID=103
V3.0 Screen Guide://video.aliexpress-media.com/seller/play/5000214472306.mp4

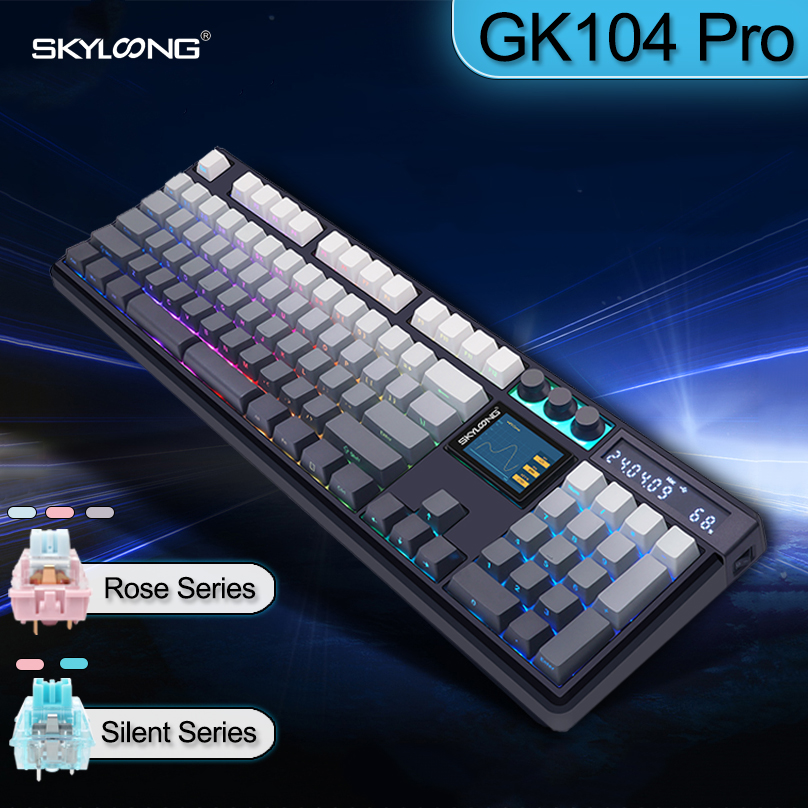

Model: GK104 Pro
Material: ABS/PBT
Case:Plastic ABS
Layout:ANSI(QWERTY-American Standard)
Backlight: RGB(South Face)
Keyboard size: 45.2×14.6×3.5cm/17.8×5.7×1. 37 inches
Keyboard weight: 1.35 kg/2.97 lbs
Package weight:1.8kg/4.1 lbs
Wired Polling Rate:8000hz
2.4Ghz Polling Rate:1000hz
BT Polling Rate:125hz
Screen:V3.0
Screen Resolution:320*240
Screen Image Limit:<15M
Keyboard Waterproof:None
Fast Charging:Not Support
Connectivity: Wired (USB-C)/2.4ghz Wireless/Bluetooth
Battery: 8000mAH lithium battery(4000mah*2)
USB-C cable length (meters): 1.5m/4.921 feet (approx.)
Hot-swappable: supported (including screen and Knobs)
Power supply: USB port/battery
Applicable to: PC/laptop/tablet/mobile phone
Package include : GK104 Pro keyboard*1 (3 knobs and screen installed), 2-in-1 keycap/switch puller*1, extra switches, extra keycaps, decorative sheet, 2.4G wireless receiver*1, USB-C cable*1, satellite switch*1, user manual (Chinese and English).
★Dual electronic screen&Customization:
GK104 Pro has a fixed digital screen in the upper right corner, which does not support replacement. It displays date, keyboard link status, and battery power. In addition, it has the function of a calculator, which can realize addition, subtraction, multiplication and division. It can be turned on or off through the switch on the right side of the keyboard, and the keyboard sound can be turned on/off through FN+Number 0. Equipped with a 2.0-inch LCD screen with a resolution of 320×240, supports hot swapping, independent driver, supports importing animations/pictures (<15M), supports display of date, time, power, connection status, etc., and adds a typing speed test function , can be replaced with keycaps and switches.
★Custom Knob:
The keyboard is equipped with 3 programmable macro knobs, and the default function is volume adjustment. The functions of the knobs can be set through the driver, including volume adjustment, zoom in/out, and backlight adjustment… The keyboard can be equipped with up to 6 knobs, which can replace the three keys ESC, F11, and F12. If there is a need for more knobs, they can be separated Buy Knobs. Full keys support custom functions (except FN)
★Multi device multi-mode connection:
GK104 Pro wireless keyboard has 3 connection methods, Bluetooth 5.1/2.4Ghz wireless/USB-C wired, built-in high-performance Nordic wireless chip module, lower delay, 8K polling rate, 0.125 millisecond delay, more suitable game player. Compatible with multiple devices, it can be seamlessly switched between Phone/PC/Laptop/Tablet, which is more suitable for multi-tasking. The keyboard battery capacity is 8000 mAh and can be charged via USB-C, which can meet long-term high-intensity use.
★Multiple shock absorption and noise reduction design:
TOP-Gasket fixed connection, high-quality multi-layer built-in foam rubber, the top buffer is made of durable elastic material, tightly fits each key, forming a barrier between the keys and the keyboard base, reducing typing Noise and vibration, able to withstand intense typing and gaming, providing a comfortable typing experience.
★High performance customized switch:
The keyboard uses customized KTT mechanical switches. Rose Sea-Blue is a tactile switch with a better feel and crisp sound. Rose-Pink, Rose-Silver and Silent CuCl2 are linear switches. The pressing sound of these switches is ranked from small to large as Silent CuCl2<silent Ruellia<Rose Pink <Rose Silver <Rose Sea-Blue. Silent CuCl2 is quieter. If you use the keyboard for a long time, it is recommended to choose Rose-Pink with less pressing force. These 4 switches activate quickly, respond quickly, and are pre-lubricated at the factory, making them one of the best office/gaming switches. A hot-swap socket is installed on the PCB, which is compatible with almost all 3-pin and 5-pin MX-type mechanical switches on the market. Split Speacebar and 2.0 screens and knobs are also hot-swappable.
★Equipment/System Compatibility:
The keyboard supports Windows 10, Win 8, Win 7, Win Vista, Windows XP and Mac OS systems, and is compatible with iPad, iPhone, MacBook, laptops, PC and mobile phones. This keyboard is divided into 3 programmable onboard layers and 8M built-in memory. The 16.8 million color RGB backlight can be easily set and saved through the driver, designed to meet all your personalized needs.
About Switch:
Rose Sea-Blue
Switch type: tactile switch
Operating force: 48±5gf
Pre-travel: 2±0.6mm
Total travel: 3.5±0.3mm
keystrokes: 50 million
Suitable for: Office/Game
Rose Pink
Switch type: Linear switch
Operating force: 38 ± 5gf
Pre-travel: 1.9 ± 0.5mm
Total travel: 3.5 ± 0.3mm
keystrokes: 50 million
Suitable for: Office
Rose Silver
Switch type: Linear switch
Operating force: 45±5gf
Pre-travel: 1.20±0.4mm
Total traveel: 3.5±0.3mm
Keystroke: 50 million
Suitable for: Game
Silent CuCl2（Silent Switch）
Switch type: Linear switch
Operating force: 45±5gf
Pre-travel: 2±0.5mm
Total traveel: 3.8±0.5mm
Keystroke: 50 million
Suitable for: Office/Game
Silent Ruellia（Silent Switch）
Switch type: Tactile switch
Operating force: 50±10gf
Pre-travel: 2±0.5mm
Total traveel: 3.8±0.5mm
Keystroke: 50 million
Suitable for: Office/Game
