Pls notice :
SET7 and SET8 and SET6 doesn’t contain power plug .pls check it carefully.
If you choose to place an order in the “Choice store”, we cannot change the default soldering tip,just can be send default tips!!!!!We also can’t change the power cable .default is EU plug!
NOTE:Iron tip do not work continuously high temperature, high temperature work is easy to damage the tip!
Ordinary solder melting point is 183 degrees, normal solder melting point is 227 degrees, usually the welding temperature is 300-380 degrees, 380 degrees is the temperature of the dividing line, higher than 380 degrees, iron head oxidation and loss is extremely fast, seriously affect the heating core life The Higher than 380 degrees temperature display will be beating, the higher the temperature, the greater the beating!Recommended in the 300-380 degrees for welding work, most of the work can be carried out, the temperature beating is normal, does not affect the use!
The soldering iron used in this soldering station is a brand new soldering iron tip. Due to the unstable resistance of the new soldering iron tip, the temperature will jump or ERROR, which is normal. After several times of use, the stability will gradually stabilize. If you mind, please do not buy.

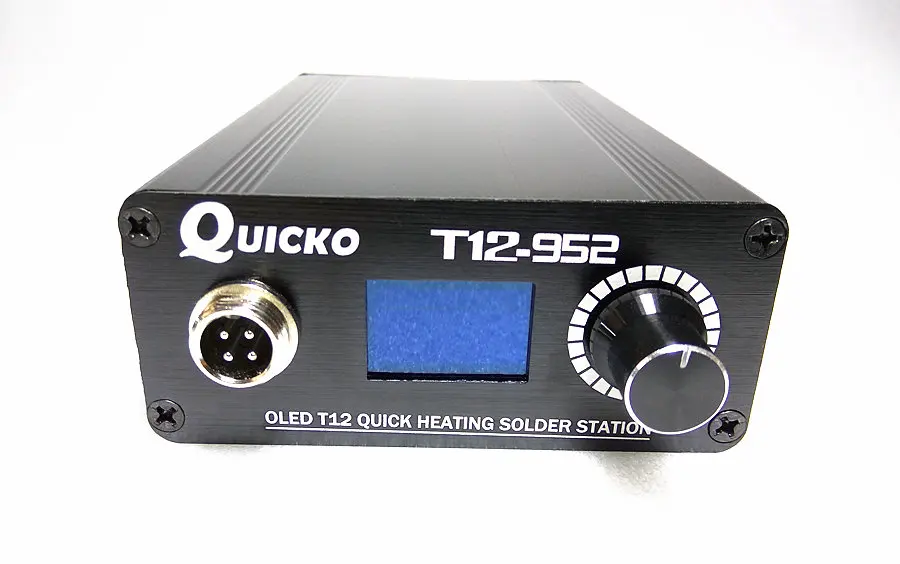

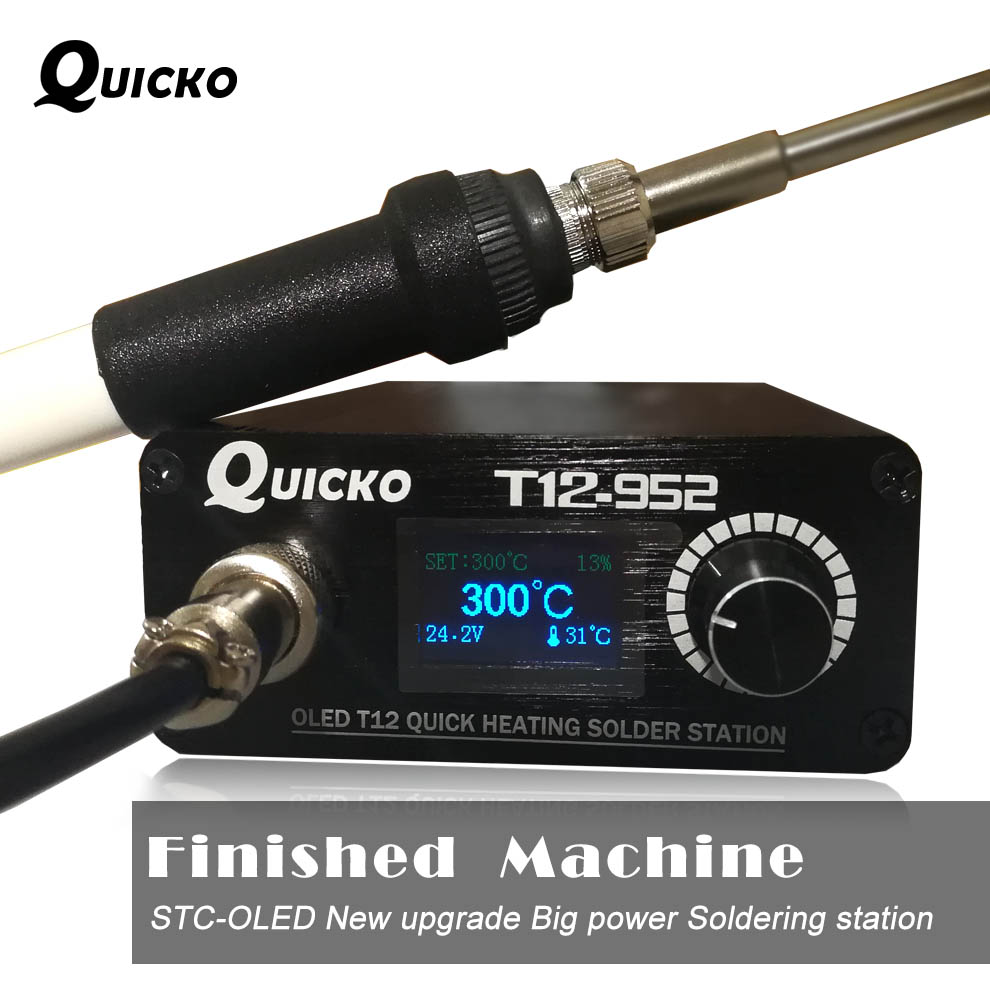

Function&Advantage
1.Quick Heating & temp control accurate
2.Auto Sleep & Auto power off
3.Raise the handle to wake up the host
4.Get higher temp by pressing the encoder
input:AC 110V-240V Power supply:24V 4.5A
Temp:200degC-480degC Tin melting time:<8s
——————————————————————————————————————————————————————————————————————————–
Regarding the problem that the temperature displayed on the soldering station is not accurate with the actual temperature:
Please use the soldering iron tip temperature tester (please do not use a multimeter) to test the temperature. When the soldering station is working at low temperature (less than 280 degrees), the temperature displayed on the soldering station and the actual temperature of the soldering iron tip are only for reference , which is not accurate because They are affected by the surrounding environment. The surrounding environment will carry away heat, causing the soldering iron tip to lose some heat. If using a HB tip thermometer, pls make sure the soldering iron tip is suspended at the center of the temperature sensing line. If you are very strict with temperature, please do not buy this soldering station.
The problem that tin wire cannot be melted at 227 degrees.
The melting point is the melting point of the substance itself. When the temperature of the substance reaches the melting point of the substance, it is possible that the substance cannot be melted. For example, the melting point and freezing point of ice are both 0 degrees Celsius, and water does not necessarily freeze at 0 degrees Celsius. Since the temperature of the substance is affected by the surrounding environment, the actual melting point of the tin wire is higher than the melting point indicated by the tin wire. If the wire is placed in a thermostat tin furnace at 226 degrees Celsius, it is possible to melt in a sealed tin furnace. If it is wrapped around the soldering iron tip, it is impossible to melt. Because there is a gap between the tin wires, and the soldering station has a temperature difference, the soldering iron will lose some heat when it heats up, and the surrounding air will also absorb heat. The melting point of normal wire is 227 degrees Celsius, and the room temperature is low in winter. Under the premise of calibrating the temperature of the soldering station, at least 50 degrees Celsius should be increased to offset the heat absorbed by the air, so that the heat of the wire itself can be increased to 228 degrees Celsius.
About the wake of the handle
Please carefully understand the working principle of the vibration switch in the handle. The ball trigger switch built in the handle, the mounting direction of the ball switch and the rolling direction of the ball inside the ball switch need to vibrate the handle when the direction of the handle is consistent. For example, when the handle is vertical Please move the handle up and down. When swinging the handle up and down, please make sure that the ball inside the handle can trigger the SW wake-up mode, and the force needs to be slightly larger. When the handle is placed horizontally, please swing the handle left and right. Please swing the handle to an angle greater than 30 degrees, so that the ball inside the handle can trigger the SW wake-up mode.
About the soldering station showing of ERROR
If the ERROR is displayed, the handle or the tip is not installed properly. Please use a pair of pliers to push the tip into the innermost part of the handle. Then try rotating the tip to ensure that the tab of the tip is in good connect with the inner tab of the handle. If ERROR is still displayed and the light is always on when the tip or handle is installed, please contact us to get a solution. We encourage buyers to communicate with us to solve any problems. We will do our best for each buyer.
if the station can’t heating when you turn on .Please check if the tip was installed properly. pls try to use a pliers to force tip into the Innermost of 9501 handle , so that the tip is in good contact with the handle.
4 GREAT REASONS TO BUY FROM US:
- Over 37,000 happy customers across the US
- Real people on our support team ready to help
- The finest materials and stunning design — all our products are developed with an obsessive dedication to quality, durability, and functionality
- We use the most secure online ordering systems on the market, and are constantly improving our software to make sure we offer the highest possible security
BUY WITH CONFIDENCE
Our mission is to make your shopping experience as safe and enjoyable as possible. Have questions? Feel free to contact our award-winning customer care team for advice on everything from product specifications to order tracking.
- Money back guarantee: Something not quite right? If you’re not totally satisfied with your purchase, you can return it within 15 days for a full refund
- Risk-Free Purchase: We utilize industry-standard Secure Sockets Layer (SSL) technology to allow for the encryption of all the sensitive information, so you can be sure your details are completely safe with us
- Trustworthy payment method: We partner with the most popular online payment solutions that guarantee enhanced security and fast transaction processing
Amei
Parfait
very good solder recommend !!this solder oa very god and capable of very high heat the functions are very good and the tips
bommmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

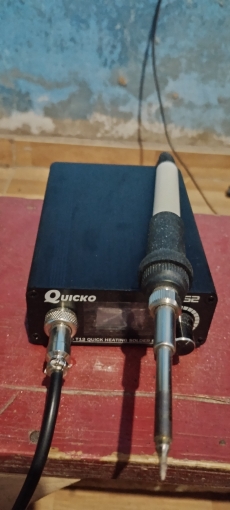

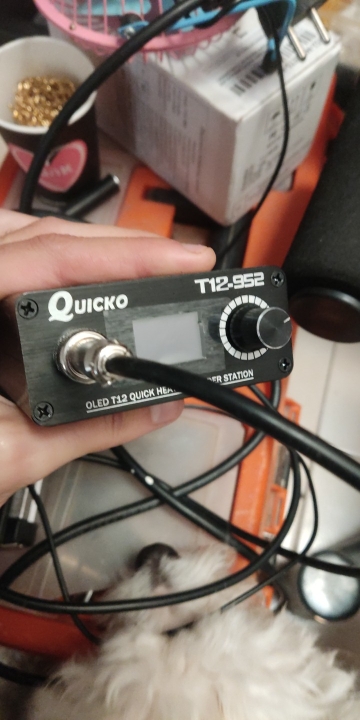

this tiny soldering machine is very nice and handy. I recommend it.
The break-up came, packed good, overthinking the good, grating for good, getting close to 8 seconds, if I don't go into a splicing mode, selling and the store I recommend before the SPI-pratsi
Too good for the price
Quality seems OK. Works great, reaches the temperature very fast. Has automatically idle mode when not in use.
Very very good soldering station, the scheme works great. The soldering lace is super fast hot, whether from standby or off. It is almost immediately ready for use...
Tijjen koristuvannya, I am a source. I am very sensitive for the old Lukey 852d. The head sensor is a colival in the soldering iron with mercury. I don't like the characteristic knock of steel bags. Хоч and quiet, ale of peace. For short-short-opposite as a boozer with singing pods, on the back of the dream, on the back of the dream, on the back of the dream, on the way of the dream. From whom I will not be so lucky, so when switching, the power off mode is not extinguished, but sold by a Vigorate. The display is accessible, you can buy and remember, if you did it, you could get it again vimikannya, you can get it, you can get a symbol on the screen, you can get it, you can get it, you can get it, you know it, you can get it, you can get it from a non-natural vigoryan matrice. Sting on top of the news, to wander good. The boost mode is so too high. Stretching robots boost, buzer dovol often. Yakami?! The buzer can be easily inked through the Naye through the Naye, ale the singers and the Bulo would sound the voice. In tsyloma everything is OK. Yak Nastya variant of soldering iron Nuances can be rewritten by the police code for MK.

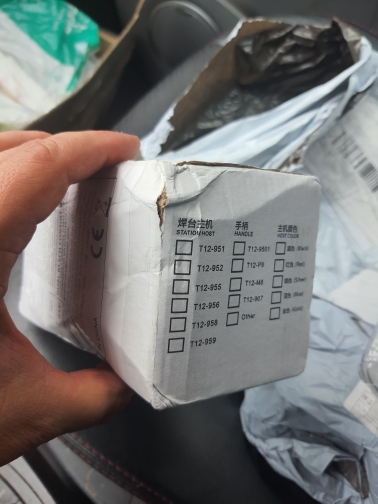

Well packed, fast delivery. I haven't used it yet.
