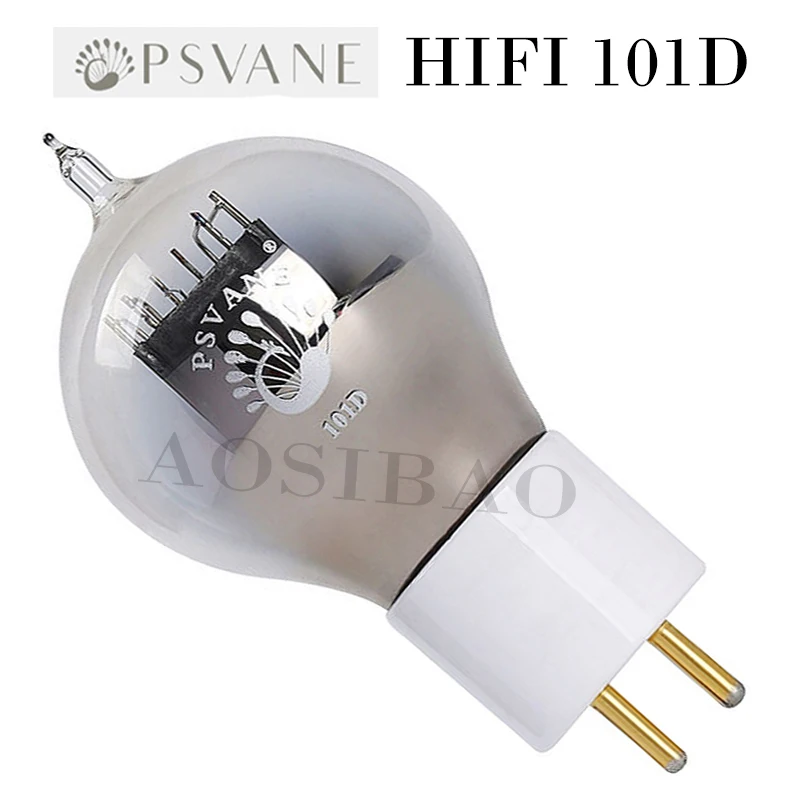

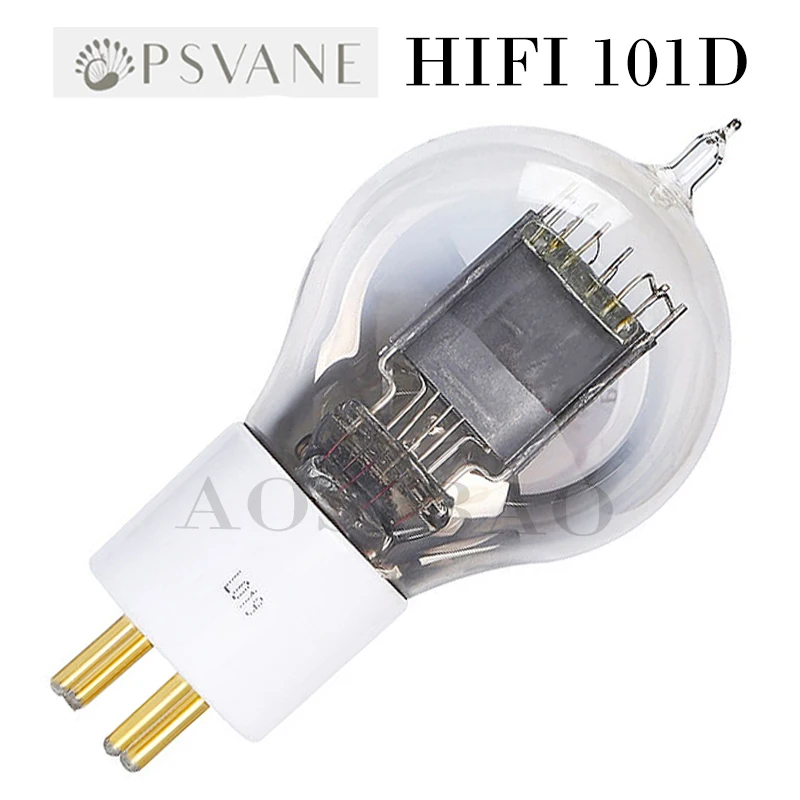

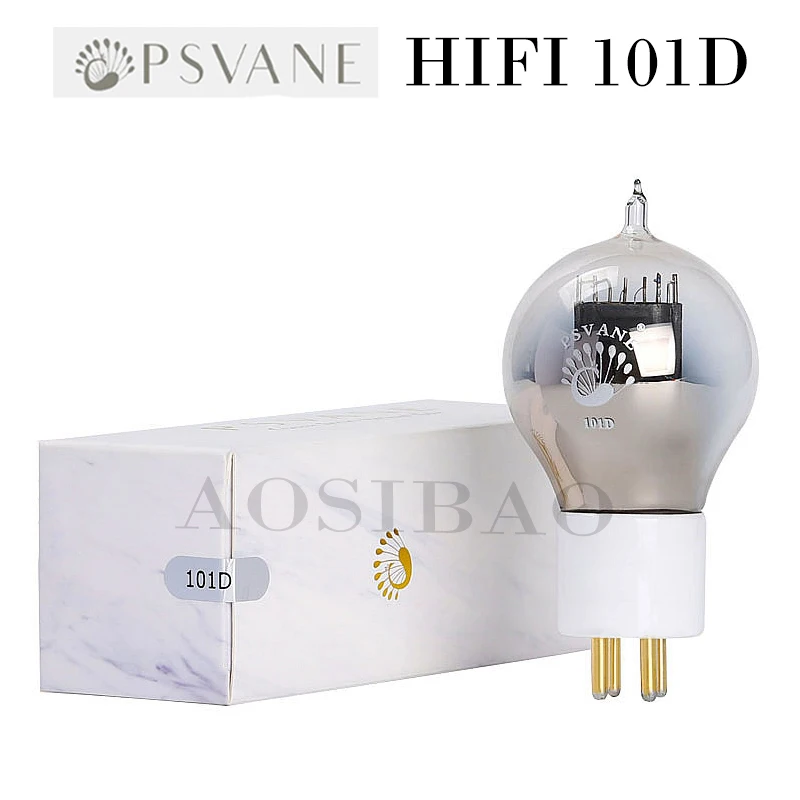

PSVANE Vacuum Tube 101D HIFI Audio Valve Replaces 101 E101D WE101D Electronic Tube AMP Amplifier Kit DIY Factory Precision Tested and Matched Quad
HIFI 101D low voltage amplifier tube.

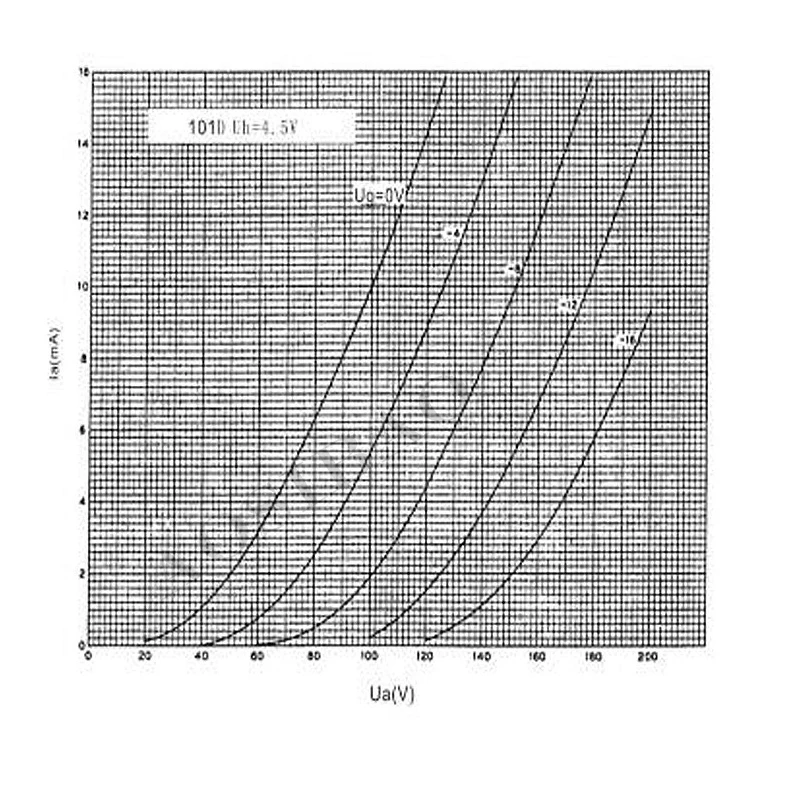

Typical operating parameters
Filament voltage: 4.5V
Filament current: 1.0 A
Anode voltage: 190V
Gate voltage: -14V
Anode current: 10mA
Amplification factor: 6.2
Output power: ≥ 200mW
Interpole capacitance
Input capacitance: 6.4pF
Output capacitance: 4.4pF
Cross circuit capacitance: ≤ 2.9pF
Limit parameters: (minimum and maximum units)
Filament voltage: 45 V
Anode voltage: 400V
Anode dissipation power: 15W
Anode current: 20mA
The shop promises:
The electronic tubes operated by our store are guaranteed to be brand new and high-quality genuine products from the original factory, and we will provide free replacements for any quality problems within one year. All tubes are rigorously tested to match .Buy 2pcs = Precision matched pair. Buy 4pcs = Precision Matched Quad. We have the conditions and advantages to match multiple tubes (four tubes, eight tubes) according to customer needs. The same parameters. It is a professional shockproof and firm package. It is absolutely safe.
Note It will be shipped after strict inspection again (please do not think it is a fake and shoddy product after receiving the tube).
