Description

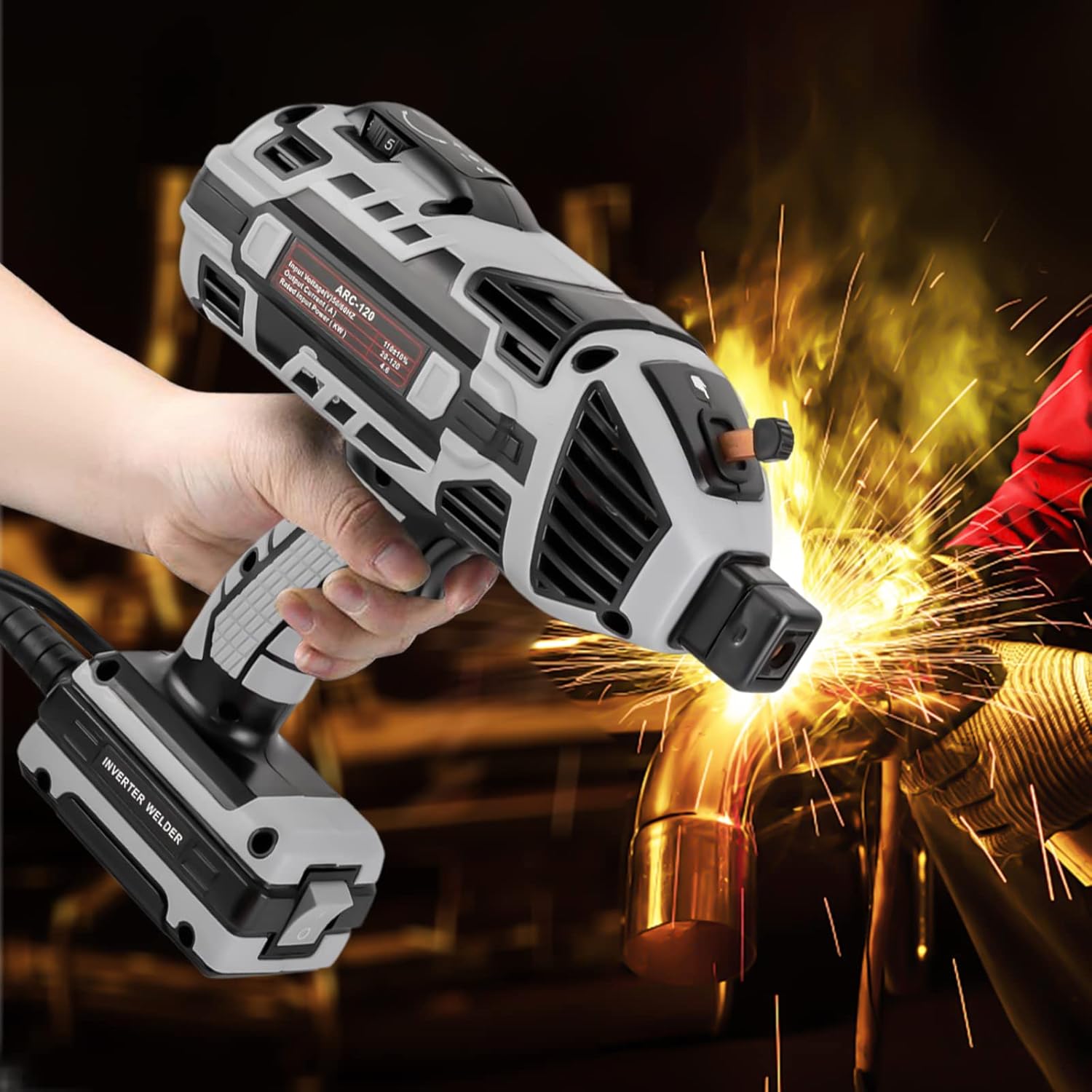

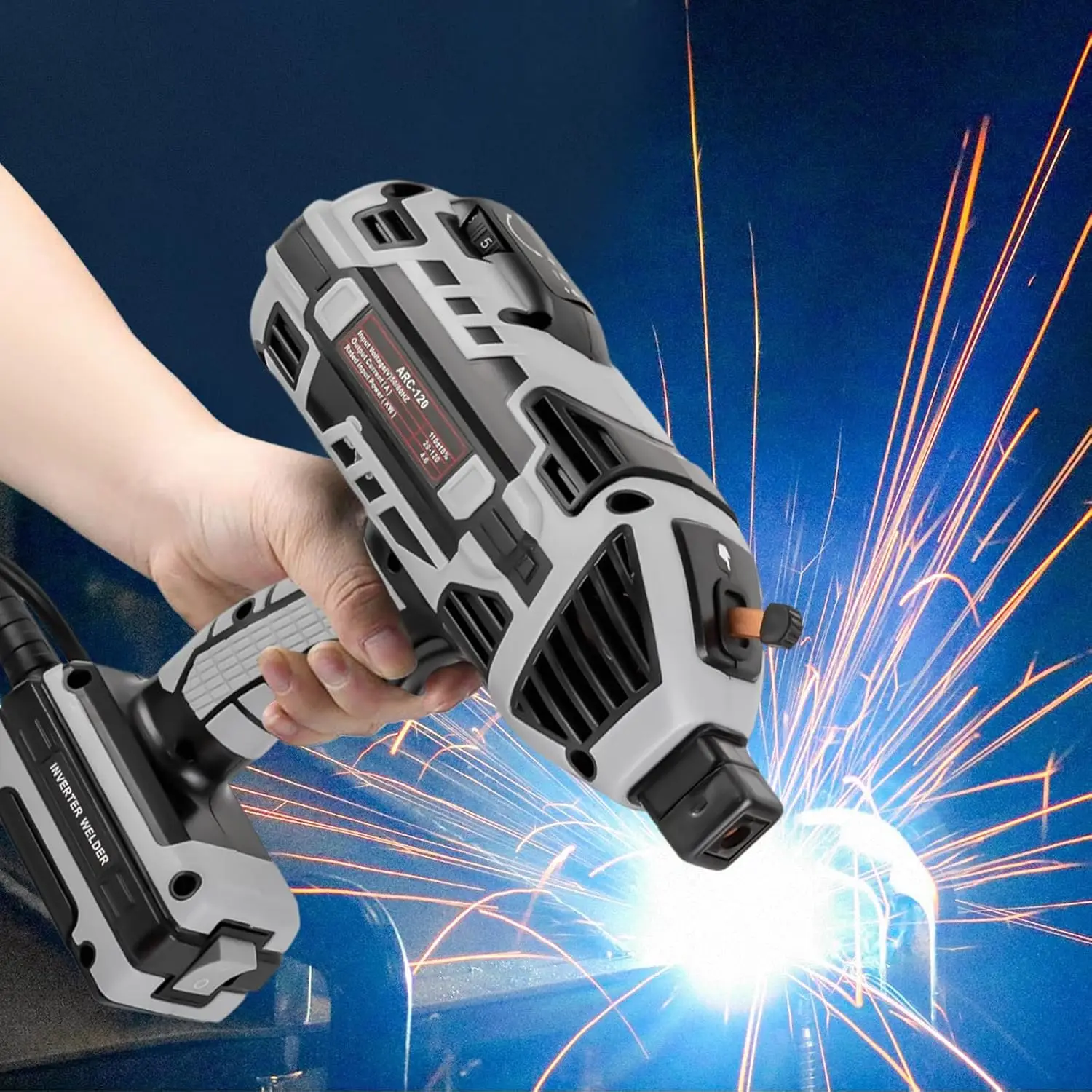

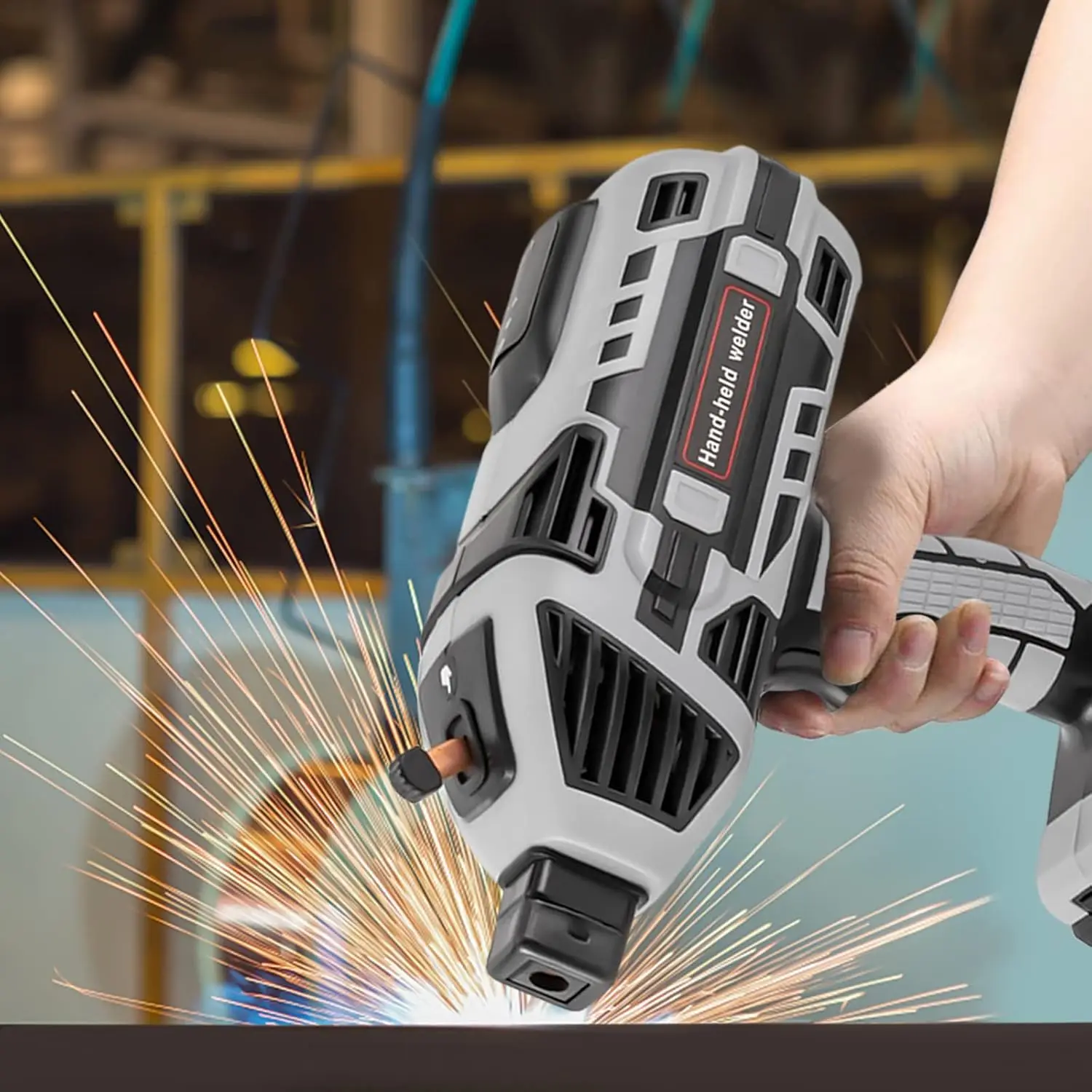

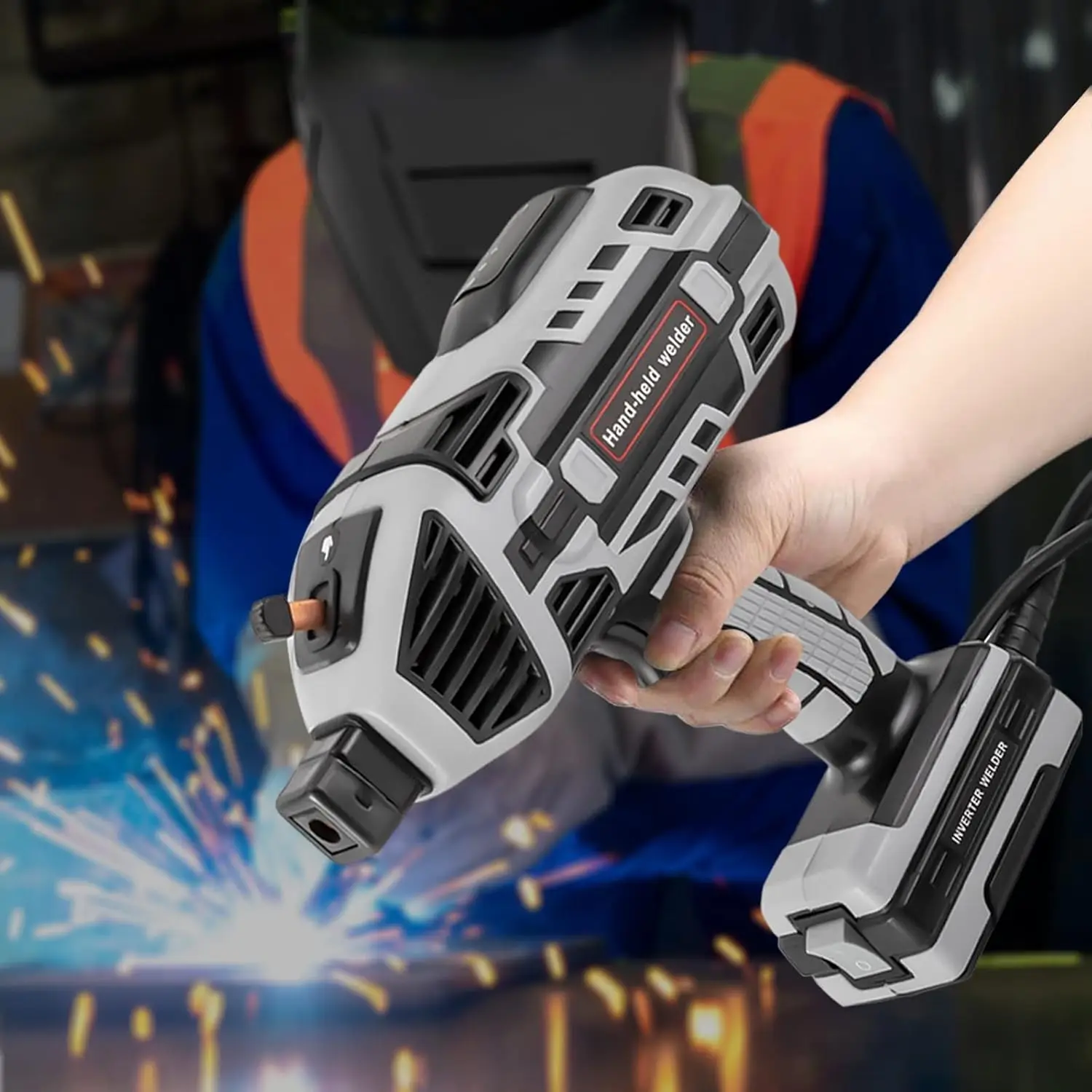

The handheld welding machine is made of high-quality plastic, which is strong and durable. It adopts an IGBT inverter technology to achieve excellent welding effects and can adjust the output current (20-120A) by turning the top compass to allow for convenient use. It’s your ideal choice!
Key Features
Strong and Durable: This product is made of high-quality plastic, which is wear-resistant, corrosion-resistant, heat-resistant, strong, durable, and not easy to deform.
Efficient&Energy-saving: It has a maximum power of 4600W to achieve fast welding, saving you lots of time. In addition, it has a high efficiency of about 85%, saving you lots of electricity.
IGBT Inverter Technology: The unique control method of IGBT inverter technology ensures a stable arc and easy arc starting with less spatter, stable current, and stick resistance, which guarantees beautiful and flat welding points.
High Safety: The high enclosure protection grade (IP21), high insulation class (F), overload protection, and overheat protection can enhance the safety of use. Meanwhile, a set of protective masks in the package can prevent sparks from splashing on the face during the welding process.
Adjustable Output Current: It uses an imported chip to automatically identify and match welding rods. All you need to do is turn the compass on the top to adjust the 6-step current (20A/40A/60A/80A/100A/120A) for a variety of welding mode applications, which is newbie-friendly.
Excellent Heat Dissipation: The built-in cooling fan and heat dissipation holes on the side of the product can dissipate heat in time and prolong the service life of this product.
Convenient to Use: You only need to open the switch on the base and press the start button to start the product. Meanwhile, the rod switch allows you to put the welding rod into the machine and can fix it.
Lightweight: It only weighs 2kg/4.41lbs, so it’s lightweight, portable, and convenient for you to operate with a single hand.
Guaranteed Customer Service: We are committed to providing quality products and services. If you have any questions, please feel free to contact us. We will reply as soon as possible and solve the problem for you.
Details
Steel Brush: It has dense steel bristles, helping you to polish the welding points to be smooth and beautiful.

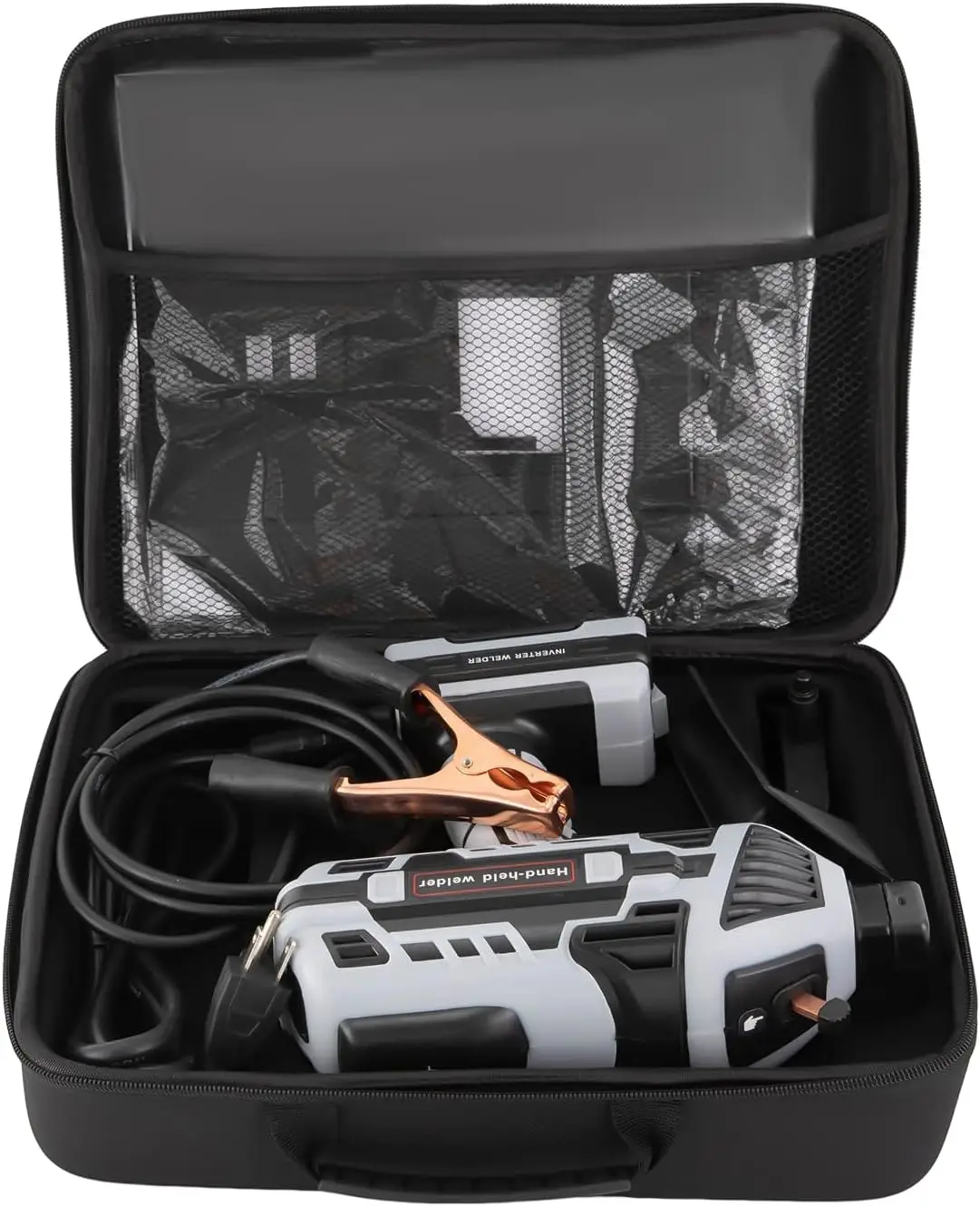

Toolbox: You can put small accessories into the toolbox to avoid losing them. It is also equipped with a portable carry handle for carrying to work outside.
Pure Brass Clips: It is made of brass and is robust to help you hold the workpiece to be welded during the welding job.
Application
It can be widely used in machinery manufacturing, sheet metal processing, automobile maintenance, guardrail, iron processing, hardware, and other fields for welding iron rods within a diameter of 2.5mm/0.09inch.
Specification
Model: ARC-120
Color: Black
Material: Plastic
Style: Modern
Plug Voltage: 110V
Rated Output Voltage: 24.8V
Output Current: 20-120A ((1-Step=20A / 2-Step=40A / 3-Step=60A /4-Step=80A /5-Step=100A / 6-Step=120A)
Rated Input Power: 4.6KW
Enclosure Protection Grade: IP21
Electrode: φ1.6-φ3.2
Power Factor: 0.76
Insulation Class: F
Duty Cycle at 40℃/104℉: 20%
Working Temperature: -10~40℃/-50~104℉
Efficiency: About 85%
Power Type: Plug-in
Plug: American Standard
Net Weight: 2kg/4.41lbs
Gross Weight: 2.4kg/5.29lbs
Package Size: 25*20*10cm/9*7*3inch

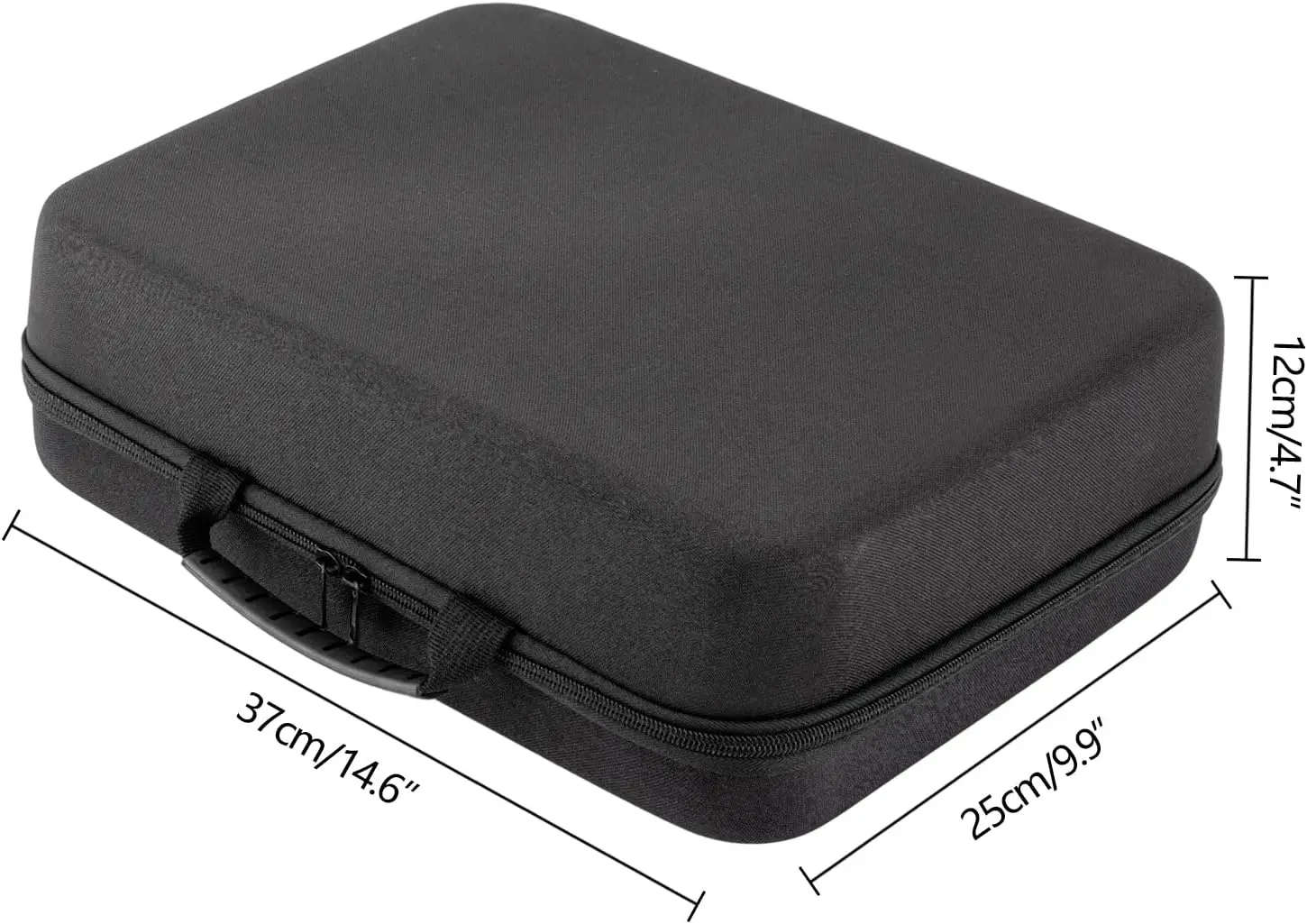

Toolbox Size: 37*25*12cm/14.6*9.9*4.7inch
Suitable Welding Rod Diameter: 2.5mm/0.09inch

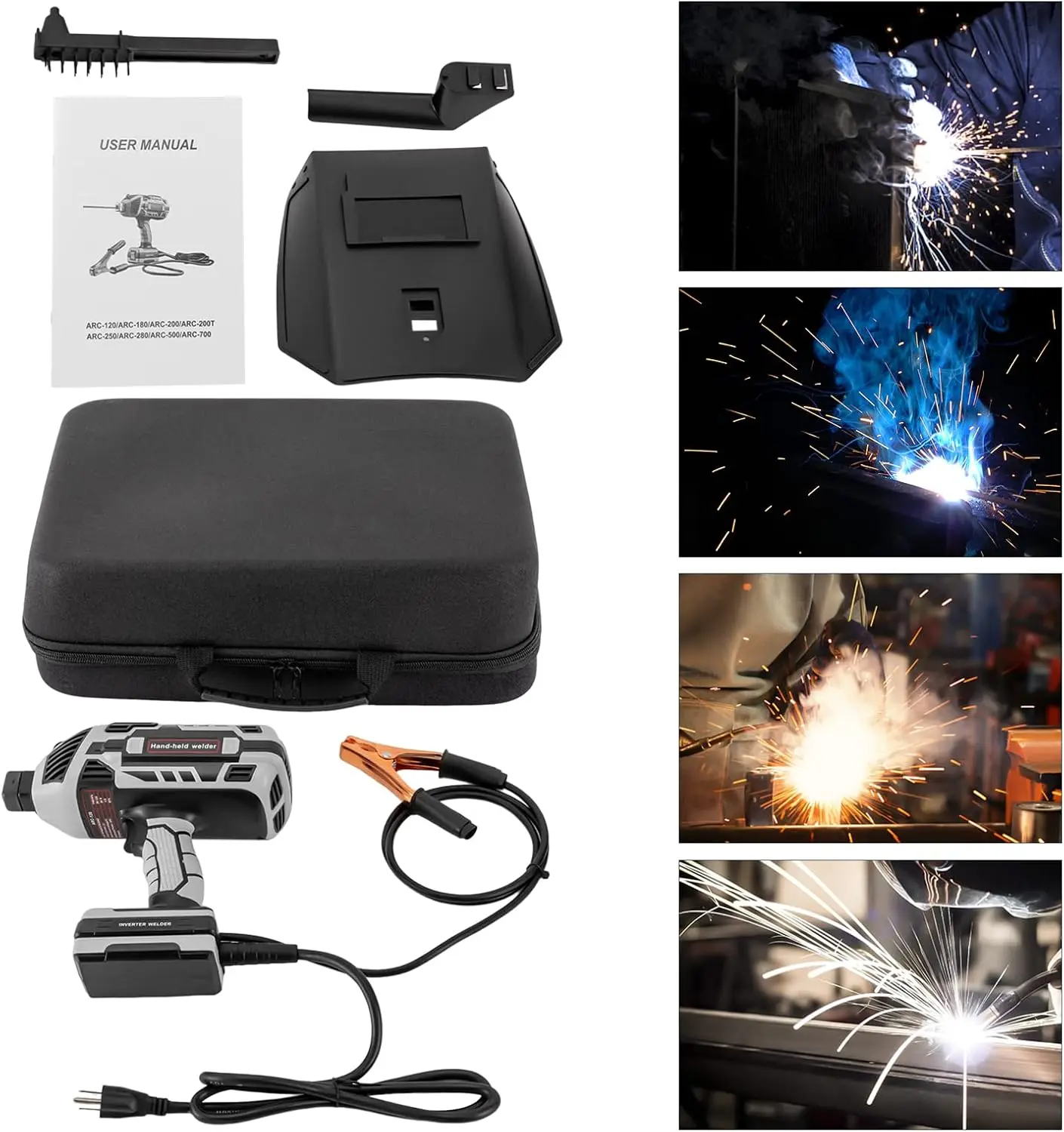

Package Included
1* Hand-held Welding Machine
1* Clip
1* Steel Brush
1* Toolbox
1 Set* Protective Masks
1* English Manual
Notes
Please make sure the heat dissipation holes are uncovered and unblocked. Good ventilation is of critical importance to the normal performance and service life of the machine.
Please keep hands, hair, and tools away from the cooling fan to avoid personal injury or machine damage. The minimum distance between the machine and nearby objects should be 30cm/11inch.
Clean the dust periodically with dry and clean compressed air. If welding in an environment with heavy smoke and pollution, the machine should be cleaned daily. The pressure of compressed air should be at a proper lever lest the small parts inside the machine will be damaged.
Please avoid rain, water, or vapor infilter the machine. If there is, dry it and check the insulation (including that between the connections and that between the connection and the case). Only when there are no abnormal phenomena can welding be continued.
Check periodically whether the inner circuit connection is ok (esp. plugs). Tighten the loose connection. If there is oxidization, remove it with sandpaper and then reconnect. Check periodically whether the insulation skin of all cables is in a good station. If there is any dilapidation, wrap it or replace it.
Put the machine into the toolbox in a dry location if it is not to be used for a long time.
Please read the manual completely before installation and use, and pay particular attention to the safety instructions included.
Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
