Specifications
HARDWARE FEATURES
Plug Type:EU, UK, US
Standards:IEEE 802.11aC, IEEE 802.1In, IEEE 802.11G, IEEE 802.11b
Interface:
1*10/100MbpS LAN Port
1*10/100MbpS LAN/WAN Port

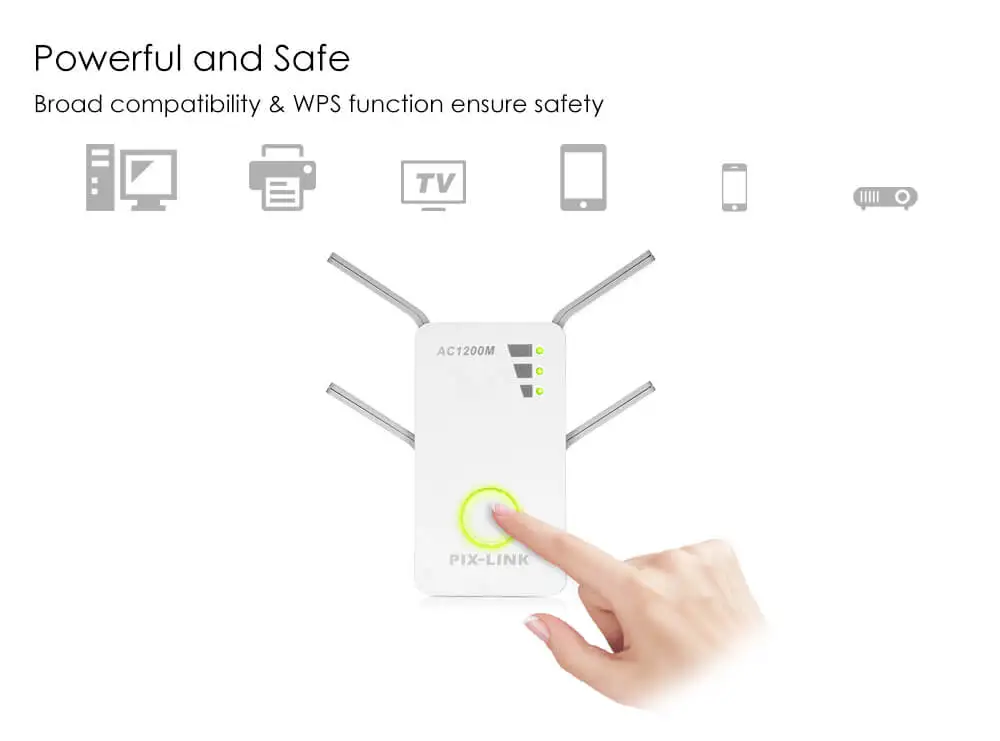

Button:WPS Button, Reset Button

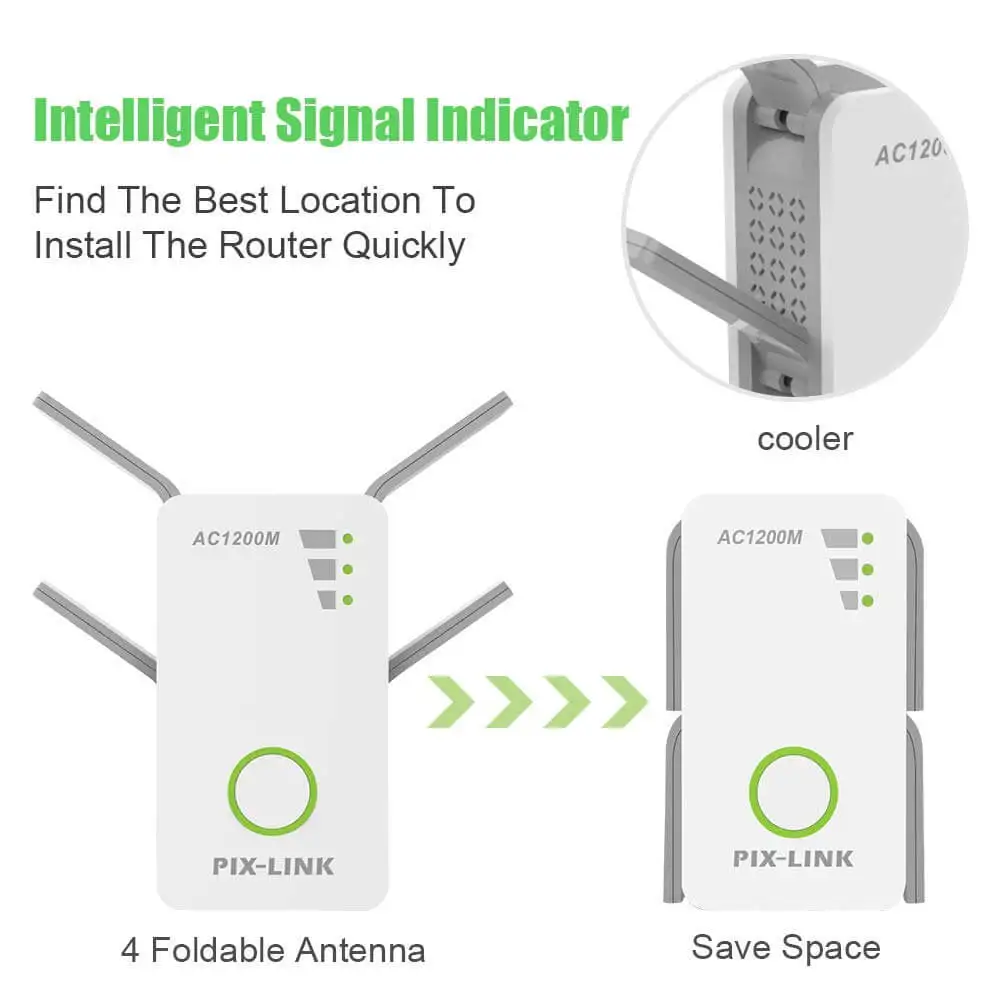

Antennd:4* external
Dimensions (Wx D xH ):
122.5 x79.0 x 40.5mm
WIRELESS FEATURES

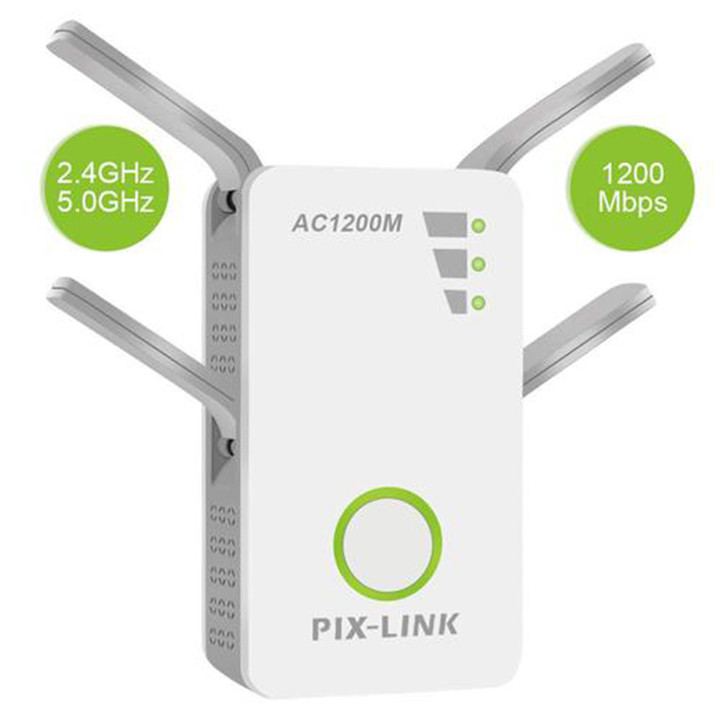

Frequency:2.4GHz & 5GHz(11ac)

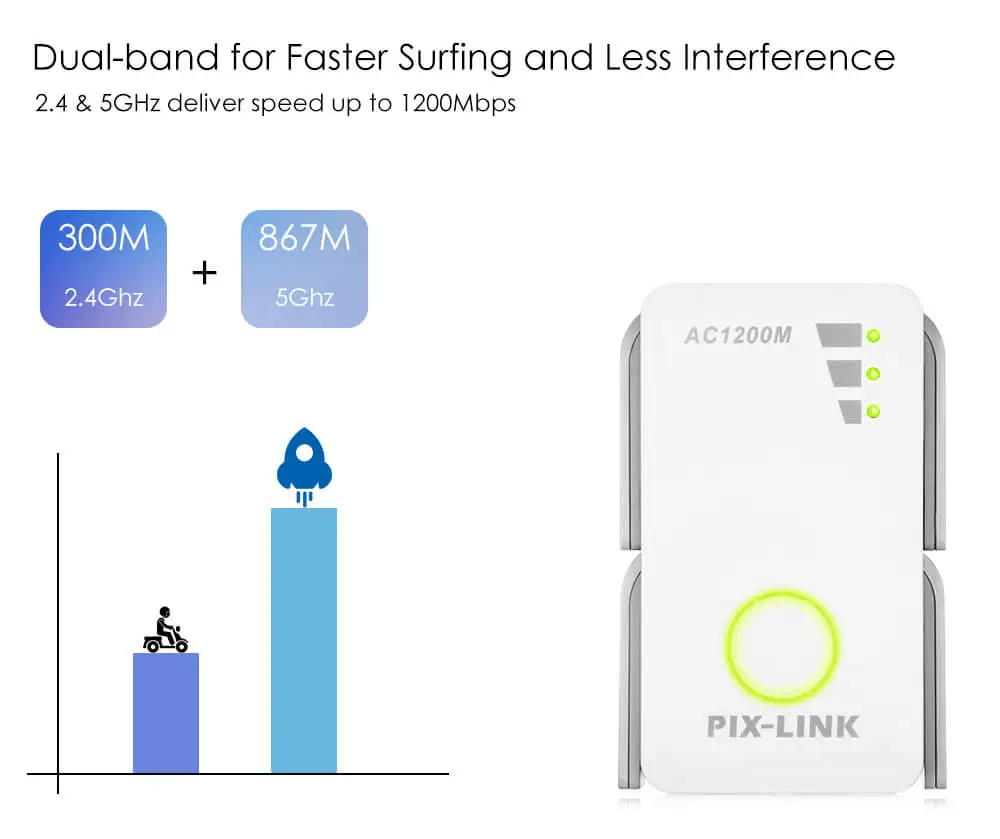

Signal Rate:
5GHz:Up to 867Mbps
2.4GHz:Up to 300Mpbs
Reception sensitivity:
5GHz :
11la 6Mbps:-93dBm@10% PER
11a 54Mbps:-76dBm@10% PER
11ac HT20 mcs8:-69dBm@10% PER
11ac HT40 mcs9:-64dBm@10% PER
11ac HT80 mcs9:-6ldBm@10% PER
2.4GHZ
11g 54M:-78dBm@10% PER
11n HT20 mcs7:-75dBm@10% PER
11n HT40 mcs7:-73dBm@10% PER
Transmit Power:
<20dBm(2.4GHz)
<18dBm(5GHz)
Wireless Modes:Repeater/AP/Router
Wireless security:
64/128/152-bit WEPWPA-PSK/WPA2-PSK
OTHERS

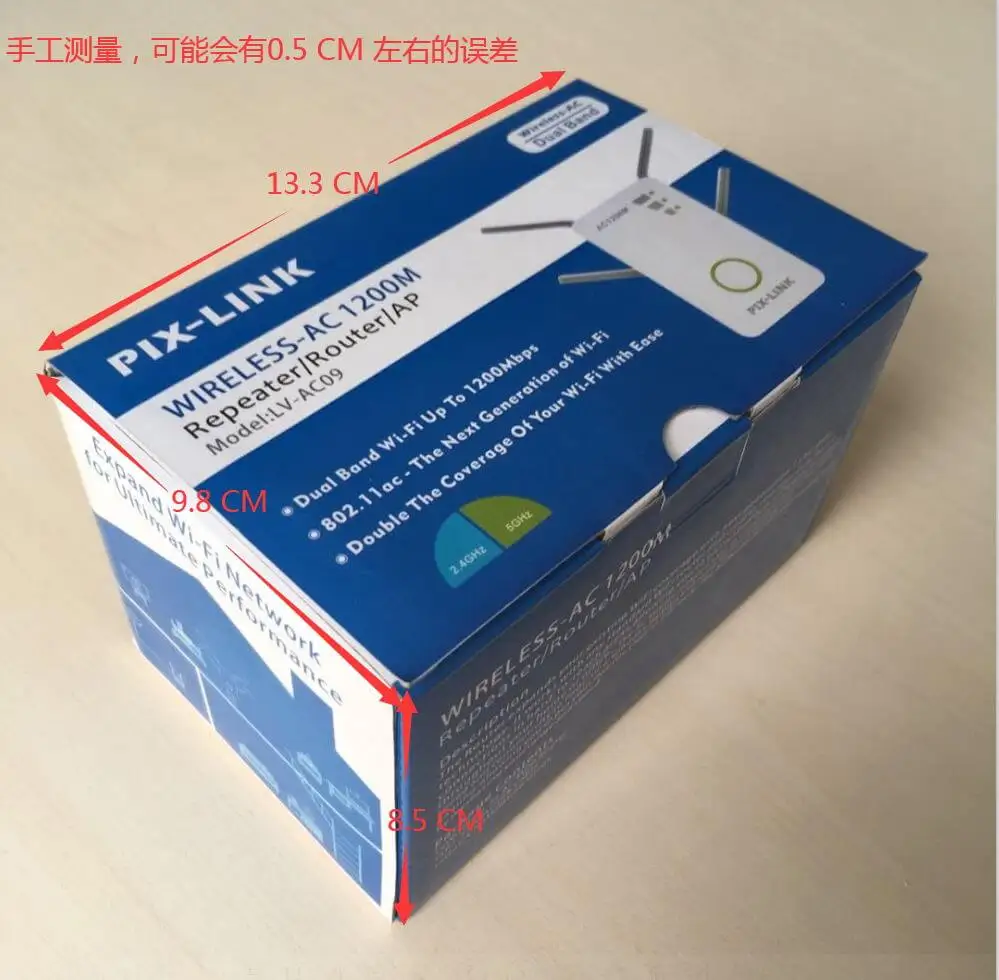

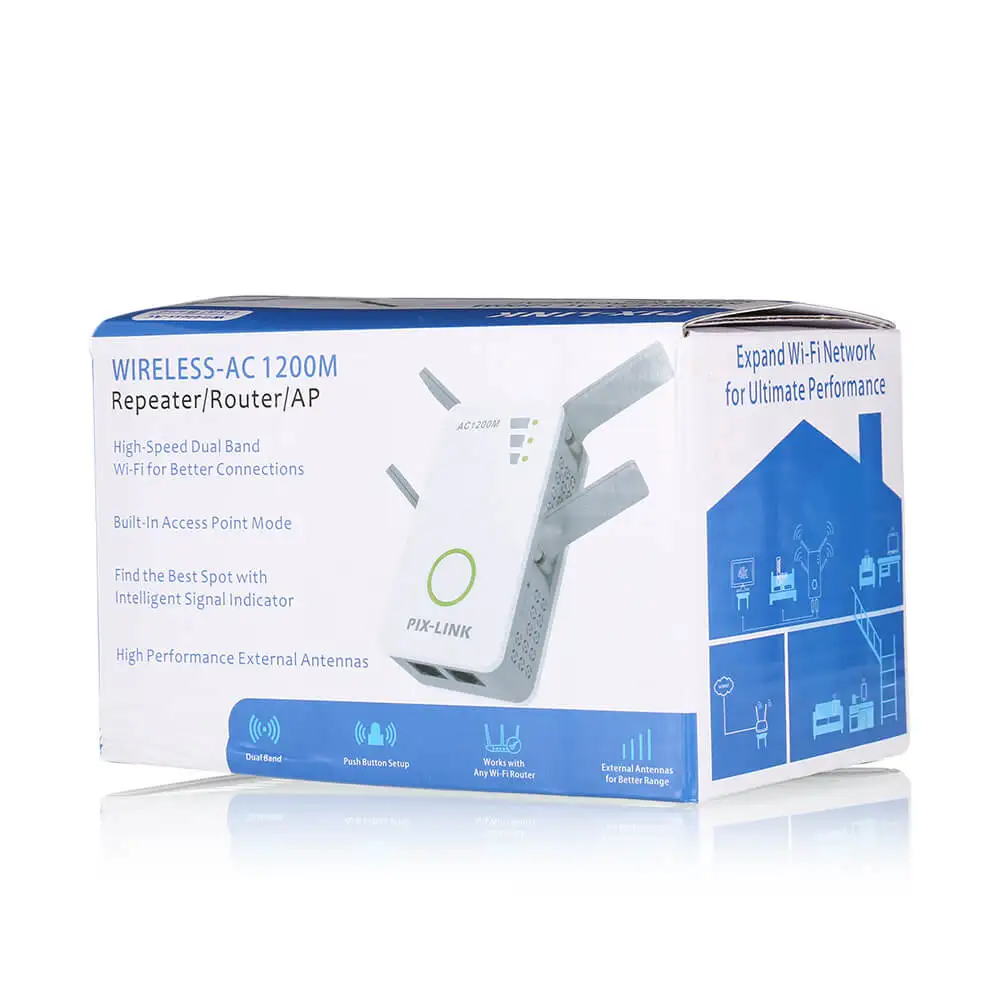

Package Contents:
1xWireless-AC Repeater/AP/Router
1xRJ-45 Ethernet Cable

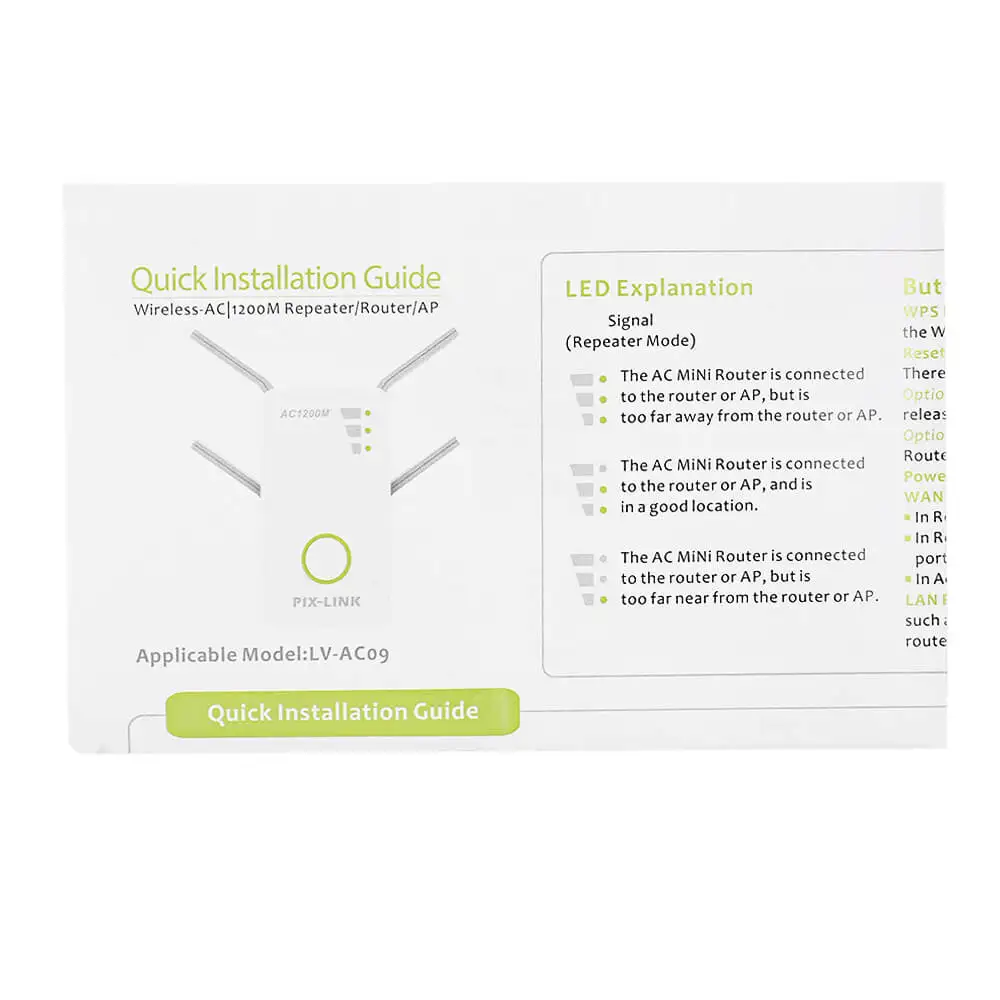

1xQuickInstallation Guide
Environment:
Operating Temperature: 0°C~40°C(32°F~104°F
Storage Temperature:-40°C~70-C(-40°F~158°F
operating Humidity:10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
