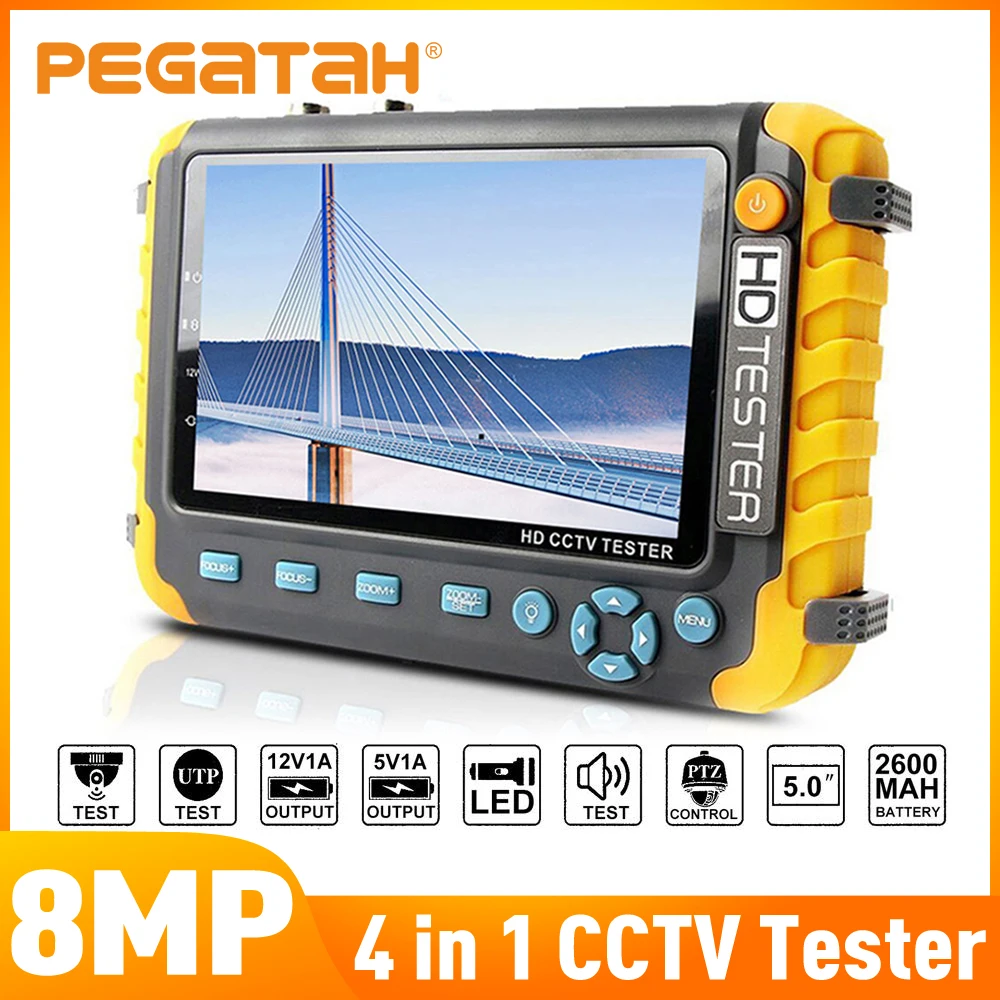

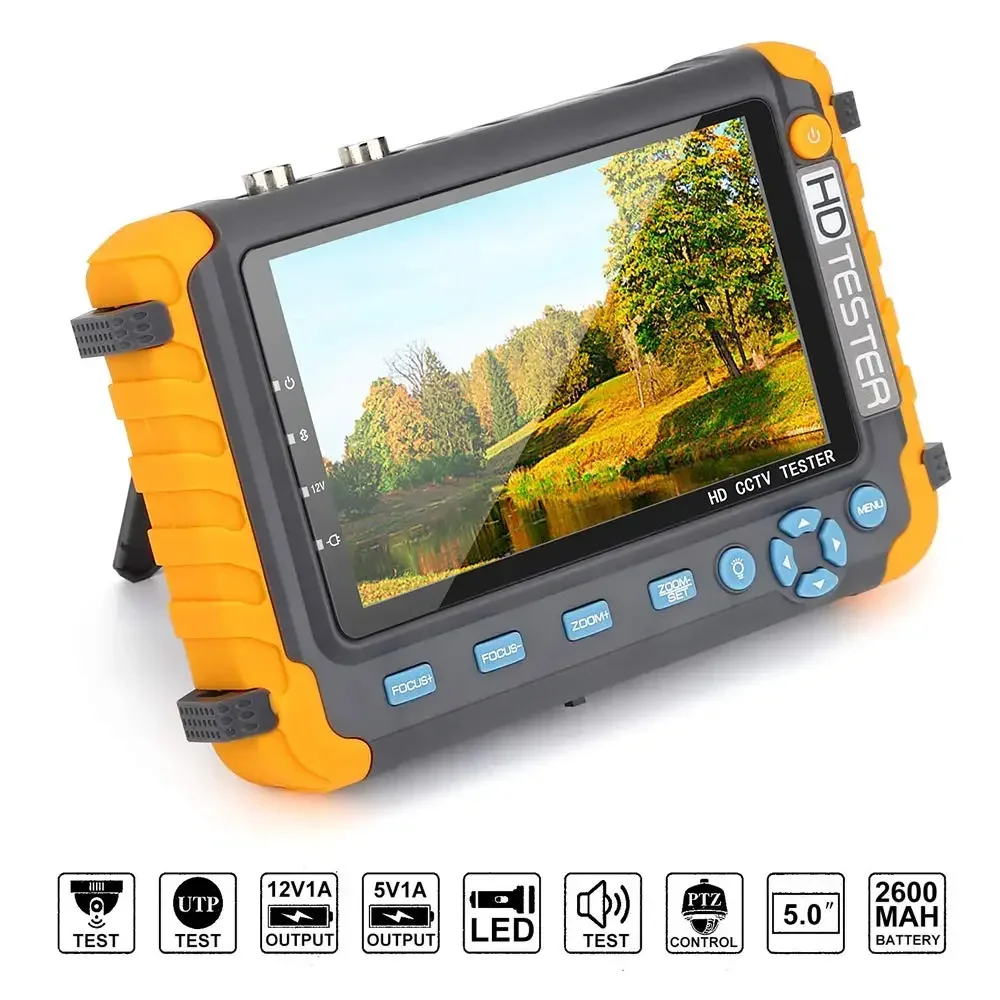

PEGATAH 5 inch 8MP 4 in 1 CCTV Security Camera Tester AHD CVI TVI CVBS Analog Camera Monitor With HDMI VGA Input UTP Cable Tester
Parameter comparison table
Note:

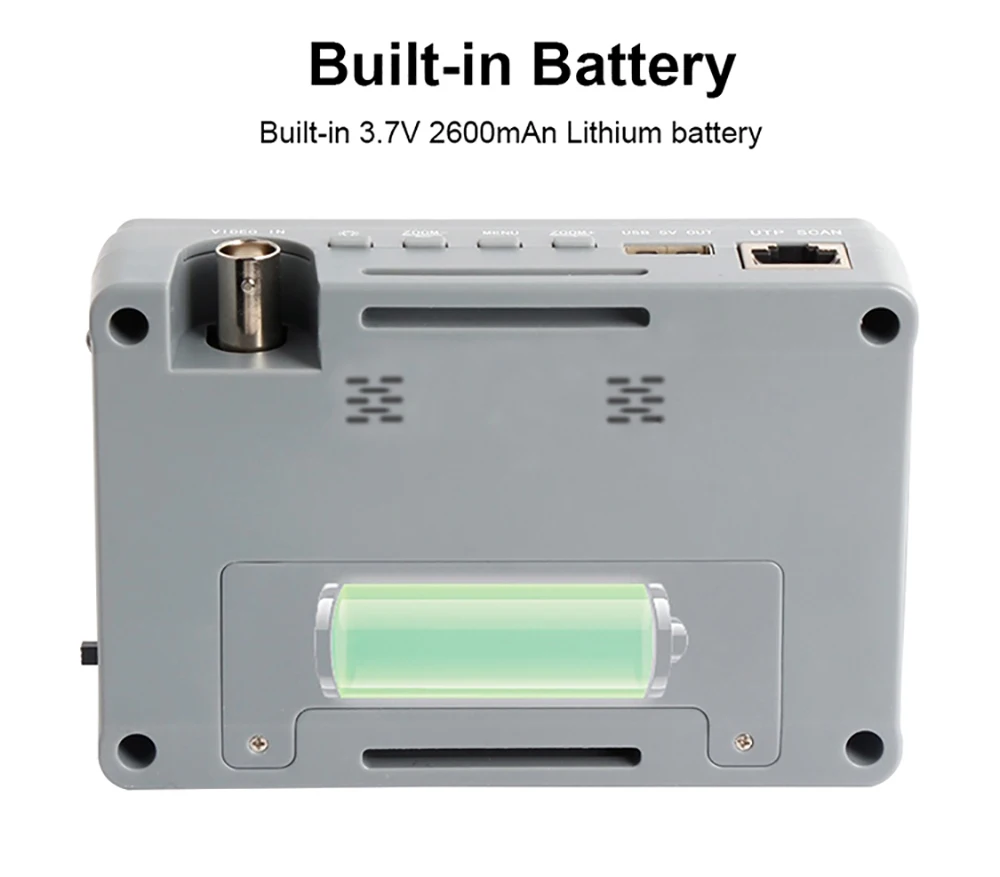

This tester cannot be used under overload, and it prompts that the battery is insufficient.
Please charge it immediately.
It cannot be used during the charging process. Use it after fully charged.
IV8W Application
The new HD Coaxial tester is developed for the on-site installation and maintenance of Analog Camera (CVBS) and HD Coaxial Camera, having AHD. (NOT Support IP Camera). It also provides many useful functions, such as video display, PTZ control, DC12V output power, audio test, image generator, VGA video signal input, HDMI1.0 signal input, RS485 data searching, cable testing, LED lamp etc.

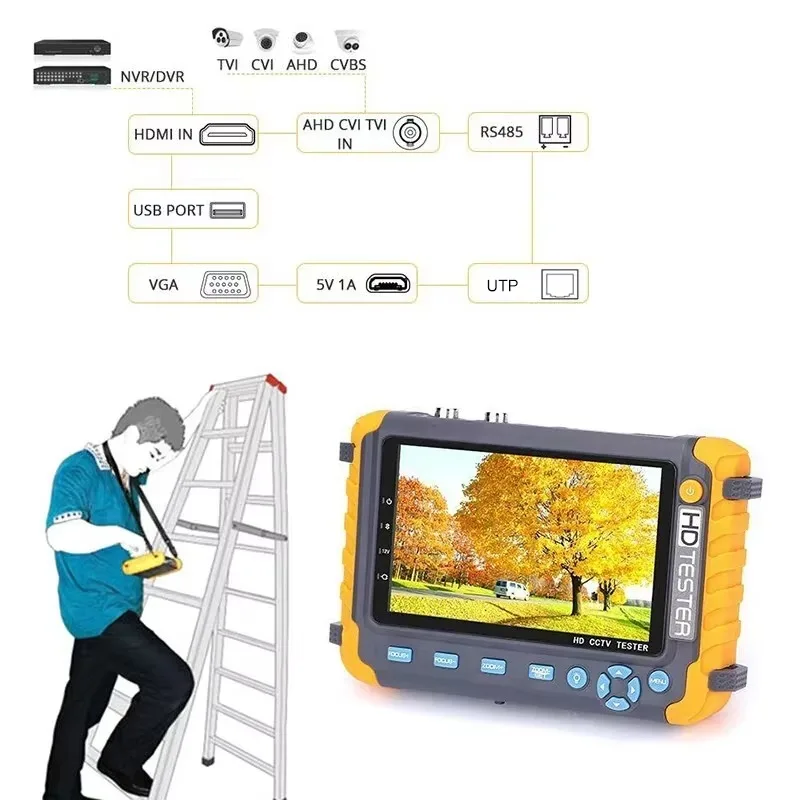

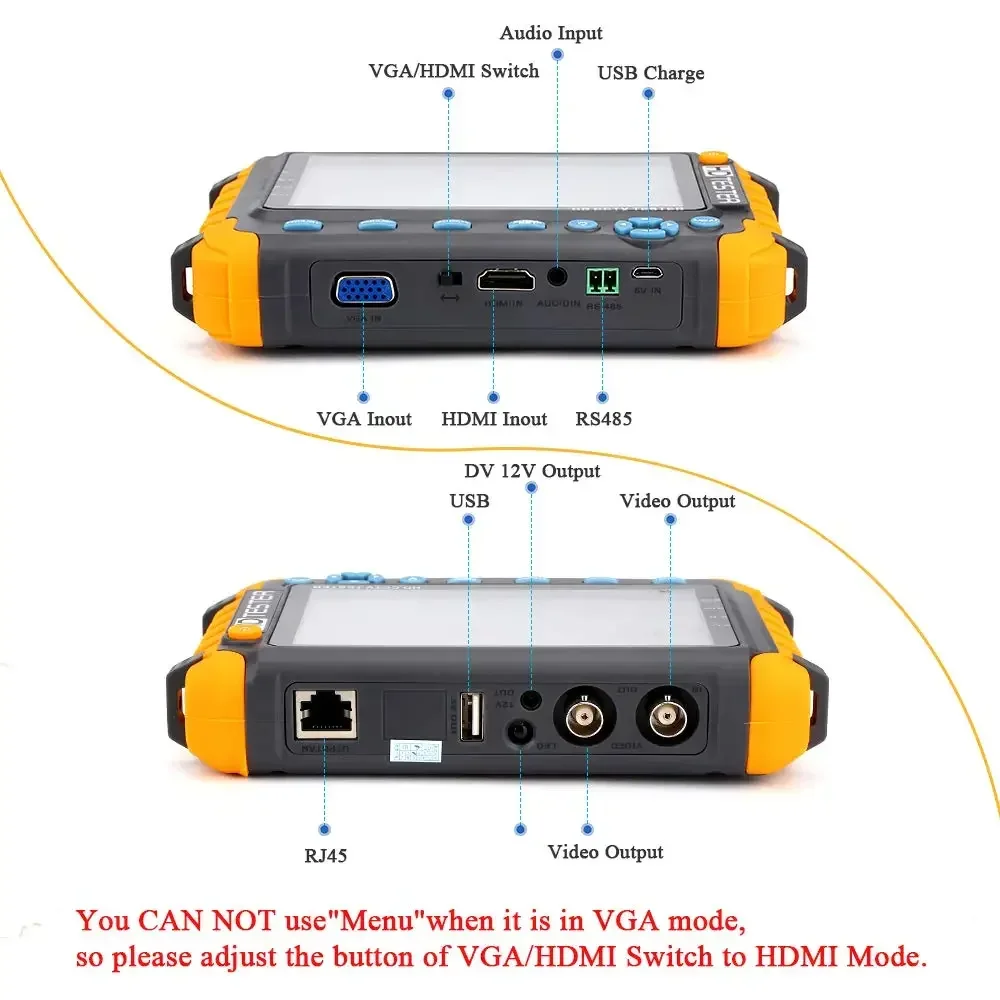

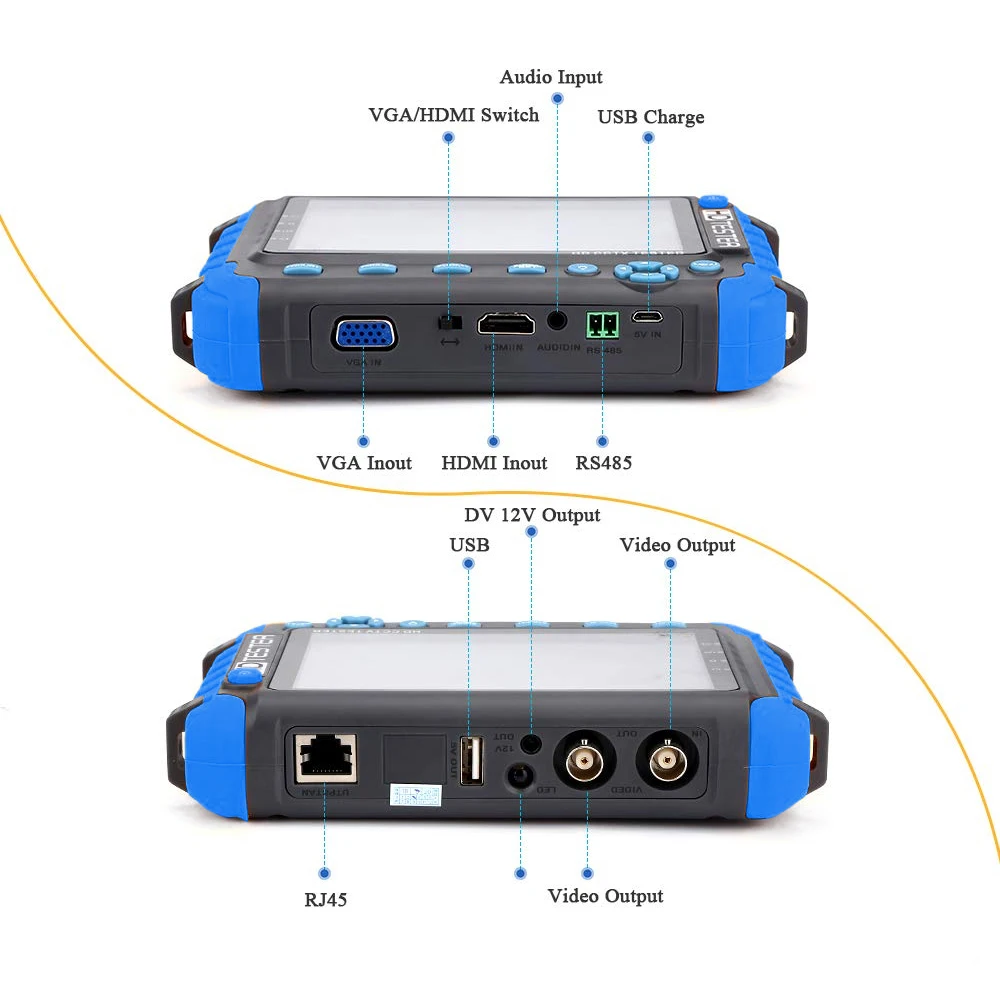

HDMI &VGA Input
VGA/HDMI Input,it support VGA/HDMI 1:1 compliant digital input,once connect VGA/HDMI video,please switch selector to select VGA/HDMI Mode,The maximum resolution is 1920*1440. Video monitor tester, High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display, Viewing angle larger, more intuitive and easy to display the camera image quality. Support PAL/NTSC standard video signal.
DC12V 1A output power for camera
The tester support DC12V (1A) power output for camera. It is helpful for demo and testing when the power supply is not available.

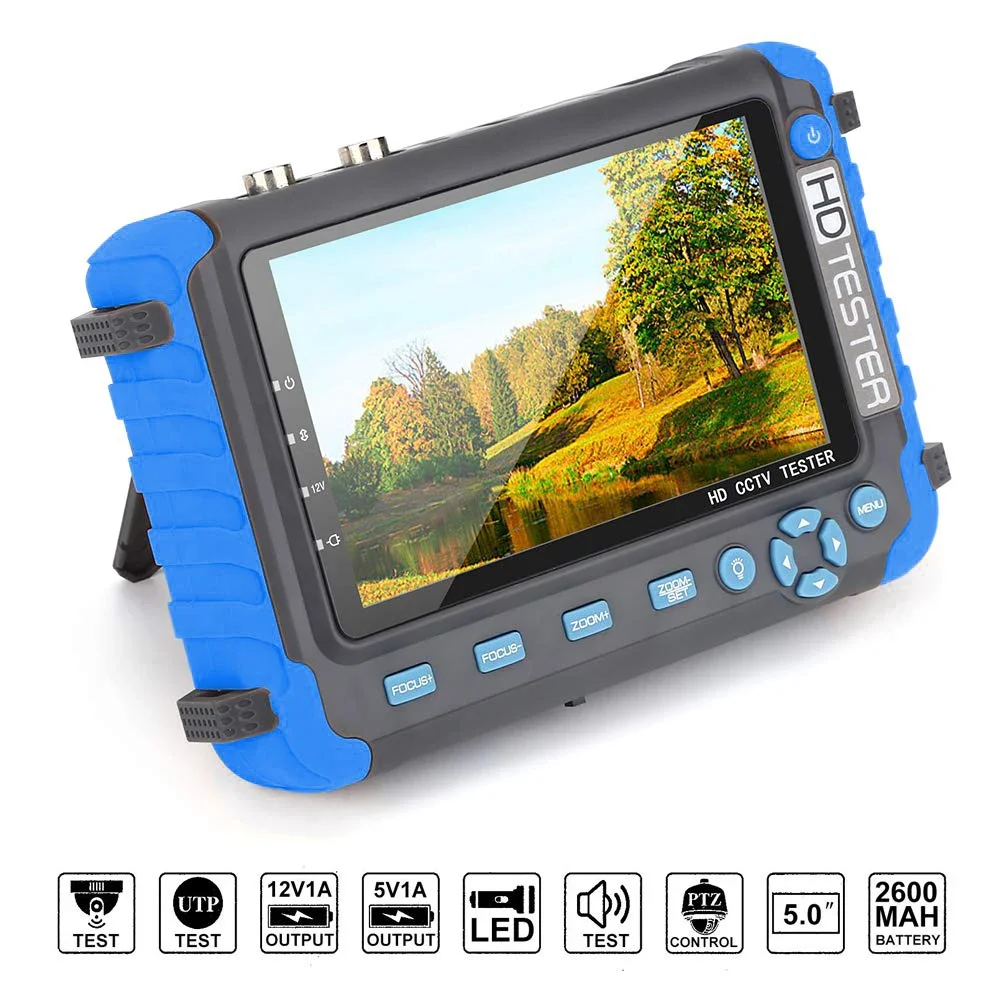

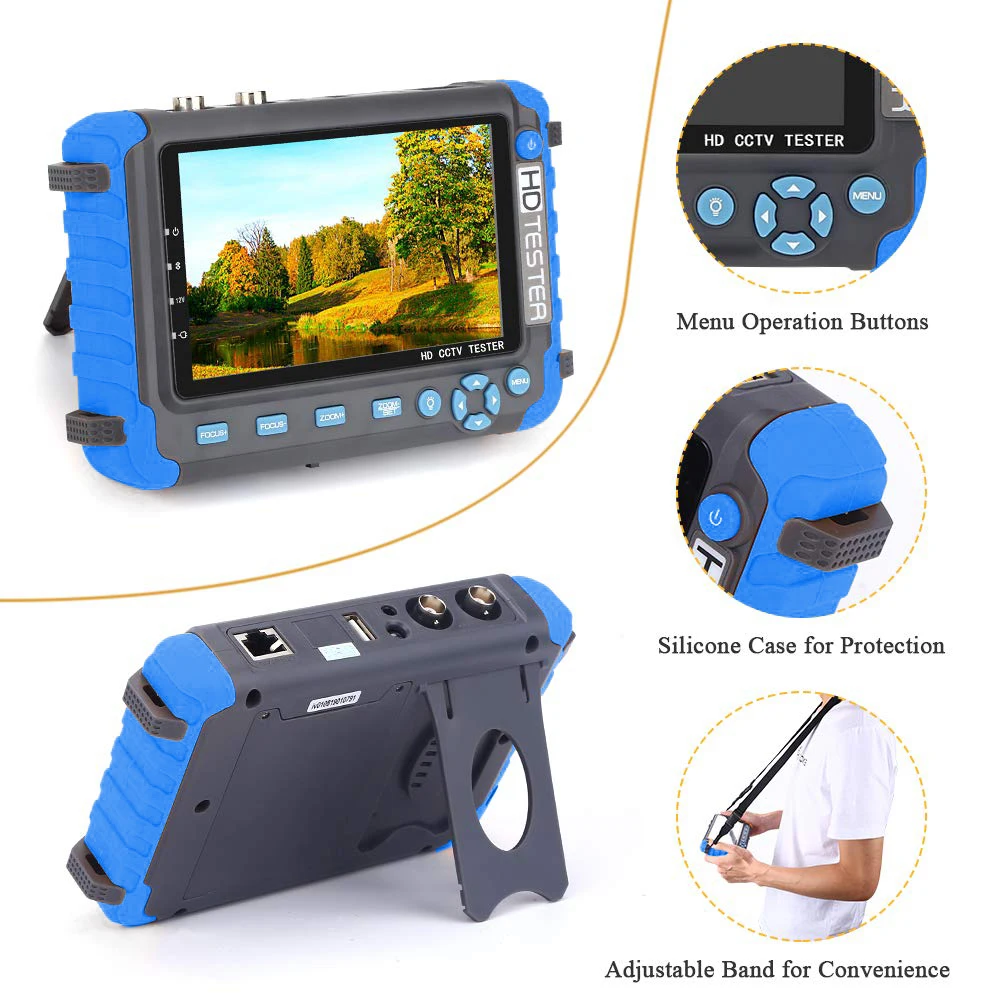

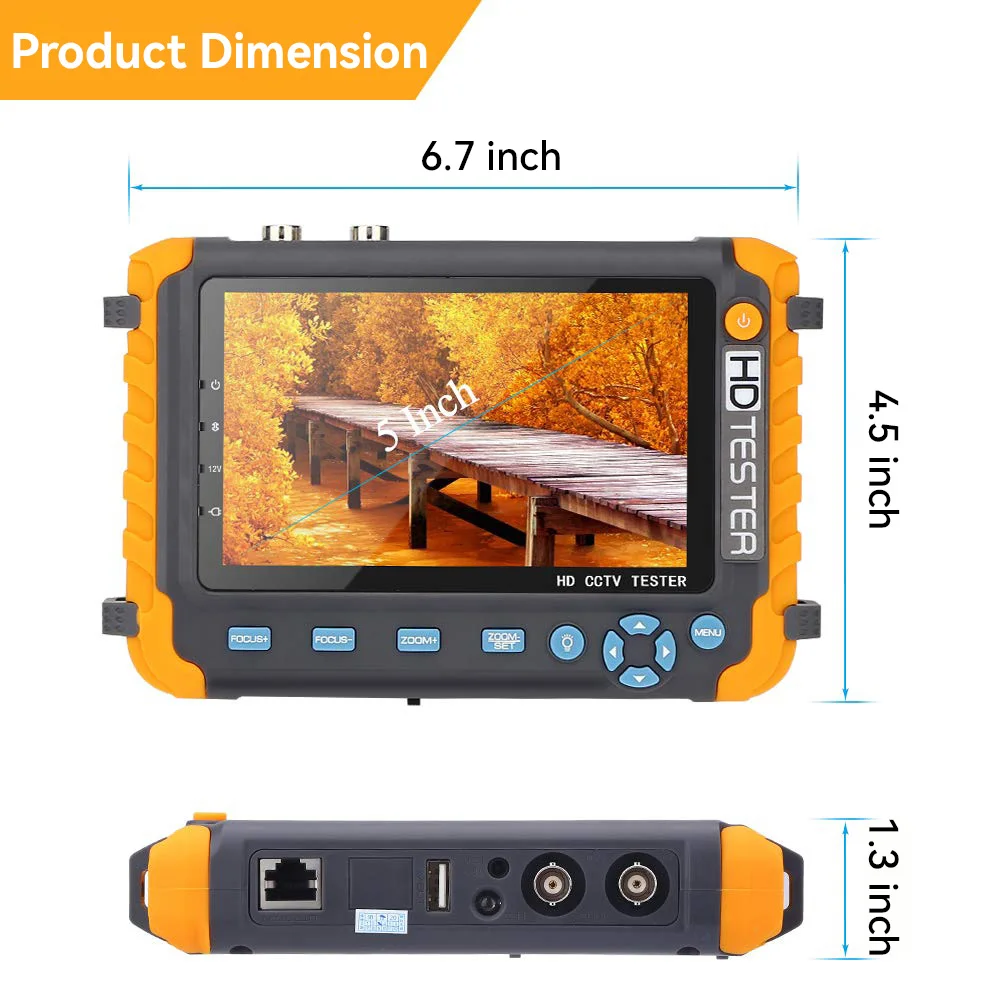

LCD Screen
Vedio monitor tester support High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display, Viewing angle larger, more intuitive and easy to display the camera image quality.
PTZ controller
Video monitor tester built-in Pelco-D / P PTZ control protocol, etc. , through its own RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus, aperture size.
Image generator
Multi-format video OUT port image generator, sending a variety of standard (e.g. PAL, NTSC) color graphics section
Audio testing
Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.

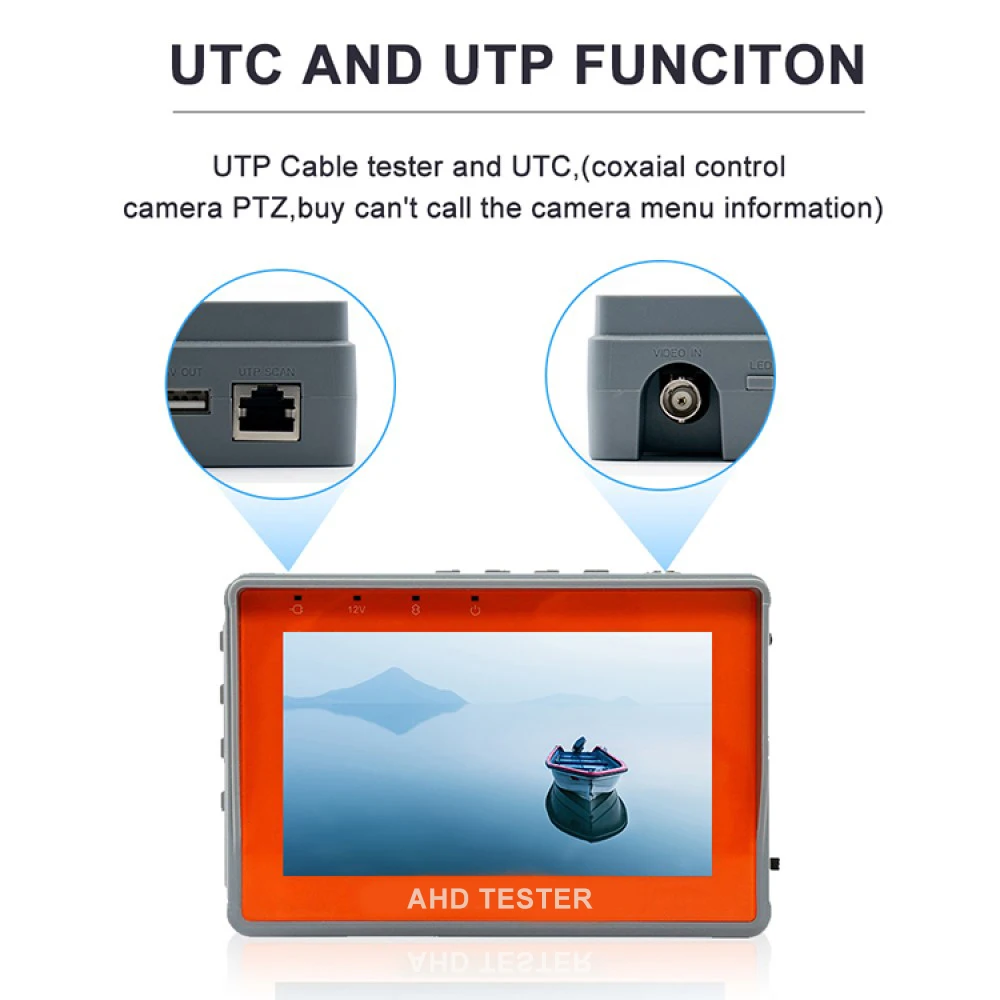

Enhanced network cable testing
By UTP CABLE TEST port on the meter, you can test the connection of network cable.

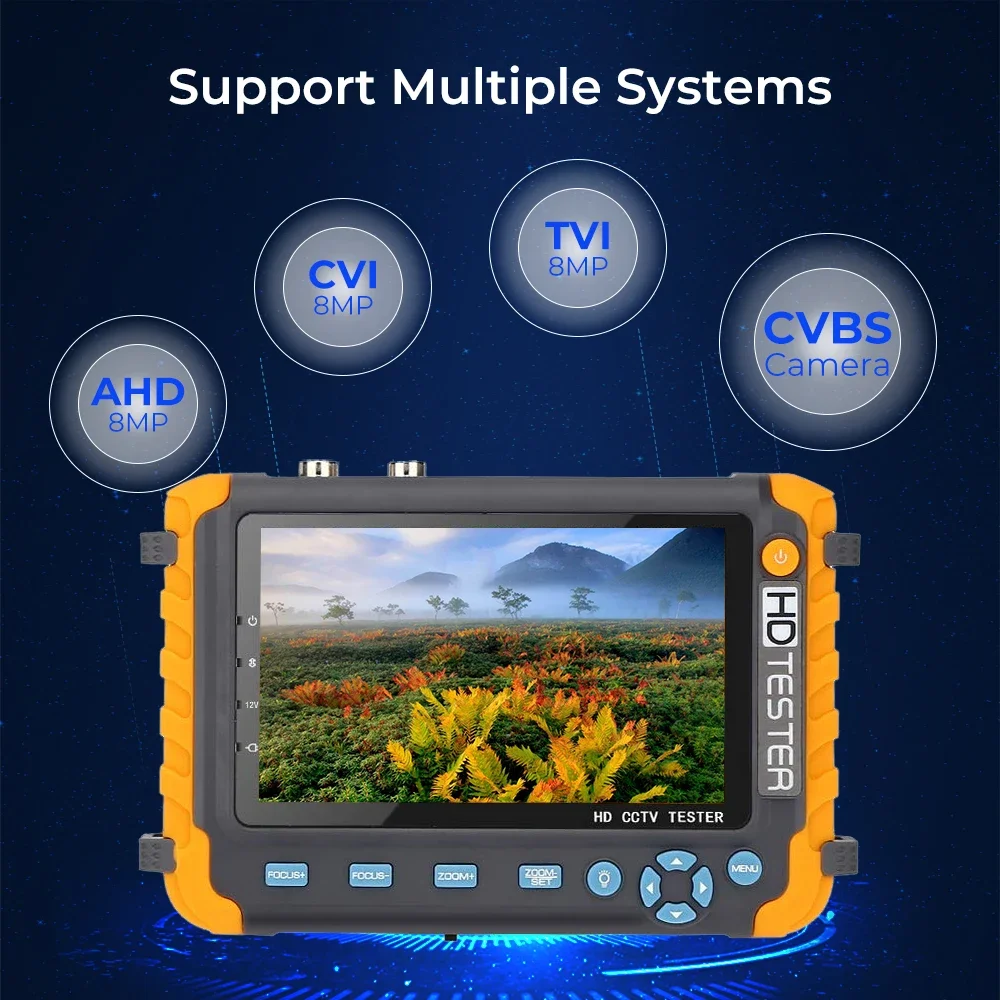

TVI input
1 channel TVI input(BNC interface), support 720P 25/30/50/60, 1080P 3MP/4MP and 5MP 25/30,8MP

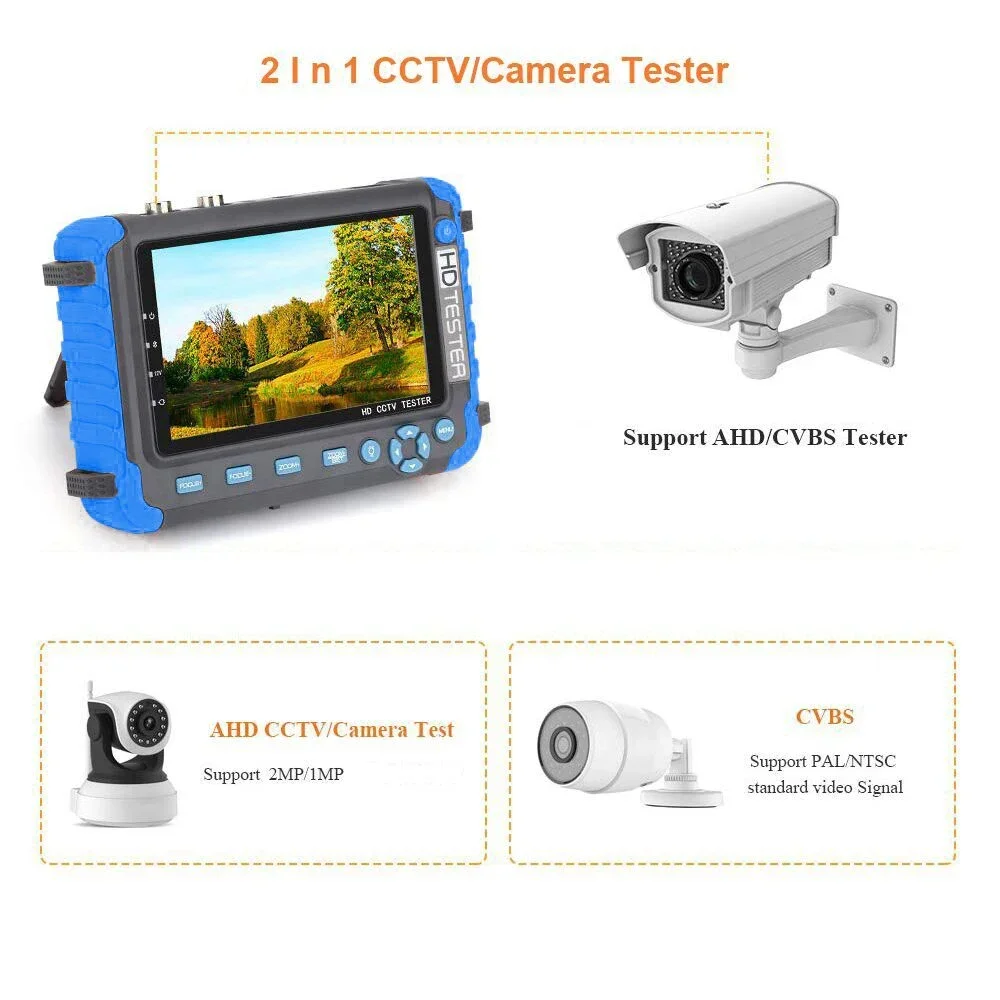

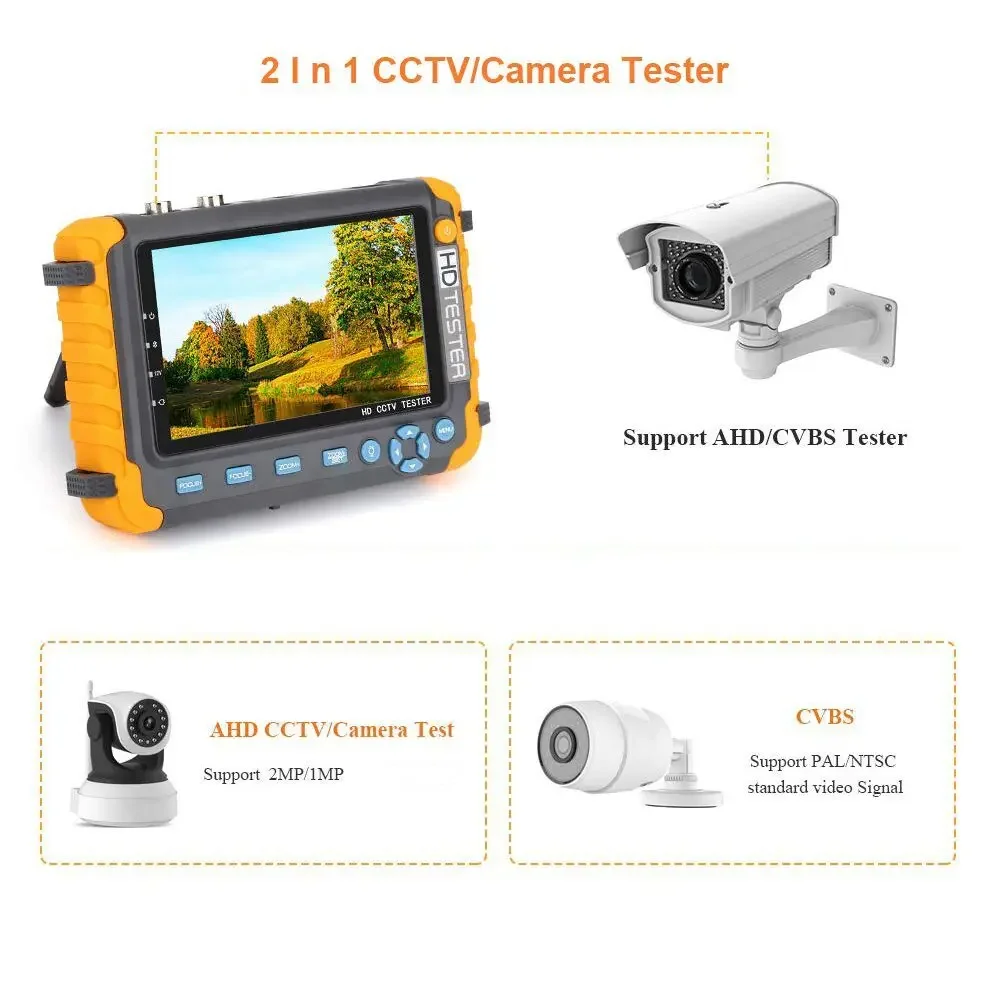

AHD camera test
support 1 channel AHD input (BNC interface), 720P 25/30/50/60, 1080P 3MP/4MP and 5MP 25/30,8MP When AHD signal input, the tester will display the AHD camera image.
CVI camera test
1 channel CVI input(BNC interface), support 720P 25/30/50/60, 1080P 25/30, 3MP and 4MP 12.5/20,5MP, 8MP CVI camera input
