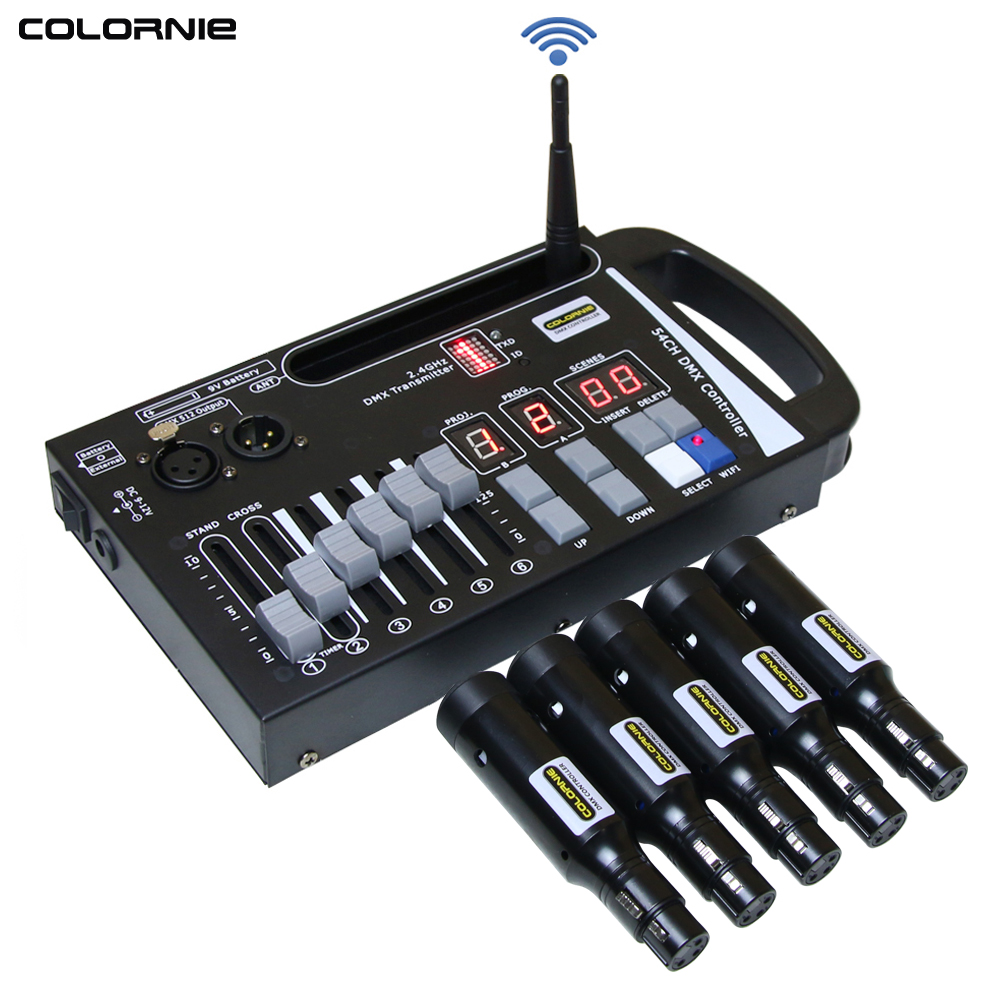

New Wireless DMX Transmitter Receiver Rechargeable DMX512 Laser Light Controller 54CH DMX Controller For Stage Effect DJ Disco

54ch Wifi DMX Controller Battery Stage Lighting Effect RGB Dmx Controller LED Par Moving Head Spotlights Dmx Controleur

Features:

1.54ch Mini DMX controller transmits standard DMX512 protocol data (generated by console) by wireless way.

2.No time delay when signal data is transmitting, signal data is real time and reliably.

3.This product adopts a 2.4G ISM frequency section.

4.High effective GFSK modulate,communication design. 54 channels jumping frequency automatically, high anti-jamming ability.

Advantages:

1. Small Size Compact and Portable Handheld , Weigth only 1.1KG.

2. 54 channels total can control most of the lights, as most of the light are less than 54ch. It can control 9pcs 6CH fixtures / 4pcs 12CH fixtures / 3pcs 16CH fixtures

3. Programmable. 9 programs. Program speed controllable. 6 channels per page, 9 pages

4. Can work for 9V battery, very convenience for moving stage.

5. Wireless transfer signal within 500meters.

6.Output Standard 3pin Female & male XLR connectors.

7.4-button LED display with indication of status

Rechargeable DMX512 Wireless Receiver :

• Built in rechargeable battery

• small size: 11.5cmx2.3cmx 2cm (receiver)

• No time delay during data transmission

• 7 groups ID code settable

• Portable and easy to handle

• Economical

• one transmitter can control many receivers

Technical parameters:

Tricolor LED displaying

126 channels automatically jumping frequency, high anti-jamming ability to ensure working reliability.

7 groups ID code settable, user can use 7 groups individual wireless system without any interference with each other in the same place.

Built in rechargeable battery, battery can last about 8 hours

Input voltage: 5VDC 500mA MIN.

Communication distance: 500M.

Work frequency section: 2.4GHz ISM band, 126 channels frequency section.

Max transmitting power rate: 20dBm.

Receiver sensitive: -94dBm.

Signal port: 3 pin female plug (for receiver)

Product outline:

Operating manual:

ID code and LED color corresponding correlation:

1: RED

2: GREEN

3: RED+GREED = YELLOW

4: BLUE

5: RED+BLUE = PURPLE

6: GREEN+BLUE = CYAN

7: RED+GREED+BLUE = WHITE

Press key 1 time to indicate ID setting, press again to set ID, then ID value adding 1 each time by press.

Working condition:

LED constant lit up: no DMX or wireless signal

Red LED flash: transmitting

Green LED flash: Receiving

RF frequency——2. 400-2. 525G, total 126 channels, it is searching automatically.

ID Code——1-7 groups ID code, press “Key” for setting, it only can works under same ID code of transmitter and receiver.

Establishing Communication:

1. Press “Key” button to set same ID value of transmitted board and received board, please use different ID value if you need to use more than 1 group wireless system at the same time in the same place.

2. The red LED flashes when transmitter transmits DMX data by no interfered frequency section, then receiver changes communicated frequency section. Green LED flash till received corrected same ID value, LED flash more fast once DMX data more fast.

3. Communication was established correctly then.

Package included:(Depends on your chooice )

1R Receive (W) =1 * White Rechargeable Receiver (built-in battery)+ Adapter+Use Manual

1R Receive (B) =1 * Black Rechargeable Receiver (built-in battery)+ Adapter+Use Manual

1Pcs 54CH Console =1* 54CH Wireless DMX Controller + Adapter+Use Manual

1 Console and 1 R (B) =1* 54CH Console + 1* Black Receiver (built-in battery)+ Adapter+ Usb Cable+ Use Manual

1 Console and 2 R (B) =1* 54CH Console + 2* Black Receiver (built-in battery)+ Adapter+ Usb Cable+ Use Manual

1 Console and 2 R (W) =1* 54CH Console + 2* White Receiver (built-in battery)+ Adapter+ Usb Cable+ Use Manual

1Console and 3R (B) =1* 54CH Console + 3* Black Receiver (built-in battery)+ Adapter+ Usb Cable+ Use Manual

1Console and 5R (B) =1* 54CH Console + 5* Black Receiver (built-in battery)+ Adapter+ Usb Cable+ Use Manual
