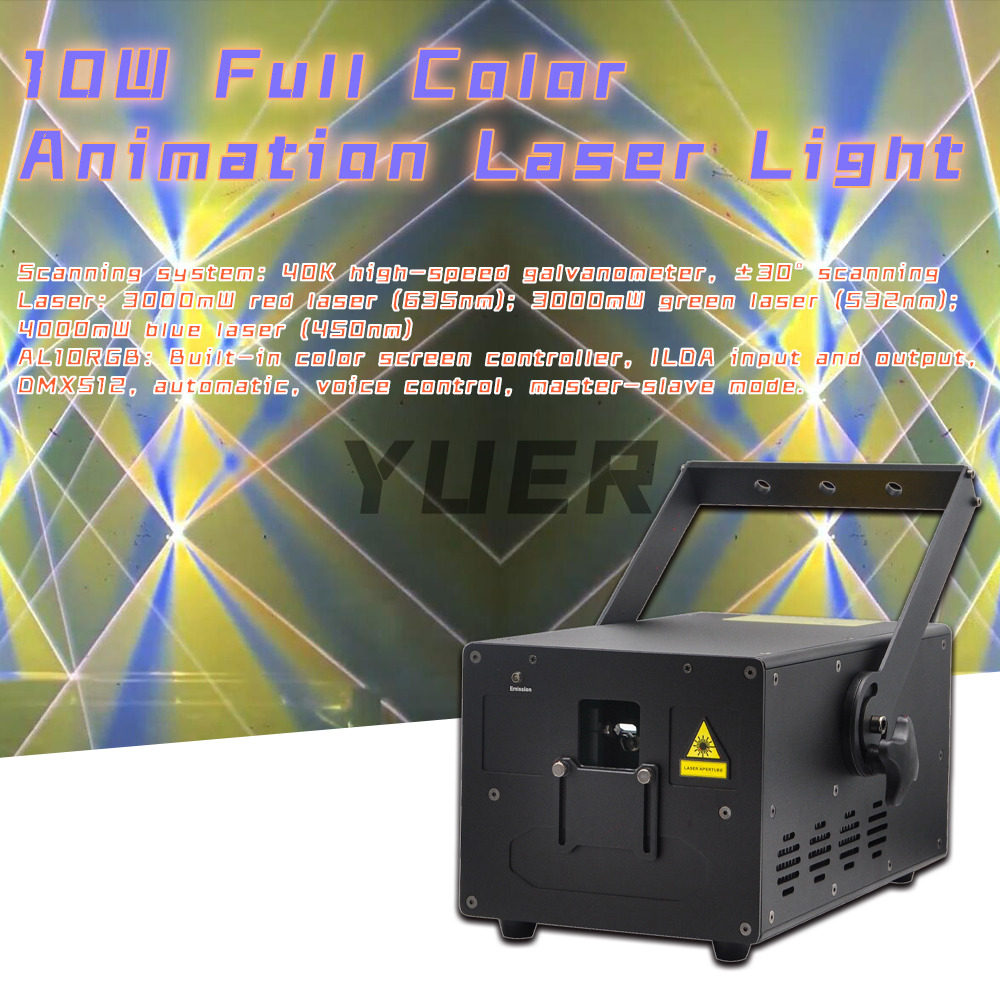

YUER Product Specification
●: Scanning system: 40K high-speed galvanometer, ±30° scanning
●:Laser: 3000mW red laser (635nm); 3000mW green laser (532nm); 4000mW blue laser (450nm)
●:Machine size: 195*370*165(H)mm
●:Weight: 9.95Kg
●:Packaging size: 510*320*285(H)mm
●: Gross weight: 12Kg
●: Features:
●: RGB lasers all use high-stability and long-life semiconductor lasers (Diode Solid-State Laser). When the laser diode is powered on, it emits laser light directly (similar to a light-emitting diode). It is highly efficient and stable, and can operate normally at -30°C~50°C. Work.
●: The machine has a two-layer structure design, compact, small in size and light in weight.
●: Upper layer: optical path and electrical layer. Completely dust-proof design, no cleaning and maintenance required; the electrical department is arranged on the upper floor for easy installation and maintenance. All the heat from the heating components is directed into the lower radiator.
●: Lower layer: large radiator and power layer, strong wind convection heat dissipation.
●: RGB laser spot, divergence angle: divergence angle: <1.5mrad, spot diameter at the exit <5mm.
●: The laser adopts analog modulation technology to linearly control the laser brightness and produce bright colors.
●:Control mode:
●:AL10RGB: Built-in color screen controller, ILDA input and output, DMX512, automatic, voice control, master-slave mode.
●: Computer interface: Compatible with ILDA standard computer laser show software control. All ILDA signals are converted using electronic switches.
●:Safety configuration: laser single point protection, laser key switch, laser emergency remote control interface, eye bolts.
●:Safety intelligence: A single point caused by failure of the scanning motor or control system will force the light to be turned off. PC control and built-in program mode automatically identify and switch; in the automatic master-slave synchronization, DMX and PC control modes, the light will be automatically turned off when there is no signal.
●:Power supply: 100~250V, 50/60HZ, 100W
●: Application places: discotheques, dance halls, bars, nightclubs and various large-scale performance venues. It can operate at low temperatures outdoors.
YUER Reminder
1. Please go through all description before purchase.
2. The video and pictures were made under the dark area with fog effects.
3. The resolution of video may appear to be dusky but the real effect will be better than the video you’ve seen.
4. The item will be shortened it’s life if it’s keeping run for a long time such as 5 hours(switch off for 15 mins when it was running for few hours).
5. Keep away from children and NO direct eyes contact to the laser lights.
6. Please comply with the user manual during using.
7. It’s normal for a little noise when the item is running as it was applied with a stepping motor.
