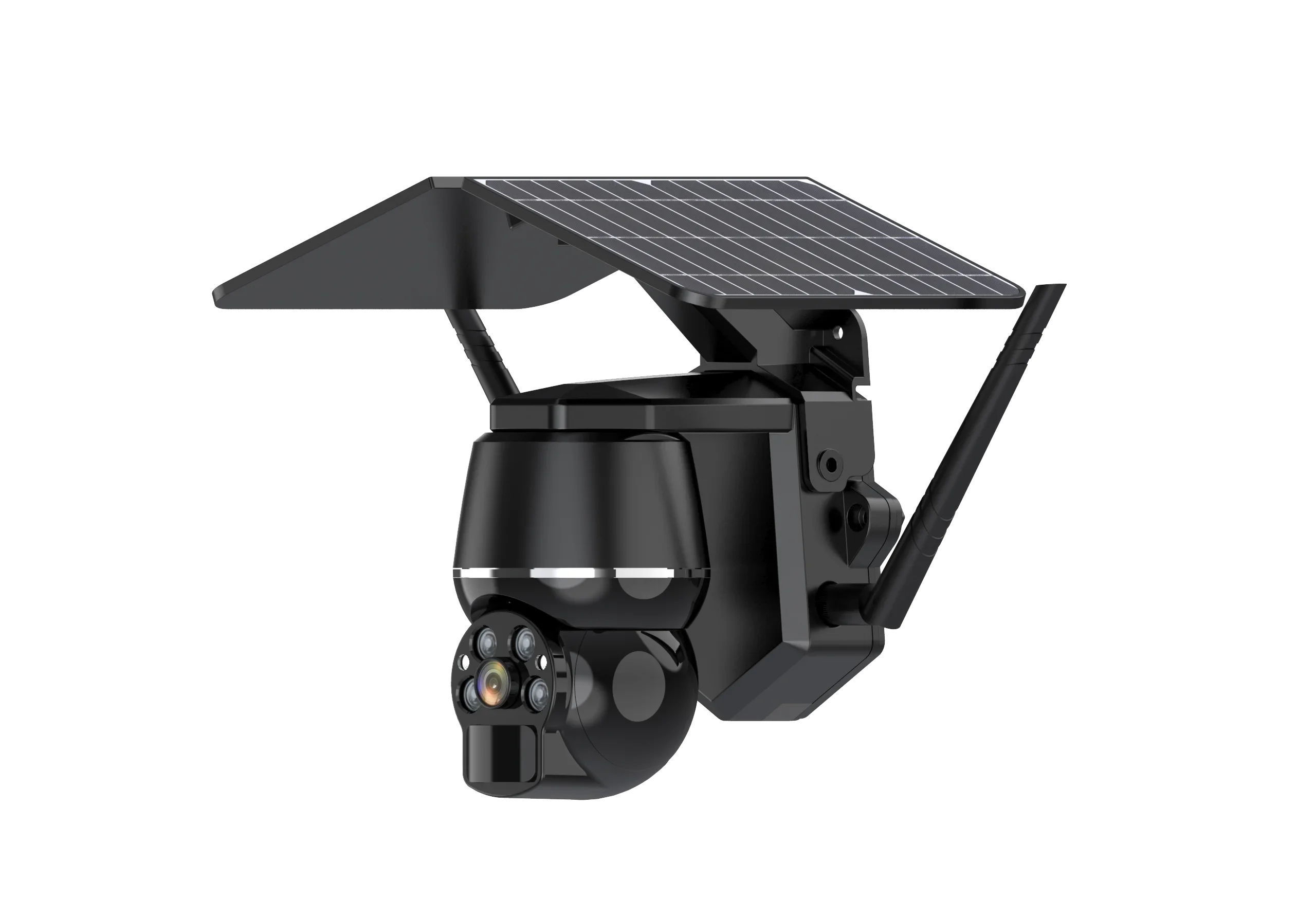

CCTV Camera /Color Night Vision Solar Wifi Camera/ Motion Detection 4GNetwork Camera * The price of 4G version depends on the country, please contact the sales staff.
Specification
|
Model：Q7
|
|
Version
|
Band
|
WiFi
|
4G
|
|||
|
Network
|
Wireless WiFi frequency
|
2.4 GHz
|
IEEE802.11b, 802.11g, 802.11n Draft
|
Support
|
N/A
|
|||
|
|
|
5.0 GHz
|
N/A
|
N/A
|
N/A
|
|||
|
|

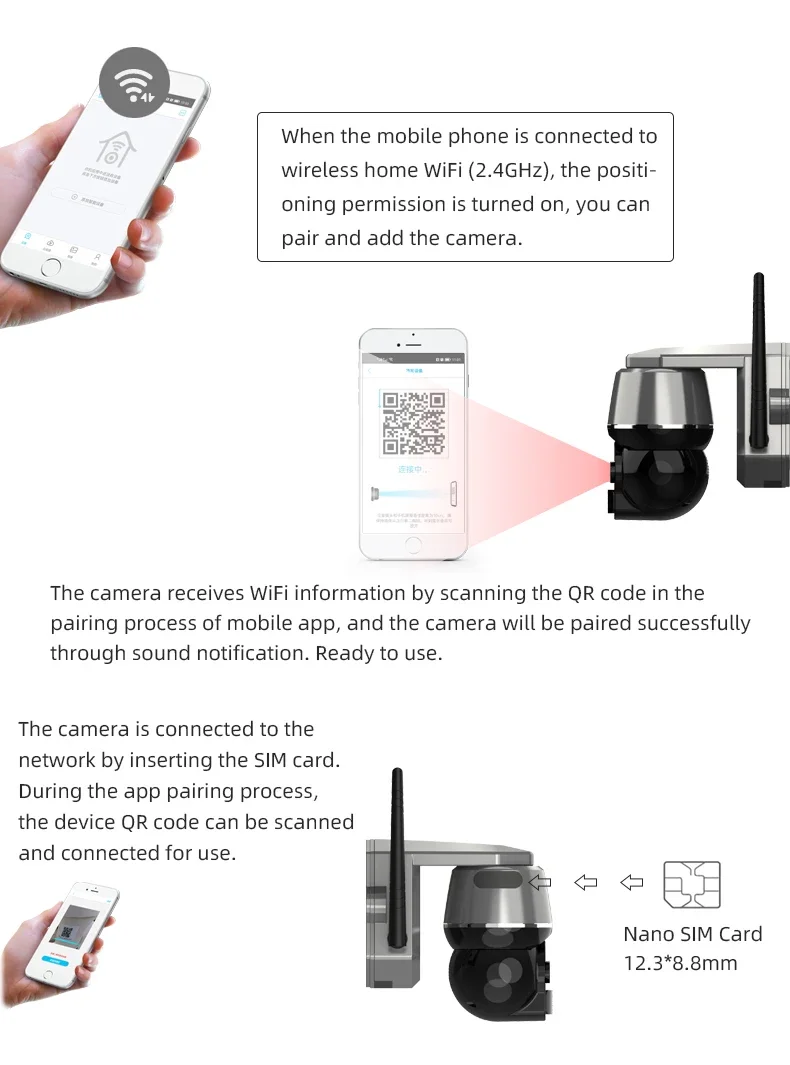

4G nano SIM card
|
Southeast Asia
|
B1/B3/B5/B8/B34/B38/B39/B40/B41
|
N/A
|
Support
|
|||
|
|
|
Australia
|
B1/B2/B3/B4/B5/B7/B8/B28/B40/B66
|
N/A
|
Support
|
|||
|
|
|
Japan
|
B1/B3/B8/B18/B19/B26
|
N/A
|
Support
|
|||
|
|
|
America
|
B2/B4/B5/B12/B13/B14/B25/B26/B41/B66/B71
|
N/A
|
Support
|
|||
|
|
|
Europe
|
B1/B3/B5/B7/B8/B20/B38/B40/B41
|
N/A
|
Support
|
|||
|
Video
|
Master sensor
|
1080P
|
lngenic T31ZL+2063
|
|
|
|||
|
|
|
1440P
|
lngenic T31ZX+4653
|
|
|
|||
|
|
Resolution
|
Main stream: 1920×1080@15fps, Sub stream: 640×360@15fps
|
|
|
|
|||
|
|
Format
|
Compression format
|
|
H.265
|
|
|||
|
|
|
Video file format
|
|
MP4
|
|
|||
|
|
Lens
|
4mm F2.0 lens, Low lux., wide view angle: 120 degrees. 4X digital zoom
|
|
|
|
|||
|
|
Night vision
|
4pcs array LEDs, night vision distance 30m. Full-colorful day/night
|
|
|
|
|||
|
Audio
|
Compression
|
G.726/AAC. Audio code rate: 8Kbps, 16bit
|
|
|
|
|||
|
|
Input/Output
|

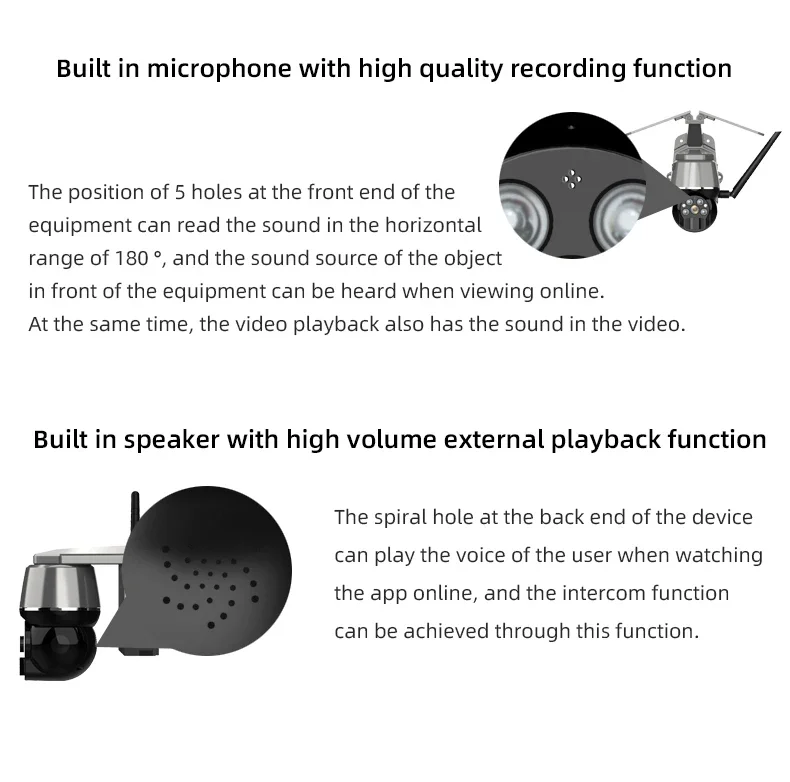

Built-in MIC and Speakers, support two way audio
|
|
|
|
|||
|
Alarm
|
PIR motion detection
|
Support max 12 meters PIR detection range.
|
|
|
|
|||
|
|
Alarm linkage
|
Alarm record videos to Micro SD card;Alarm mobile phone message push
|
|
|
|
|||
|
Video storage
|
Memory card
|
Support up to 128G micro SD card. Support cloud storage
|
|
|
|
|||
|
|
Record
|
PIR alarm recording.
|
|
|
|
|||
|
|
Replay
|
Support App remote play and download the video
|
|
|
|
|||
|
Power supply
|

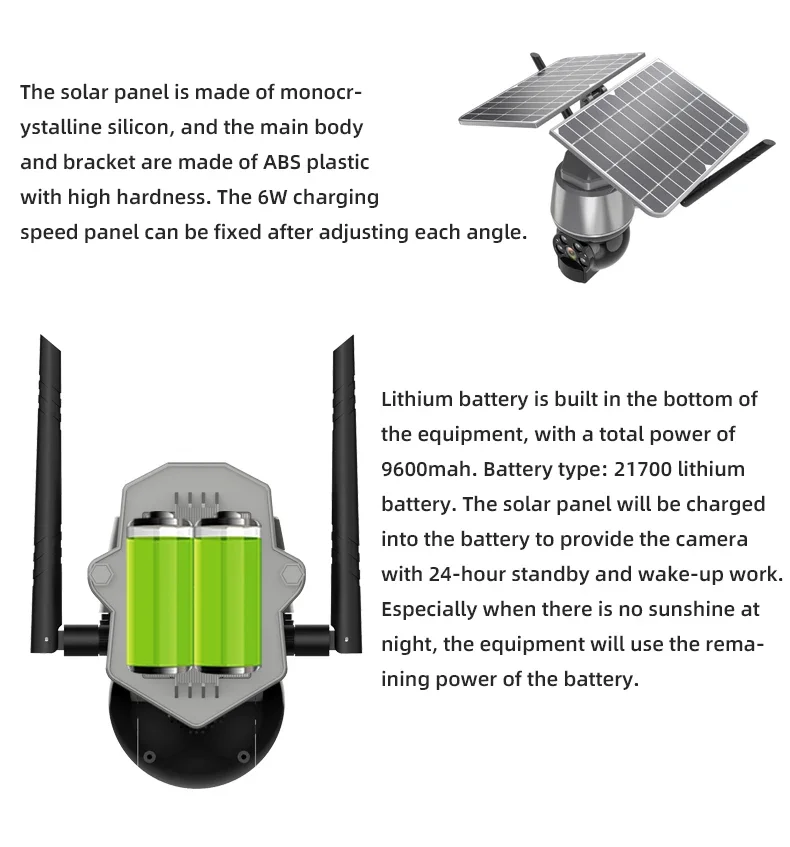

Solar panels
|
3+3W monocrystalline silicon solar panel
|
|
|
|
|||
|
|
Battery
|
Built-in 2 pcs 21700 battery, total volume max 9600mAh
|
|
|
|
|||
|
|
Operating mode
|
Low power working mode
|
|
|
|
|||
|
|
Wake-up method
|
PIR alarm wake up, remote manual wake up
|
|
|
|
|||
|
|
Hibernation
|
When alarm end or remote connection disconnected.
|
|
|
|
|||
|
|
Power consumption
|
Sleeping stand-by power: 0.03W; Working: 1.3W@days/3W@night
|
|
|
|
|||
|

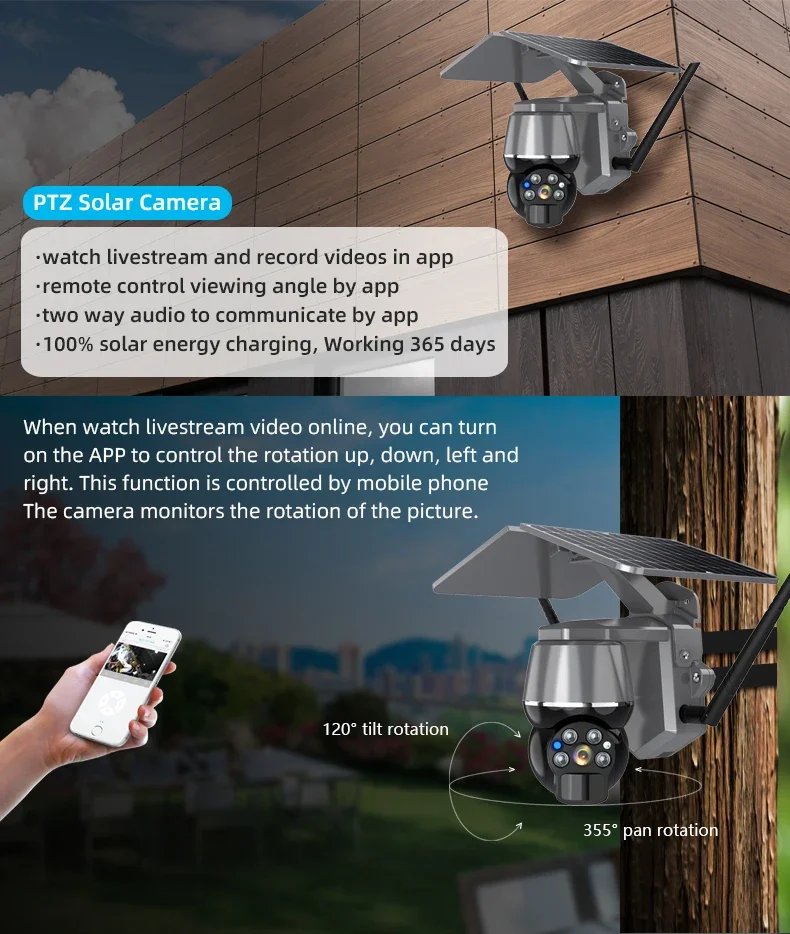

PTZ
|
Rotation angle
|
Horizon Pan: 0°～355°, Vertical Tilt: 0°～120°
|
|
|
|
|||
|
|
Spinning speed
|
Horizontal speed: 10°～ 30°/S; Vertical speed: 8°～ 25°/S
|
|
|
|
|||
|
Other
|
Power input
|
DC5V 2A
|
|
|
|
|||
|
|
Environment
|
Environment -20℃~+60℃(-4℉~+140℉), Humidity 10%～80%, non-condensing
|
|
|
|
|||
|
|
Shell material
|

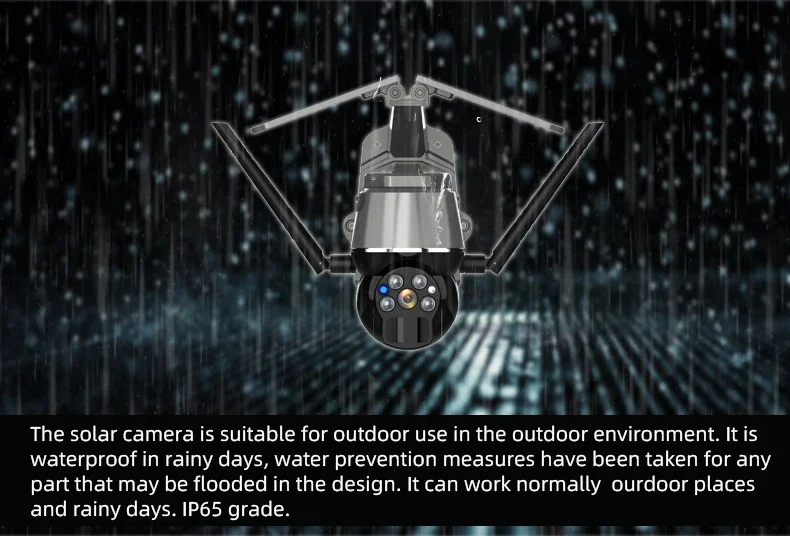

ABS fireproof plastic material, vandal-proof, waterproof level IP65
|
|
|
|
|||
|
|
Power cable
|
Type-c interface, extension cable 3 meters
|
|
|
|
|||
|
|

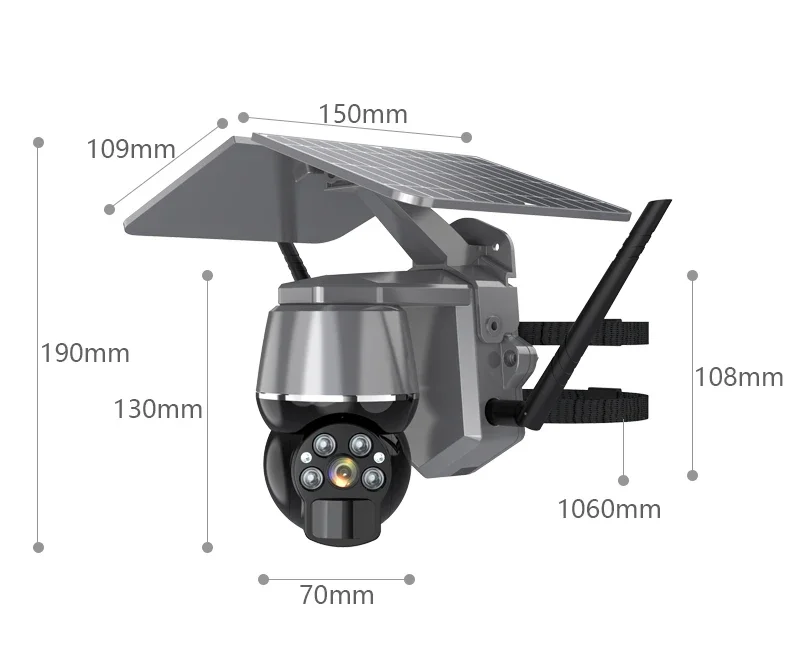

Product Size
|
220mm×150mm×109mm(L×W×H) 一件12台 51*40*46 单个1.37KG
|
|
|
|
|||
|
|
Package dimensions
|
245x218x124mm(L×W×H);
|
|
|
|
|||
|
|

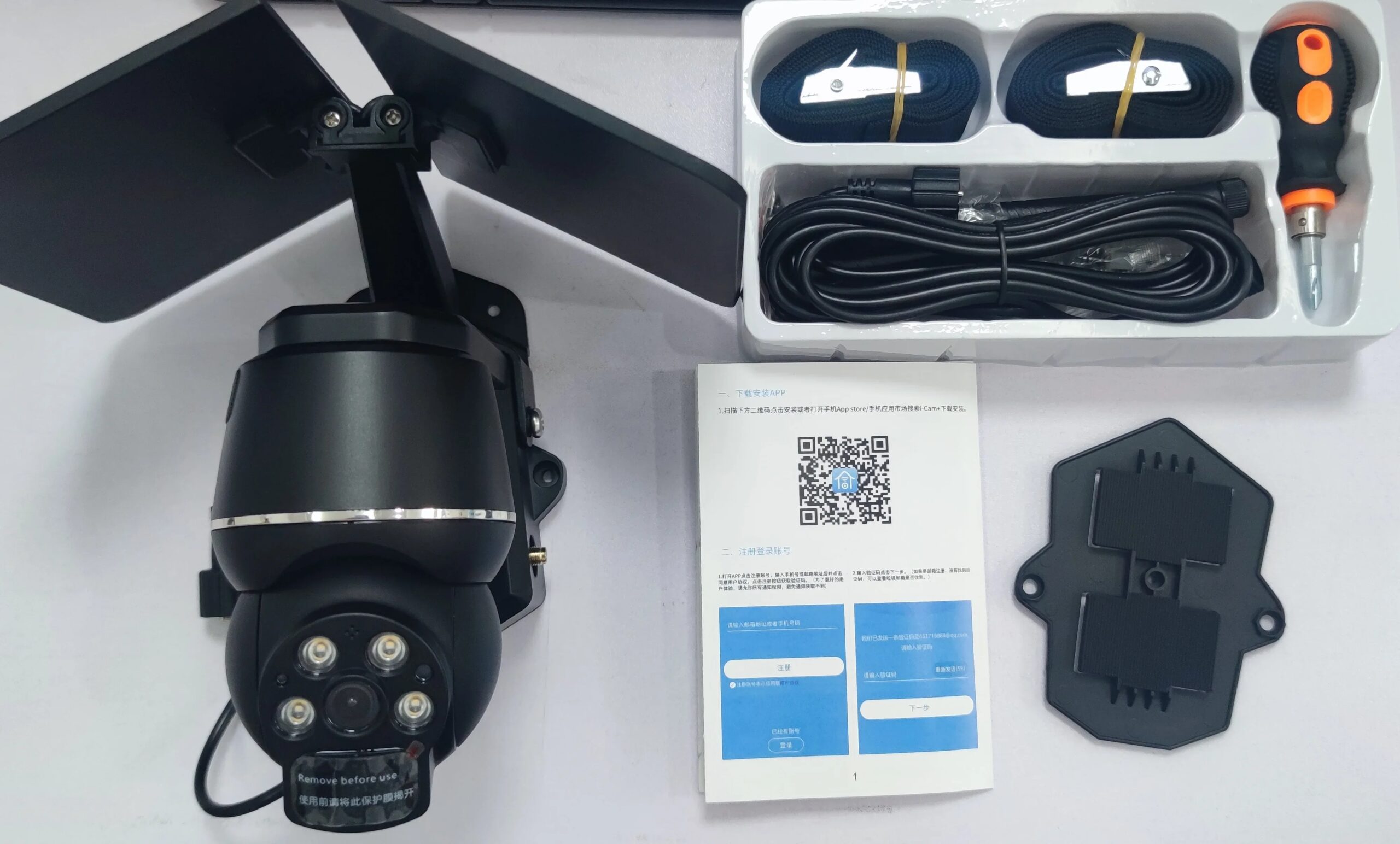

Packing list
|
IP Camera, Antenna, Solar panel, Support, Mounting screws, Screwdriver, USB cable, Manual,Cable tie
|
|
|
|
|||
