Function:
The molten metal liquid is poured into the burned gypsum mold for vacuum and exhaust to reduce the production of sand holes and rough edges of casting products, increase the surface smoothness of the workpiece, and improve the output of the workpiece.
Features:
- Vacuum pressure gauge: Measures and indicates the amount of pressure used by the instrument.
- Valve adjusting rod: Controls the valve and operates the vacuum.
- Furnace temperature control and adjustment: Controls machine temperature regulation.
- Switch: Smelting control switch.
- Power port: Machine power cable interface.

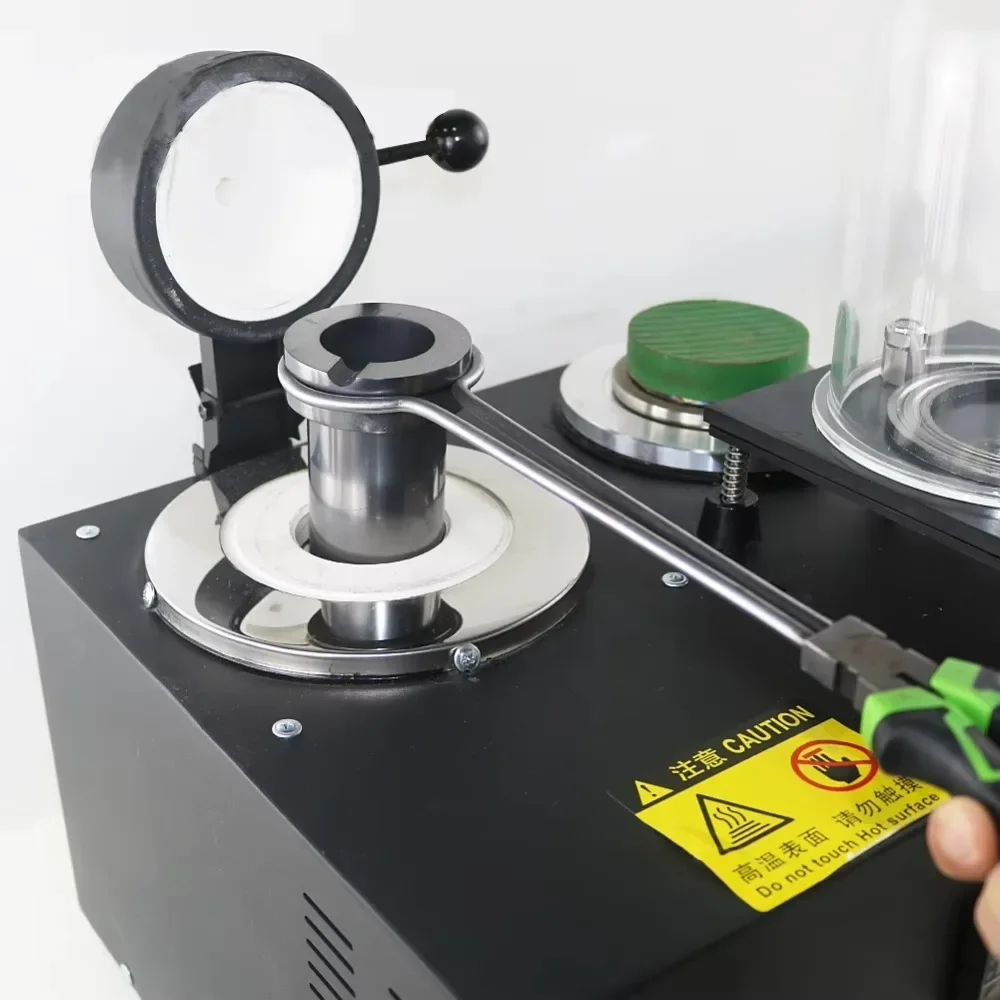

- Melting furnace: Smelts copper, gold, and silver jewelry materials.

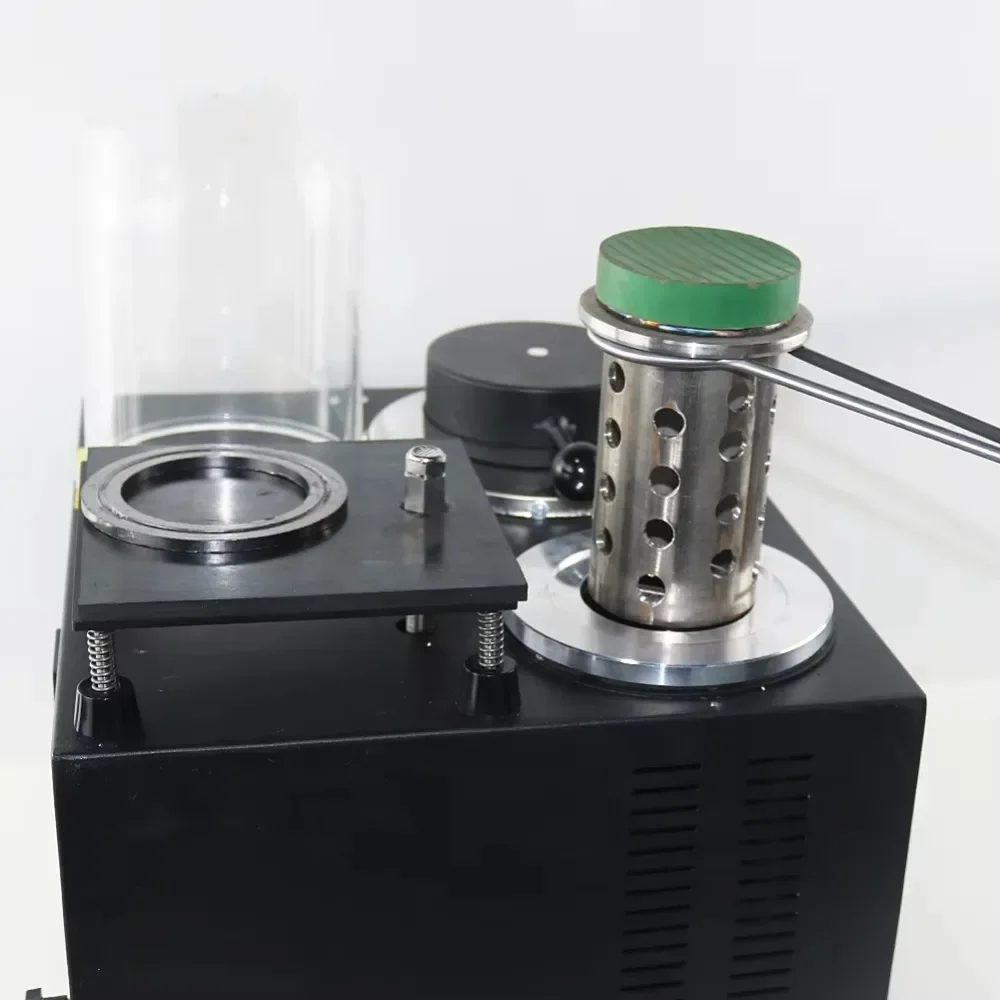

- Suction line casting: Place the steel bell 3*6 inch washer on it, then place the finished steel bell, followed by the mold, and pour the molten gold into the pouring die
| Warranty Service | Online support |
| Local Service Location | None |
| Power | 1400W |
| Voltage | 110V/220V, 220V/110V |
| Crucible Specification | 1kg/2kg/3kg |
| Product Size | 41.6*35.6*29.5cm |
| Bell Jar Size | 15*15*20.9cm |
| Weight | 21kg |
| Pack Size | 56cm * 35cm * 35cm |
| Function | 3 in 1: Vacuum+Melting+Casting |

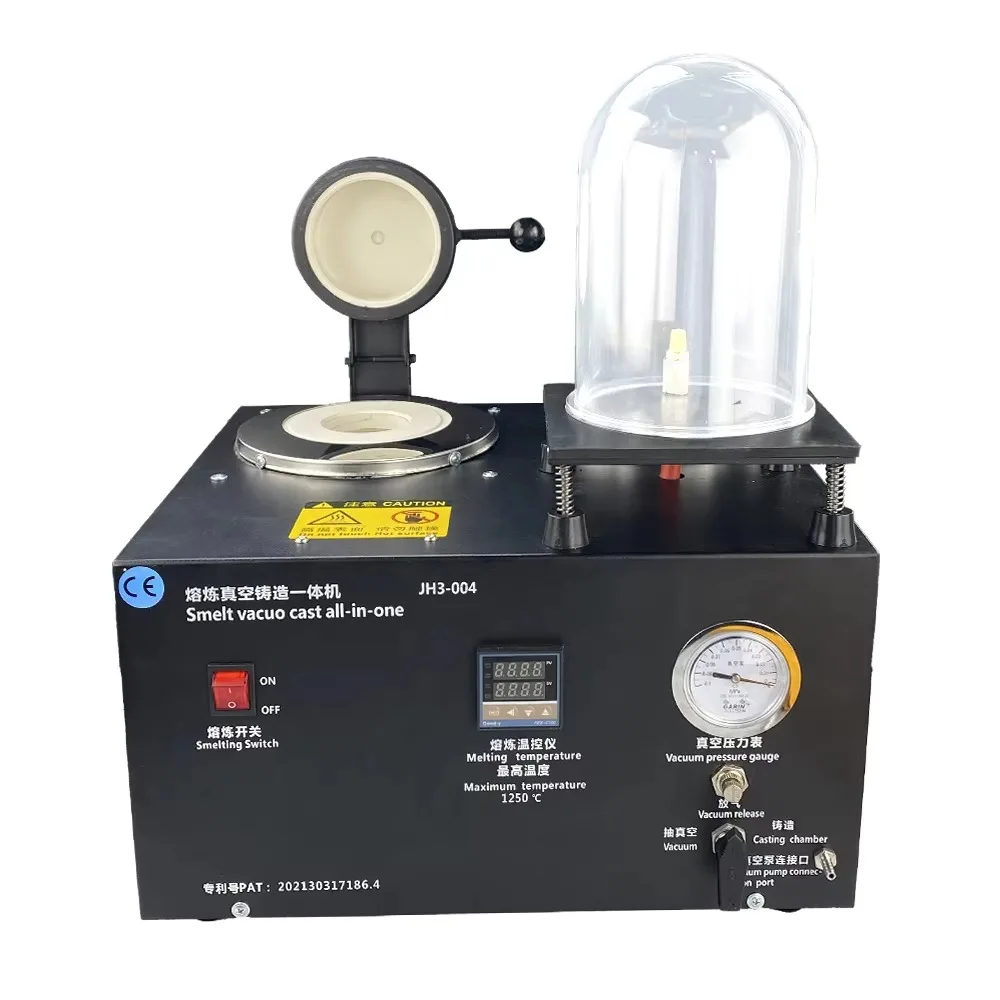

| Product name | Joint Melting and Casting Machine for Jewelry |
| Color | Black |
| MOQ | 1 Set |
| Place of Origin | Fujian,China |
| Jewelry Tools & Equipment Type | Melting and Casting Tools |
Function:
The molten metal liquid is poured into the burned gypsum mold for vacuum and exhaust to reduce the production of sand holes and rough edges of casting products, increase the surface smoothness of the workpiece, and improve the output of the workpiece.
Features:
- Vacuum pressure gauge: Measures and indicates the amount of pressure used by the instrument.
- Valve adjusting rod: Controls the valve and operates the vacuum.
- Furnace temperature control and adjustment: Controls machine temperature regulation.
- Switch: Smelting control switch.
- Power port: Machine power cable interface.
- Melting furnace: Smelts copper, gold, and silver jewelry materials.
- Suction line casting: Place the steel bell 3*6 inch washer on it, then place the finished steel bell, followed by the mold, and pour the molten gold into the pouring die.






Function:
The molten metal liquid is poured into the burned gypsum mold for vacuum and exhaust to reduce the production of sand holes and rough edges of casting products, increase the surface smoothness of the workpiece, and improve the output of the workpiece.
Features:
- Vacuum pressure gauge: Measures and indicates the amount of pressure used by the instrument.
- Valve adjusting rod: Controls the valve and operates the vacuum.
- Furnace temperature control and adjustment: Controls machine temperature regulation.
- Switch: Smelting control switch.
- Power port: Machine power cable interfa
