Jewelry melting Machine 220V 5KW 2kg Gold Induction Melting Furnace silver ingot making equipment mini medium frequency

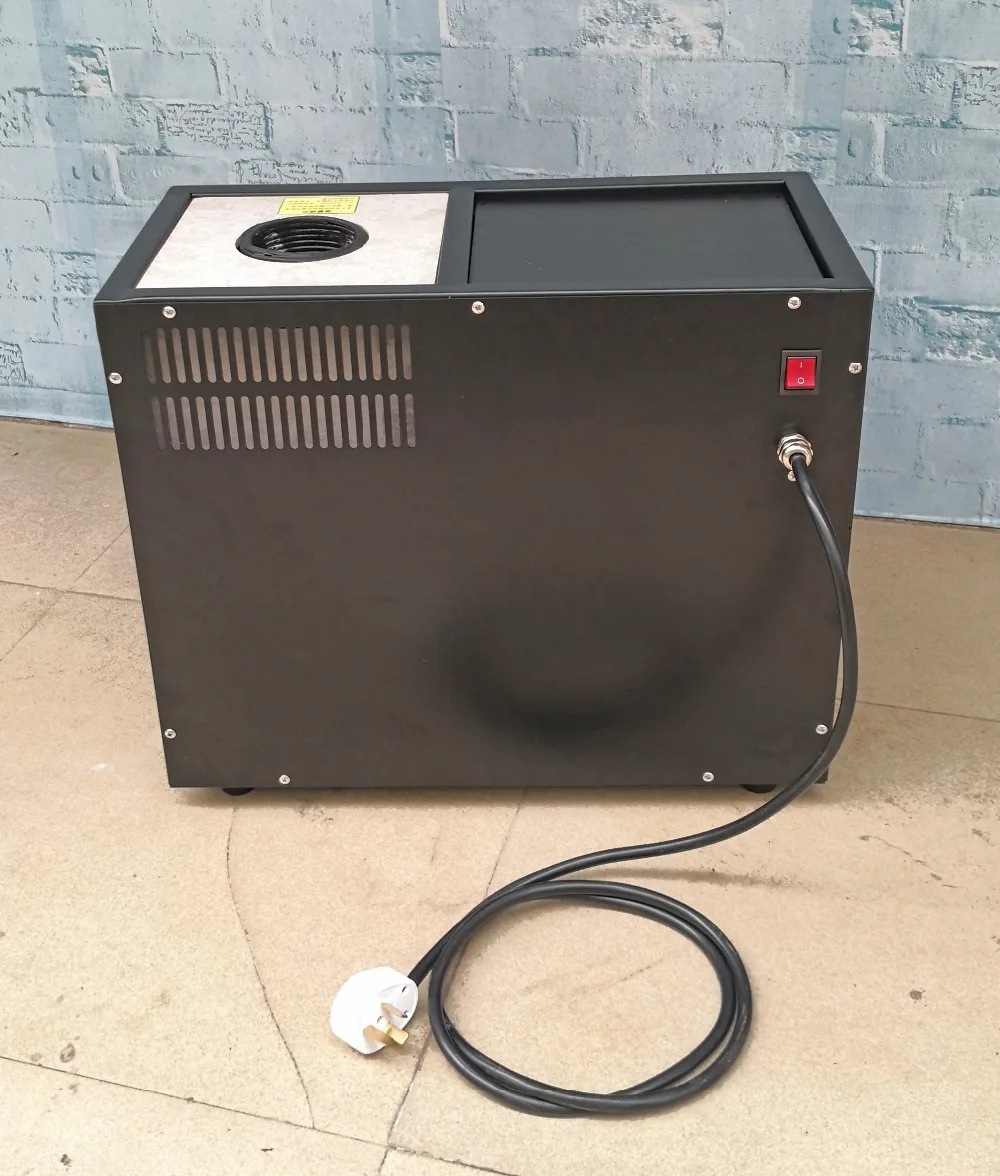

This self-contained water-cooled mini-medium frequency melting machine eliminates the need for external circulating water to dissipate heat. It has water in the shipping package, buy it home, and plug in the household electricity to work normally. Want to see the smelting effect video, please contact .
it use two high-power imported IGBTs as the half-bridge drive. It is a medium-frequency induction heating melting machine that can melt gold, silver, copper, iron, stainless steel, and other advanced materials. It is mainly used to heat the graphite crucible by coil induction. And to ensure continuous smelting work for 24 hours.
Mini medium frequency melting furnace Technical parameters
Working voltage: 190v – 235v
Working frequency: 50hz – 60hz
Working power: 5000w Support full power start, 100% load.
Smelting capacity: up to 1kg and 2kg gold.
System protection: IGBT overheat and overcurrent protection, water shortage protection, over voltage / low voltage, surge, coil open / short circuit, with no pot circuit detection function, a variety of internal fault automatic detection procedures, such as automatic alarm protection when the drive frequency is wrong, More than 30 protection programs.
Water-cooled system: self-contained water cooling system, plug-in. It can be used normally.
Smelting temperature: The actual temperature can be heated up to 1600 degrees, the temperature rises quickly, the energy saving is saved, the melting cost is low, and the cost performance is high.
Dimensions: Approx. (500 length * 298 width * 428 height) Innovative design, small size and light weight.
Machine gross weight: about 24KG

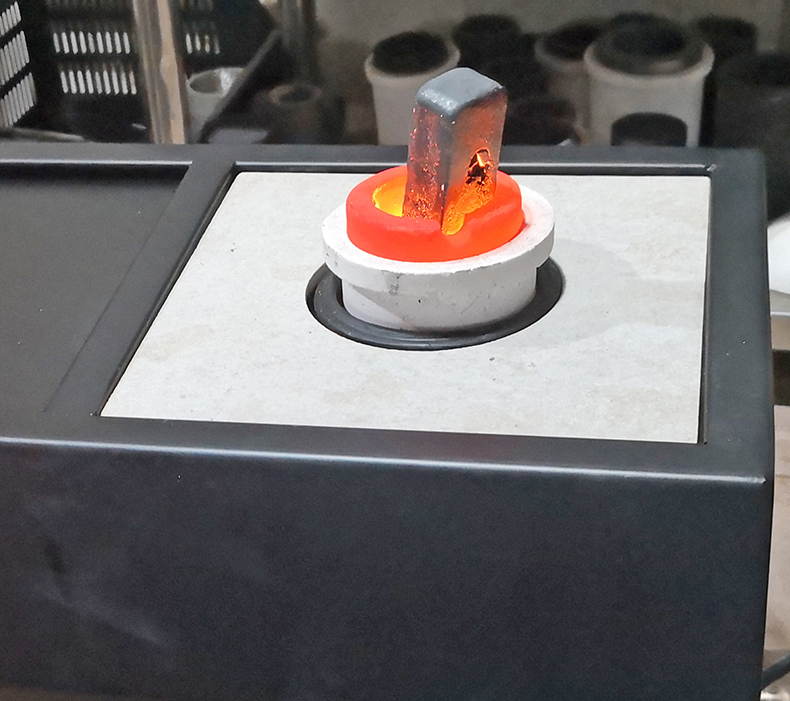

Melting speed: 500g of copper, silver, gold. About 6 minutes (this is the actual test ). Materials such as stainless steel and iron can also be used, and graphite crucibles must be used.
Mini Medium Frequency Melting Furnace Instructions for Use
Mini medium frequency melting gold furnace The first method of use: first properly connect the inlet and outlet pipes [do not reverse], let the external circulating water flow normally on the machine for one minute, the machine is in normal standby state.
How to use the mini medium frequency melting gold furnace: Turn on the main power switch. When the machine is in normal standby, put the appropriate first, then press the work switch, the work indicator lights up, indicating that it can be heated normally. Next adjust the power knob to see the actual power status seen on the power display.
After each smelting is completed. It is necessary to turn off the work switch first, so that the water is best recirculated for 1 minute, and the main power switch is turned off, which is a kind of protection for the machine. (Of course, you can also shut down directly).
