Established in 2011, KAZE APPLIANCE specialize in quiet bathroom exhaust fans. Our lineup includes LED, humidity sensing and motion sensing bathroom exhaust fans.
KAZE APPLIANCE Bathroom Ventilation Fan Powerful Yet Quiet. No Attic Access Required
Model: SNP100H
Humidity Sensing
Powerful suction of 100 CFM at quiet sound level of 0.8 sones
CEILING OPENING SIZE – Please note the ceiling opening requirement is 9 x 9 inch, resizing your ceiling opening will be needed if existing fan size is different.
SUPER QUIET – Powerful 100 CFM and quiet operation at 0.8 Sones. Suitable for bathroom size up to 100 square feet.
INSTALLATION – No Attic Access Required. See photos and manual for installation instructions.
HUMIDITY SENSING – Automatically switch on/off the fan unit to maintain desirable humidity level and hands free operation.
DUCTING – Detachable 4 inch polymeric duct with back draft prevention damper.
RELIABILITY – Proudly stand behind our products.

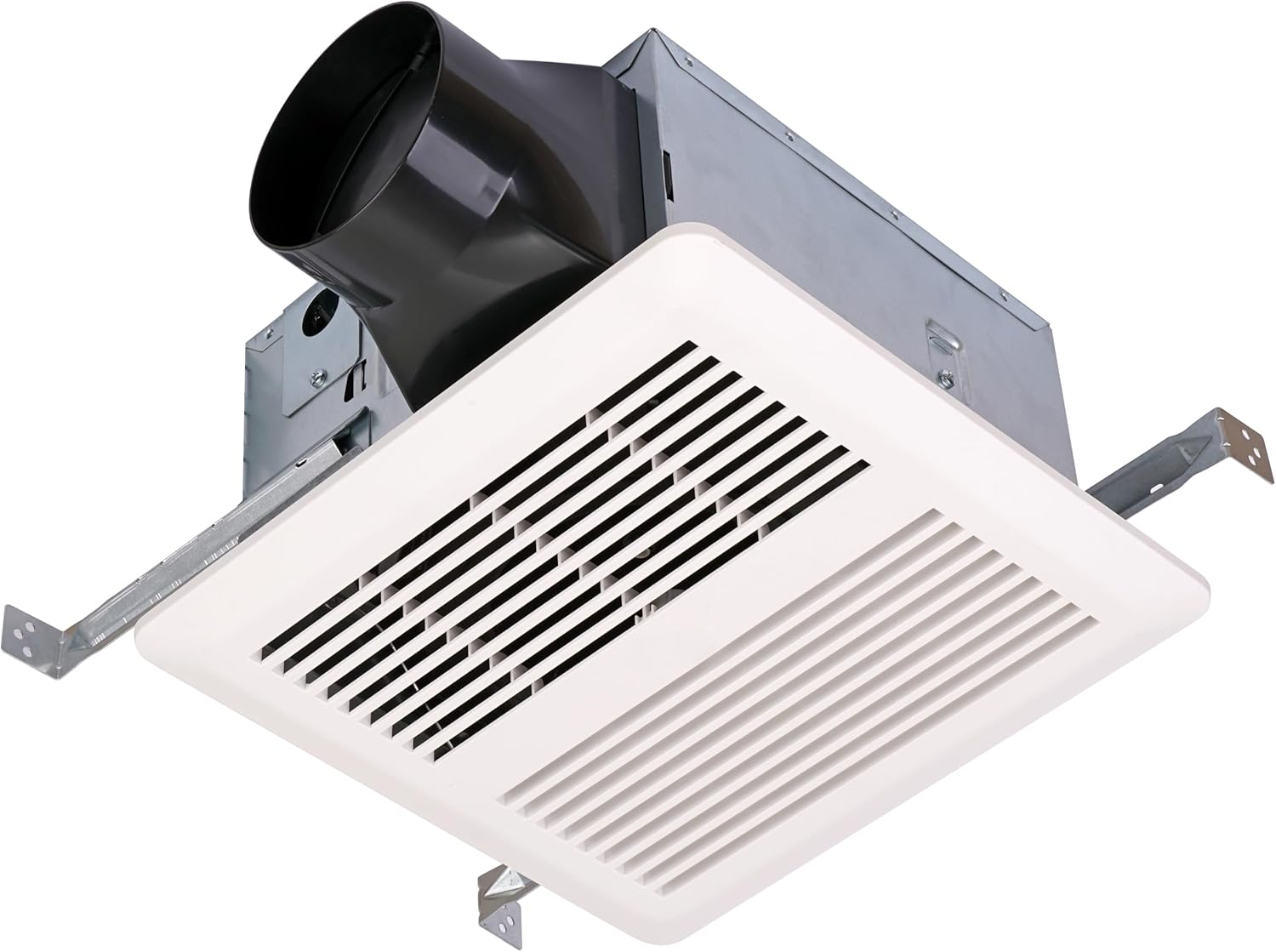

Model No: SNP100H. Humidity Sensing, 100 CFM, 0.8 sones super quiet.
Please note the ceiling opening requirement is 9 x 9 inch, resizing your ceiling opening will be needed if existing fan size is different.
Suitable for standard bathroom size up to 100 square feet.
KAZE Appliance is proud to present SNP100H with Humidity Sensing feature. Redesigned one piece blower assembly with removable 4 inch polymeric duct further improves stability and reliability. Built with high-quality components and permanently lubricated motors to give continuous, trouble-free operation.
Humidity Sensing — Humidity sensing fan uses a sophisticated humidity sensor that responds to:
(1) moderate to rapid increase in humidity or (2) humidity above a user-adjustable set-point (30% to 80% relative humidity)
Delay Timer — The SNP100H is also equipped with an adjustable delay timer (5-60 minutes) that provides additional run time for the fan to complete the remaining necessary ventilation after the sensor has stopped sensing a rise in humidity and the humidity level is below the user setting.
Air delivery rate: 100 CFM
Noise Level: 0.8 Sones Super Quiet
Duct Size: 4-inch round polymeric duct with built in back draft metal damper.
Grill Dimension: 11 13/16 x 11 7/16 inches polymeric resin grille attaches directly to housing with torsion springs
Housing Dimension: 9 x 9 x 5 3/4 inch
Voltage / Frequency: 120Volt/60Hz (0.2A Motor Current)
Wattage: 26W
Retrofit Installation Steps
___________________________________________________________________________________________________________________________________

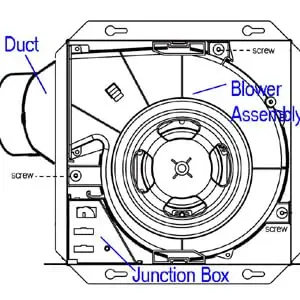

Step 1 : Disassemble Fan
Unplug blower assembly power connector from junction box/wiring panel
Remove blower assembly (3 screws)
Remove junction box/wire panel (1 screw)
Remove duct connector.

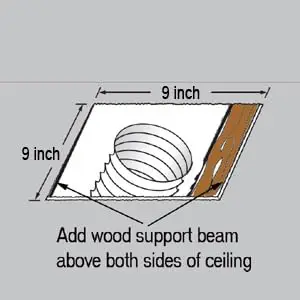

Step 2 : Prepare ceiling opening
Prepare ceiling opening to 9″ by 9″, leave existing ductwork and wiring in place.
Install additional wood support beam on both sides above ceiling opening for securing metal housing in Step 4.

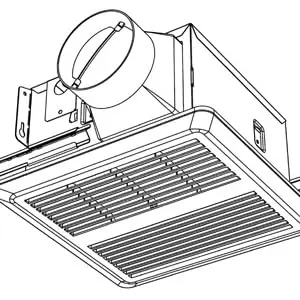

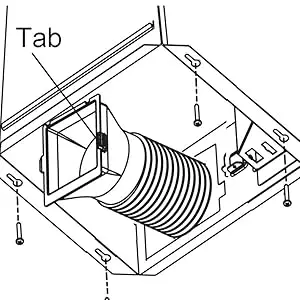

Step 3 : Install Housing
Pull wiring and duct into metal housing respectively.
Insert housing into ceiling opening.
Step 4 : Connect Ducting and Wiring
Secure housing flange to additional beam with screws.
Connect wiring according to the wiring diagram. Re-install wire panel.
Connect ducting to duct connector using foil tape and push duct connector back through opening.
Step 5 : Finish Up
Insert blower assembly back to housing and secure the 3 screws.
Connect power cable to wire panel.
Install grille by squeezing both torsion spring and insert into slot in blower assembly.
KAZE APPLIANCE Collection of Power | Quietness | Functionality
___________________________________________________________________________________________________________________________________

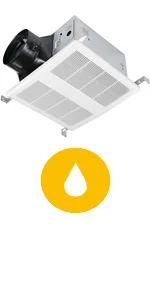

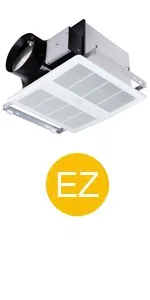

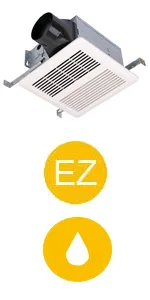

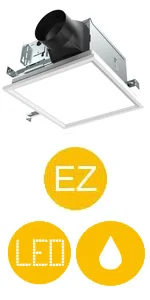

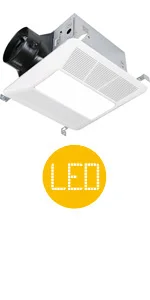

120 CFM | EZ Install 120 CFM | LED Light 120 CFM | Humidity Sensor 100 CFM | Humidity Sensor 100 CFM | LED Light 100 CFM | LED | Humidity Sensor
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews 4.1 out of 5 stars
329
4.2 out of 5 stars
431
4.1 out of 5 stars
329
4.3 out of 5 stars
563
4.3 out of 5 stars
563
4.3 out of 5 stars
563
Price $144.50$144.50 $159.50$159.50 $149.50$149.50 $115.90$115.90 $139.50$139.50 $159.50$159.50
CFM 120 120 120 100 100 100
Noise (sones) 0.3 0.3 0.3 0.8 0.8 0.8
LED Light
Humidity Sensor
EZ Install
