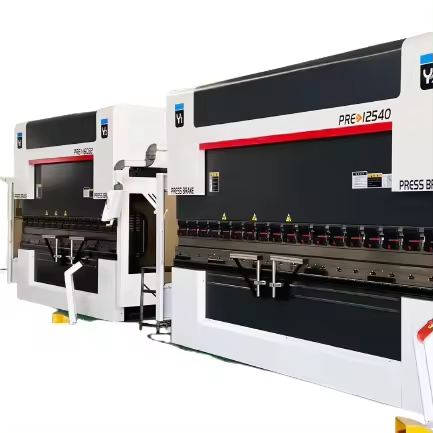

Factory price CNC electro hydraulic servo 3 +1 axis bending machine steel plate press brake with DE15 system
（The price does not include shipping）
Introduction
The Press Brake is a machine that can bending the sheet metal. Its structure mainly includes a bracket, a working table and a clamping plate. The working table is placed on the bracket which composed of a base and a pressing plate. The base is attached to the clamping plate by a hinge, and is composed of a shell, a coil and a cover plate.
When in use, the wire is energized to the coil, so that the coil generates attractive force to the pressing plate in order to realize the clamping of the sheet metal between the pressing plate and the base. Due to the use of electromagnetic force clamping, the pressing plate can be used into a variety of work-piece requirements, and work-pieces with side walls can also be processed. The bending machine can meet the needs of various work-pieces by changing the mold.
Main Features:
1. All the components of the machine are designed under the instruction of the computer aided design and software of CAD/CAE/CAM to fully guarantee the intensity and rigidity of all the components.
2. The whole body under total wielded, thickness and reliable in machine body with high-rigidity and good in shock absorption reduction.
3. The machine structure are composed by body frame, working table, slide block, main cylinder and back gauge. The advantage design
and produce style can ensure the machine usage and high precision. The main produce procedure as below (all process under strictly inspection).
4. Plate stock—-Physical and chemical inspection—-Plate pre-treatment (Rust-Cleaning) — CNC flame cutting– Cutting the welded joint—-Group welding—-Gas shielded welding—Ageing treatment—-Milling planer working—-The assembly of finished products.
5. The machine body, slide block, working table and other main components are under one time clamping of large landing boring and
milling machine to ensure several geometric accuracy of the main machine.
6. The machine is greatly enhanced in anti-torque and electronic load resistance. Machine can normally work in full loaded situation. Working table, upright column, crossbeam and ram are good and high in design rigidity. Little deformation between the working table and ram when work to guarantee good straightness and uniformity in angle.

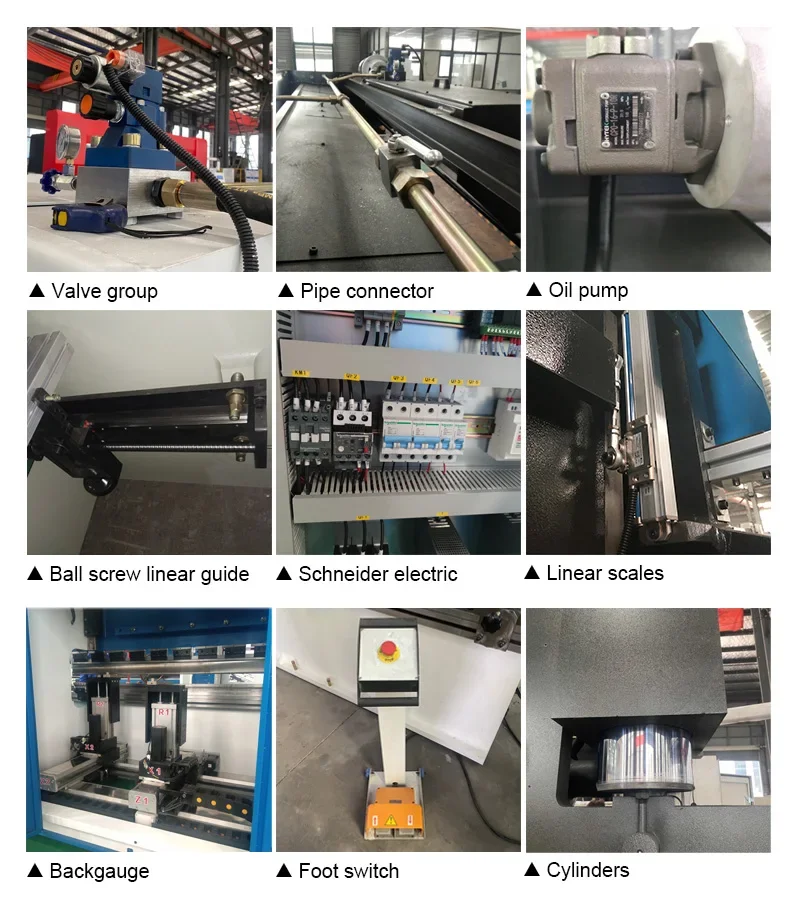

Standard Configuration:
※ Germany Bosch Rexroth hydraulic valve group
※ Germany EMB oil Pipe joint
※ German Siemens main motor
※ Schneider Electric France
※ Hydraulic and electrical overload protection
※ Delta inverter controls back gauge
※ Taiwan HIWIN ball screw linear guide,accuracy ±0.02 mm
※Italy GIVI Grating ruler
※Electric compensation

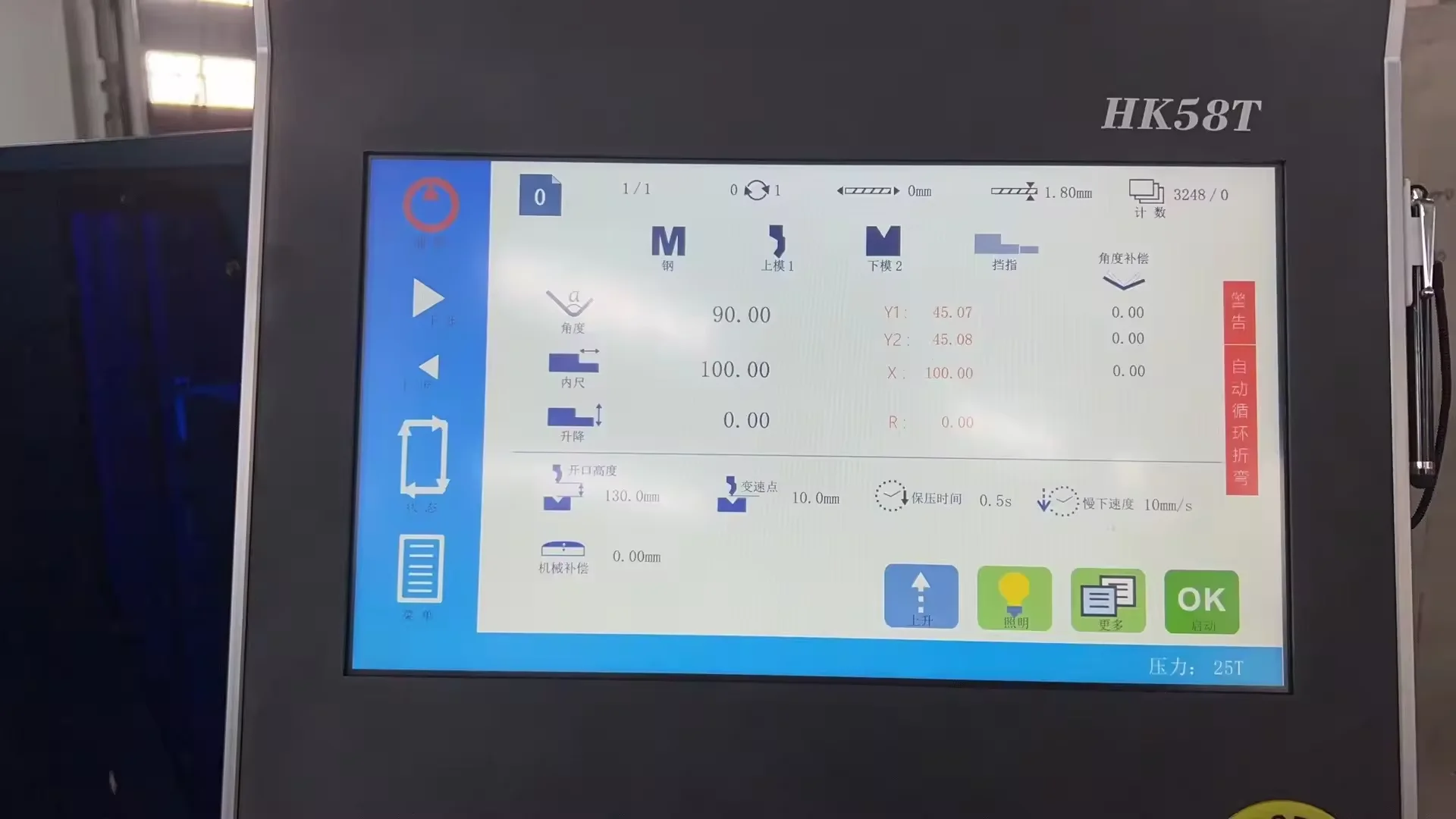

HK58T Controller System:
◎ Quick, one page programming;
◎ Hotkey navigation;
◎ 7″ widescreen colour TFT;
◎ Up to 4 axes (Y1, Y2, and 2 auxiliary axes);
◎ Workbench deflection compensation control;
◎ USB peripheral interface;
◎ Advanced Y-axis control algorithm, which can control both closed-loop and open-loop valves;
◎ Panel mounting structure, optional suspension box.
Parameters:
The process:
Packing & Delivery:
2 kinds of ways: LCL is for small press brake, FCL is for big press brake.
※ LCL: Covered by plastic films, packed by wooden case.
※ FCL: Covered by plastic films, packed by a container.
☀Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
☂ After tested, the machines will be wrapped with plastic sheet ,machine will be securely wired to the container.
☂ Each Press Brake packed with plastic film first, then placed in a wooden case, wooden case with a foam filling.
✈ We loaded the truck with heavy trucks for loading the cargo to the harbor terminal. At the dock we pack the goods in containers and ship them abroad.
Delivery Detail :
✈ Shipped in 30 days after payment.
Certifications:

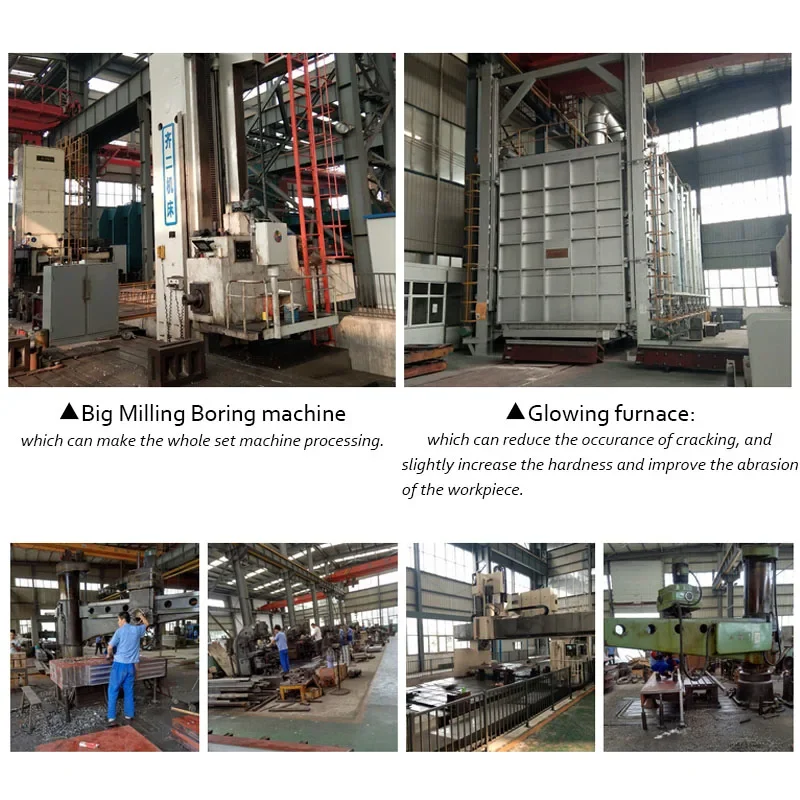

Our company:
FQA:
1. Are you the manufacturer? Can we visit your factory?
Of course, you can. We are manufacturer and we are located in Anhui, China. We have our own team for products design. Welcome to visit our factory and check our machine quality, any question will be solved on time.
2. What’s your main product? What is your main foreign market?
Our main products are press brake, shears machines, hydraulic press, cutting machine, locking machine, auto duct line and related products. Our main foreign markets are Asia, North America, Europe, and Africa.
3. What are the advantages of your machines? And how can I believe the quality of your product?
The main configuration is import high quality products, and professional product quality inspection team ensures machine in top-quality, precision and life. For example, Germany Bosch-Rexroth Valve group, Germany Siemens Main Motor, Schneider Electrics system and so on. Once tested as qualified, our machine would be sent out. So the quality of our product is stable and reliable.
4. Are you able to update the production process Information in time after placing our order?
After confirming your order, we would keep you updated of production details of emails and photos.
5. Can we be your agent?
Yes, we are looking for global agent, and we will help agent improve the market, and supply all the service like machine technical problem or other after-sales problem, meanwhile, you can get big discount and commission.
6. Payment terms?
T/T, L/C, Western Union, Paypal, Alibaba Secure Payment etc.
7. Are you provide product metal parts and provide us technical guidance?
Wearing parts, Disassembly tool(free) are what we could provide. And we can give you technical guidance. Our technical staff can go abroad to provide you with professional technical guidance.
8. How long is your warranty?
2 years free warranty, life-long maintenance.
9. Do you accept customer Logo and customized?
We accept kinds of customized, including logo and machine.
10. About shipping free?
For large machines, shipping costs within China are directly included. Please contact customer service for shipping costs for specific countries.
