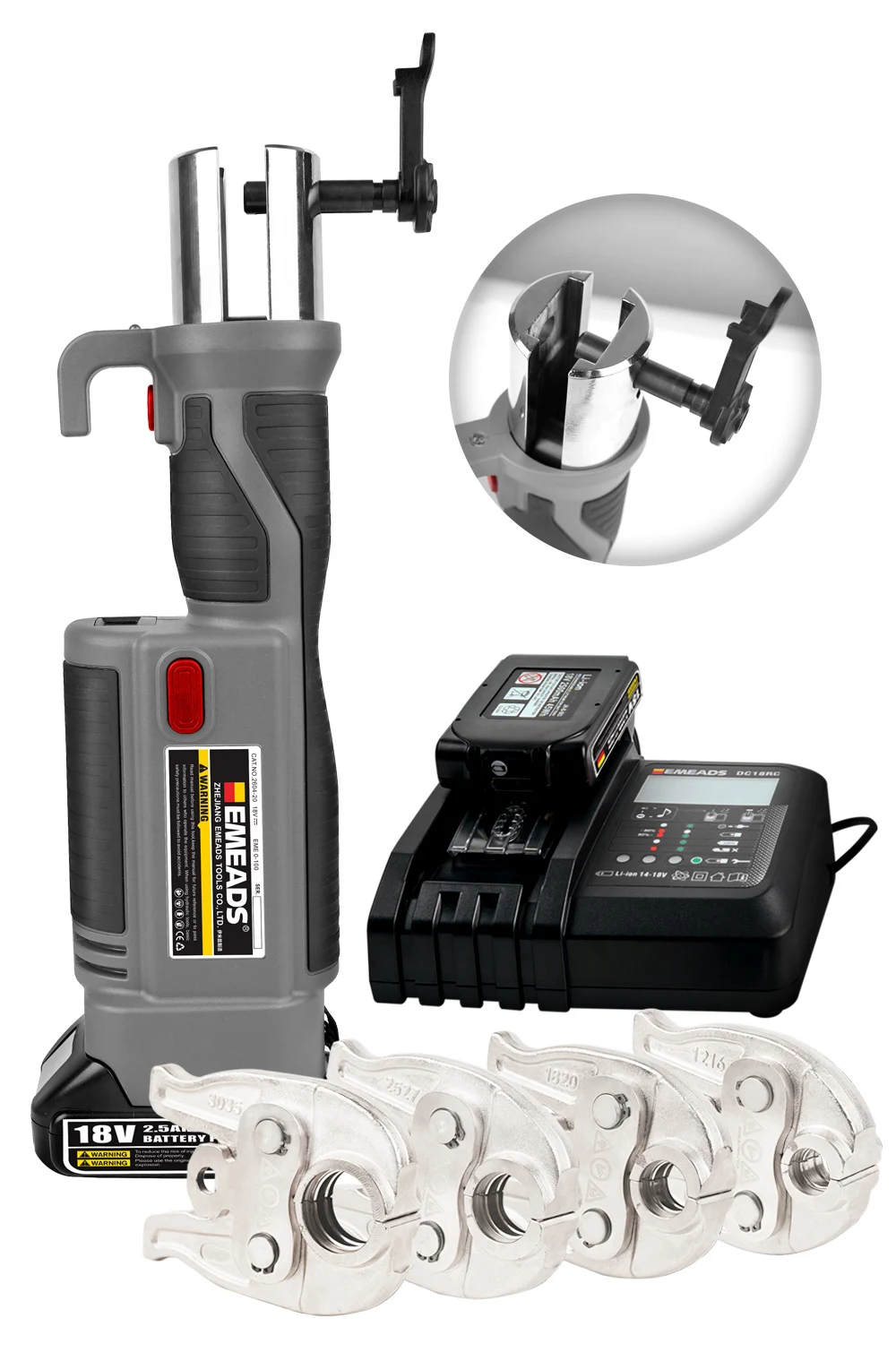

TECHNICAL DATA:
|
GES-1525
|
|
|
Compression range:
|
12-28mm(1/2″-1″)thin-wall stainless steel pipe
12-35mm (1/2″-1″) thin-wall copper tube
12-32mm Plastic pipe, aluminum plastic composite pipe
|
|
|
Note: different pipe type and material, compression range will change,
should be based on the specific supporting pipe
|
||
|
Rated output:
|
19KN
|
|
|
Stroke:
|
30mm
|
|
|
Time consumption of single clamping:
|
2-4s
|
|
|

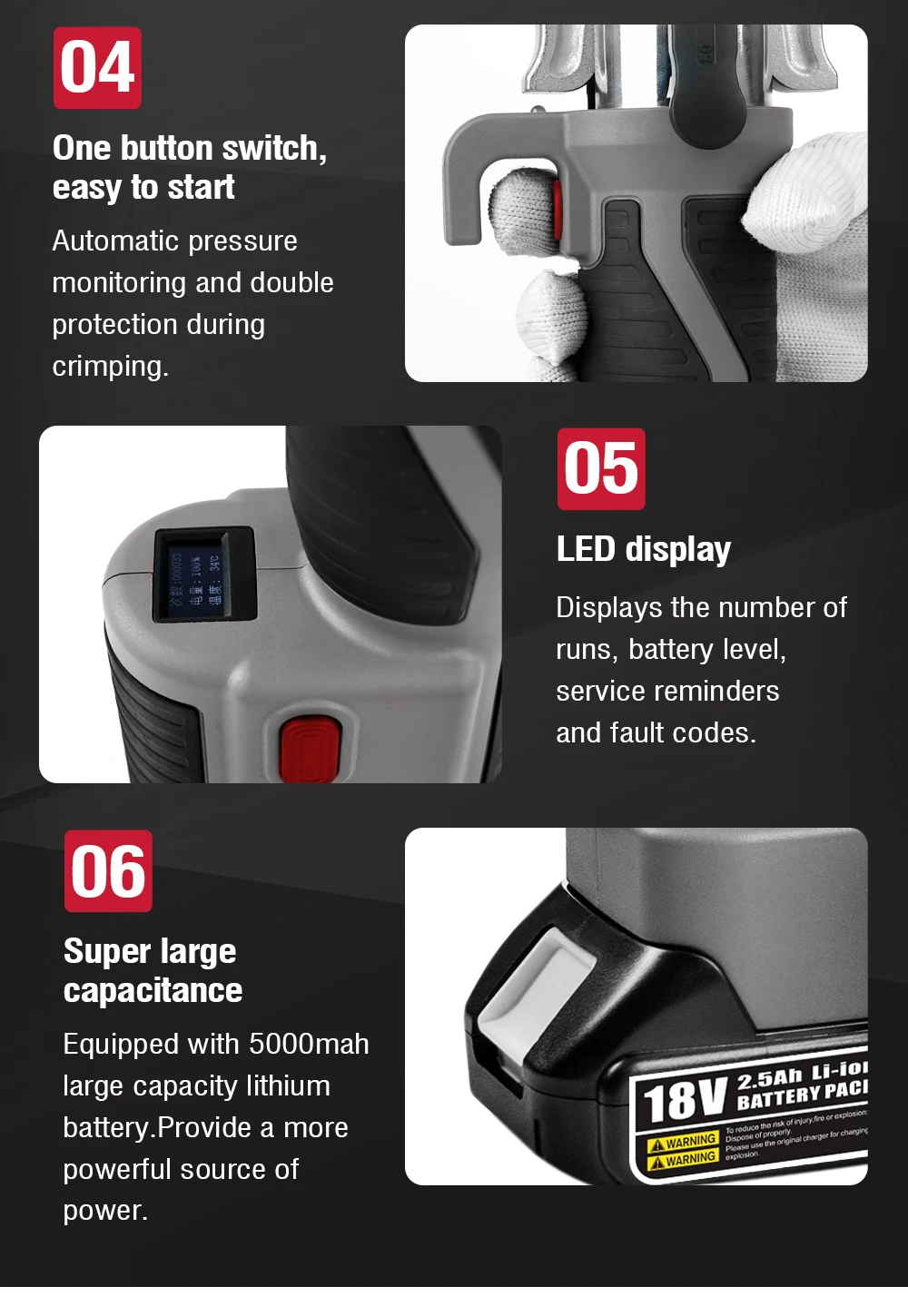

Standard battery:
|
18V/2.5Ah lithium battery
|
|
|
Standard charger:
|
AC 100V-240V 50-60HZ
|
|
|
Battery charging time.
|
About 1 hour
|
|
|
Maintenance cycle:
|
30000times
|
|
|
Number of stuck voltage
per saturated battery.
|
180 times (DN20 stainless steel pipe joint)
|
|
|
Weight:
|
About 2.0kg (tool with battery)
About 3.5kg (tool with battery and a pair of calipers)
|
|
|
Tool dimensions.
|
363x120x75mm
|
|
|

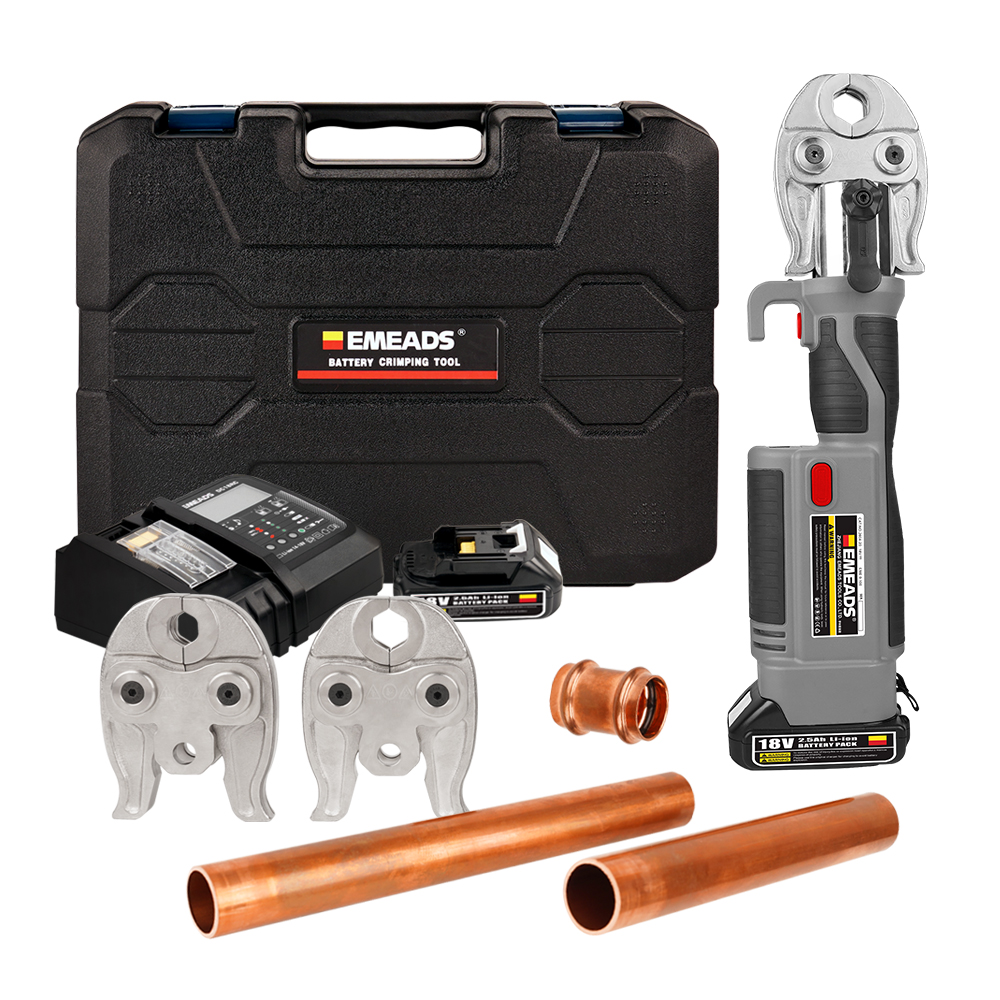

ACCESSORIES:
|
||
|
Battery:
|
2 pieces
|
|
|
Charger:
|
1 piece
|
|
|

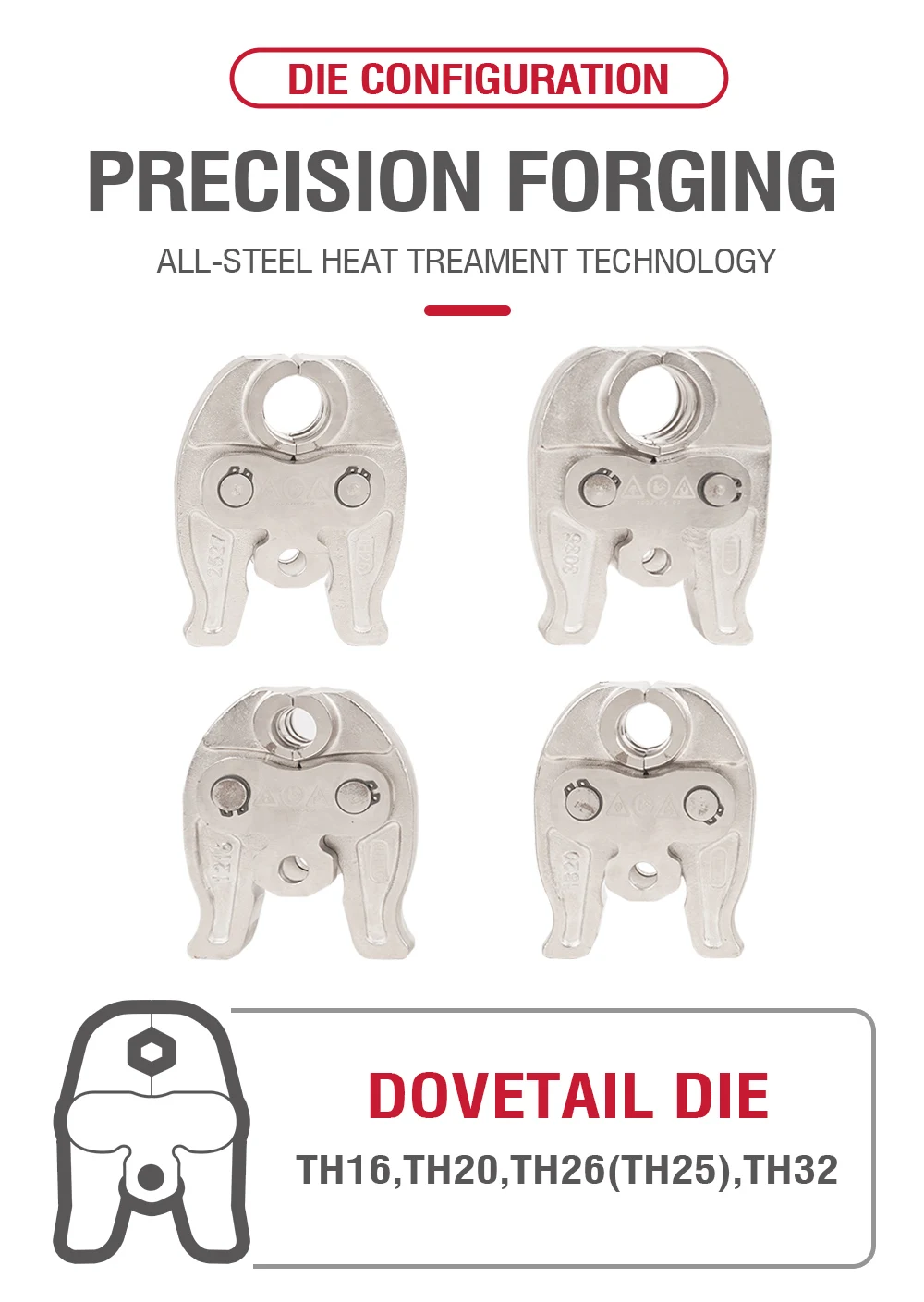

Mold configuration:
|
TH profile:16,20,26(25),32mm
|
|
FAQ

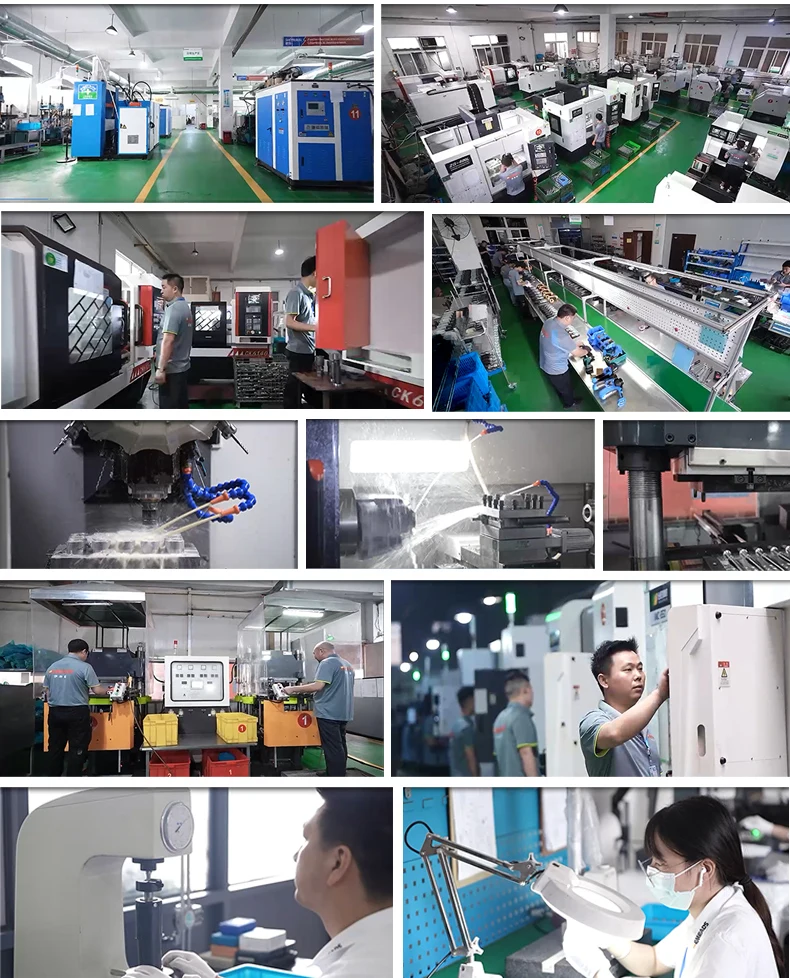

1: Is the whole working procedure finished by your workshop?
Re: Yes, the whole workinq procedure finished by our workshop.
2:How about your stock?
Re: We always are not in stock, we produce as customer’s requirement.
3: What is your delivery time?
It depends on your order. Normally3-7days for samples, 30-45days for standard, 30-60 days for customized.
Pls contact us for details.
4: How do you guarantee your quality?
we do quality test during every process. we will collect all comments on our products from customers in time.
And try our best to improving quality all the time.
5: What’s your warranty time?
The warranty time is 2 years for the main engine of battery tools, 1year for lithium battery and charger,
1 year for manual tools.Sample trial order is welcomed. You can visit our factory at any time.
