Note:
The item need connect with the Access Point Router together, then it can work and the Access Point Router is NOT included.Your device must be SMA antenna detachable Connector when used it , for example SMA detachable antenna router.Please confirm that you device output power range is between 3dBm and 30dBm, only that the wifi signal booster could work well.
Features:
– Low-noise receive gain.
– Signal activity LED indicates.
– High Gain, High Value, High Performance.
– Maximum output power of 8000mW by the Booster.
– Plug-and-play, Easy installation, no driver needed.
– Ideal for increase the 2400-2500Mhz frequency devices.
– Increase the effective range and coverage area of your Wi-Fi network.
– Simply attach the booster in between the standard antenna on a wireless router or wireless access point and watch your range grow.
– The amplified wireless signal may even penetrate complex environments with many walls and obstacles.
– Ideal for use with 2.4GHz Wireless LANs, Support 802.11b, 802.11g, 802.11n (2.4Ghz mode only).
– Fan-shaped all-metal shell greatly improves heat dissipation performance.
Specifications:
Operation Range: 2400-2500 MHz.
Operation Mode: Bi-directional, half-duplex, Auto-Switching via carrier sensing.
Frequency Response: ± 1dB over operation range.
Input Power: 3dBm (Min.)-30dBm (Max.).
Output Power: 8000mW/39dBm nominal
Connector: SMA Receptacle, 50 ohm.
Transmit Gain: 16-18dBm nominal.
Receiver Gain: 10-12dBm.
Receive Noise Figure: 3.0dBm nominal.
Operating Temperature: -40 to 70 degree.
Operating Humidity: Up to 95% relative humidity.
Material: Cast Aluminum
INPUT: 100-240V 0.3A 50/60HZ
OUTPUT:12V 1.5A
LED Indicator Status: Transmit: Green; Receive: Red; Transceiver switch: Orange (composite color of green and red)

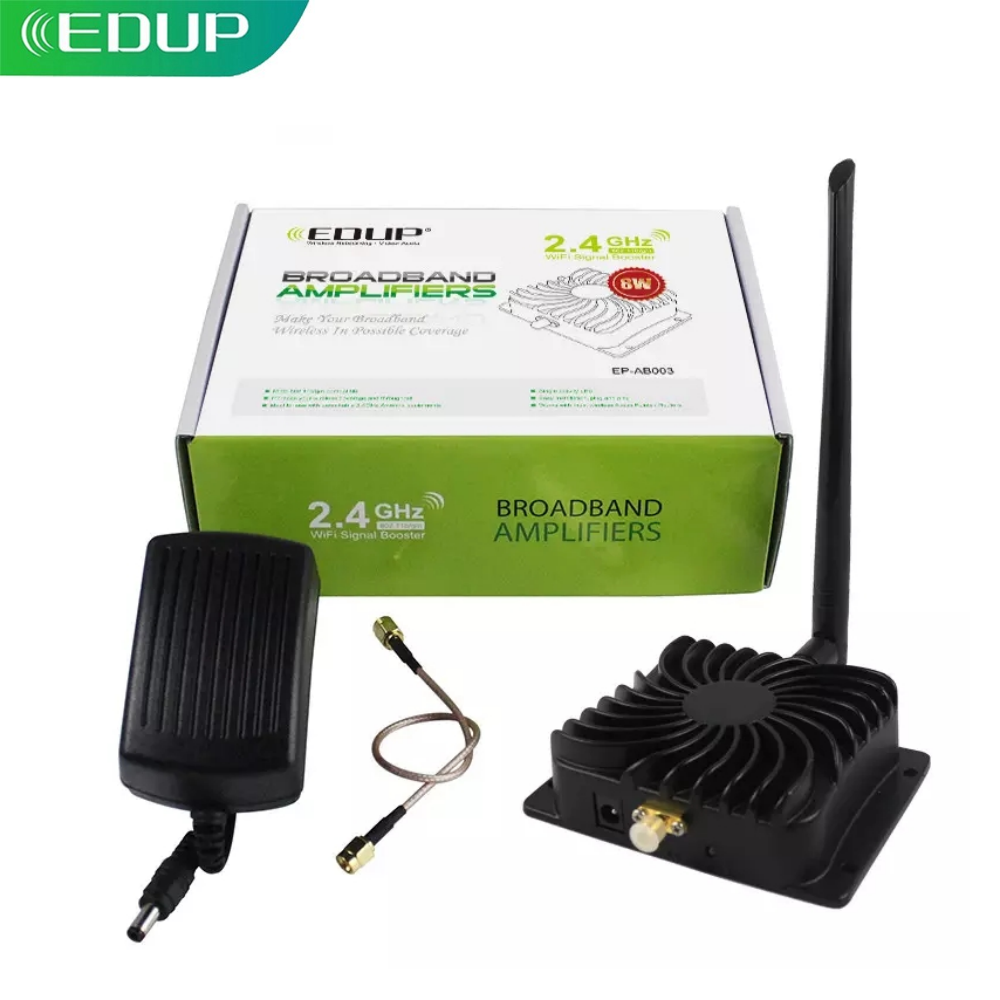

Package included:
1 x WiFi Amplifier
1 x Connector cable
1 x Power supply
1 x Manual
