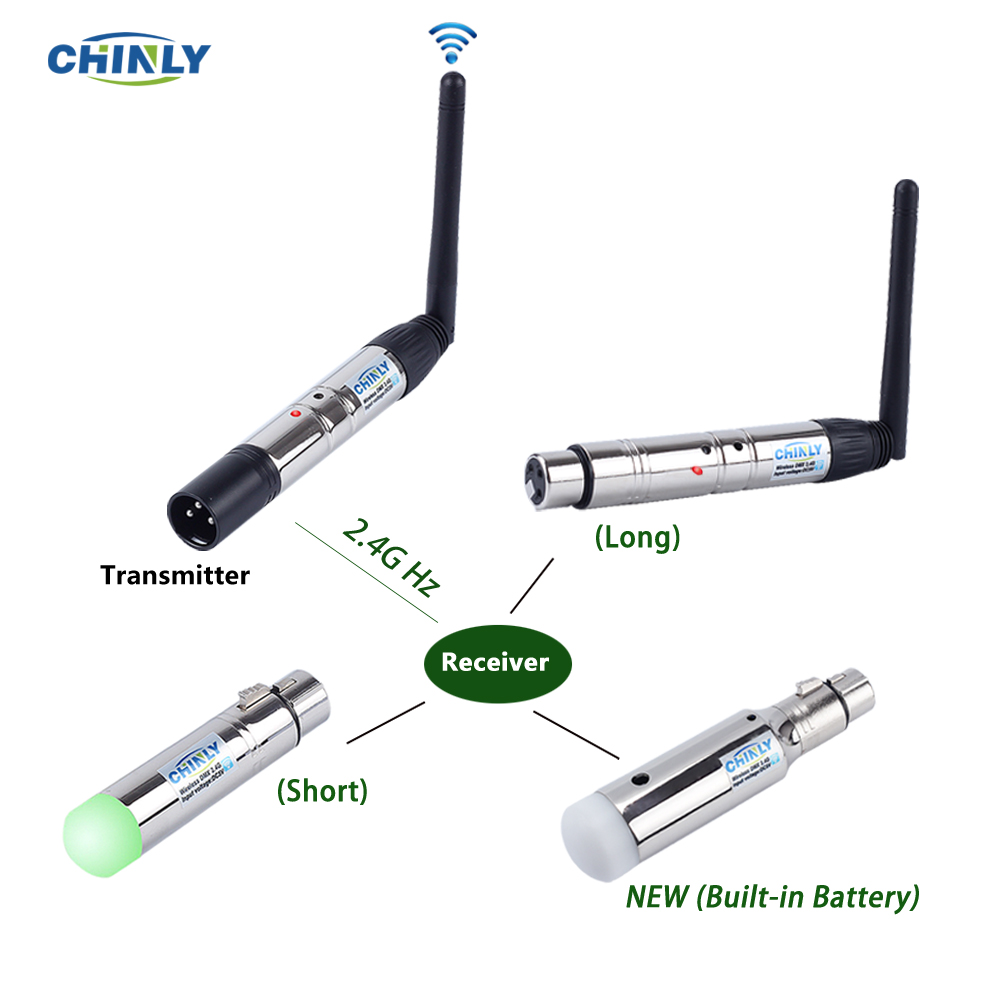

DMX512 Wireless 2.4G Transmitter Built-in Battery Receiver DMX Laser Lights Controller Stage Lighting Effect DMX Emissor US Spot

Item Detail———————————————————————————————————————-

Features:

DMX512 wireless receiver/transmitter transmits standard DMX512 protocol data (generated by

console) by wireless way.No time delay when signal data is transmitting, signal data is real time

and rel iably.This product adopts a 2.4G ISM frequency section.High effective GFSK

modulate,communication design; 126 channels jumping frequency automatically, high anti-jamming ability.

Receiver Product parameter:

1. 2.4G wireless DMX512 R/T

2. 126 channels jumping frequency automatically, high anti-jamming abi l ity. to ensure works

rel iabi l ity

3. 7 groups ID code settable,User can use 7 groups individual wireless net without any interfere

4. each other in the same place…(Tricolor LED displaying Indicators)

5. Input voltage: 5VDC 500mA MIN

6. Communication distance: 300M (visible distance)

7. Work frequency section: 2.4G ISM,126 channels.frequency section

8. Max transmitting power rate: 20dBm

9. Net weight: 180g /pcs

10. Warranty : 3years

Operating manual ID code and LED color corresponding relationship

1 RED

2 GREEN

3 RED+GREEN

4 BLUE

5 RED+BLUE

6 GREEN+BLUE

7 RED+GREEN+BLUE

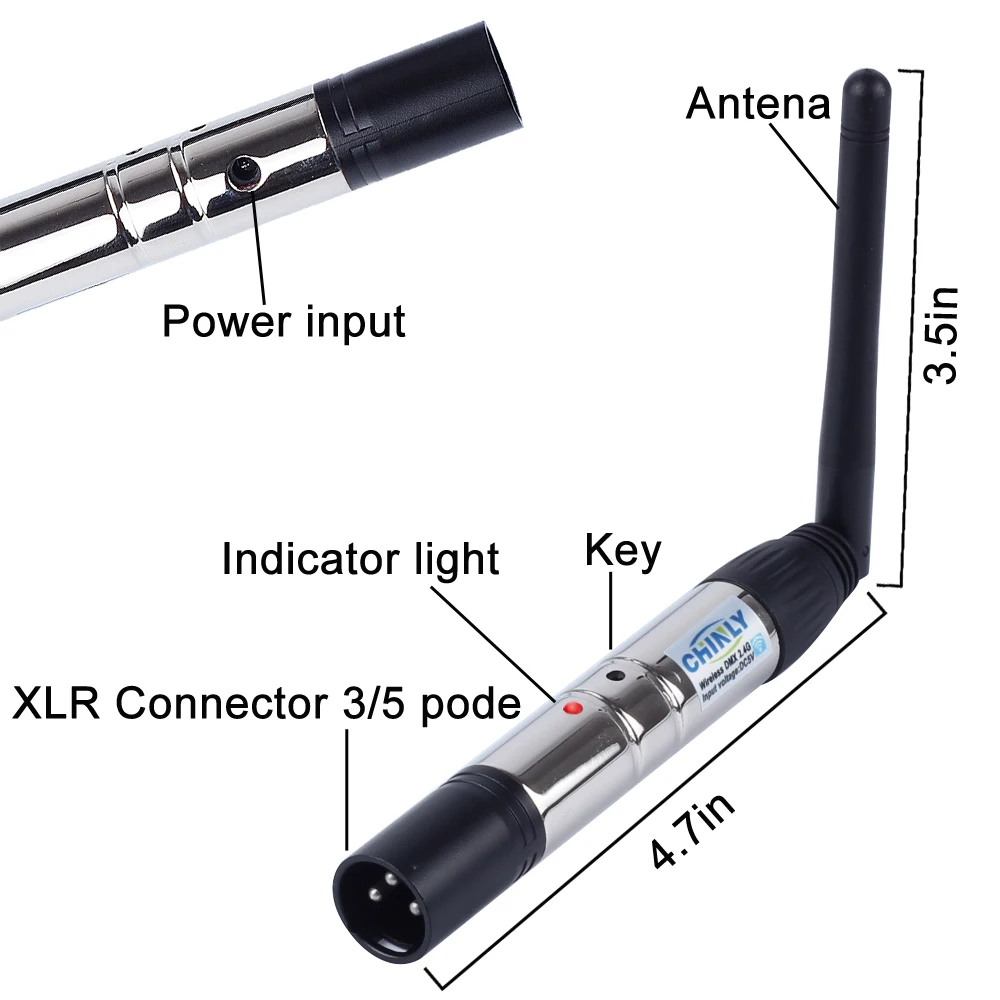

1. Press momentary switch above the side led indicator to indicate ID setting

2. Press again to set IC Œto the color ID desired,adding 1 each time you press the

switch will advance the color ID code.

3. Working condition LED constant lit upNo DMX or wireless signal. Red LED flashï¼š

Transmitting. Green LED flash receiving

4. RF frequency 2.400 – 2.525G Œtotal 126 channelsï Œ it’s searching automatically,

5. ID Code groups ID codei ¼Œpress ‘KEY’ for settingï Œit only can work under same

ID code of transmitter and receiver. (Same LED Color)

Establishing Communication:

1. Power on DMX512 wireless received board first and then following to power up the transmitted board.
2. Press “Key” button to set same ID value of transmitted board and received board. Please use different ID value if you need use more than 1 group wireless universals at same time in same place.
3. The red LED flashes when transmitter transmits DMX data by no interfered frequency section, then receiver changes communicated frequency section. Green LED flashes until received same ID value, the more DMX data, the faster the LED flashes.
4. Communication was established correctly.

Package information:

Transmitte with adapter + Instructions or Receiver with Adapters + Instructions

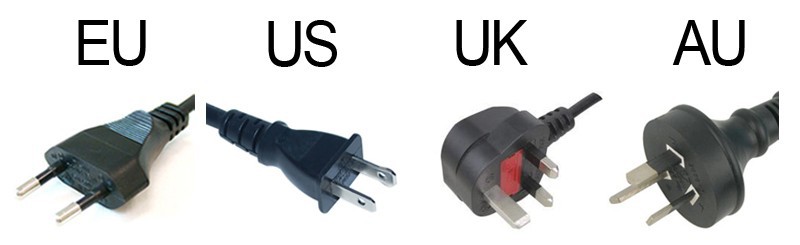

Adapters Plug :

We have EU / US / UK / AU standard Plug, we default to send in accordance with national standards ,

If special needs, please leave a message.

Product Show ——————————————————————————————————————–

Service Policy—————————————————————————————————————————–

4 GREAT REASONS TO BUY FROM US:

Over 37,000 happy customers across the US
Real people on our support team ready to help
The finest materials and stunning design — all our products are developed with an obsessive dedication to quality, durability, and functionality
We use the most secure online ordering systems on the market, and are constantly improving our software to make sure we offer the highest possible security

BUY WITH CONFIDENCE

Our mission is to make your shopping experience as safe and enjoyable as possible. Have questions? Feel free to contact our award-winning customer care team for advice on everything from product specifications to order tracking.

Money back guarantee: Something not quite right? If you’re not totally satisfied with your purchase, you can return it within 15 days for a full refund
Risk-Free Purchase: We utilize industry-standard Secure Sockets Layer (SSL) technology to allow for the encryption of all the sensitive information, so you can be sure your details are completely safe with us
Trustworthy payment method: We partner with the most popular online payment solutions that guarantee enhanced security and fast transaction processing

Item Specifics

Brand Name:

CHINLY

Installation Method:

Assembly

Certification:

FCC

Certification:

RoHS

Certification:

Origin:

Mainland China

Item Type:

Stage Lighting Effect

Style:

DMX Stage Light

Occasion:

Professional Stage & DJ

Power:

Other

Model Number:

SR5539

Voltage:

12V

Type:

DMX wireless transmitter receiver

Input voltage:

5VDC 500mA MIN

Communication visible distance:

300M, 400M

Work frequency section:

2.4G ISM,126 channels.frequency section

Max transmitting power rate:

20dBm

Warranty:

3 years
