Packing List

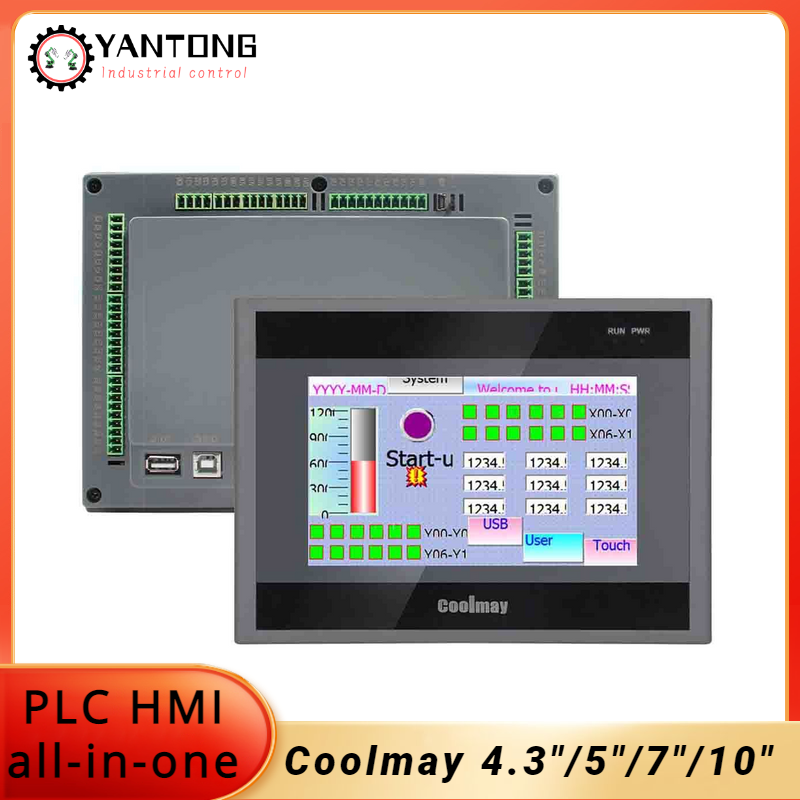

1x HMI PLC all in one
Features
-
Compatible with Mitsubishi software GX8.52/8.86,GX Developer and GX Works2
-
Support PID auto tuning function
-
Support PWM modulation
QM3G-43FH-24MT:4.3 inch HMI PLC all in one, 12DI 12DO, transistor outputs,Optional maximum 4 Analog inputs and 2 Analog outputs,1 RS232(HMI),1 RS232(PLC),1RS485(PLC),4 High speed pulse output(100KHz,Y0-Y3),4 High speed pulse output(10KHz,Y4-Y7).
QM3G-43FH-24MR:4.3 inch HMI PLC all in one,12DI 12DO, Relay output,Optional maximum 4 Analog inputs and 2 Analog outputs,1 RS232(HMI),1 RS232(PLC),1RS485(PLC).
QM3G-50FH-24MT:5inch HMI PLC all in one, 12DI 12DO, transistor outputs,Optional maximum 4 Analog inputs and 2 Analog outputs,1 RS232(HMI),1 RS232(PLC),1RS485(PLC),4 High speed pulse output(100KHz,Y0-Y3),4 High speed pulse output(10KHz,Y4-Y7).
QM3G-50FH-24MR:5inch HMI PLC all in one,12DI 12DO, Relay output,Optional maximum 4 Analog inputs and 2 Analog outputs,1 RS232(HMI),1 RS232(PLC),1RS485(PLC).
QM3G-70FH-24MR:7inch HMI PLC all in one, 12DI 12DO, Relay output,Optional maximum 12 Analog inputs and 8 Analog outputs,1 RS232(HMI),1 RS232(PLC),1RS485(PLC).
QM3G-70FH-44MT:7inch HMI PLC all in one, 24DI 20DO, transistor outputs,Optional maximum 12 Analog inputs and 8 Analog outputs,1 RS232(HMI),1 RS232(PLC),1RS485(PLC),4 High speed pulse output(100KHz,Y0-Y3),4 High speed pulse output(10KHz,Y4-Y7).
QM3G-70FH-44MRT(16R4T):7inch HMI PLC all in one, 24DI 20DO(Maximum 16 relay outputs, Y20-Y23 are fixed as transistor outputs),Optional maximum 12 Analog inputs and 8 Analog outputs, 1RS232(HMI), 1RS232(PLC),1RS485(PLC).
QM3G-70KFH-24MR:7inch HMI PLC all in one, 12DI 12DO, Relay output,Optional maximum 16 Analog inputs and 8 Analog outputs,1RS232(HMI), 1RS232(PLC),1RS485(PLC).
QM3G-70KFH-44MT:7inch HMI PLC all in one, 24DI 20DO, transistor outputs,Optional maximum 16 Analog inputs and 8 Analog outputs,1RS232(HMI), 1RS232(PLC),1RS485(PLC),4 High speed pulse output(100KHz,Y0-Y3),4 High speed pulse output(10KHz,Y4-Y7).
QM3G-70KFH-60MT:7inch HMI PLC all in one, 30DI 30DO, transistor outputs,Optional maximum 5 Analog inputs and 2 Analog outputs,1RS232(HMI), 1RS232(PLC),1RS485(PLC),4 High speed pulse output(100KHz,Y0-Y3),4 High speed pulse output(10KHz,Y4-Y7).
QM3G-70KFH-44MR:7inch HMI PLC all in one,24DI 20DO, Relay output,Optional maximum 16 Analog inputs and 8 Analog outputs,1RS232(HMI), 1RS232(PLC),1RS485(PLC).
QM3G-70KFH-60MR:7inch HMI PLC all in one, 30DI 30DO,Optional maximum 5 Analog inputs and 2 Analog outputs, 1RS232(HMI), 1RS232(PLC),1RS485(PLC).
QM3G-100FH-24MR:10inch HMI PLC all in one, 12DI 12DO, Relay output,Optional maximum 16 Analog inputs and 8 Analog outputs,1RS232(HMI), 1RS232(PLC),1RS485(PLC).
QM3G-100FH-44MT:10inch HMI PLC all in one, 24DI 20DO, transistor outputs,Optional maximum 16 Analog inputs and 8 Analog outputs,1RS232(HMI), 1RS232(PLC),1RS485(PLC),4 High speed pulse output(100KHz,Y0-Y3),4 High speed pulse output(10KHz,Y4-Y7).
QM3G-100FH-60MT:10inch HMI PLC all in one, 30DI 30DO, transistor outputs,Optional maximum 5 Analog inputs and 2 Analog outputs,1RS232(HMI), 1RS232(PLC),1RS485(PLC),4 High speed pulse output(100KHz,Y0-Y3),4 High speed pulse output(10KHz,Y4-Y7).
QM3G-100FH-44MR:10inch HMI PLC all in one,24DI 20DO,Optional maximum 16 Analog inputs and 8 Analog outputs, 1RS232(HMI), 1RS232(PLC),1RS485(PLC).
QM3G-100FH-60MR:7inch HMI PLC all in one,30DI 30DO,Optional maximum 5 Analog inputs and 2 Analog outputs, 1RS232(HMI), 1RS232(PLC),1RS485(PLC).
