720/960/1080P = 1 * 720/960/1080P WIFI Camera (not include Power supply)
720/960/1080P 12V 2A Power = 1 * 720/960/1080P WIFI Camera + 1* 12V 2A Power Supply
Supports Both Wi-Fi and Wired Mode !
Support Micro SD card,up to 64G;
Support for mobile video surveillance(iOS,android) : Yoosee
Support Motion Detection & Email Alert
1080P/960P/720P Optional,Max 30fps
Support ONVIF protocol, work with third part NVR
Video Compression : H.264
Sensor : 2MP CMOS /1.3MP CMOS/1.0 CMOS Sensor Optional
Video Resolution : 1920*1080P/1280*960P/1280*720P Optional
adjustable ;support frame rate from 1 to 30 frames/sec adjustable
Lens :3.6mm default ( 2.8mm/6mm/8mm optional)
IR Cut Filter : Yes
Wireless : wifi 802.11b/g/n
Motion Detect & Email Alert : Supports
Connector :1PCS LAN Port/1PCS Power Connector/1PCS Reset Button
Mobile Monitoring : Support IOS & Android With APP Yoosee
IR LED : 24pcs IR LED With 25Meters IR Distance
Woring Temperature : -20 to 60 degree
Power : 12V 1A to 2A
SD Card Slot : Support ( Max 64Gb )
1*720p/960p /1080p WIFI Camera
SD Card is NOT included.
Important Notice :
1.To install the Micro SD card,need to open the camera, find out the SD card slot on back of the camera board,
contact us for instruction if you have any problem to fix it.
2.This cameras NOT supports Website Interface such as IE ,Chrome
3.The recording time depends on the SD Card you install,check below recording time for reference :
8Gb : 2days 16Gb : 4-5days 32Gb :8-10days 64Gb:18-20days
4.Support ONVIF protocol, work with third part NVR
(Recently it doesn’t support view on Onvif Device Manager since the compatible issue)
Q1: How about the Network Function .does it support WiFi ?
A1: This camera can only work with 2.4GHz Wifi network,so please check your wifi network before placing order.
The WiFi distance depends on signal strength of your Wifi network.Please modify your wifi network name if it’s very long or with some symbols,as it may cause the camera connection failure.
If your Wifi network is not 2.4GHz,Please connect the camera to your router through LAN cable.
A2: If you failed to use the smartlink to connect your camera to your WiFi.
Please try to connect your camera to your router through Lan cable,then set ‘Network settings’ – ‘WiFi’ . choose your WiFi network and input WiFi password ;
Q2: I need safety and also my families . Does it provide alarm for us ?
A1: This camera with motion detection function.It can Buzzer/pop alarm message/push email when detect motion action.
Q3: I care about Real time video review of the camera .is it HD and clear ?Is it useful at night ?
A1: You can review the live video through iPhone/Android mobile phones/Windows PC .
A2: The camera work day&night.The video is color in daytime,black&white at night.
A3: The camera support desk/wall/ceilling installation.You can reverse the image according your installation way.Video formwat support PAL and NTSC.
Q4: I hope I can record with this camera .Do I need a memory card ? how dose it work ?
A1: Before recording .You need insert a memory card.it support 64Gb MAX .
A2: The record need about 2Gb/day .it means you need a 64Gb memory card if you want to record for a month .And you it support circle recording
A3: It supports 3 record mode :Manual Recording/Alarm Recording/Scheduled Recording .
Manual Recording : the recording will start/stop according you turn on/off the record switch.
Alarm Recording : the recording will start once the alarm is triggered,and you can set record 1/2/3 minutes.
Scheduled Recording :you can set a time period that record.
A4: It record on SD mode .and auto circulate record is available . Every video file is 30 minutes max (about 250 Mb).
it support a memory card 64Gb MAX .Please format your memory card at your first time recording.
A5: The video record can playback directly on your mobile APP.
Q5: I don’t want hacker view my camera .I need Safety. Will it work?
A1: The default password is 123.For your security,please modify your camera password as soon as you connect your camera to your network.
A2: If someone want to connect your camera but you don’t want to give more permission to him.you can set a Guest Password . he can just view and talk through camera and can’t set it .
1.Warm tips: Before setting the camera, please press the “reset button” 7 seconds to factory reset.
2.Please download the Yoosee App to your mobile phone via scanning the QR code.
3.Before configure the camera working on wifi mode, If you want to make camera working on wireless mode,
You need to connect the camera to your router via RJ 45 cable, and then make it working on wireless mode following the below settings.

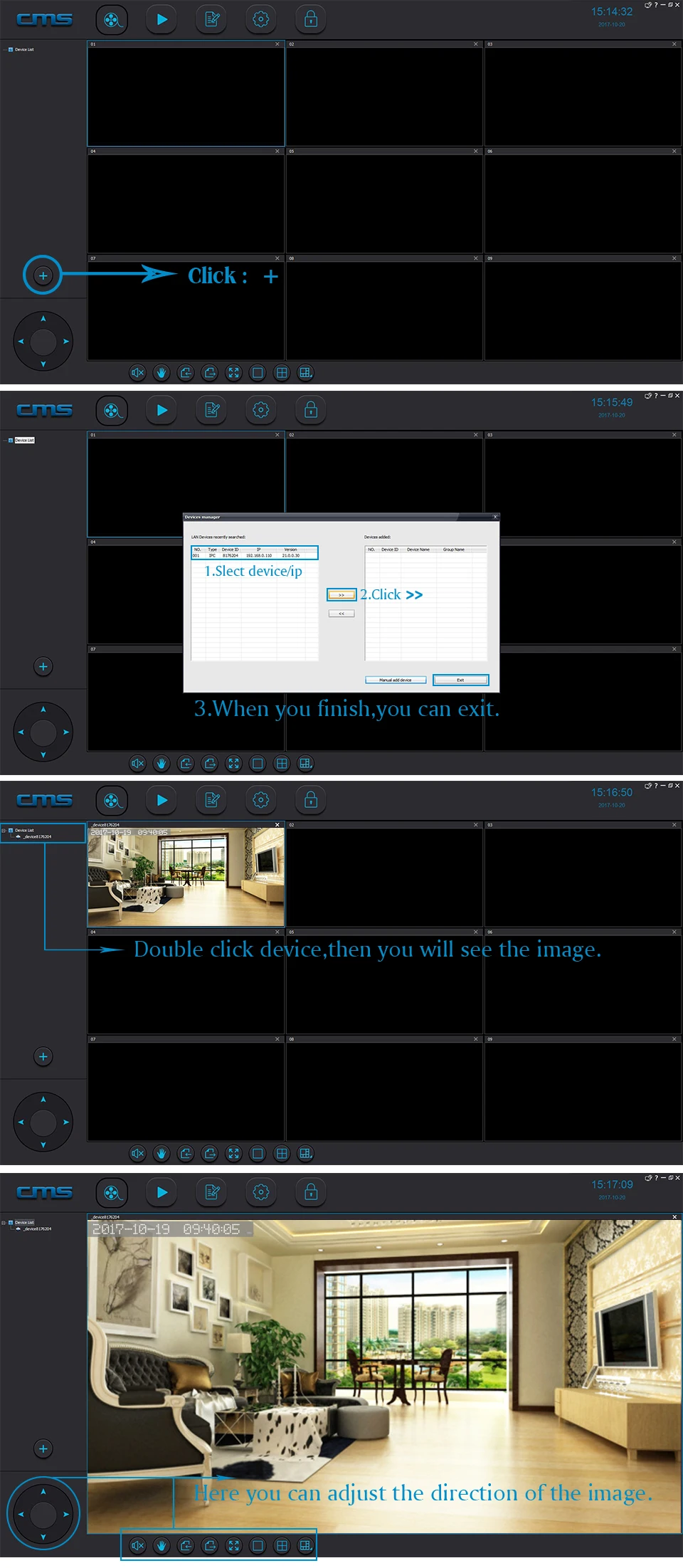

1.This wifi camera also support PC viewing, but only support Windows system.
2.After you configure the camera successfully on Yoosee app , open the CMS client software on computer .
3.The CMS client will detect the camera, but this camera doesn’t support website browser viewing.
For most items , we can send out the goods within 2-7days , but some items are new arrivals, we need time to order from the factory.
That is just assured that the goods we sell are orignal genuine products. so pls be patient for the products.
Our servicer also will contact you to explain the delivery time.
Thanks in advance for your understanding.BTW,The shipping cost does not include any import taxes, and buyers are responsible for customs duties.
We would try our best to serve you, and we accept the reture for any reason within 2 weeks from the date of your receipt. So pls just make sure that the goods are in their original package and conditions.
If the items are lost or damaged on the way to us, the buyer needs be responsible for the loss.
The buyer should try to file a claim with the logistic company to recover the cost of damage or loss.
The buyer would be responsible for the shipping freight to return the goods.
The clients’ satisfaction and positive feedback is very important to us. Please kindly leave positive feedback and 5 stars if you are satisfied with the goods and services.
If you have any problems with our items or services, please feel free to contact us firstly before you send negative feedback. We will do our best to solve any problems and provide you with the best customer experiences.
