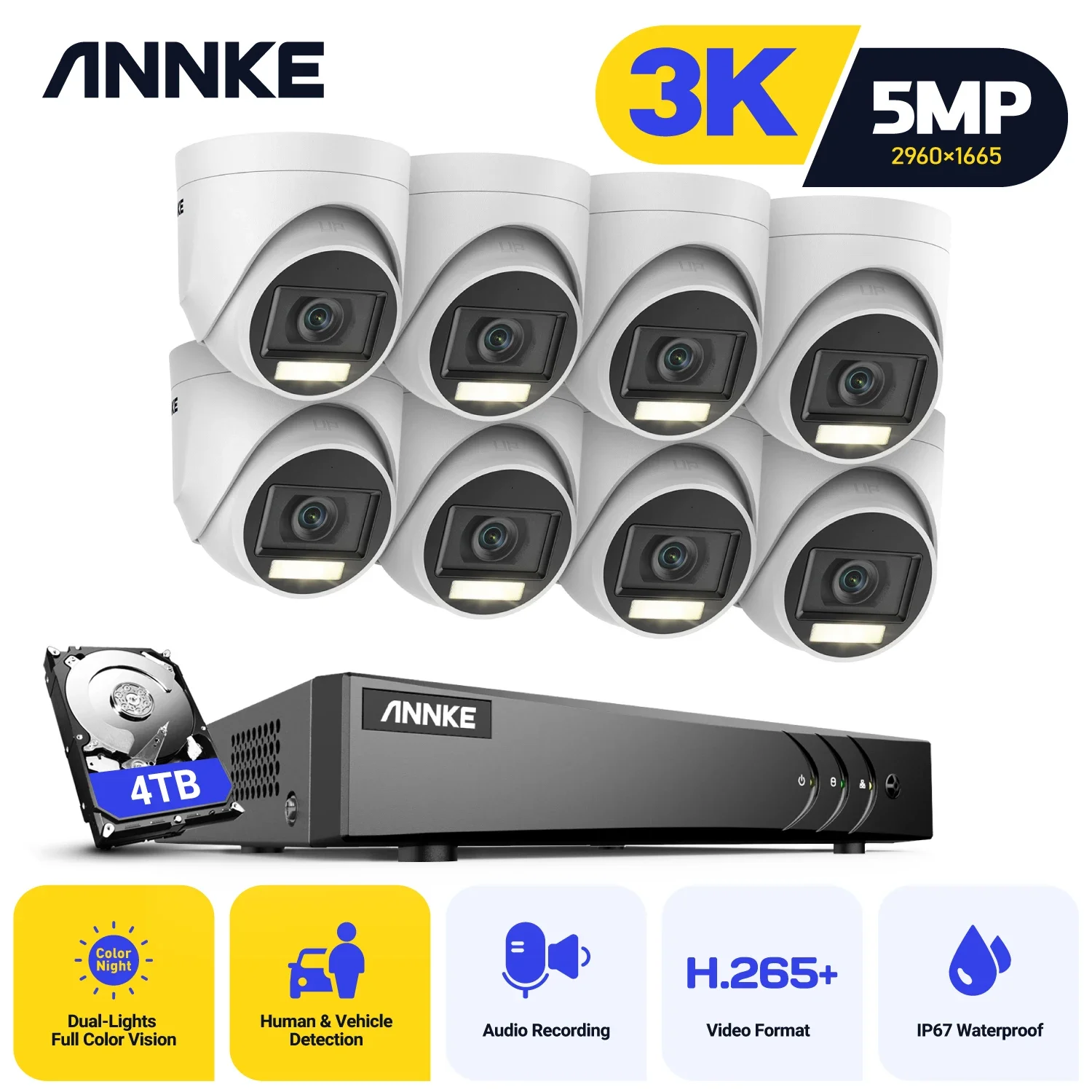

ANNKE 6MP Wired Security Camera System H.265 Pro+ DVR Surveillance with 8pcs 5MP PIR Outdoor Cameras IP67Weatherproof, Visual Alarm, 100ft Night Vision
Key Features:
High quality imaging with 3K, 2960 × 1665 resolution
2.8 mm fixed focal lens@F1.2
High quality audio with audio over coaxial cable, built-in mic
Up to 30m IR distance for bright night imaging
Up to 20 m white light distance for bright night imaging
One port for four switchable signals (TVI/AHD/CVI/CVBS）
Water and dust resistant (IP67)
Specifications:
DVR:
· Up to 3K high definition live viewing
· Up to 3K Lite recording & playback
· Advanced H.265+ Video Compression
· Support TVI/AHD/CVI/CVBS/IPC input. 5 in 1
· Supports iPhone、iPad、Android mobile remote monitoring
· Deep learning based human and vehicle targets classification of Motion Detection 2.0 for all analog channels
· Quick search by object or event type
· Audio via coaxial cable
Camera:
High quality imaging with 3K, 2960 × 1665 resolution
2.8 mm fixed focal lens@F1.2
High quality audio with audio over coaxial cable, built-in mic
Up to 30m IR distance for bright night imaging
Up to 20 m white light distance for bright night imaging
One port for four switchable signals (TVI/AHD/CVI/CVBS）
Water and dust resistant (IP67)
What’s included?
1 * 6MP Lite Surveillance DVR
1 * Power Adapter for DVR
1 * 5.9ft/1.8m HDMI Cable
1 * 3.2ft/1m Ethernet Cable
8 * 60ft/18.3m BNC Cables
1 * USB Mouse
1 * User Manual
1 * 4-to-1 Power Splitter
8 * Mounting Screw Kits
No/1T/2T/3T/4T HDD for your option
|
DVR |
||
|
Video & Audio |
Video Compression |
H.264+/H.264/H.265/H.265+ |
|
Video Input |
8CH Analog HD/Analog + 2CH IP Video (up to 12 channel when IP enhanced mode on) |
|
|
Video Output |
HDMI and VGA Up to 1080P |
|
|
Audio Input |
1-ch RCA,8-ch via coaxial cable |
|
|
Audio Output |
1-ch RCA |
|
|
Supported Camera Types |
Support HD TVI Input: 3K/5MP@20FPS, 4MP, 3MP, 1080p, 720p; |
|
|
Analog HD Playback Resolution |
3K Lite/5MP Lite/4MP Lite@12fps,1080p/720p@15fps |
|
|
IPC Playback Resolution |
Up to 6MP |
|
|
Max Playback Channel |
2-ch |
|
|
Protocols |
TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS |
|
|
Motion Detection 2.0 |
All analog channels support human and vehicle detection to reduce false alarm |
|
|
Hard Drive |
HDD |
1 SATA interface |
|
HDD Capacity |
Up to 10TB capacity |
|
|
External Interface |
Network interface |
1, RJ45 10M/100M self-adaptive Ethernet interface |
|
USB |
USB2.0x2 |
|
|
General |
Operating Power |
DC12V,≤ 12W (without HDD) |
|
Working Temperature |
-14 °F – 131 °F /-10 °C – 55 °C |
|
|
Dimensions(W x H x D) |
260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch) |
|
|
Weight (without hard disk) |
≤ 1 kg (2.2 lb)(without HDD) |
|
|
Analog HD Camera |
||
|
Camera |
Image sensor |
3K CMOS Image sensor |
|
Video Resolution |
2960 (H) × 1665 (V)(16:9) |
|
|
Signal System |
PAL/NTSC |
|
|
Frame Rate |
TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps |
|
|
Lens |
2.8mm |
|
|
Min.Illumination |
Color:0.01 Lux @ (F1.2,AGC ON),0 Lux with IR |
|
|
Angle of View |
Horizontal FOV: 107°, vertical FOV: 64°, diagonal FOV: 129° |
|
|
Supplement Light type |
1 white Light & 1 EXIR |
|
|
Supplement Light Range |
IR : Up to 30 m, white Light : Up to 20 m |
|
|
Supplement Light Mode |
IR light works normally, and it switches to white light when human or vehicle are detected at night. |
|
|
Wide Dynamic Range |
Digital WDR |
|
|
Audio |
Built-in mic |
|
|
IR Cut Filter |
Yes |
|
|
Video Output |
BNC, switchable TVI/AHD/CVI/CVBS |
|
|
General |
Housing |
Matal & Plastic |
|
Color |
White |
|
|
Operating Power |
12 VDC ± 25% |
|
|
Consumption |
Max. 2.9 W |
|
|
Operating Temperature |
-40 °F – 140 °F /-40 °C – 60 °C |
|
|
Indoor/Outdoor |
Indoor/Outdoor |
|
|
Weatherproof Rating |
IP67 |
|
|
Dimension (L x W x H) |
80 mm × Ø 85.1 mm (3.1″ × Ø 3.4″) |
|
|
Weight |
Approx. 300 g (0.66 lb.) |
|
