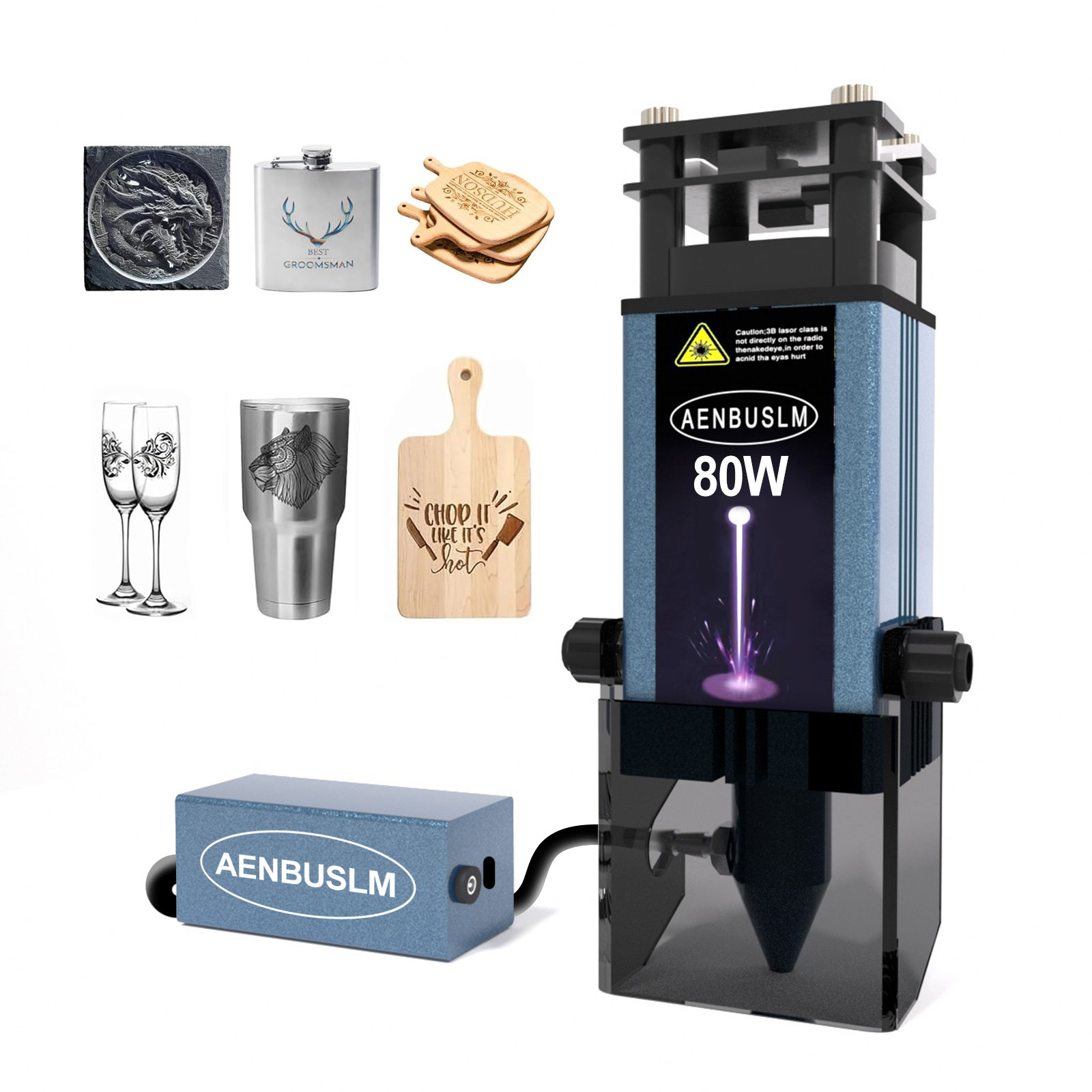

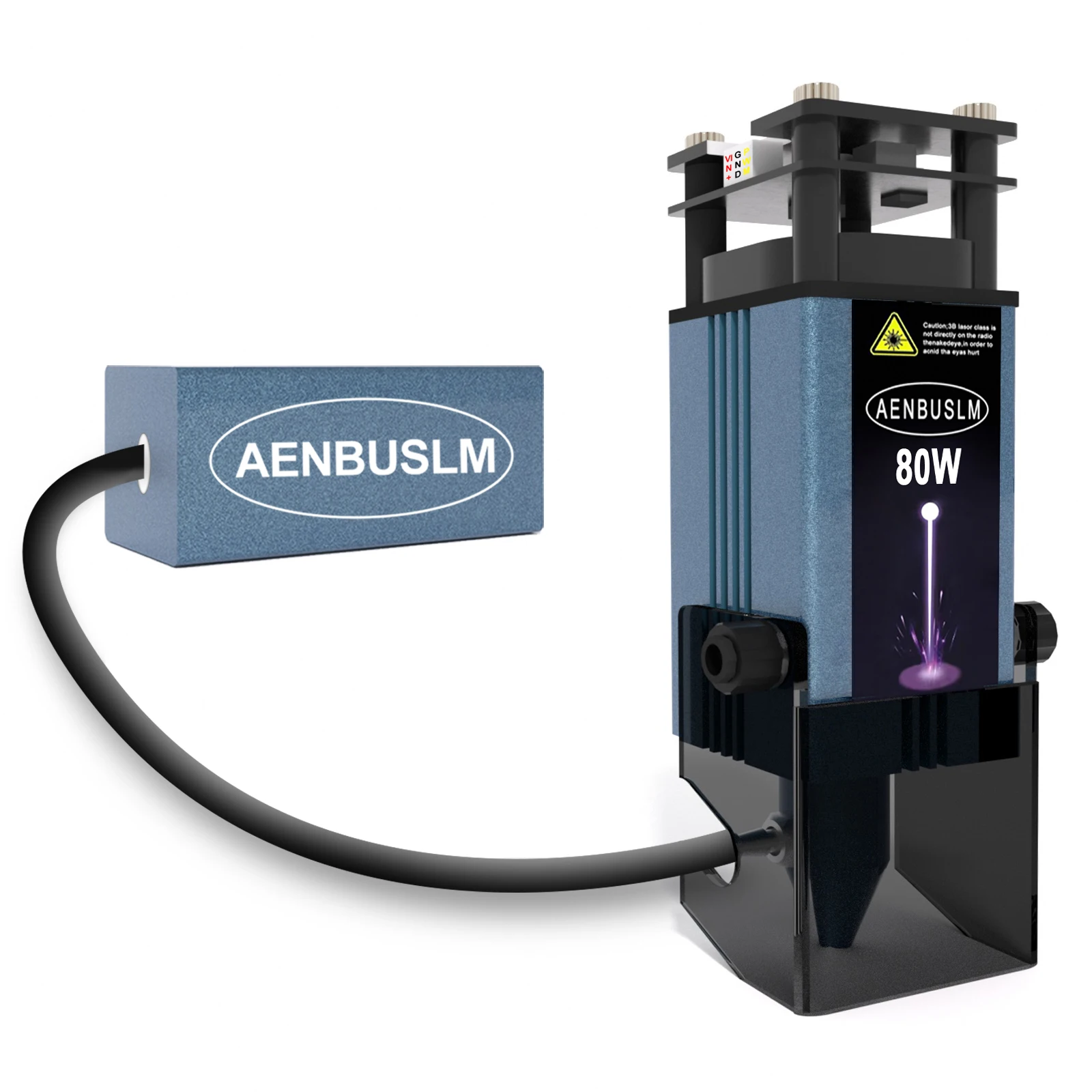

Product upgrade: The product is equipped with an air pump, and there is no need to purchase an additional air pump.
This product is a brand-new upgraded product that integrates laser engraving and air pump.
After turning on the air pump, the engraving machine module is connected and you can start working.
The newly upgraded 80W laser module is powerful, the engraving speed is 6-7 times faster than the traditional laser module, and the stainless steel engraving effect is better.
The laser engraving accuracy is 3 to 4 times higher than the traditional laser module, with faster conversion speed and higher accuracy.
The precise power and power of the laser are calculated according to international standards, and the actual power is normal. Real power. (The product parameters and product information we describe are obtained after rigorous testing)
80W technical parameters
Light source: blue semiconductor laser blue shell
Material: aviation aluminum
Color: polar black
Module core material: copper shell
Light output power: 80W
Focusing power:
80W laser wavelength: 450nm
Voltage power supply: 12/24 universal
Power control: PWM/TTL (signal control voltage 0-5V)
Power supply current:
4A interface specification: 3P 2.54/4PIN 2.54
Light shape: fixed focus (20mm depends on the fixed focus column)
The list includes: 4P line * 1, 3P line * 1, DC short line * 1, focal length column * 1, laser module * 1.
Lifespan 20,000 hours. (If the smoke is blurred, please install a fan when engraving or cutting)
The whole body is upgraded with a laser protection heat dissipation cover to make the machine longer, more durable and of better quality.
Buyers must read: Pay attention to the line sequence: 3P line connection method, 12v line + red line, GND-black line, pwm+yellow line, check carefully if it needs to be replaced
Buyers must read: Pay attention to the line sequence: 4P line connection method, 12V+red line, 12V-black line, TTL+yellow line, TTL white line-check carefully
Note: Only suitable for
This laser module can be used for 95% of CNC cutting, engraving and DIY laser engraving machines on the market. In addition, it is suitable for various materials such as wood, MDF, leather, bamboo, black acrylic or anodized aluminum, realizing your DIY freedom and bringing you endless fun. (Not engravable: blue/purple/white/transparent materials, aluminum without oxide layer).
The laser module is equipped with two types of laser protective covers, the magnetic protective cover is suitable for use without air assistance, and the adjustable protective cover is suitable for use with air assistance. You can choose different protective covers according to engraving needs and personal preferences. There are a variety of options to choose from, providing multiple guarantees for your safety.
Professional air-assisted and heat dissipation design: This air-assisted laser module can make the edge of the material cleaner and clearer when cutting/engraving. It can improve the efficiency of the laser cutting machine, save time and enjoy the beauty of simplicity. The laser cutting module has a built-in fan cooling system. The fan speed is 10000rpm. It is effectively isolated to extend its service life. The output power reaches 100% in 30 minutes, and the power is only reduced by 300-400 MW. Original diode, high quality, life span up to 20000 hours. The removable eye shield can effectively filter blue light.
Real FAC compression technology: ultra-fast engraving speed 304 stainless steel, up to 400mm/s, excellent cutting ability: cutting 10mm plywood at a speed of 1.6mm/s, surpassing the same level of 80W laser.
Box list; 4P line*1, 3P line*1, DC short line*1, column focal length*1,, laser module*1. Note the wiring sequence: 3P wiring method, 12v+red wire, GND-black wire, pwm+lin
Can be cut; 20mm pine board, 10mm MDF board, 10mm acrylic board
