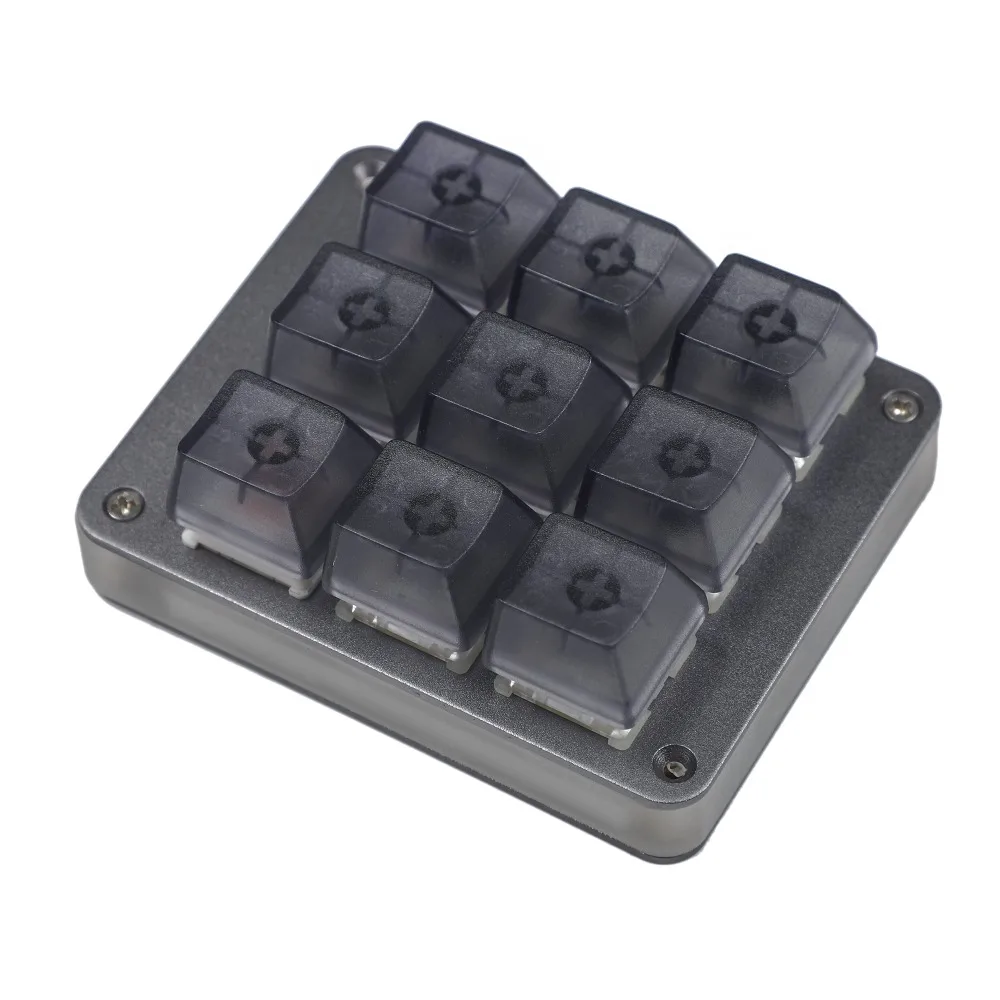

This link is for 9 Key Pad DIY.Support Marco function.Every key can be defined which is good for gaming Photoshop Stock etc.The PCB has upgraded to QMK Hotswap now and the price only increased little.

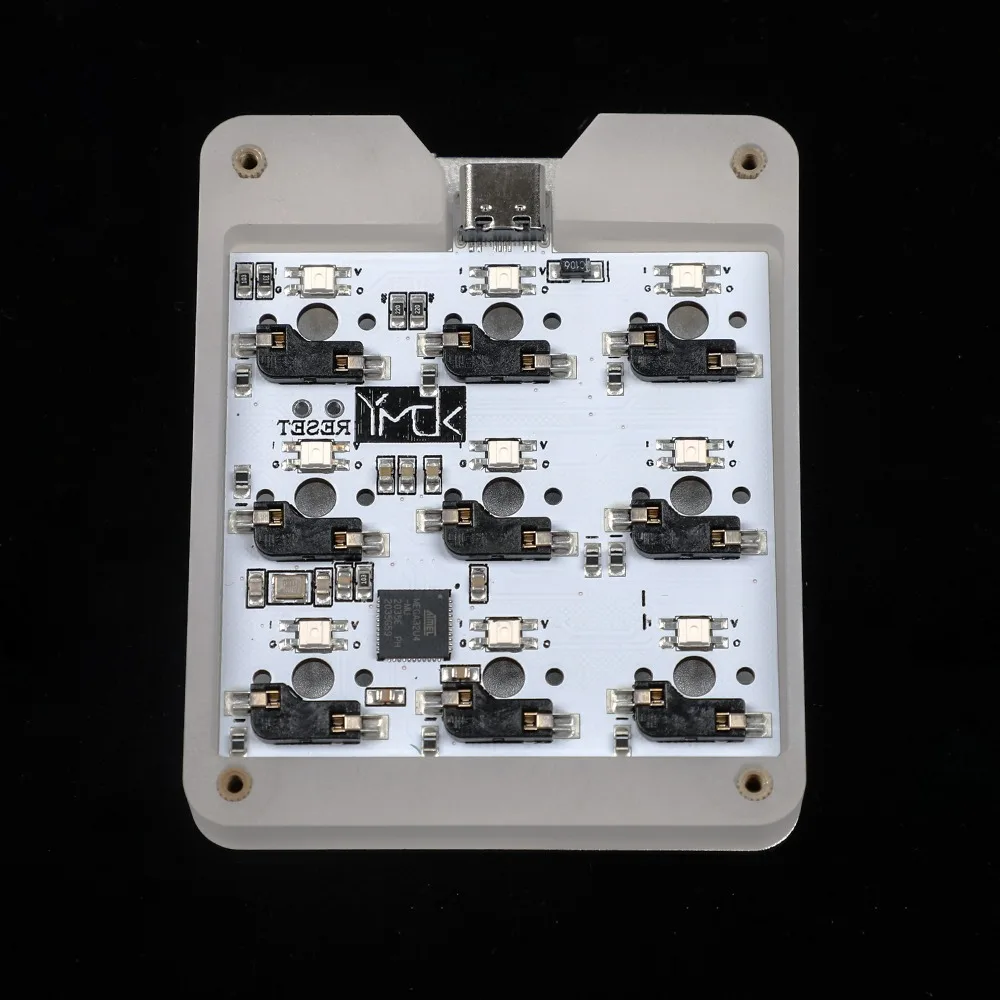

The PCB is presoldered with Hot socket.The firmware is QMK which is much more powerful than before.The PCB can support VIA as well.Will pass on manual soon

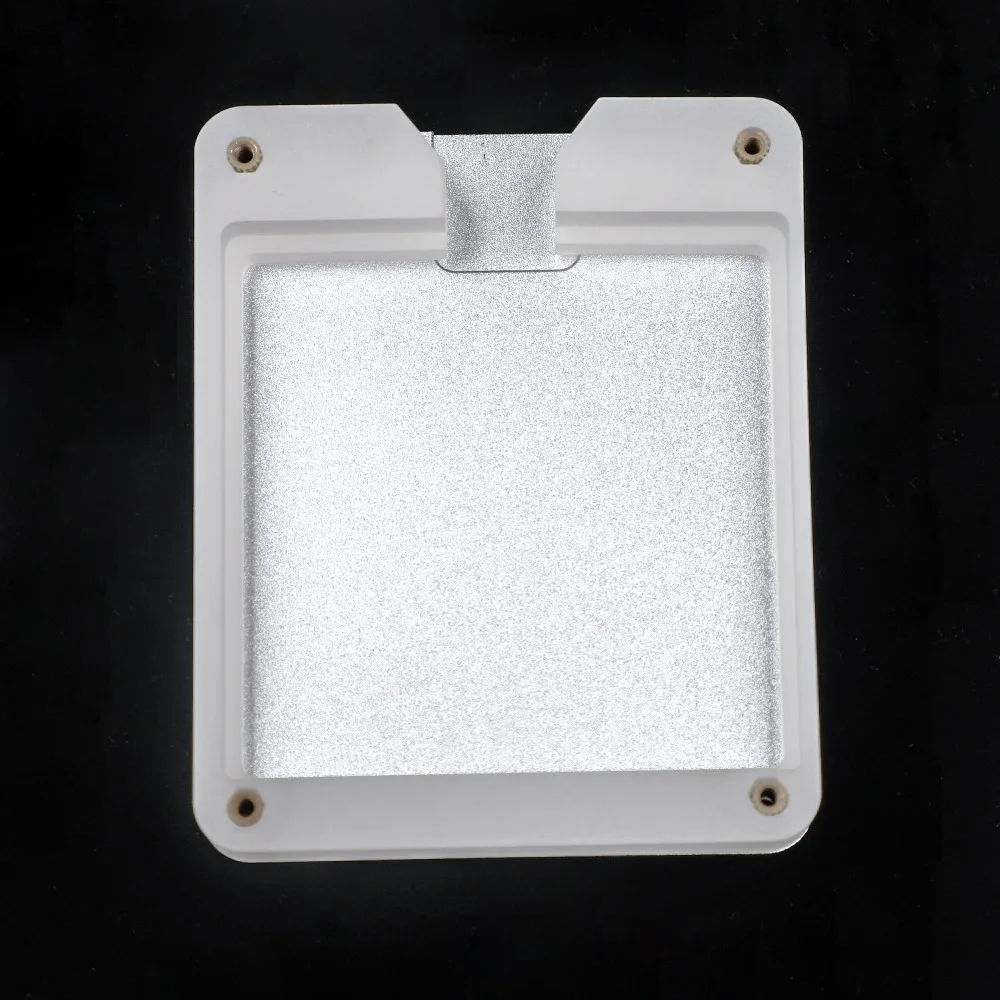

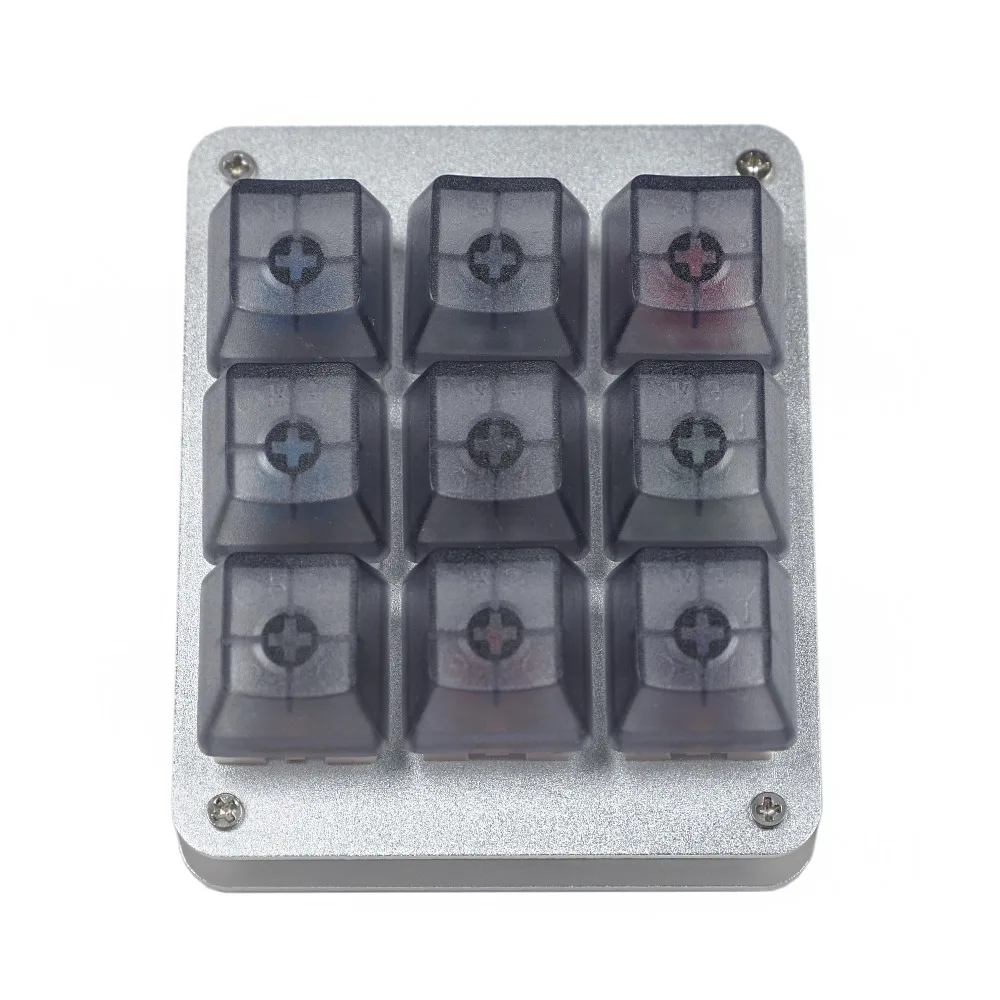

The case is CNC aluminum.The middle frame is CNC as well and then sand blast.It add stand around the acrylic frame to support PCB as the image shown
We put 123456789 key as default.Set 5 and Fn in same key,when you long press 5,it is Fn,can control led color by Fn.If you want other keys or Macro keys,please program it yourself with the manuals below.

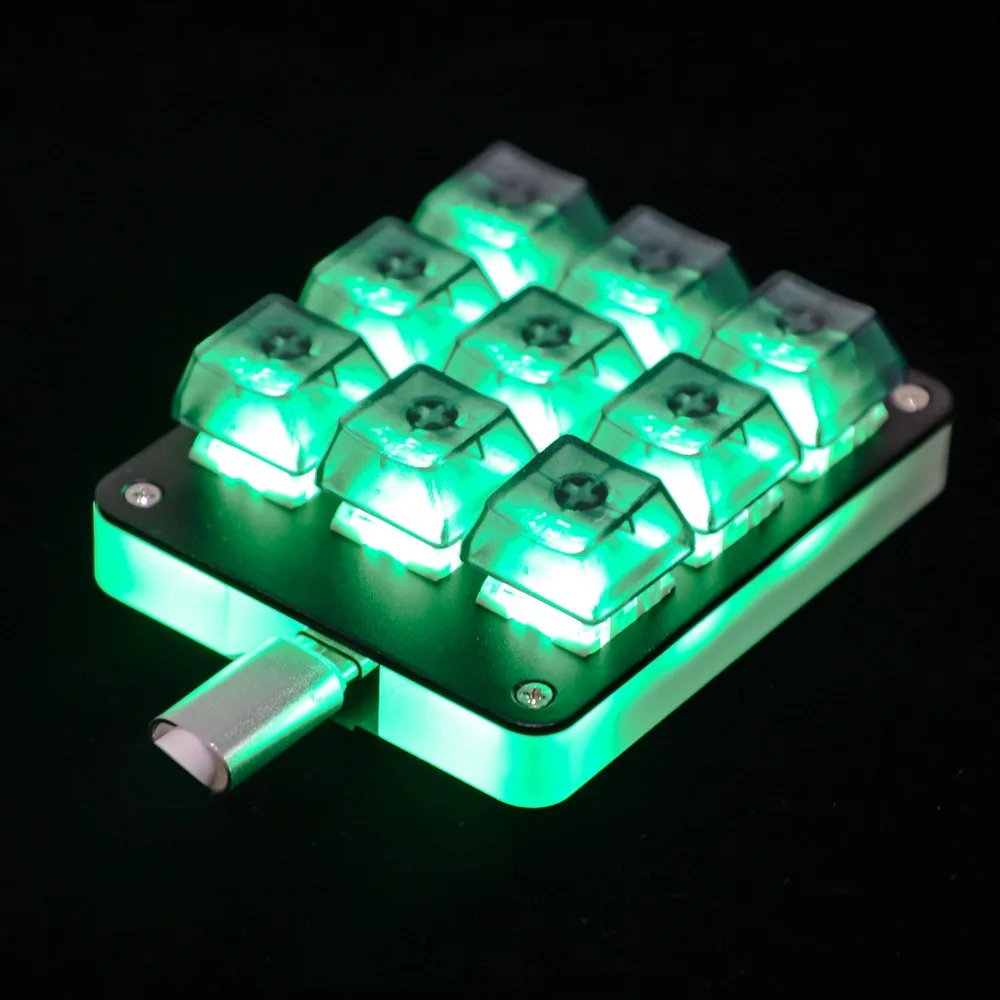

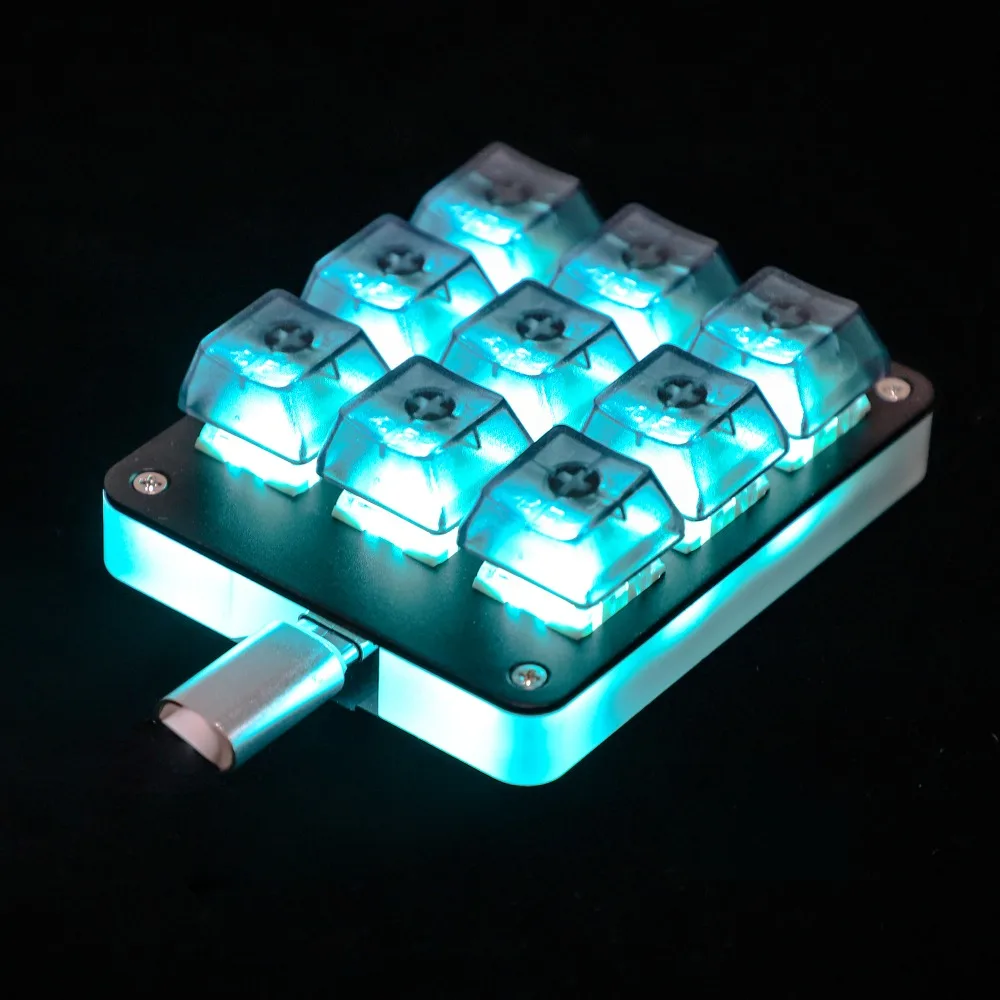

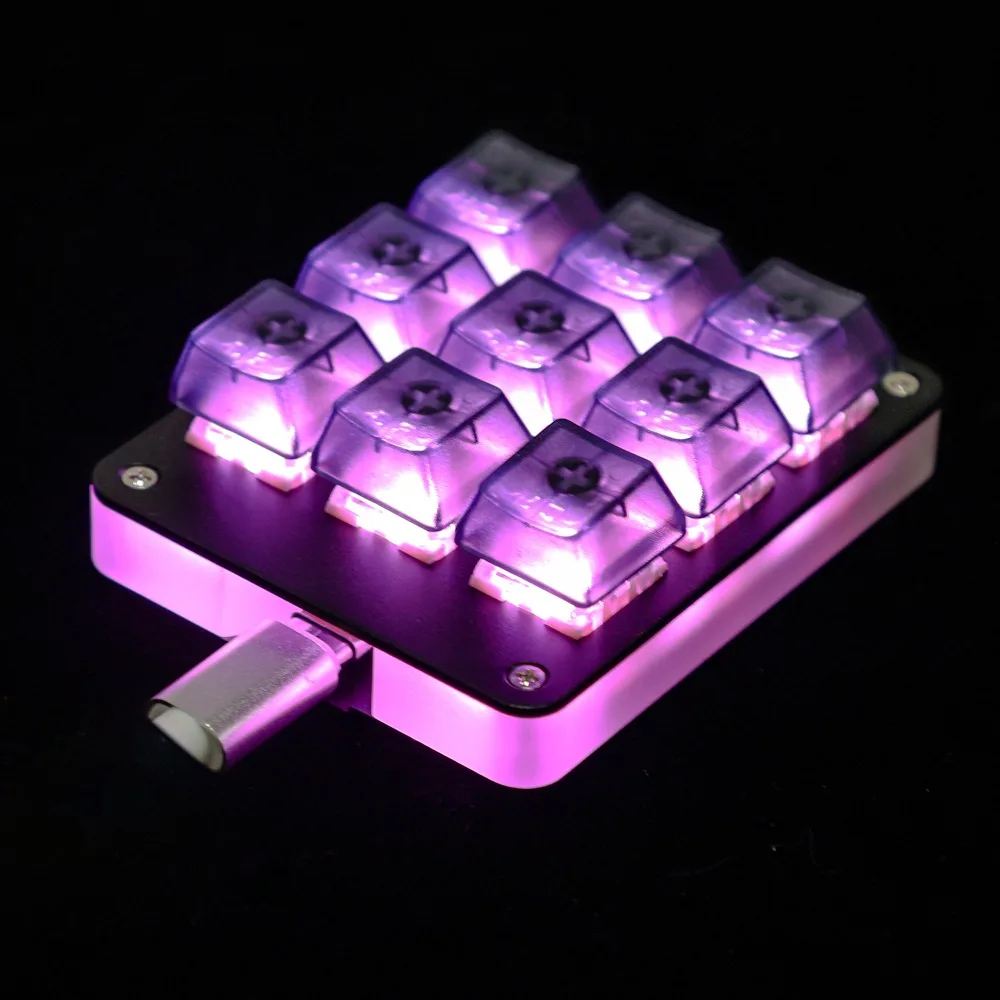

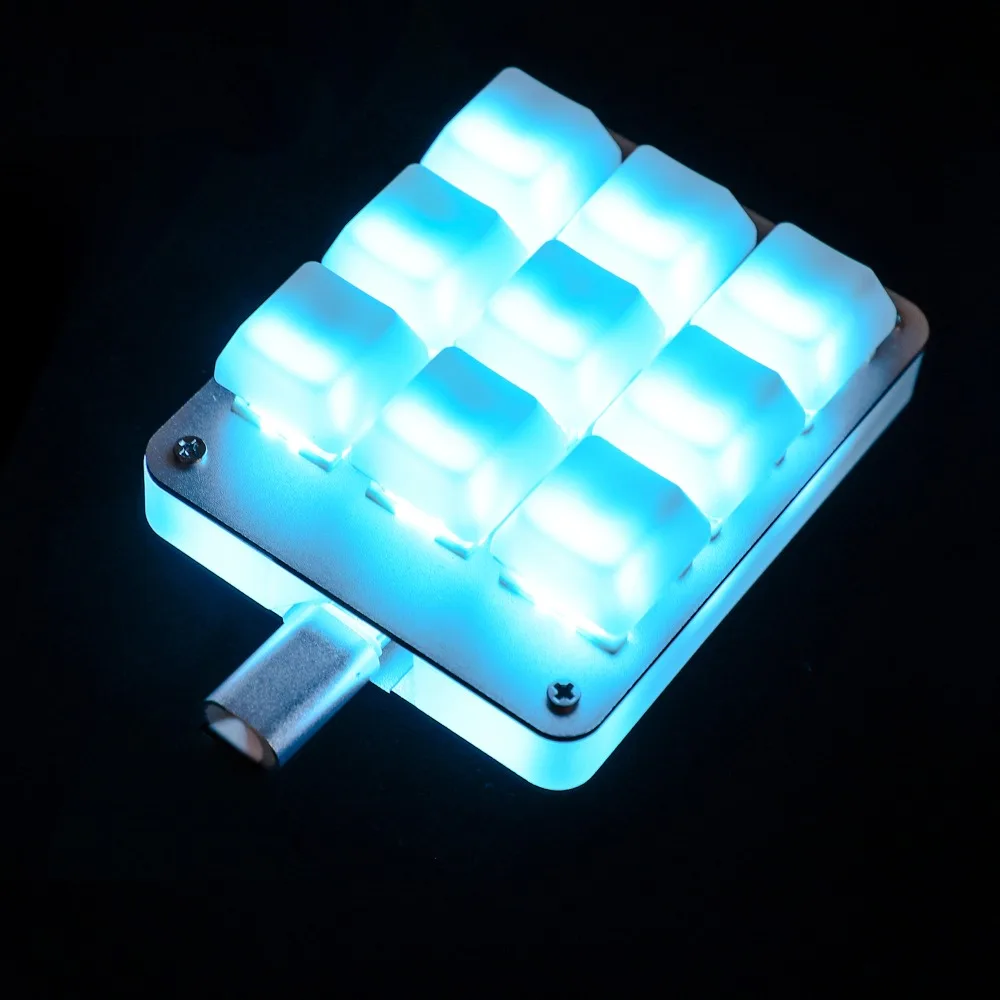

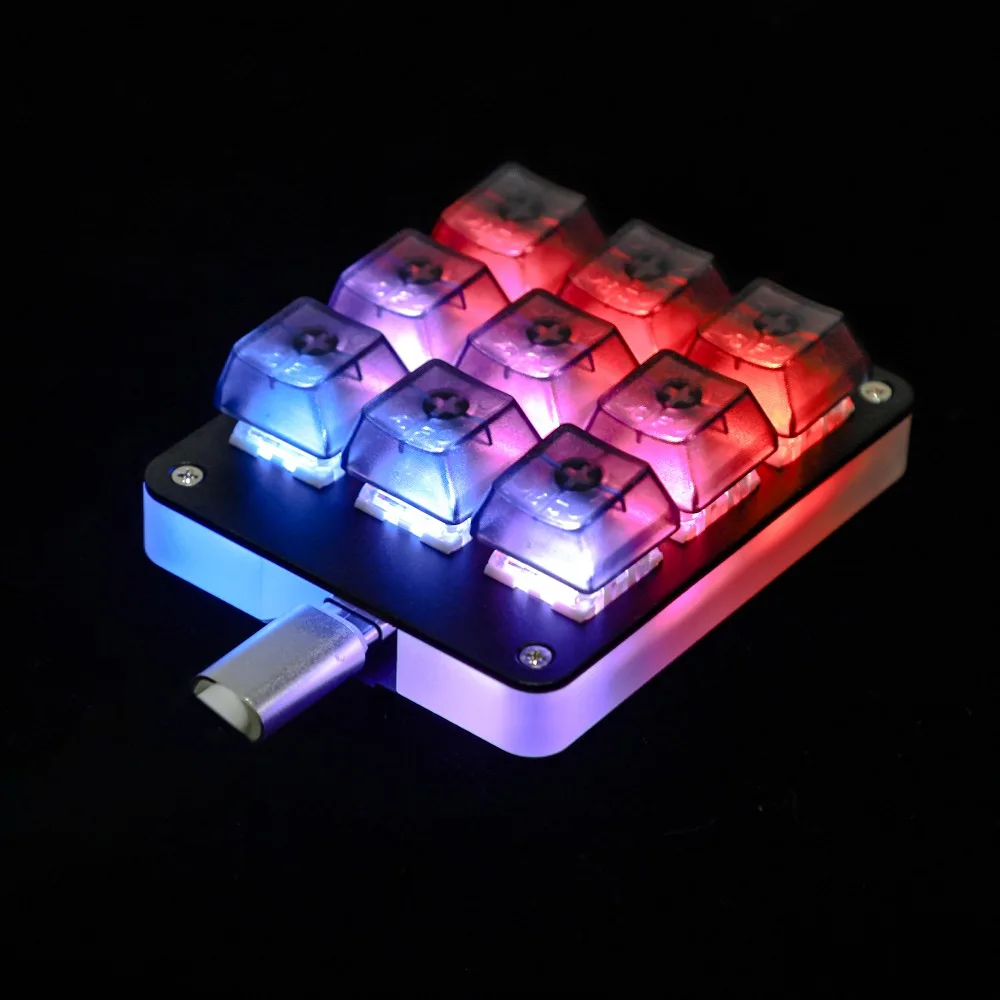

The led effects is maily on upper side of the keyboard,the bottom led effects is only reflected by black board under the keyboard.
3 pin switches is best,if you use 5 pin switches,just cut the plastic leg is ok.
Cherry SMD /Gateron SMD /Kailh SMD /Kailh Speed /Kailh Pro /Kailh Box /Outemu SMD all is compatible.

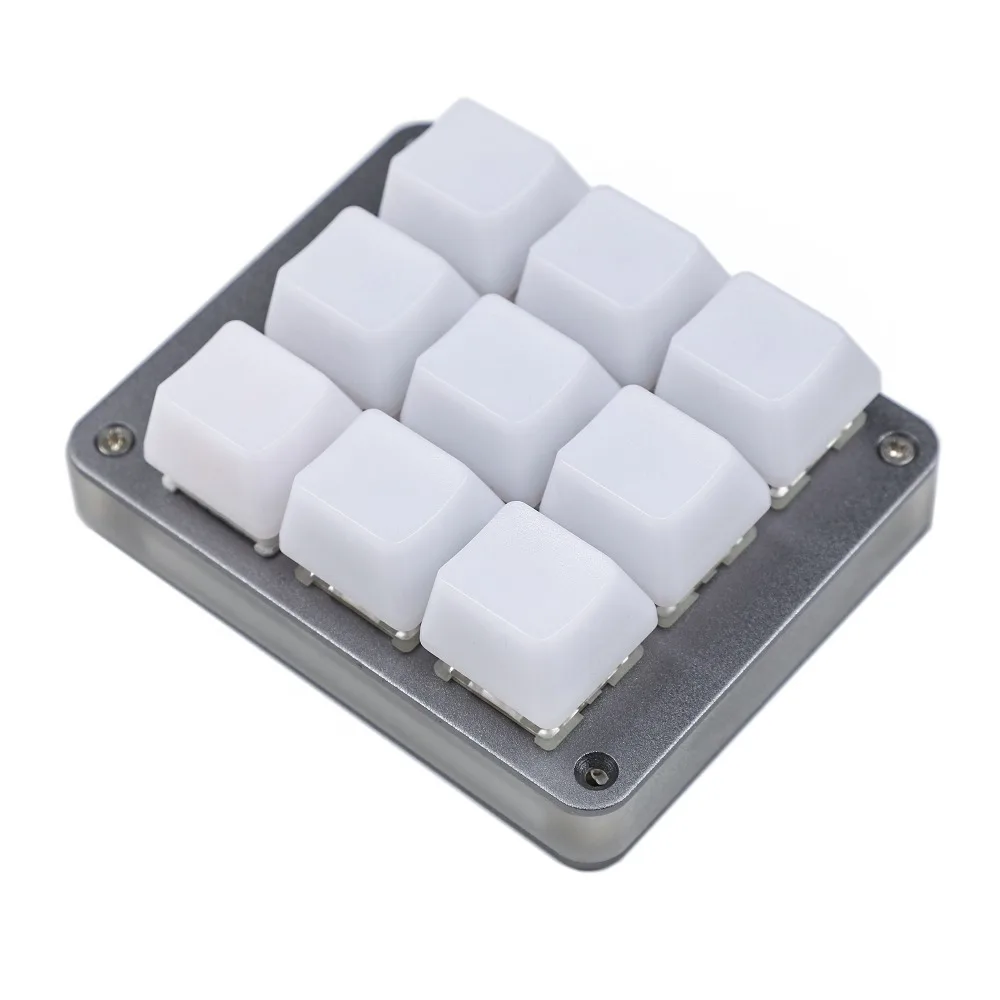

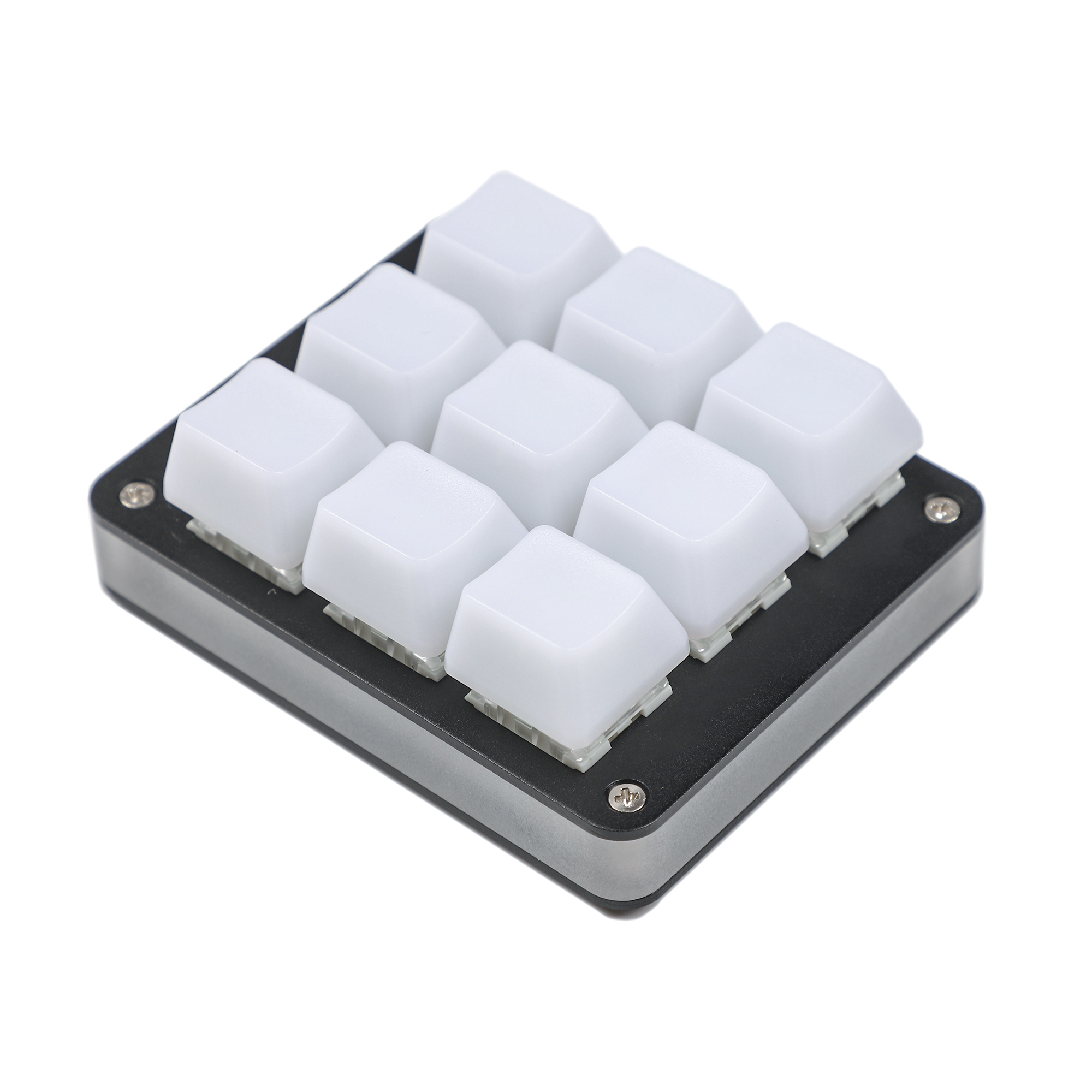

The case plate is made of acrylic.The black keycaps is ABS,the thickness is around 1.5mm.Milk white keycaps is ABS blank,the thickness is around 1.5mm.
This PCB is Type C port,can program with bootloader.Here is the link to download the software and manuals
Programming Manuals: drive.google.com/file/d/1o1J07houQqcpuXs2lBqurZ6UrH8SXnFK/view?usp=sharing
3 kit for your options
Kit 1
Case plate PCB + Switch puller + Rubber pad + Switches below + Assemble (RGB led KeycapCable is presented,leave message what switch you want)
Gateron Blue Brown Black Red White Yellow Green (Can Mix)
Kailh Speed Silver Bronze Gold pink Copper
Kailh Pro purple Light Green Burgundy
Kailh Box White Brown Black Red Pale Blue Burnt Orange Dark Yellow
JWK Black C V2 JWK Blue C V2
Kit 2
Case plate PCB+ Switch puller +Rubber pad +Switches below + Assemble(RGB led KeycapCable is presented,leave message what switch you want)
Kailh box Jade Navy Pink Royal
Kailh Hako Ture /Hako Violet /Hako Clear
Kailh Polia /Canary
Kit 3
Case plate PCB+ Switch puller +Rubber pad +Switches below + Assemble(RGB led KeycapCable is presented,leave message what switch you want)
Cherry SMD Black/ Red/ Brown/ Blue/ Silver/ Pink
Switches Details
Kailh speed
Copper switches: Tactile, 40 g springs – 1.1mm +/- 0.3 mm in pre travel
Silver switches: Linear, 40 g springs – 1.1mm +/- 0.3 mm in pre travel
Gold switches: Clicky, 60 g springs – 1.4mm +/- 0.3 mm in pre travel
Pink switches: Clicky, 50 g springs – 1.1mm +/- 0.3 mm in pre travel 【New structure】
Bronze switches: Clicky, 50 g springs – 1.1mm +/- 0.3 mm in pre travel
Kailh Pro
The burgundy feels smooth and has a slight curve to it when starting out.
The purple feels really nice. The bump is decently strong and smooth. It feels comparable to a Zealio 65g.
The light green is more comparable to a Cherry Blue click. Its consistent and feels pretty nice.
Kailh Box
BOX Heavy Dark Yellow is linear switches,around 70g operating force
BOX Heavy Burnt Orange is tactile not clicky,around 60g operating force
BOX Heavy Pale Blue is tactile clicky,around 60g operating force
Box Navy is tactile clicky,spring force is the same as heavy pale blue,and the clicky feeling is more obvious.
Box Jade is tactile clicky,spring force is same as box white,the clicky feeling is little resistant feeling
Box Royal is tactile not clickey,actuation is around 75g,the feeling is close to Cherry clear
Box Pink is tactile cliky switches,operating force is around55g±15gf,tactile force is around 65g±10gf
Box White is tactile clicky switches,around 45g operating force
Box Black is Linear switches,around 60g operating force
Box Red is linear switches,around 45g operating force
Box Brown is tactile switches,around 45g operating force
Gateron SMD
Red black white yellow switches are linear switches moving straight up and down without any additional tactile feedback or loud clicking noise.For operating force,Black>Yellow>Red>White.
Gateron brown switches are tactile and non-clicky,between red and blue handle feeling.It’s both good for gaming and typing which depends your preference.
Gateron Blue and green shaft is tactile and clicky,green is stiffer version of Blue.
