Description
This electro-hydraulic crimping tool will be a great working assistant for you. It comes with two rechargeable batteries and 12 different sizes of molds, which give it a long duration time and the ability to adapt to various terminal crimping. The ergonomic handle is comfortable to touch and doesn’t pinch your hand, which brings less fatigue from long hours of work and improves your work efficiency.
Key Features
High-quality and Durable: The product is made of high-quality 40 Cr and adopts high-temperature quenching, blackening, and electrocautery processes, making it sturdy, anti-corrosion, anti-rust, and has a long service life.

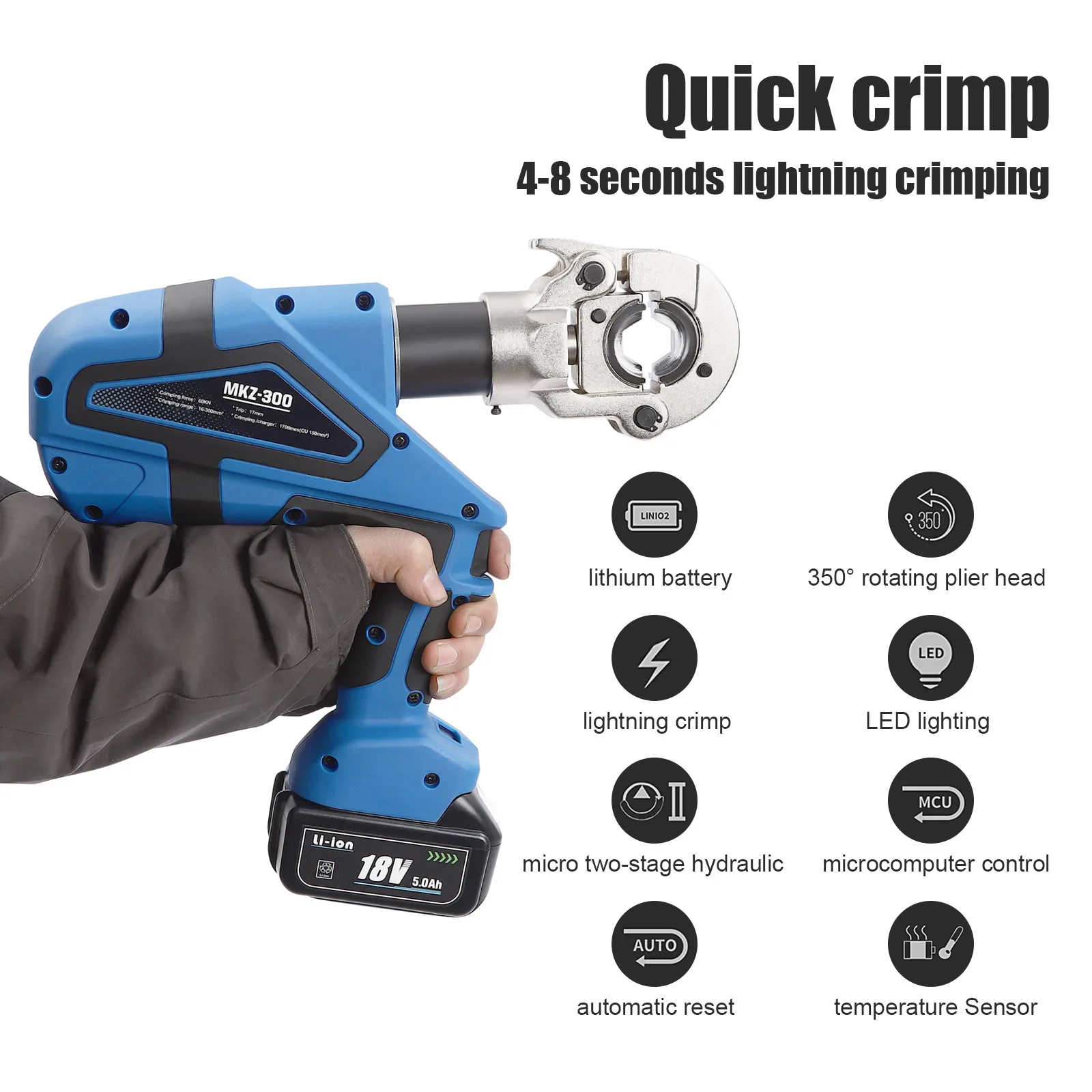

Efficient Crimping: With 60KN crimping force, precisely designed molds, miniature two-stage hydraulics, and microcomputer control, the product can precisely crimp the cable continuously at a speed of 3-5 seconds each time, saving you great effort and time.

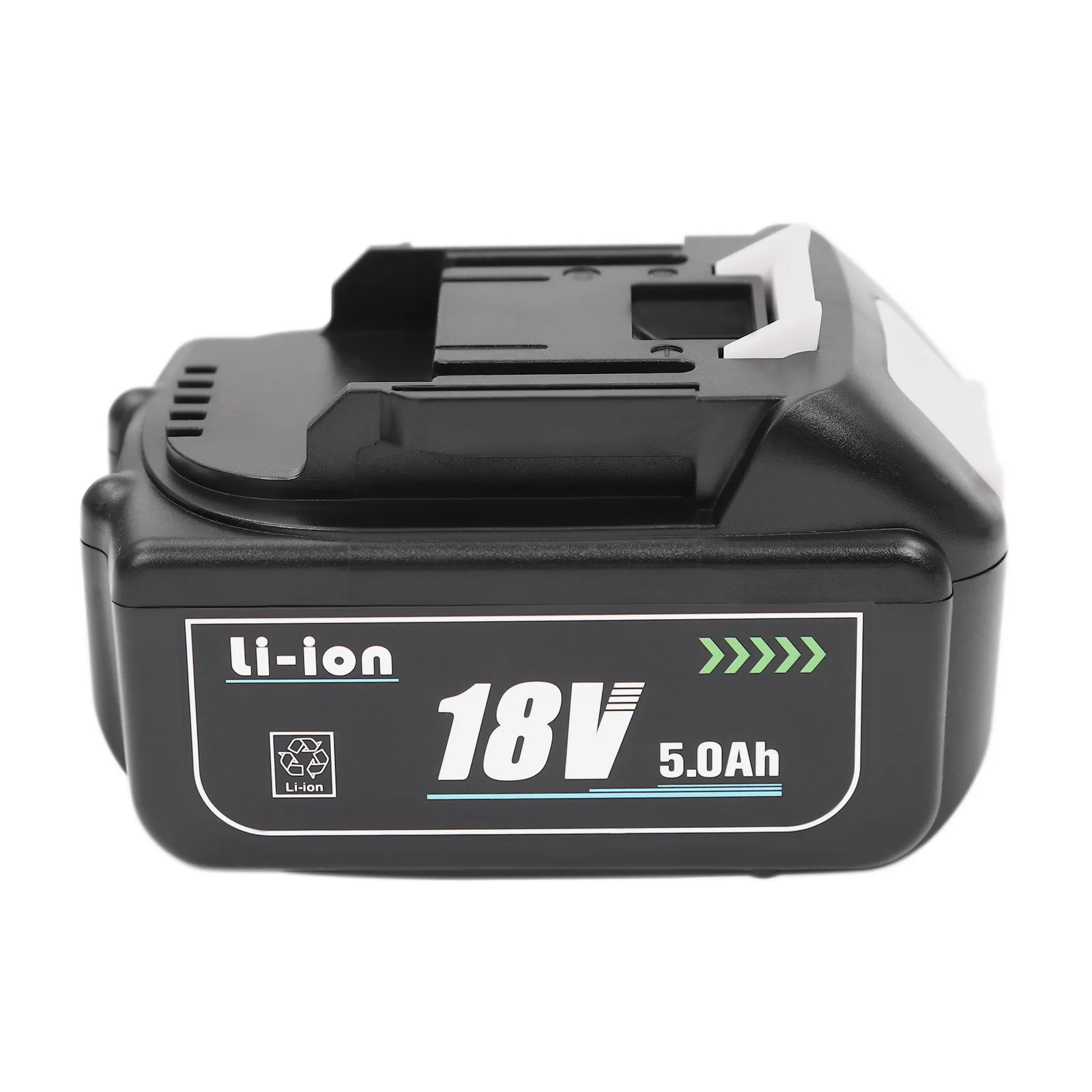

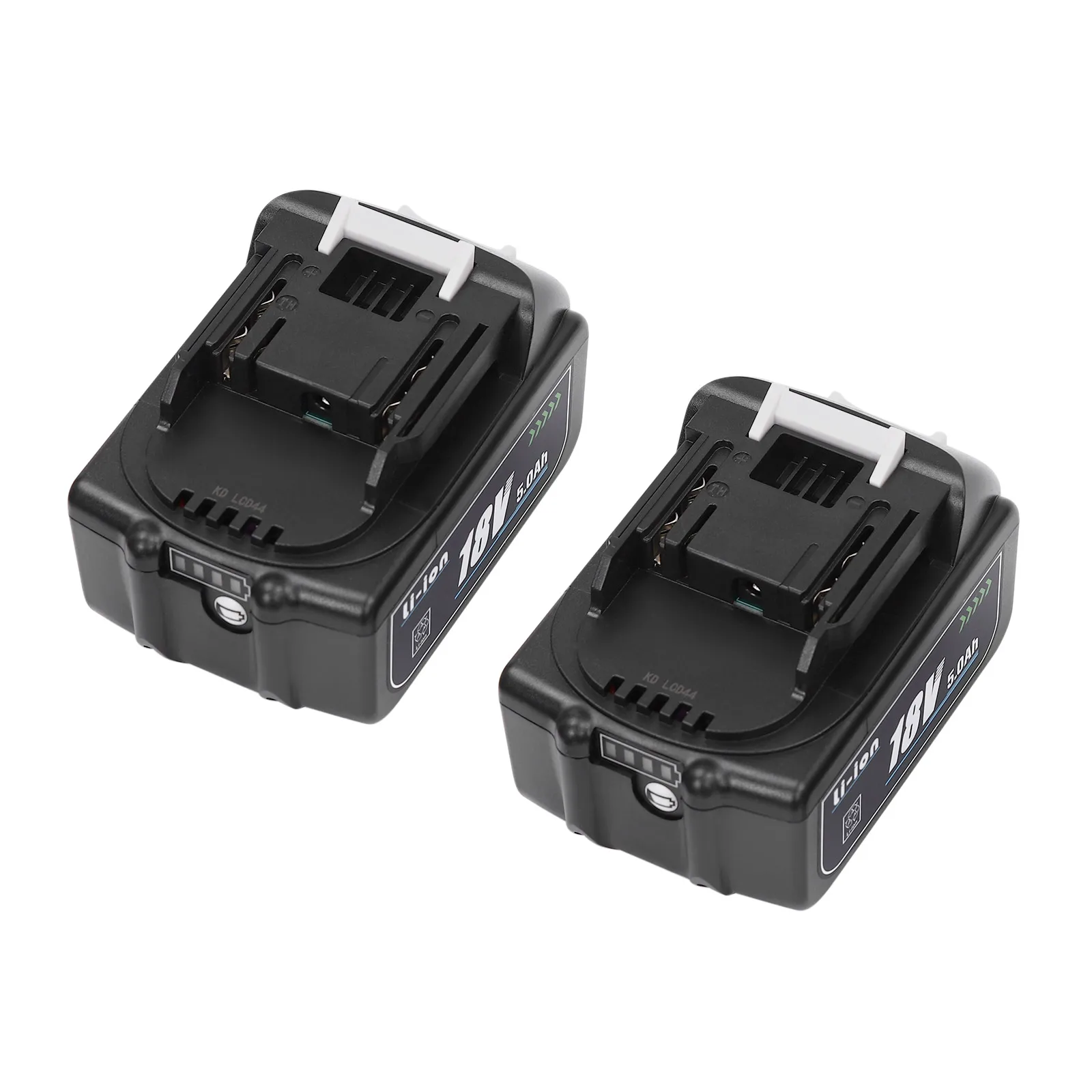

Large Battery Capacity: Two 18V 5Ah rechargeable batteries can provide a long duration time and each battery can crimp approximately 300 times after fully charged to meet your long-time working needs.

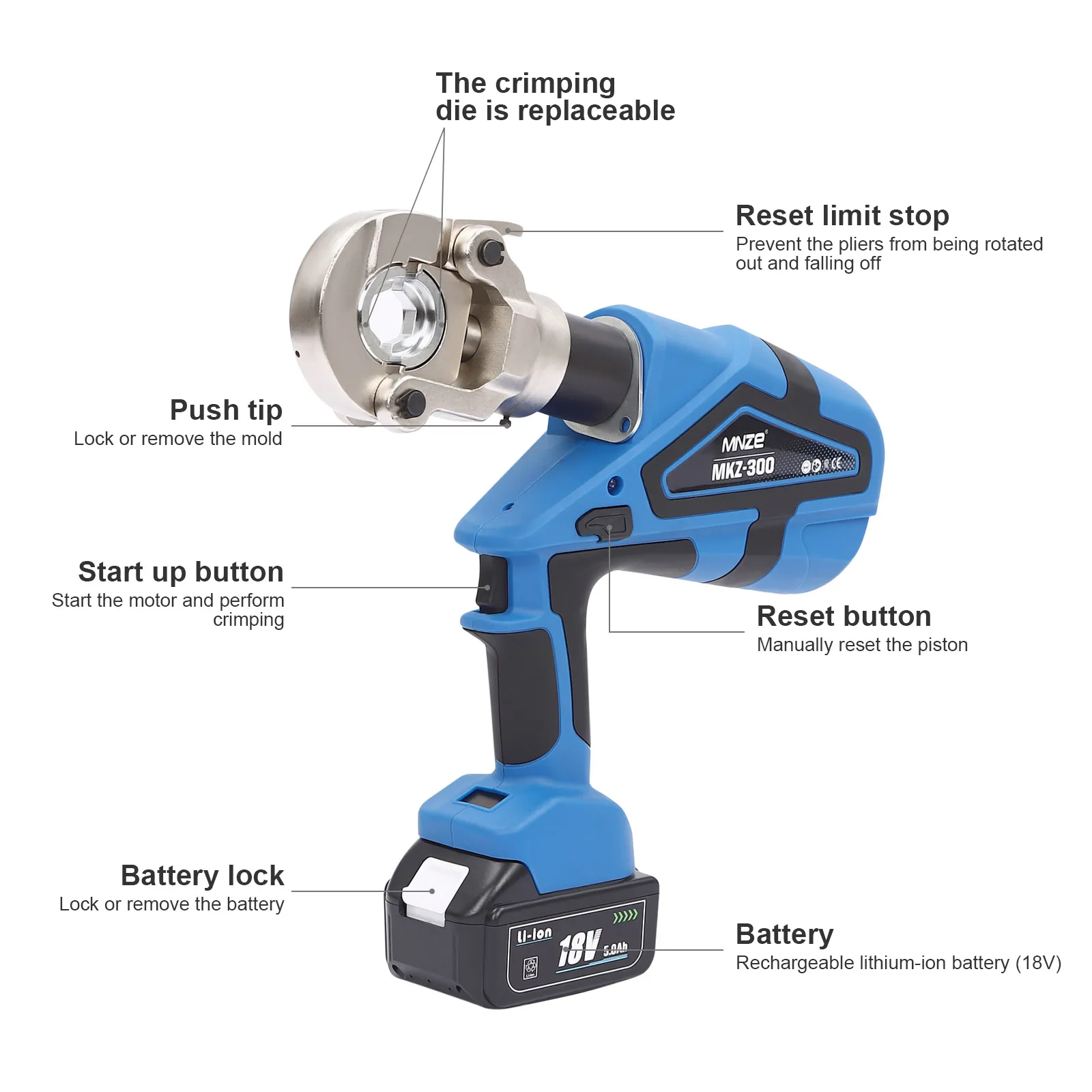

Simple Operation: You only need to change the corresponding mold, install the battery, and press the start button to crimp the cable, and as you loosen the trigger, the product stops, improving the safety of the operation.

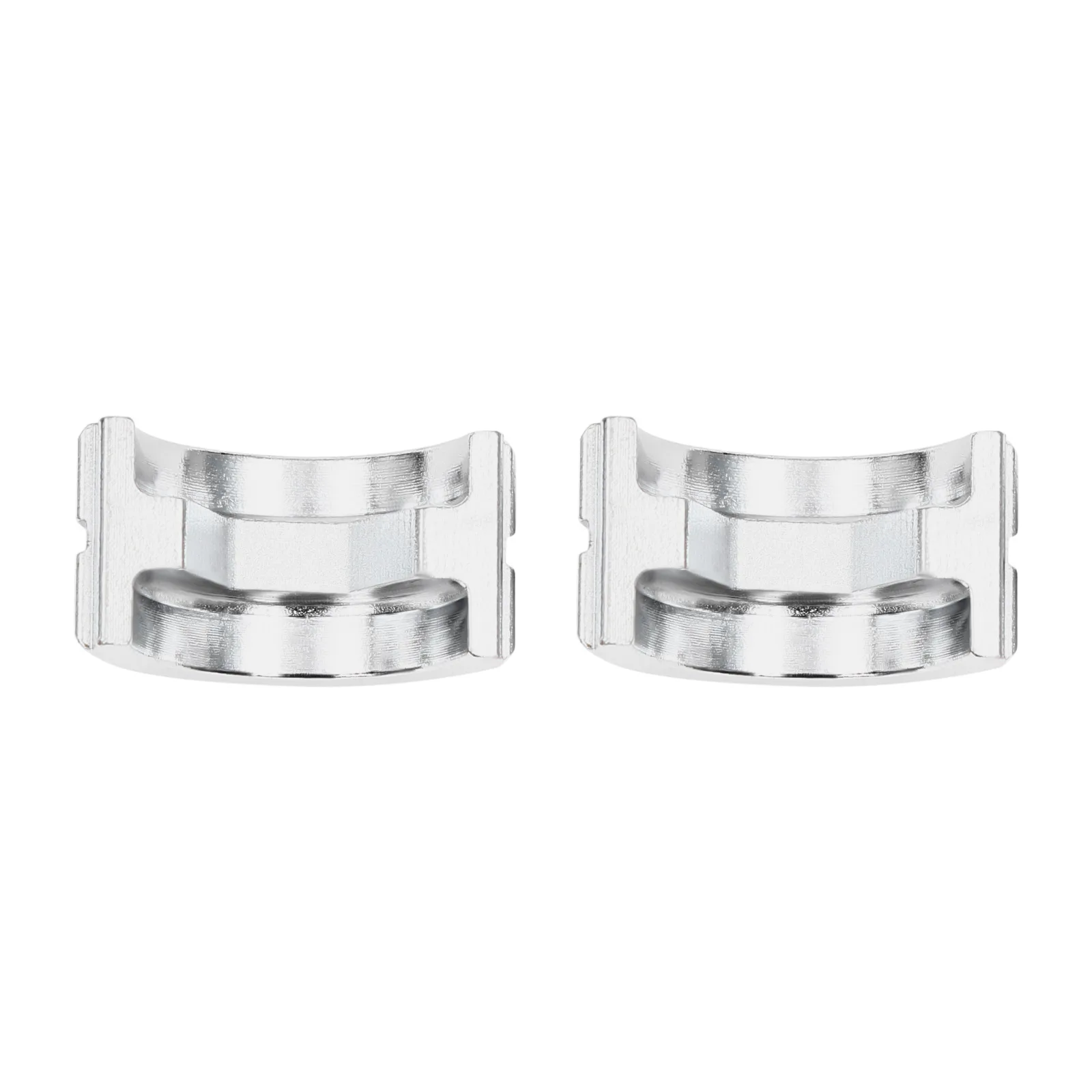

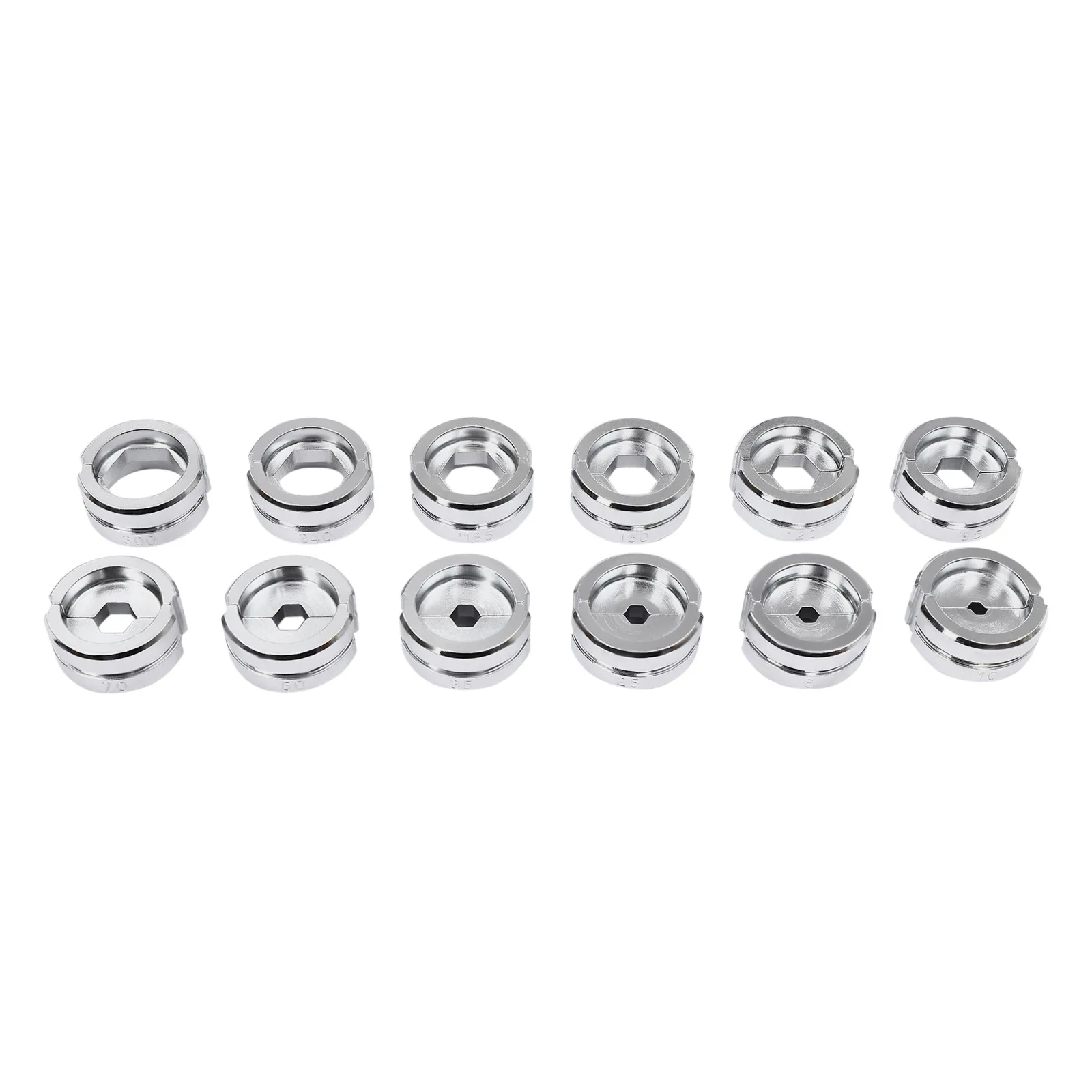

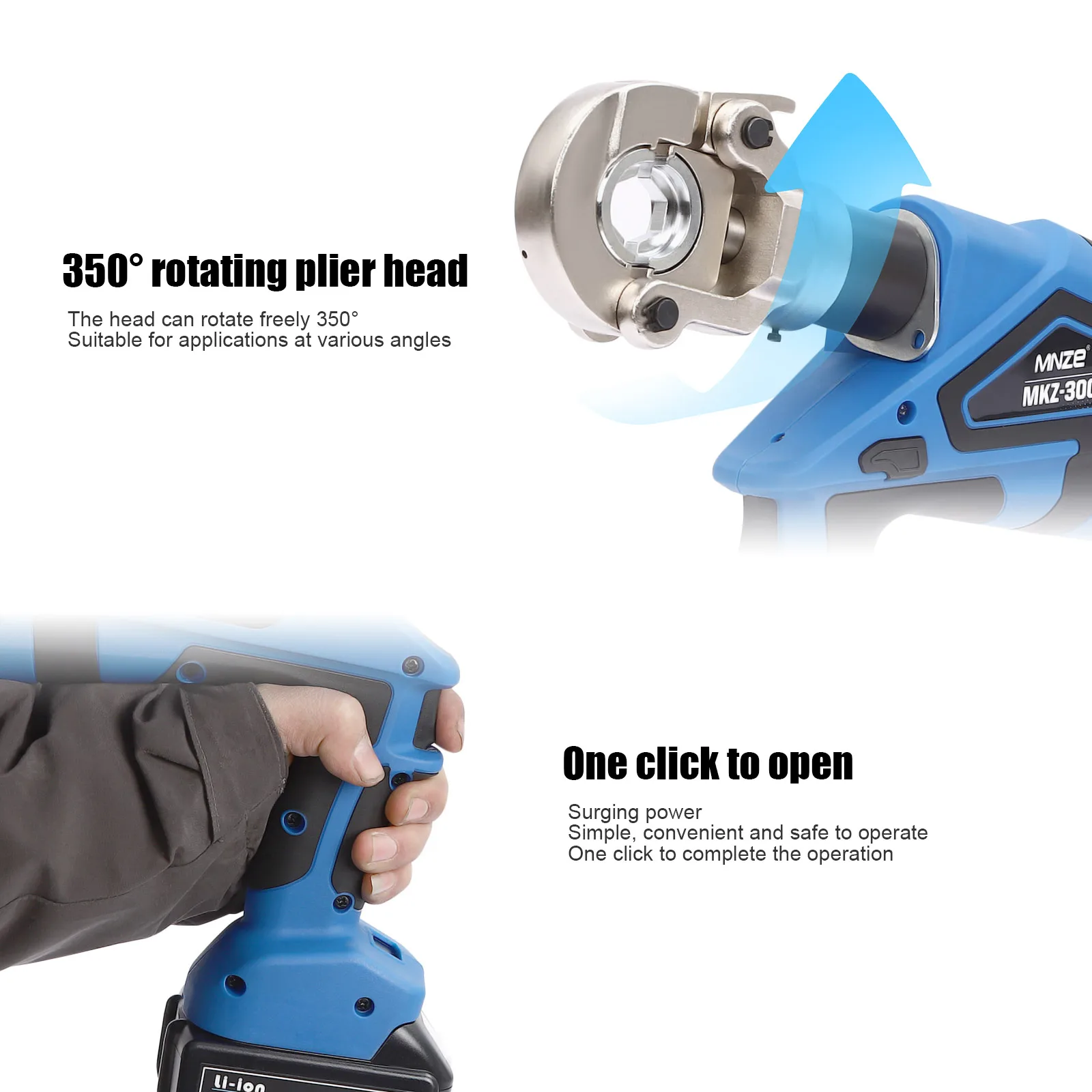

Wide Compatability: The 12 specifications of molds(10-300mm²) can meet your various demands of crimping different sizes of cables. The 350° rotatable head can be used for applications with different angles.

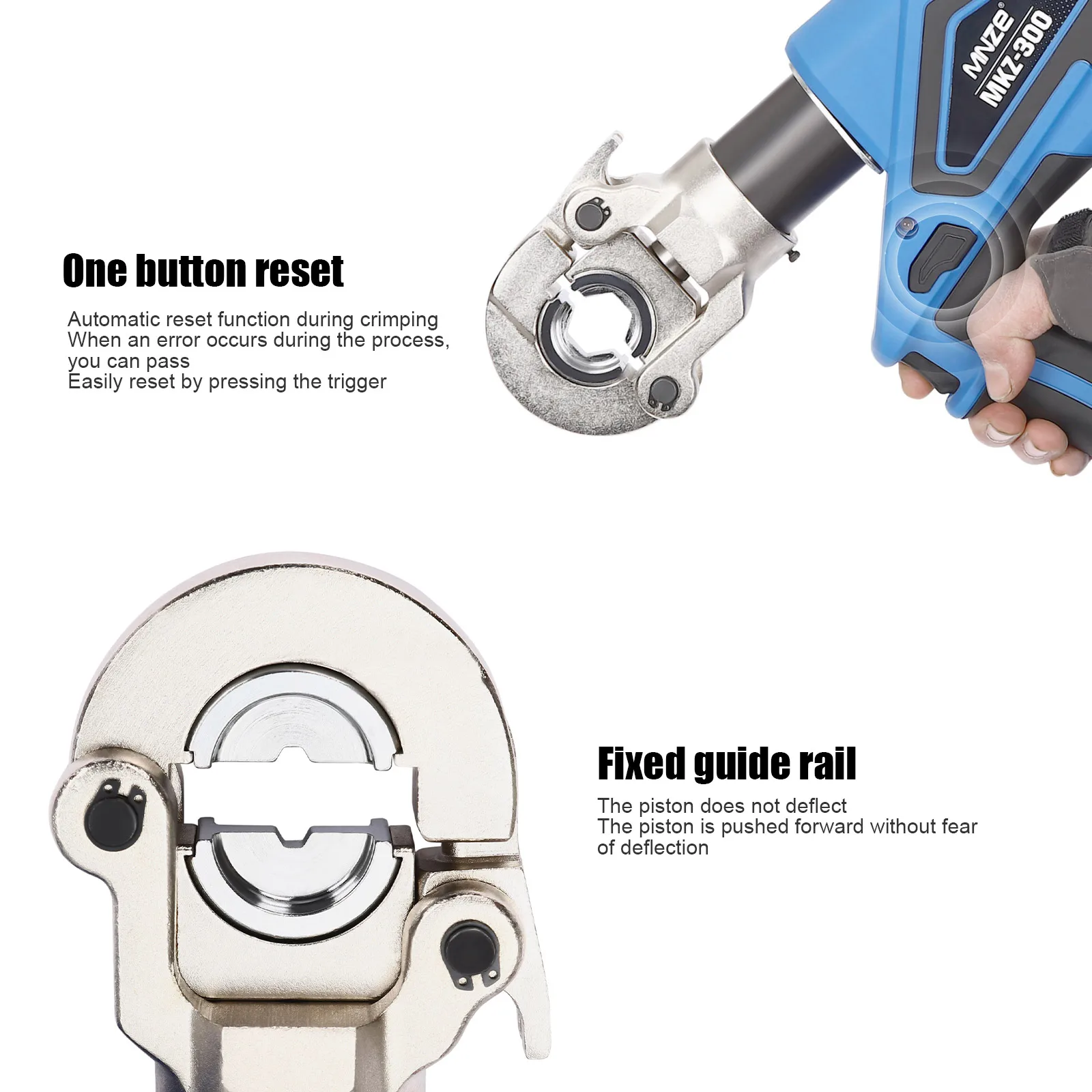

Safety Guaranteed: The automatic reset button allows you to easily reset the crimping process by pressing the button if something goes wrong. It also comes with temperature protection and overload protection, which will automatically cut the power off after triggering.
User-friendly Design: The battery lock allows you to install or remove the battery easily and quickly. The electric quantity display enables you to clearly see the remaining power and charge in time.

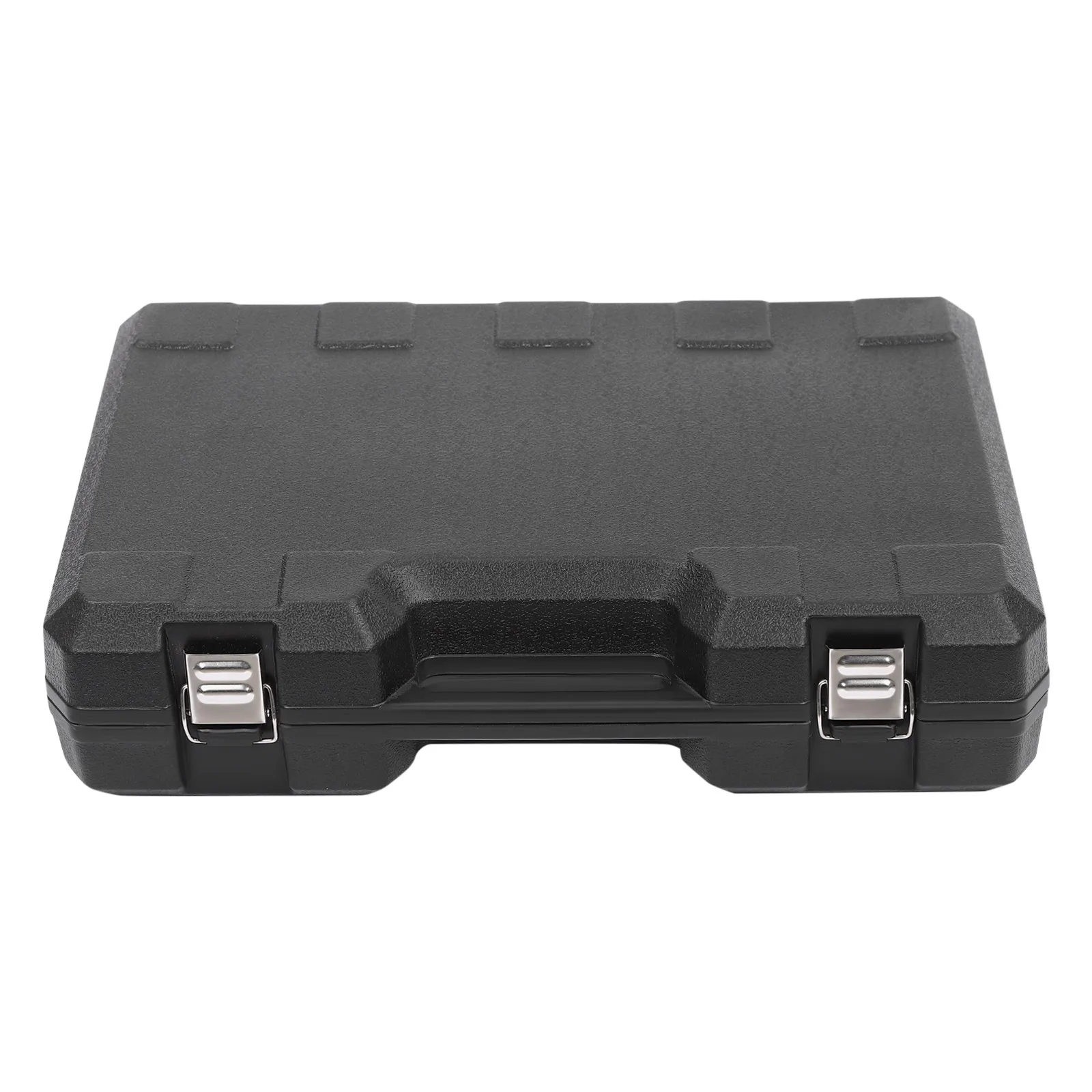

Easy to Carry: With a specifically designed carrying case and a shoulder strap, you can easily carry the product and its accessories to your workplace.
Details
Fixed Rail: The fixed guide rail keeps the piston from deflecting and ensures the quality of the crimp.
Digital Display: It can show you the details of the tool’s working status such as electric quantity, crimping times, voltage, and temperature.
LED Light: It can provide you the clear illumination while working, giving you a good view of your crimping job.
Ergonomic Grip: With the non-slip grip, you can hold the product for longer periods and work more easily.
Application
It comes with 12 molds(10-300mm²) that can crimp different sizes of copper and aluminum terminals and can be used in the electric power industry, telecommunication industry, construction industry, automobile manufacturing industry, and other fields.
Specifications
Color: Blue

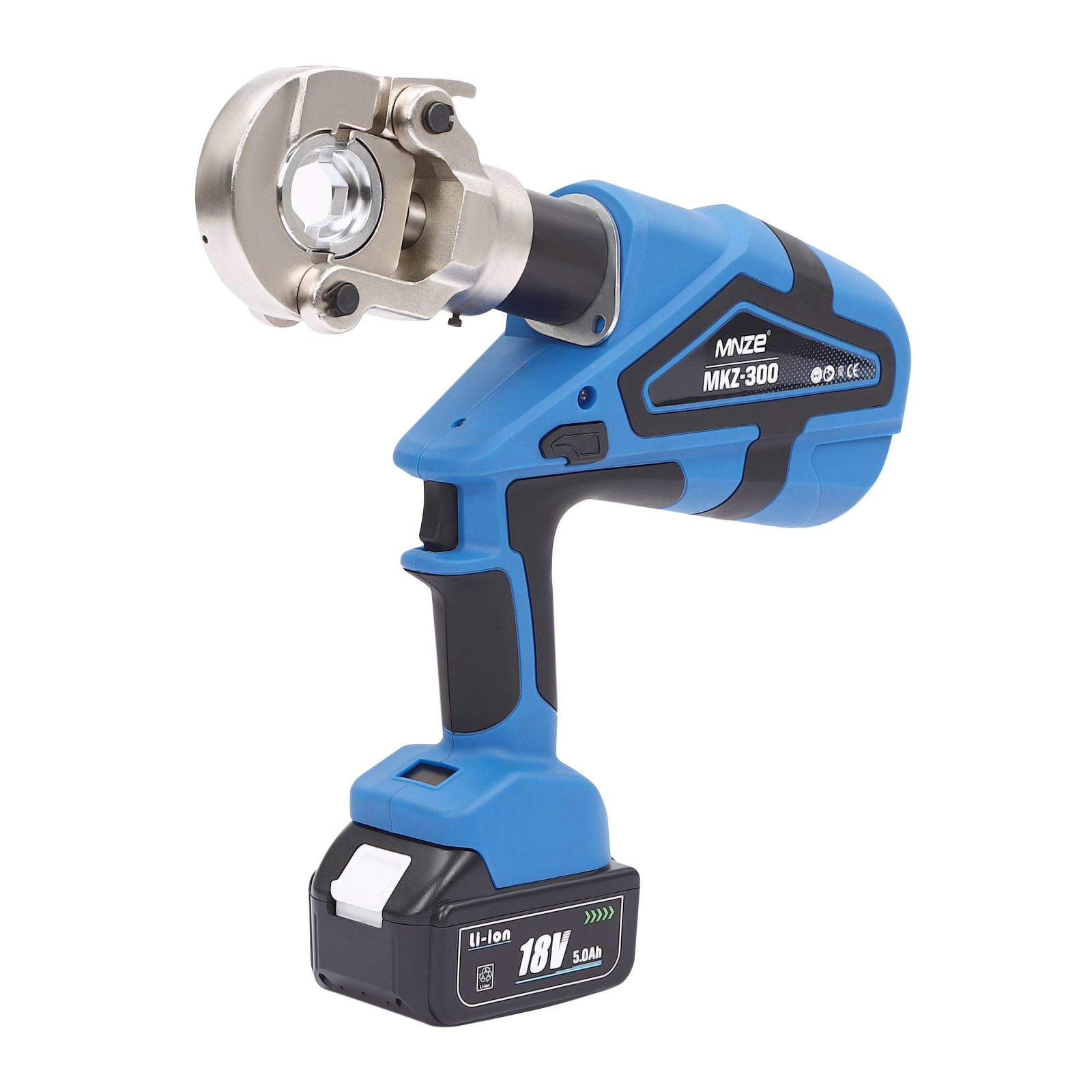

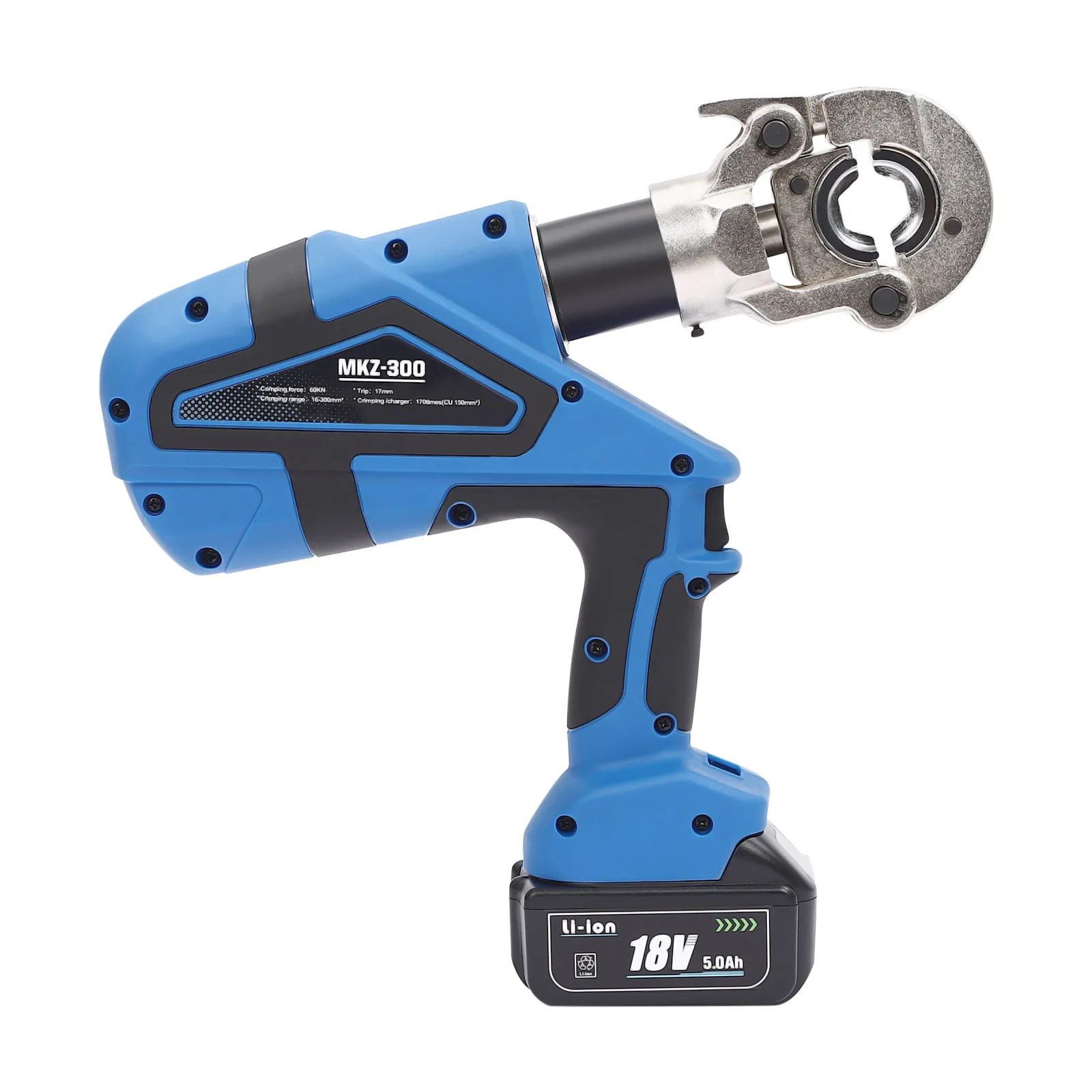

Model: MKZ-300
Material: 40Cr
Process: High Temperature Quenching, Blackening Process, Electrocautery Process
Assembly Required: Yes
Plug Standard: US Standard
Number of Molds: 12(10-300mm²)
Power: 600W
Battery Type: 2*18V 5.0A Lithium Batteries
Crimping Force: 60KN
Trip: 17mm/0.67inch
Crimping Range: 10-300mm²
Crimping Times(Fully Charged): About 300 Times
Crimping Speed: 3-5 Seconds Each Time
Charging Time: About 2 Hours

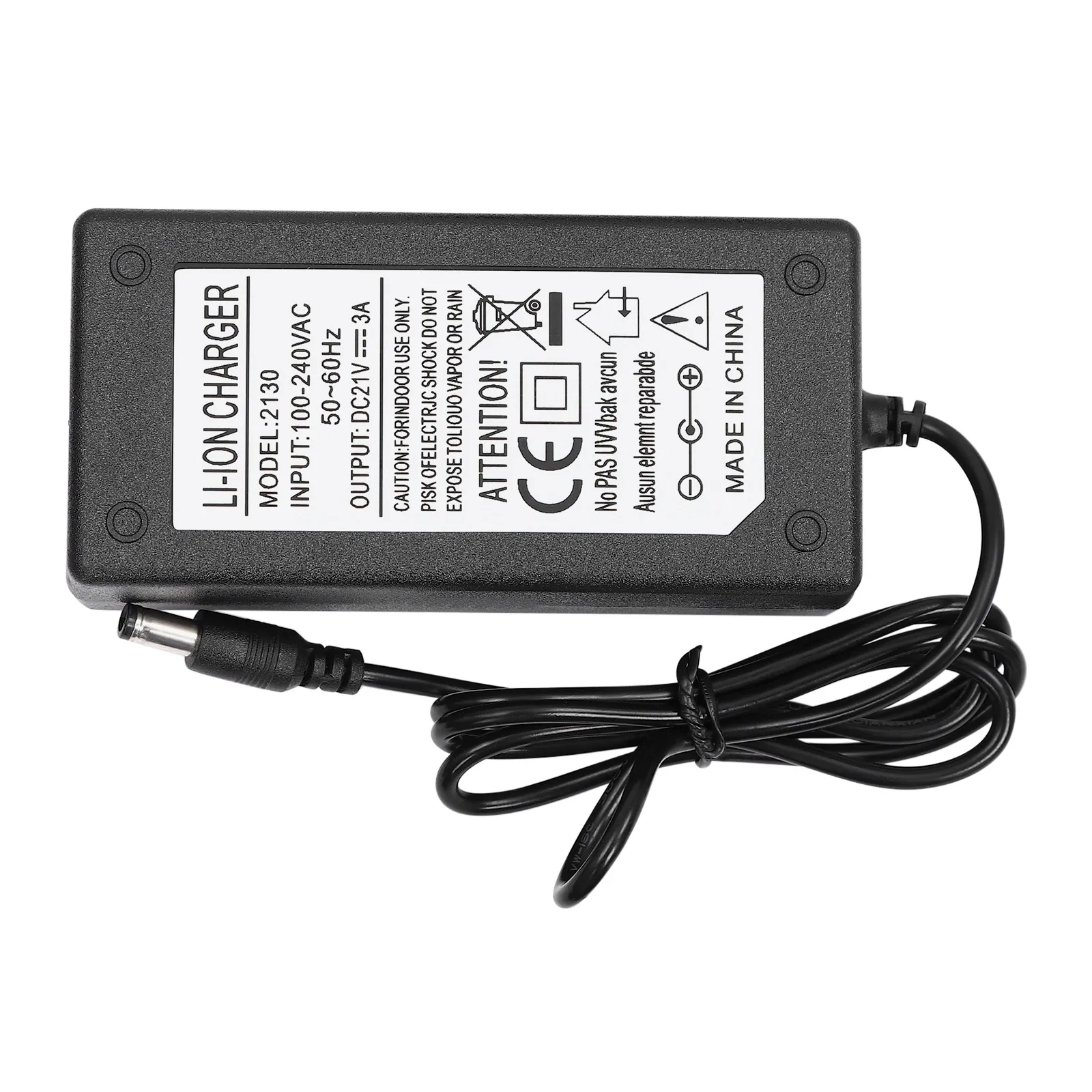

Adapter Input: 100-240V, 50-60Hz
Adapter Output: DC21V, 3A
Power Charging Cord Length: About 1m/3.28ft
Packaging Size: 57*46*13cm/22.44*18.11*5.12inch
Gross Weight: 10kg/22lbs

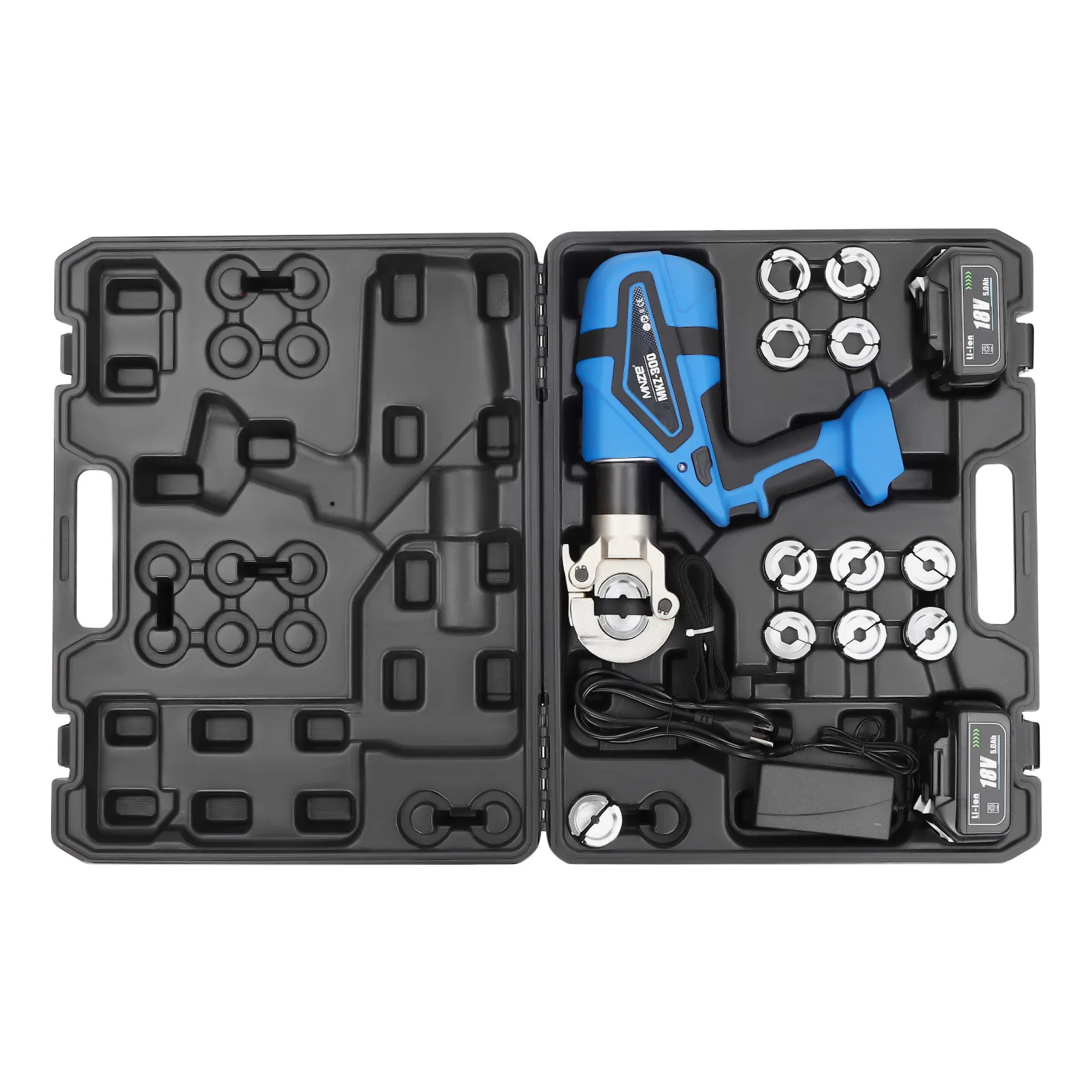

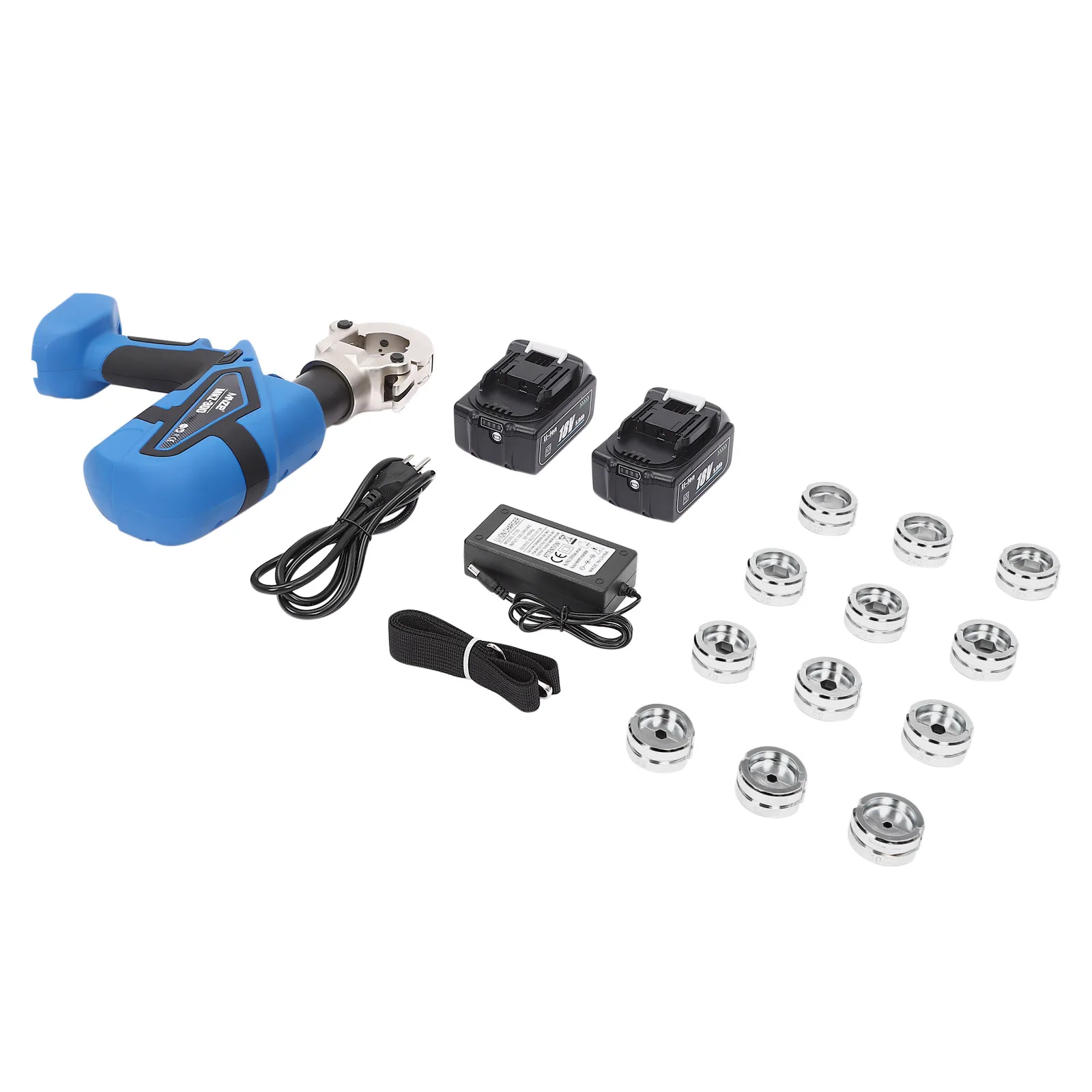

Package Included
1*Electro-Hydraulic Crimping Tool
2*Batteries

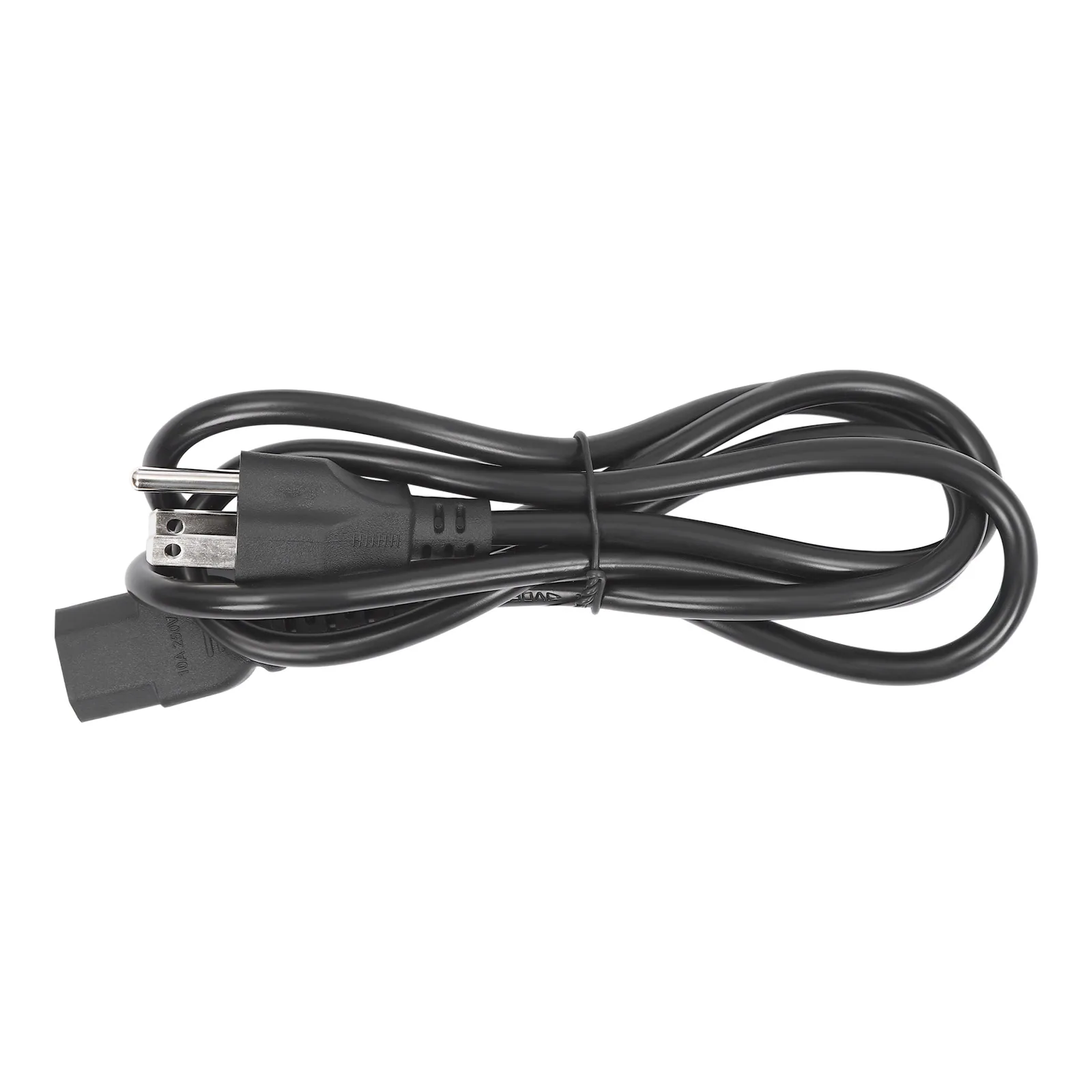

1*Power Cord
1*Adapter
1*Shoulder Strap
1*Tool Box
12*Molds
Notes
1. Please check the size carefully before ordering.
2. In actual use, we do not recommend doing the crimp test without crimping anything (such as terminals) in the crimping head, and if such a test is required, please do not do it without molds installed.
3. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
