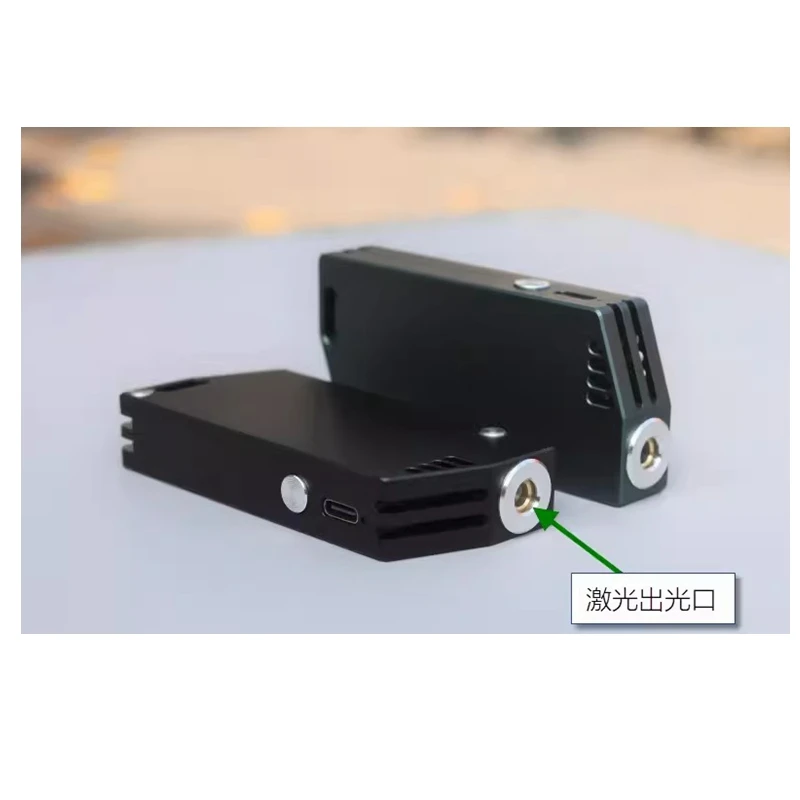

593nm Yellow/555nm Yellow Green Light Laser Indicator Module
Parameters:
1.The shell is made of 6061 aviation aluminum, with CNC turning and milling processing technology, and adopts three-level hard oxygen treatment;
2.Built in rechargeable polymer lithium battery, TYPE-C direct charging, convenient and practical;
3.Tap the button to start, long press to infinitely adjust power;
4.Original appearance design, mini and portable, smaller than a cigarette box. Specification
5.External dimensions: 85 * * 37 * 15.5mm Shell material: 6061 aviation aluminum
6.Surface treatment: Two colors of oxidized black/military green on the surface
7.Output wavelength: 593/555nm
8. gear settings: lightly touch to light up, long press to dimming infinitely
9.Switch mode: light touch self-locking
10.safety level: Class 3B
11.Circuit control: 5V boost or 5V boost, according to the laser diode equipped with corresponding
12.Driving circuit efficiency: voltage boost conversion efficiency above 93%
13.Spot form: point shaped
14.Beam style: continuous linear
15.Spot size: about 5M<8-12mm
16. Focusing method: fixed focus
17.Focusing method: non adjustable
18.Waterproof level: non waterproof
19.Working current: 3.7V @ 100-380mA
20.Battery type: built-in polymer rechargeable cell
21.Battery direction: built-in battery, anti reverse insertion port
22.Battery capacity: 1000mAh
23.Working voltage: DC=3.7V
24.Starting voltage: DC=2.5V
25.Preheating time: 593nm Yellow light needs to be preheated below 25 degrees Celsius, and other wavelengths do not require preheating.
26.Working temperature: -10 ℃~+60 ℃
27.Storage temperature: -10 ℃~+40 ℃
28.Packaging method: black or gold metal box.
29.Net weight of the product: 85-90g (this weight is per laser)
30.Product gross weight: 120-125g (this weight includes the packaging metal box)
31.Charging method: TYPE-C direct charging
Package:
1pc 593nm/555nm laser indicator module (Battery not included for easy custom clearance)
