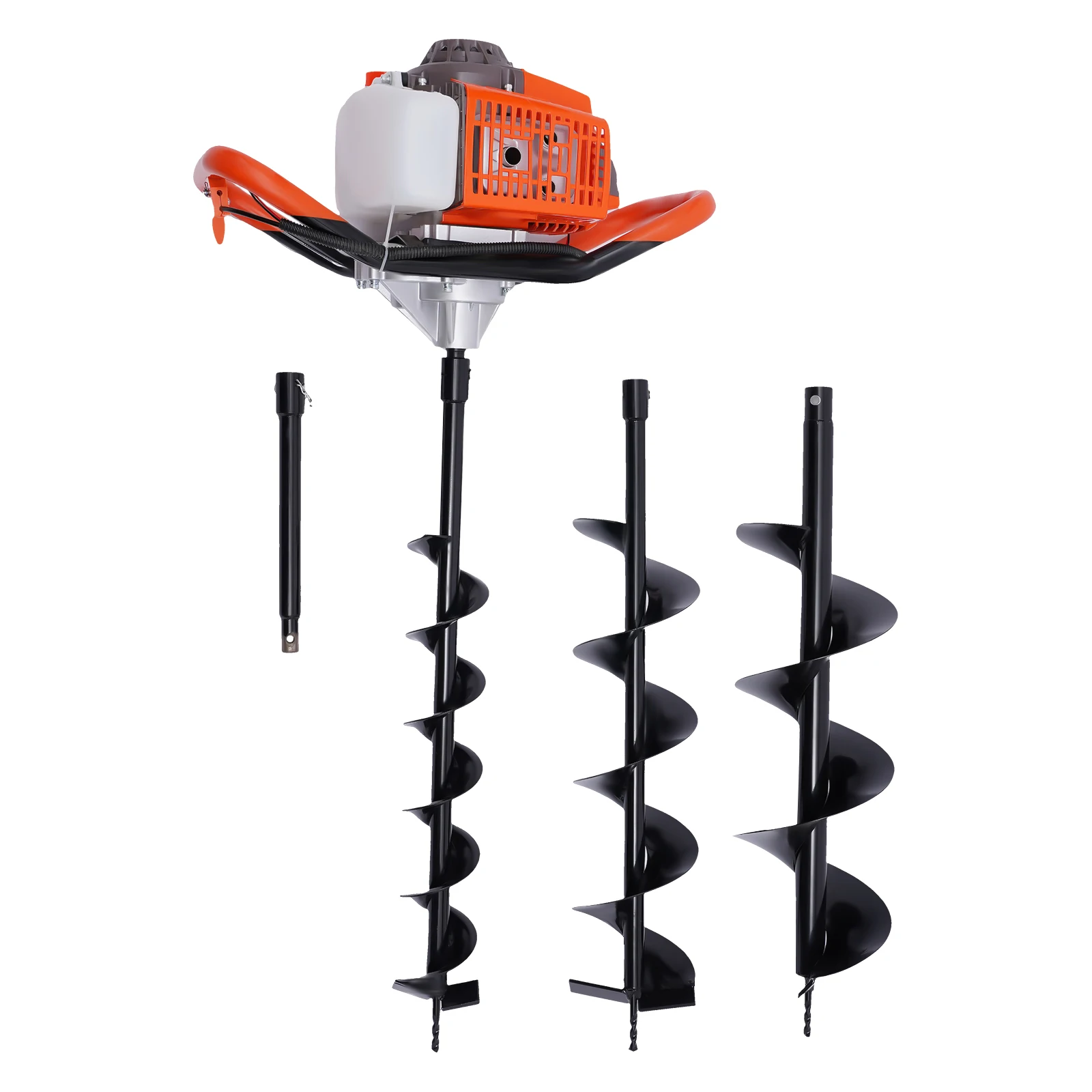

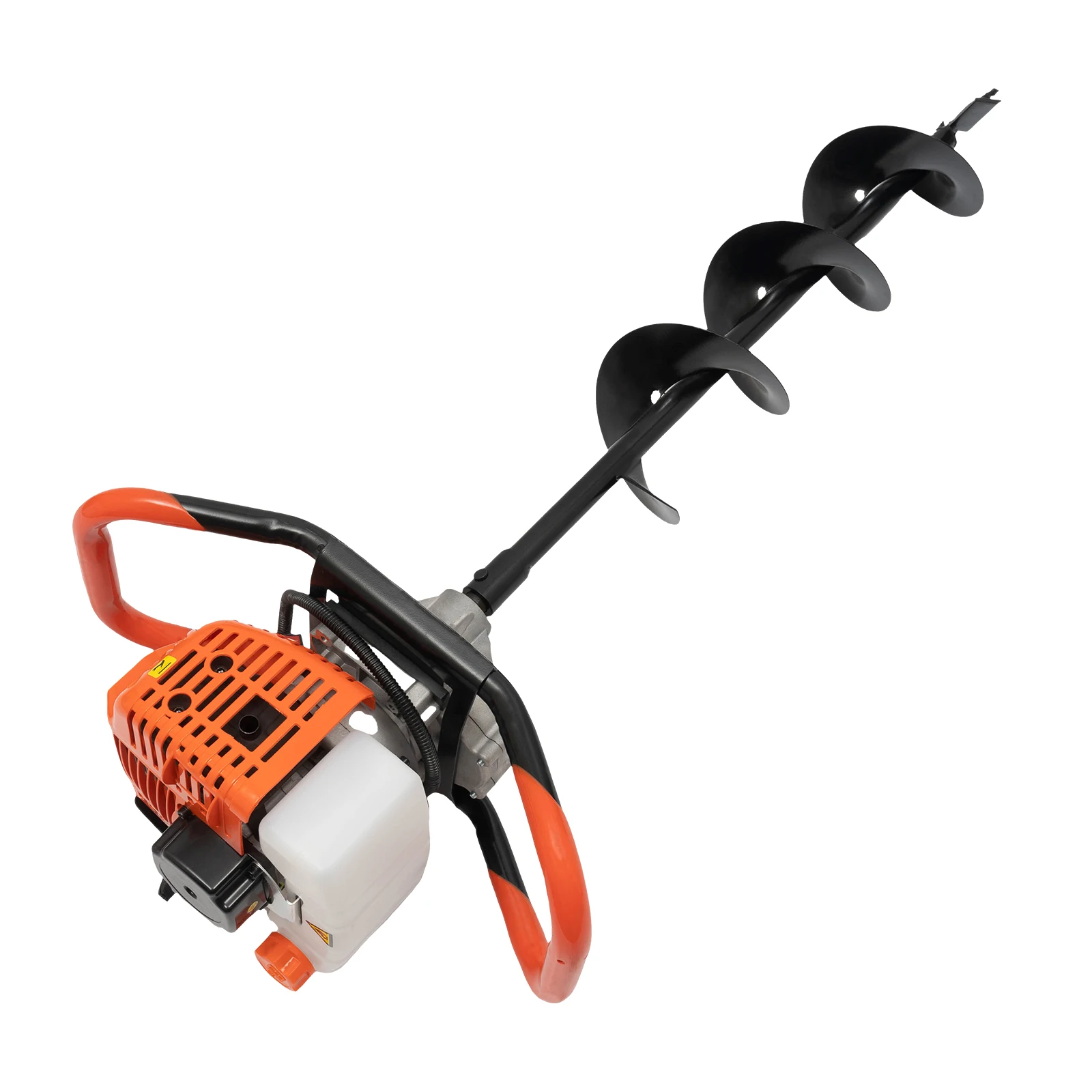

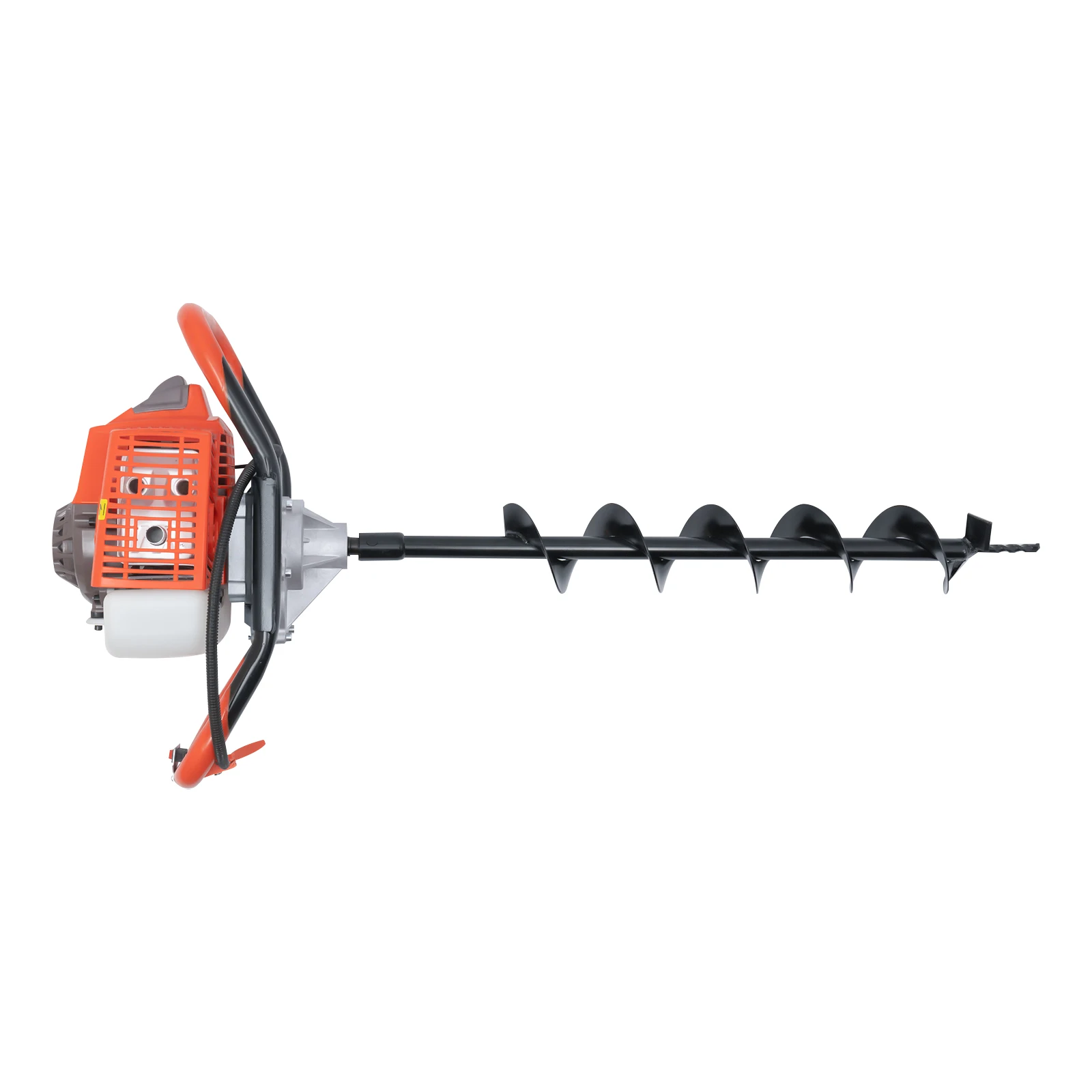

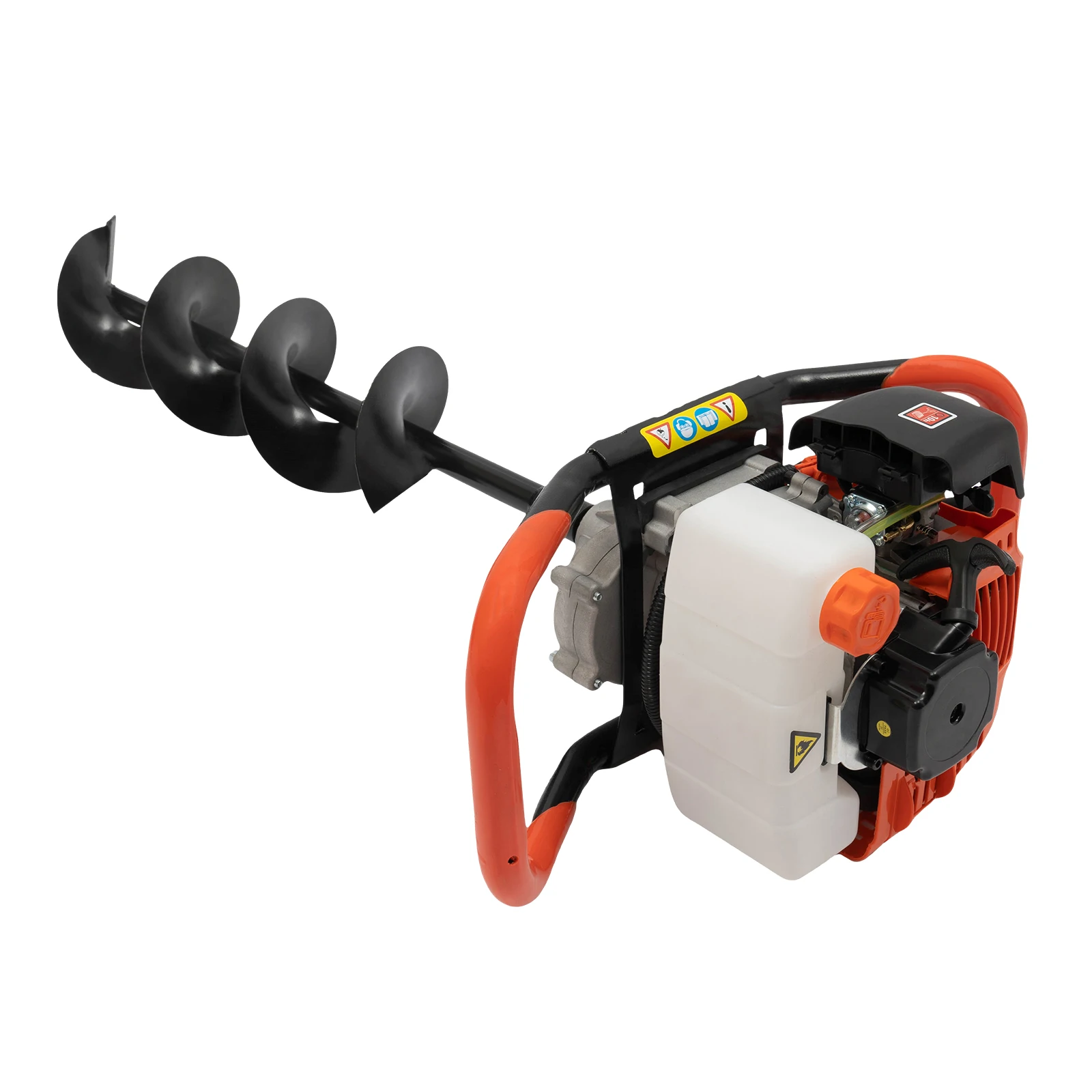

52cc/71cc 2-stroke Earth Auger Gasoline Powered Hole Digging Machine 2.3HP with 3pcs 4″ 6″ and 8″ Drill Bits Extension Bar

Wram tip:

The product link contains multiple products. Before placing an order, please carefully check the color options: “52cc” and “71cc”. Please make the purchase according to your own needs. If you have any questions, please contact us directly in the chat box.

Description

The traditional way of digging a hole with a hoe is time-consuming, labor-intensive, and prone to backache at the end of the process. Advancement in technology has brought about labor-saving and professional digging equipment that is ready to liberate you from the hassle of manual digging. Equipped with a powerful fuel engine, this auger post hole digger digs more efficiently than manual trenching, saving valuable time and making digging a pleasure.

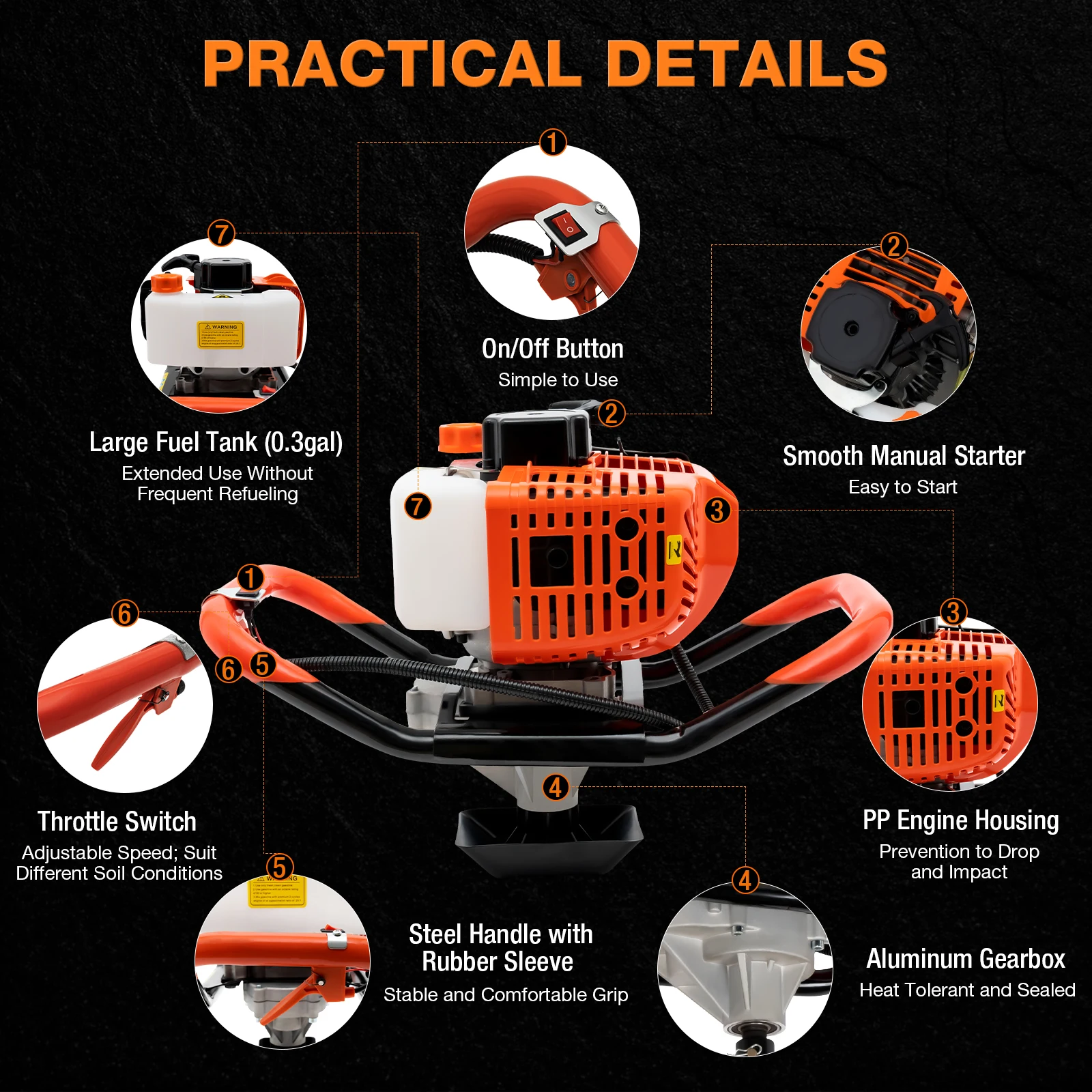

Details

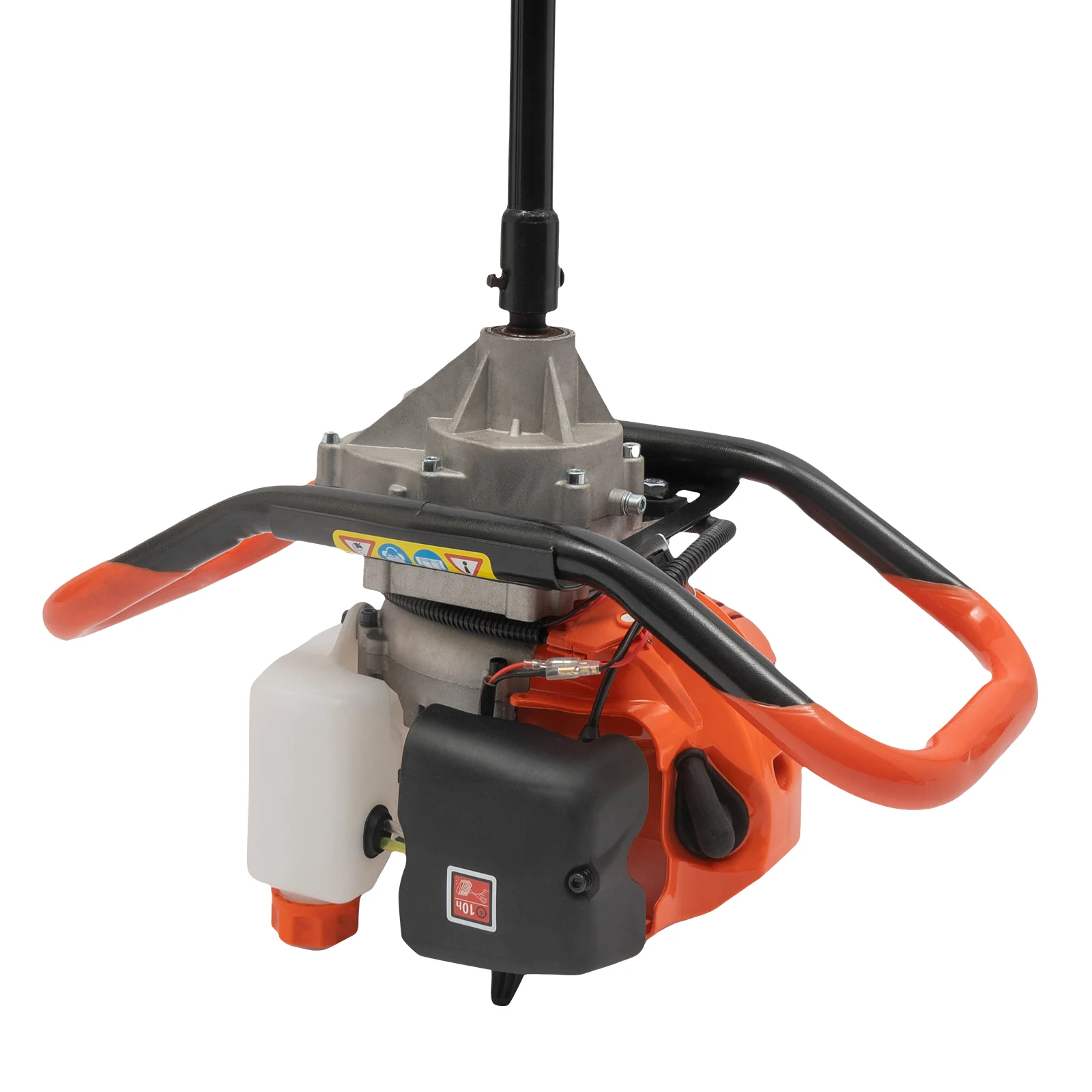

Precision Gearbox: It greatly improves torque force and wear resistance, giving it strong hole-digging ability and durability.

Output Shaft: The 0.8*2inch output shaft is suitable for many sizes of drills for greater versatility and easier replacement.

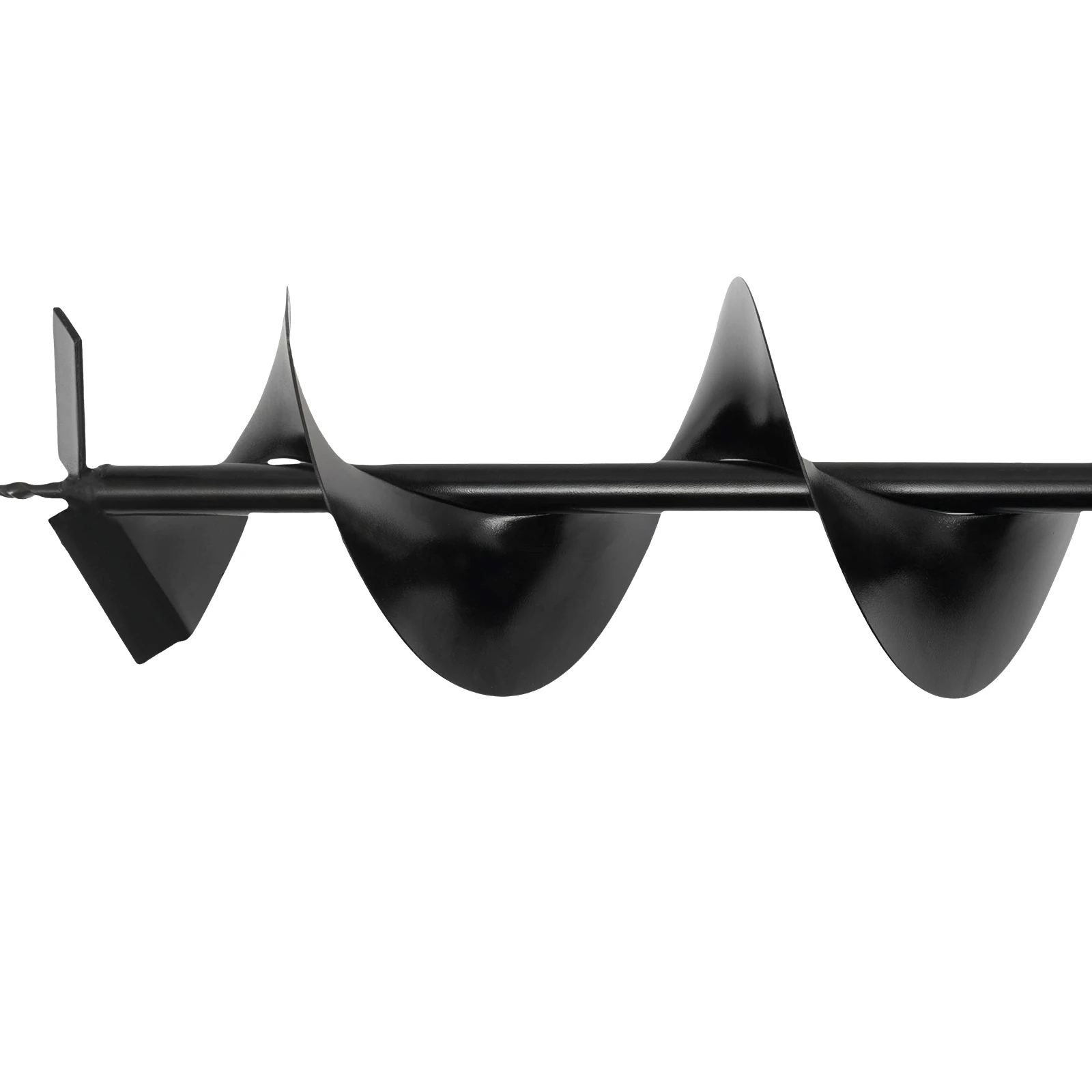

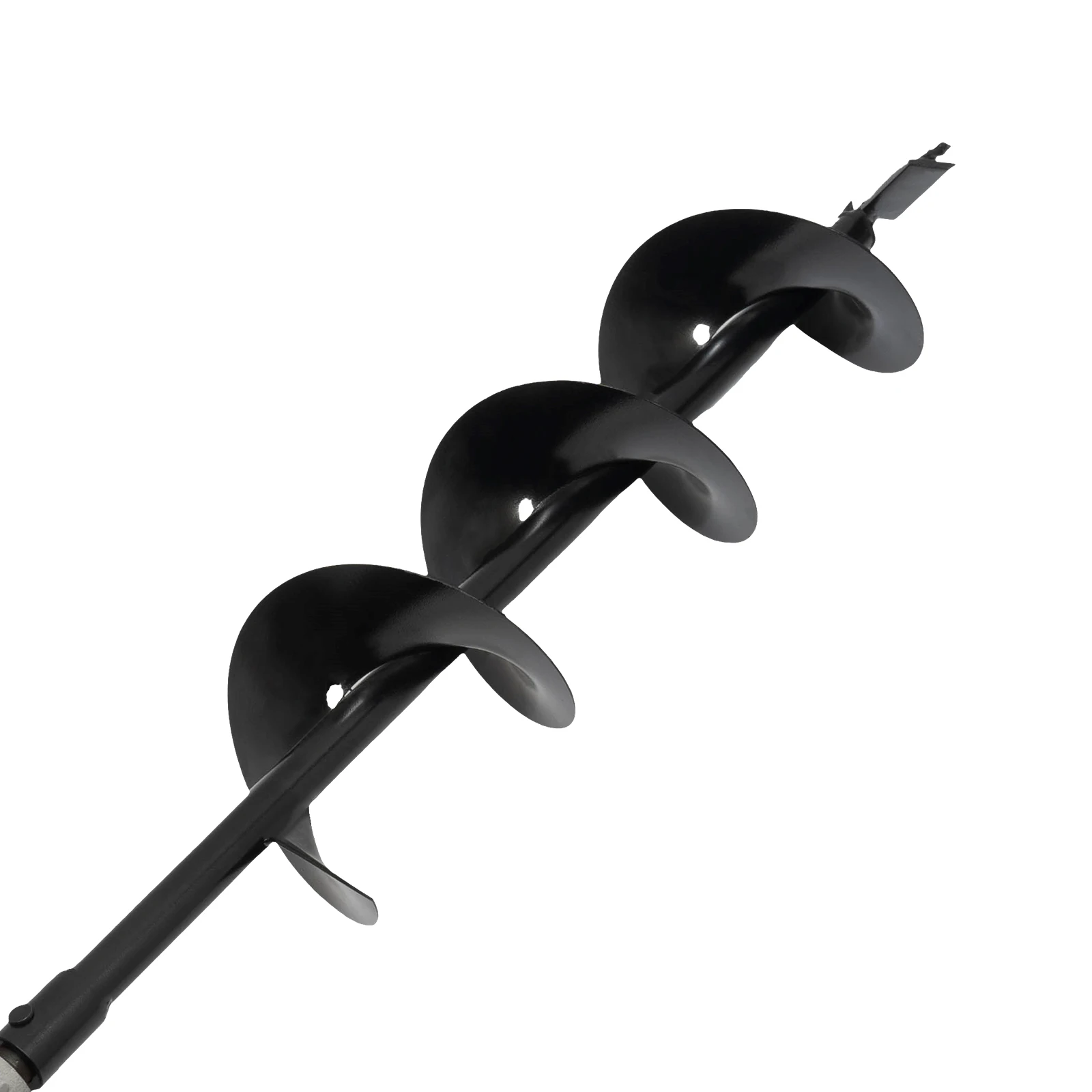

Single Leaf Drill: One-piece single leaf drills are lighter in weight, faster and more durable than double leaf drills.

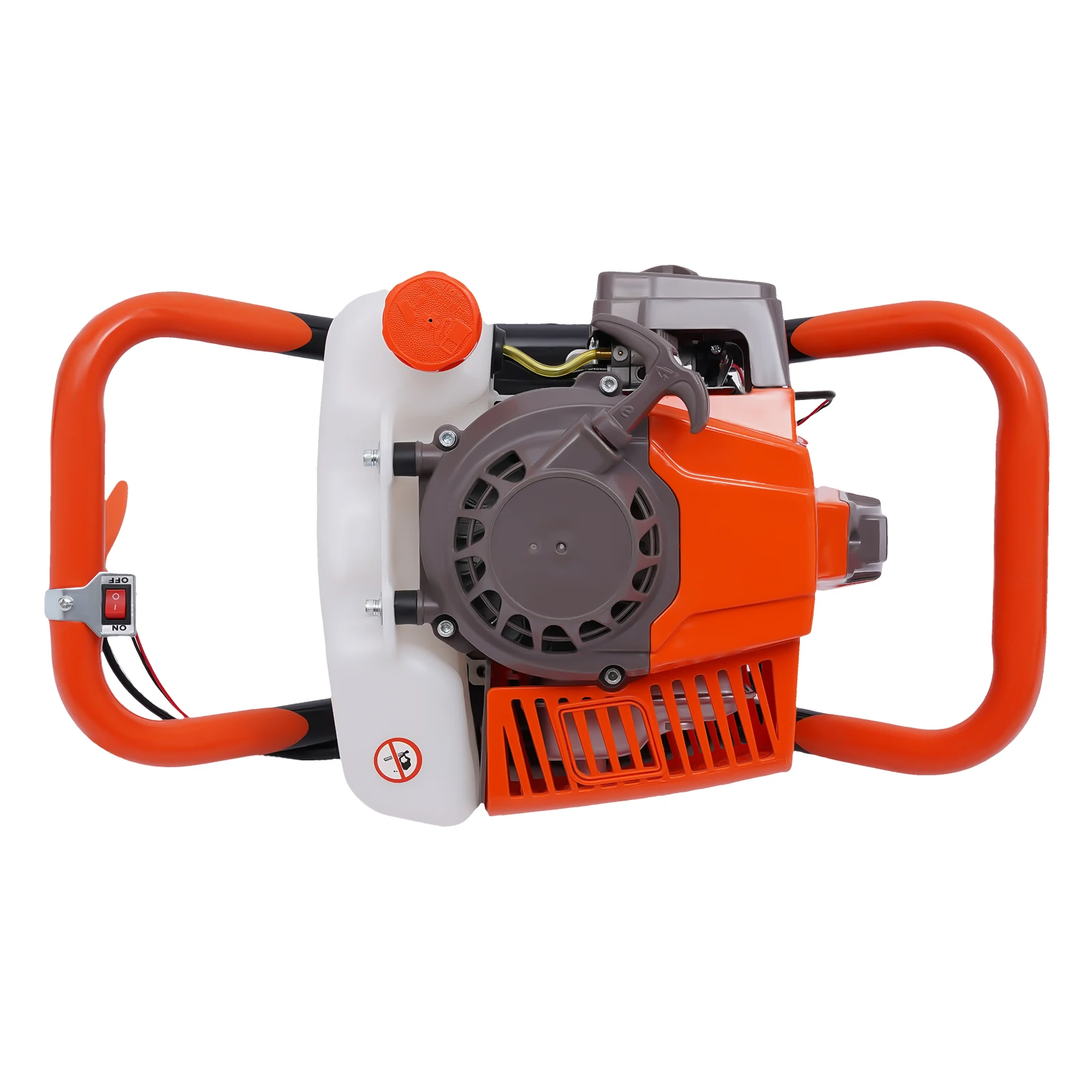

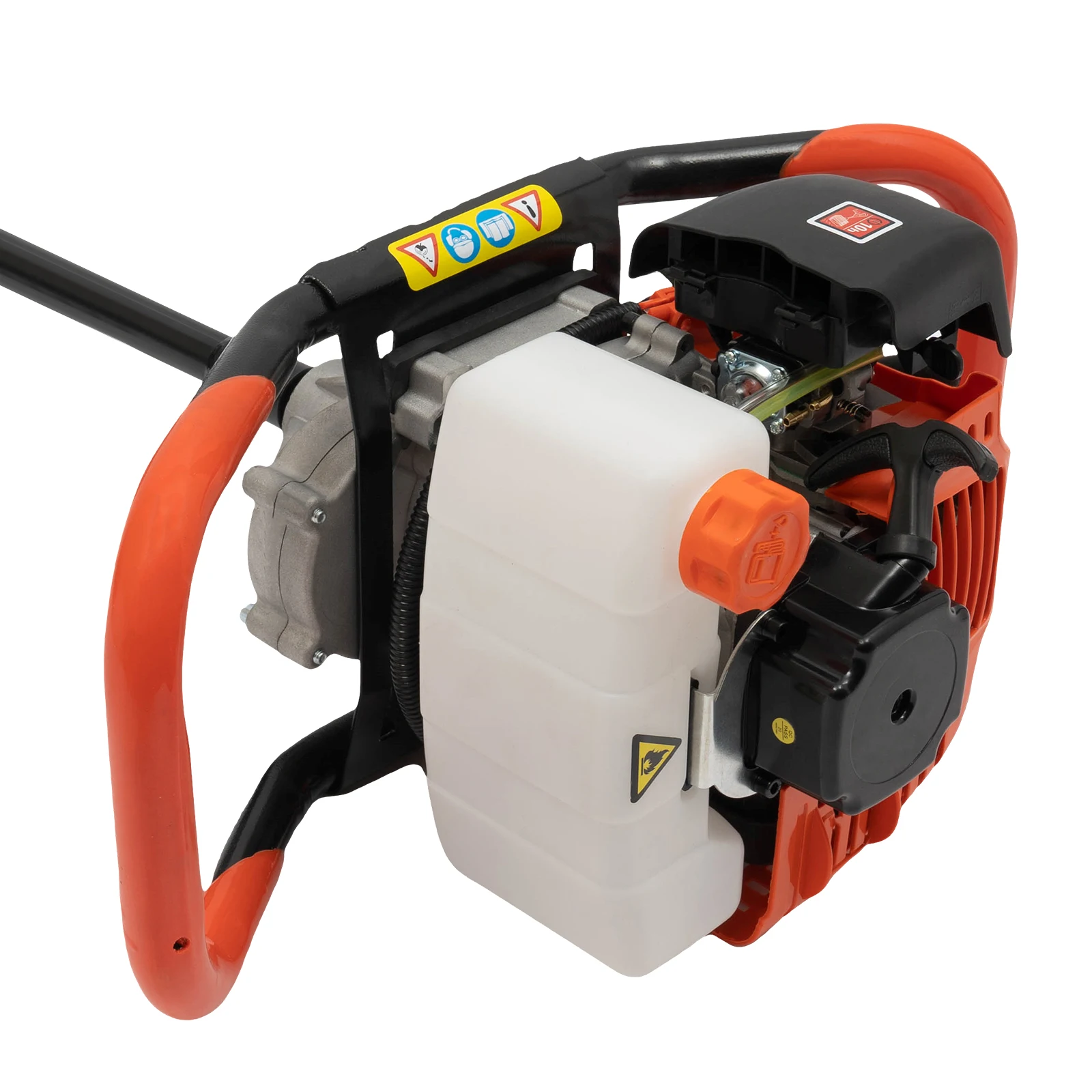

Fuel Tank: The large fuel tank, which holds 0.3 gallons of fuel, provides great convenience for extended use without frequent refueling. The translucent design allows you to keep track of the remaining amount in order to replenish in time.

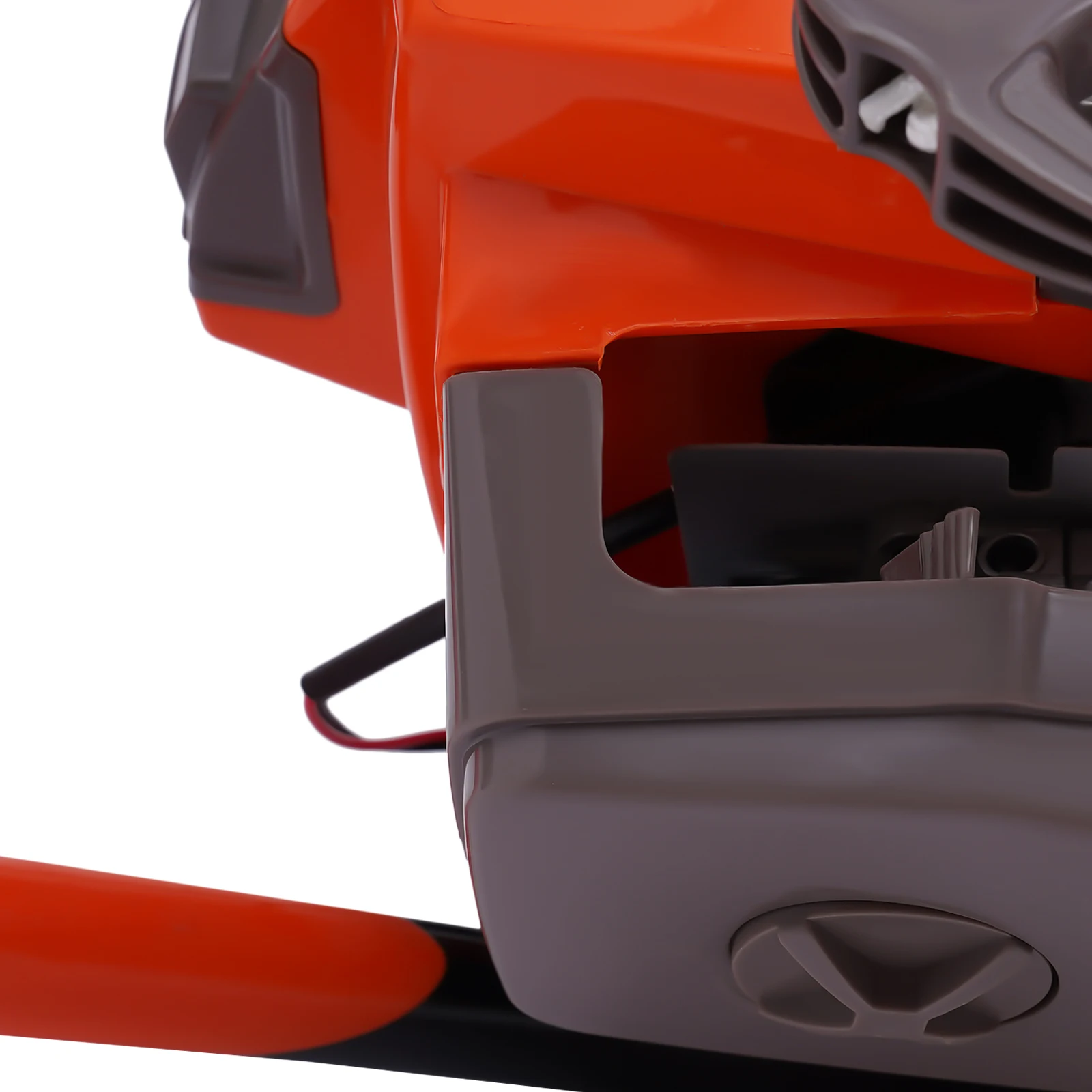

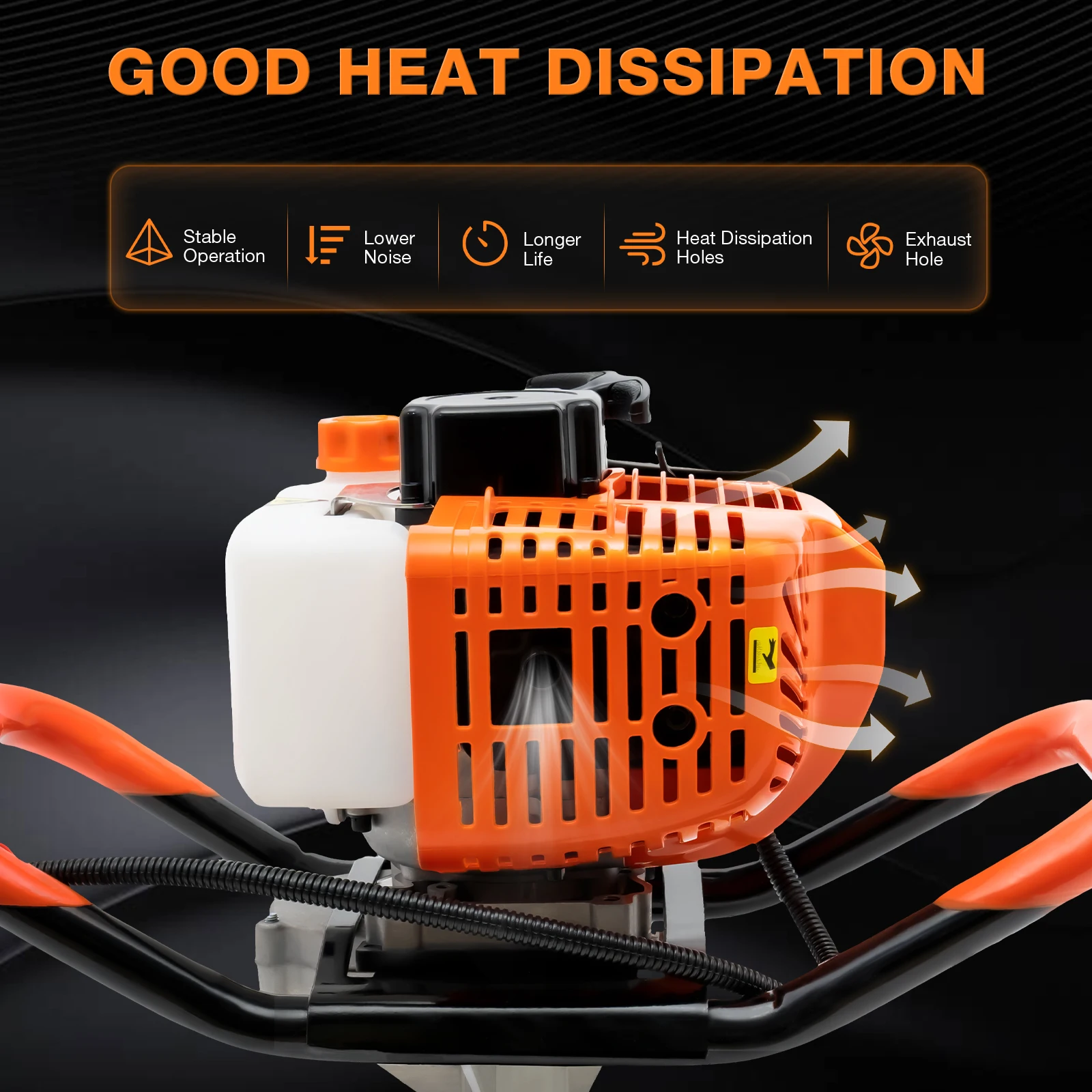

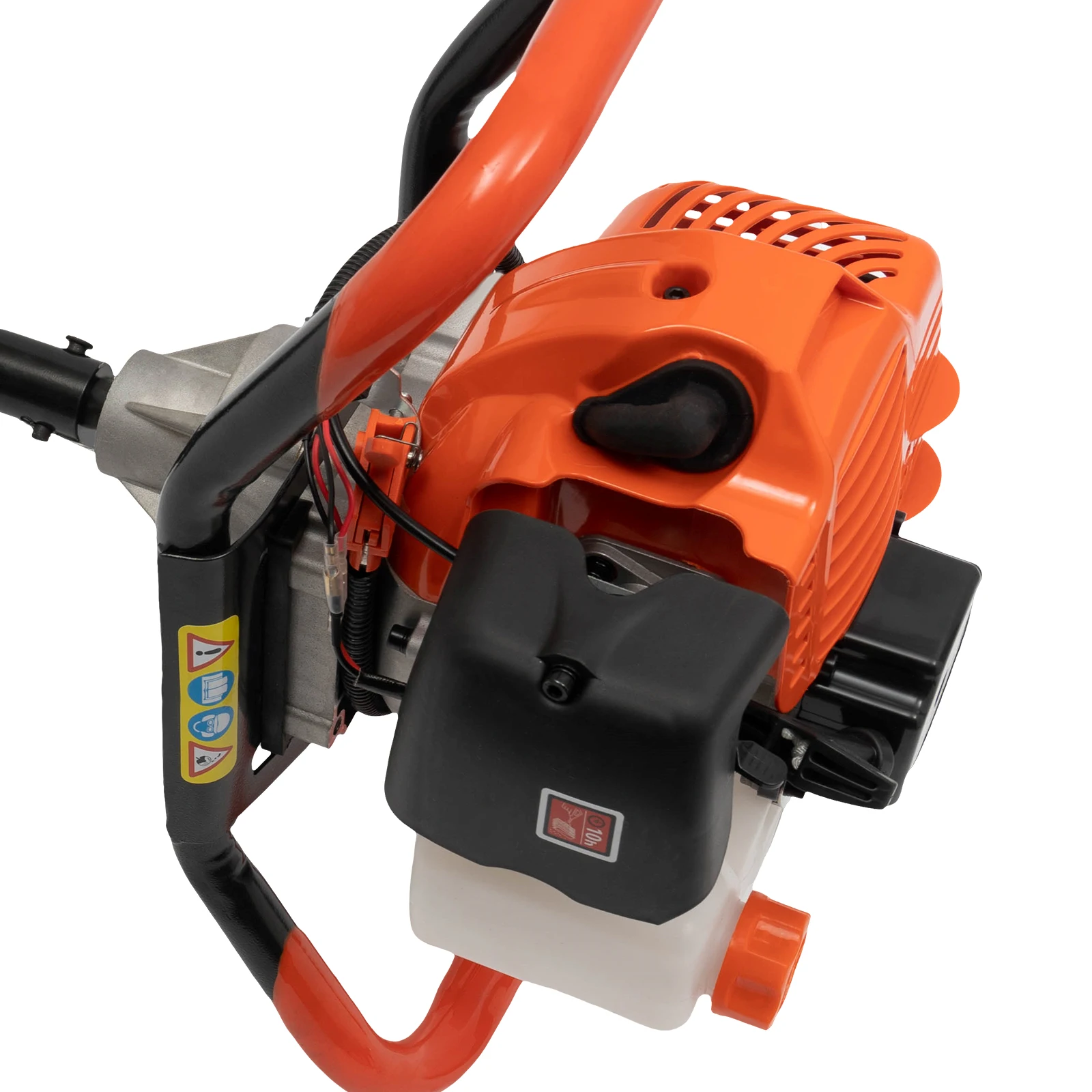

Exhaust Hole: A small exhaust hole on the side of the motor helps reduce noise, protects hearing and creates a comfortable working environment.

Application

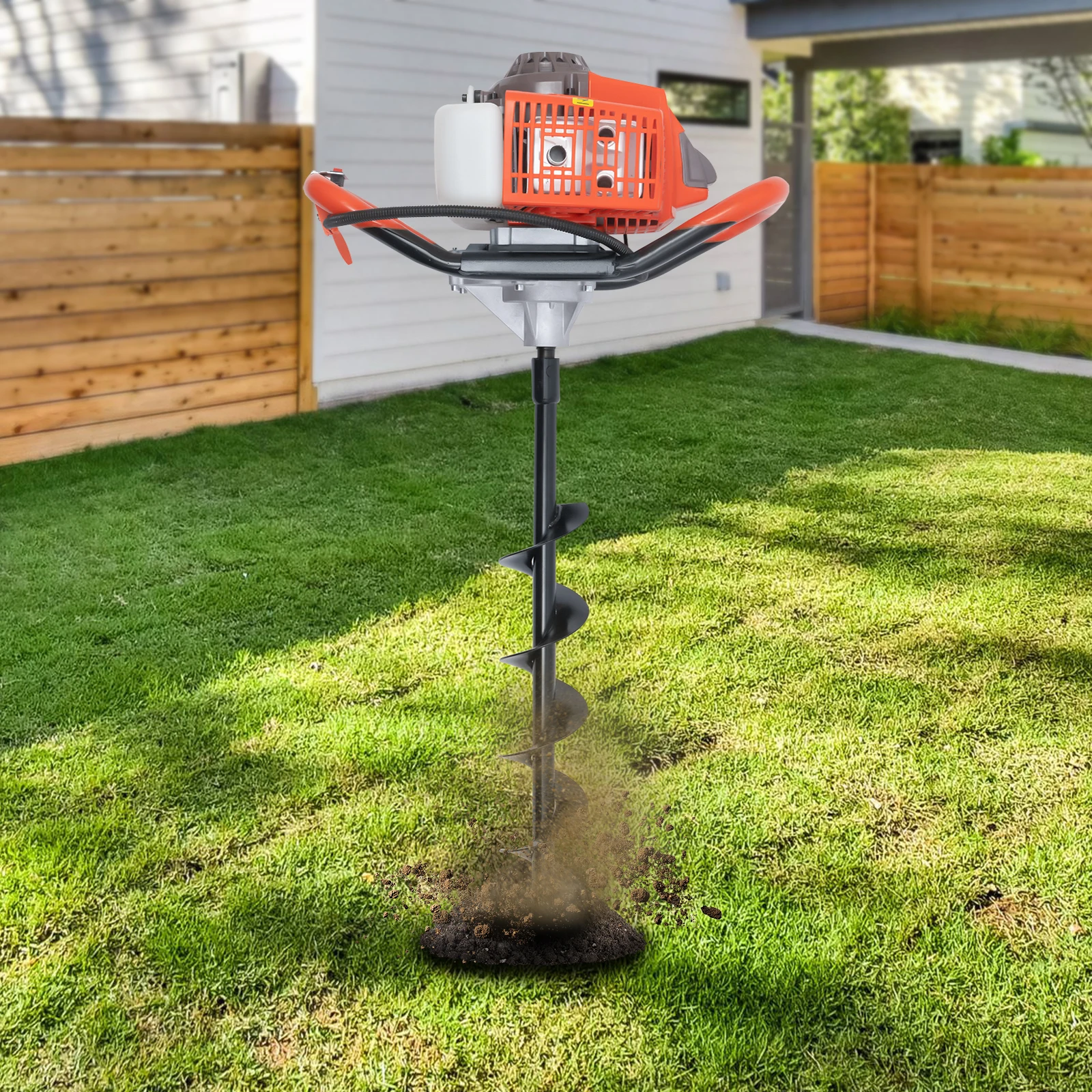

It can be drilled in epidermal turf and clay, and can be used for tree planting holes, fence stakes, greenhouse stakes, fiber optic cable pole stakes, tree fertilization stakes, etc.

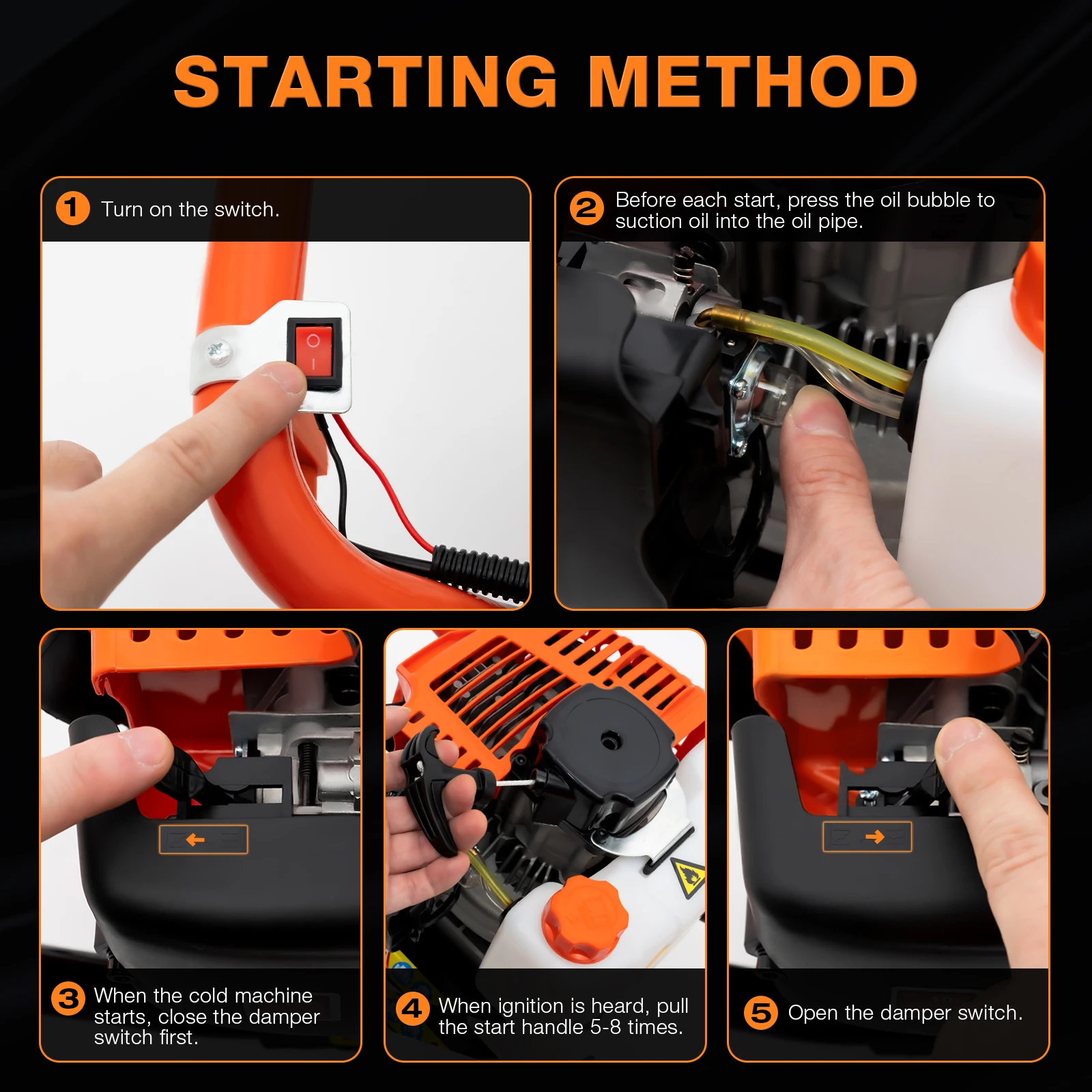

Starting Method

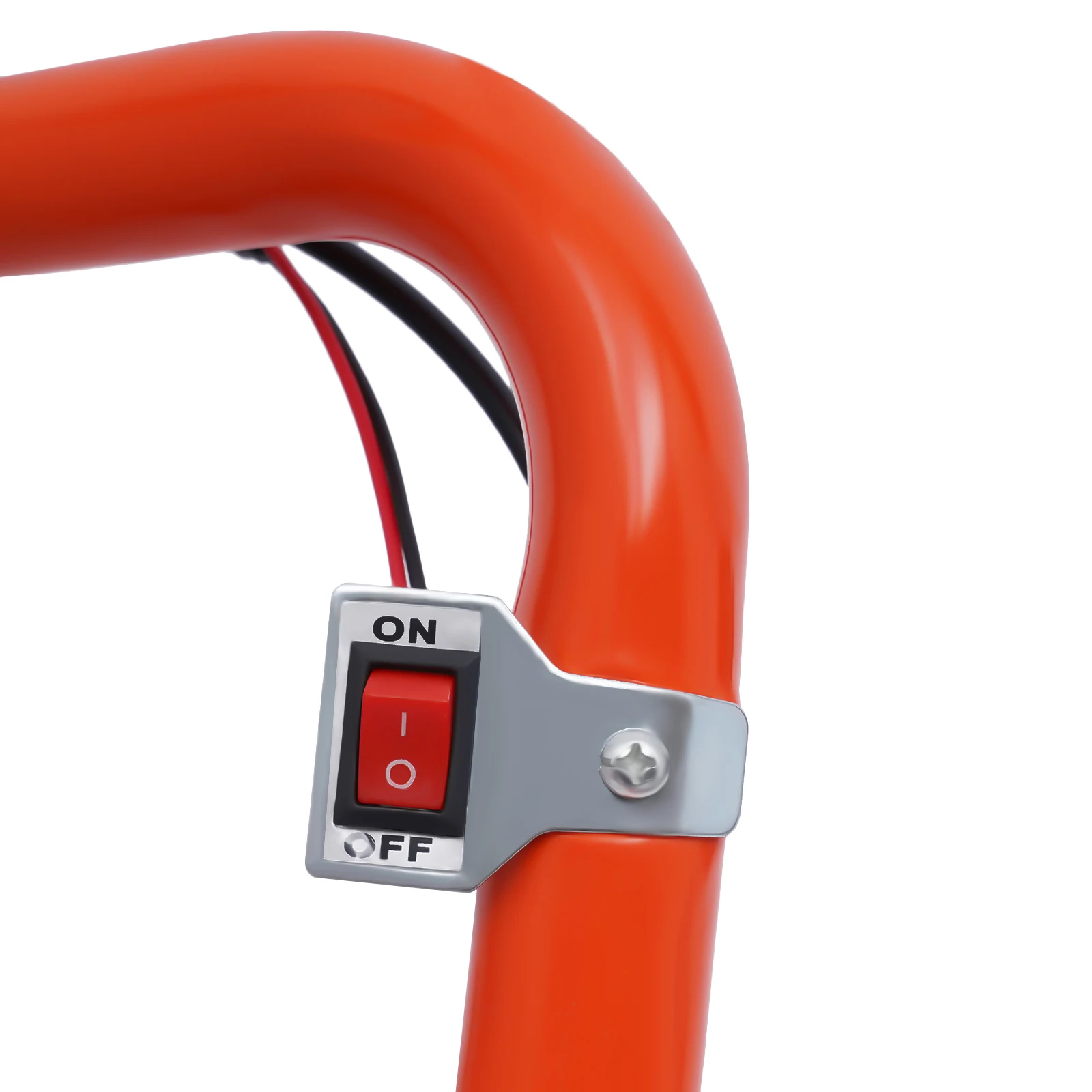

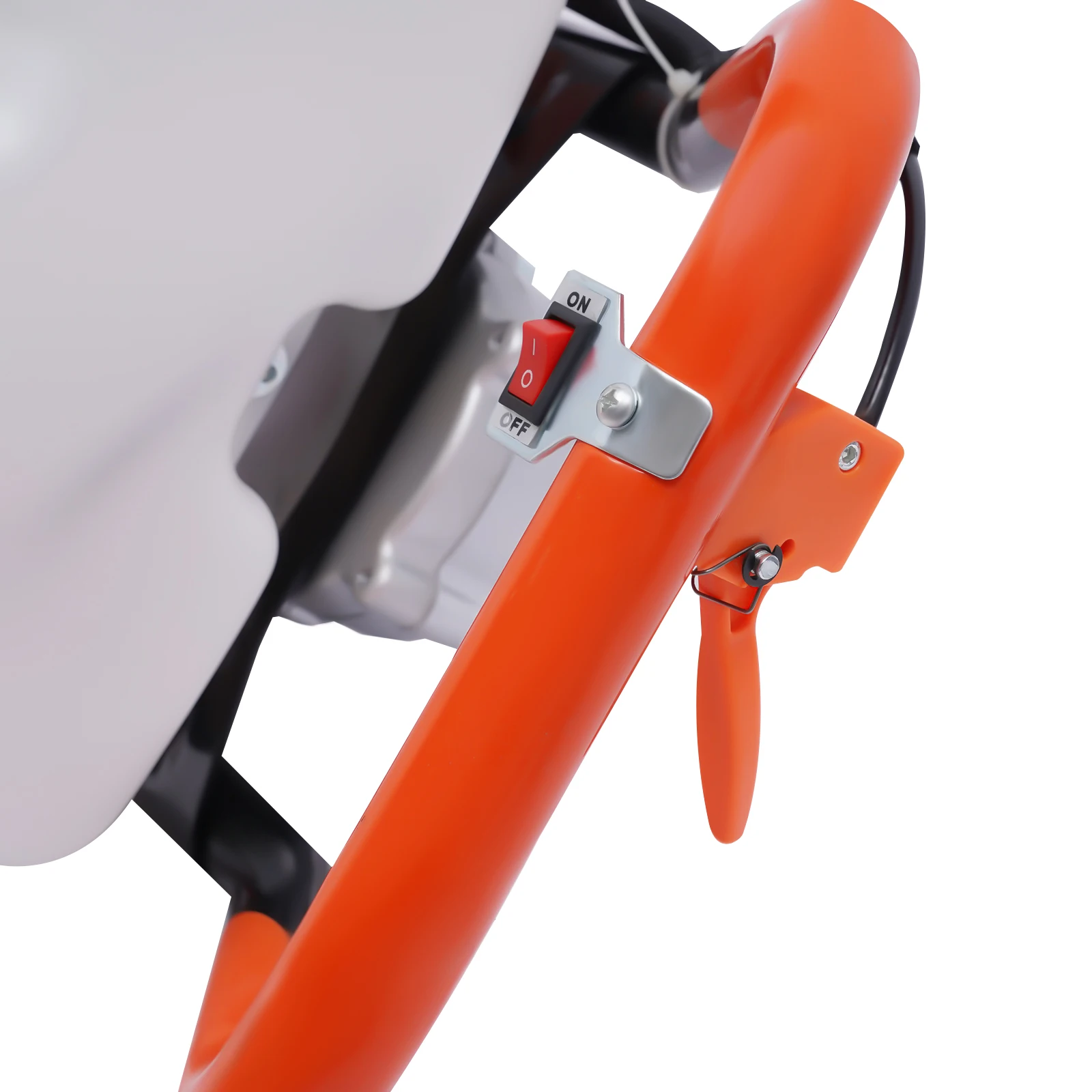

1. Turn on the switch.

2. Before each start, press the oil bubble to suction oil into the oil pipe.

3. When the cold machine starts, close the damper switch first.

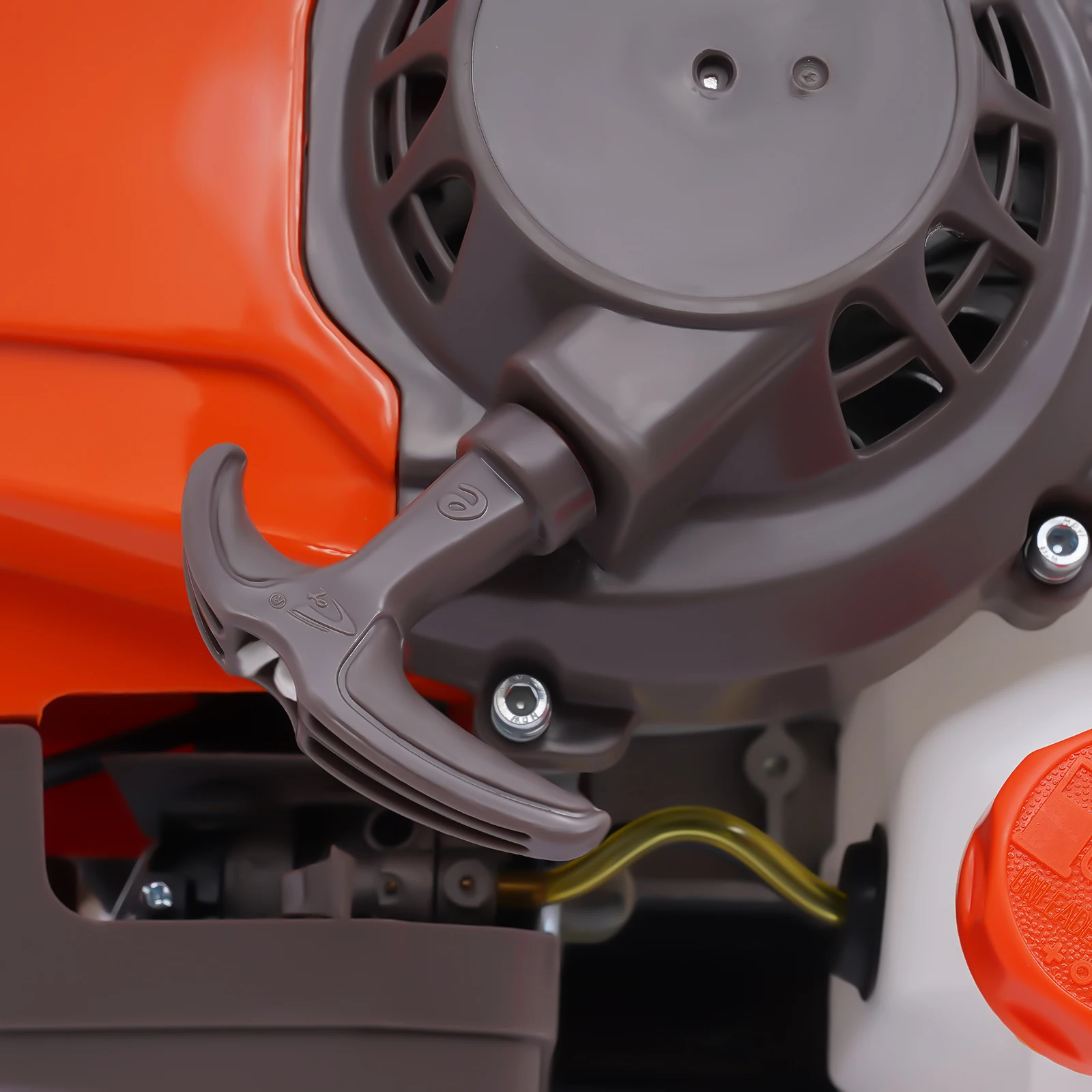

4. When ignition is heard, pull the start handle 5-8 times.

5. Open the damper switch.

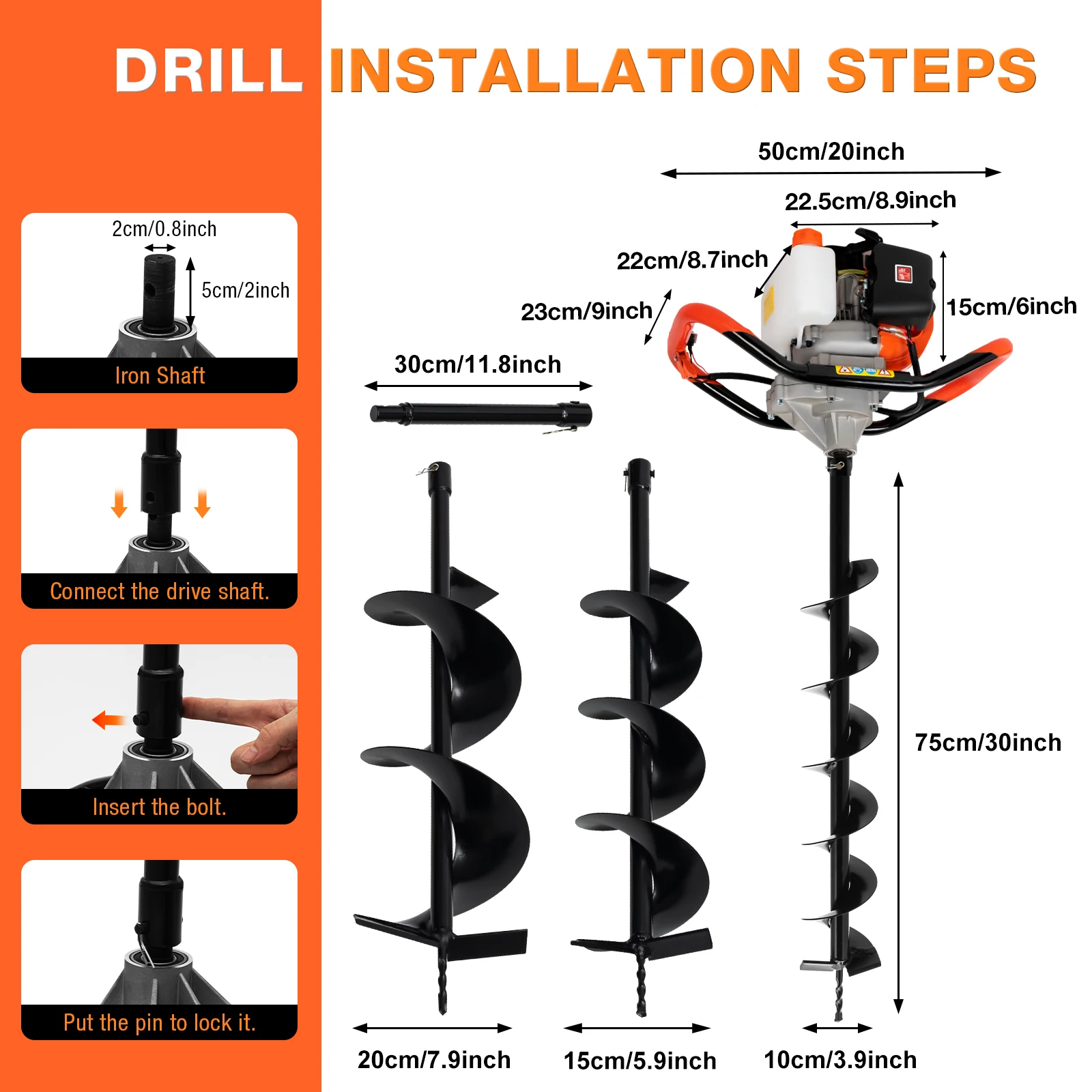

Drill Installation Steps

1. Connect the drive shaft.

2. Insert the bolt.

3. Put the pin to lock it.

Specification

52cc

Material: PP, Steel, Rubber, Aluminum, Iron, Carbon Steel

Color: Orange, Black

Engine Type: Single Cylinder, 2-stroke, Air-cooled

Displacement: 52cc

Mixed Fuel: Gasoline:Two-stroke Oil (25:1)

Ignition System: C.D.I.

Power: About 1.7kw

Horsepower: 2.3hp

Fuel Tank Capacity: 1.2L/0.3gal

Speed: 6500-8500r/min

No-load Speed: 2800-3200r/min

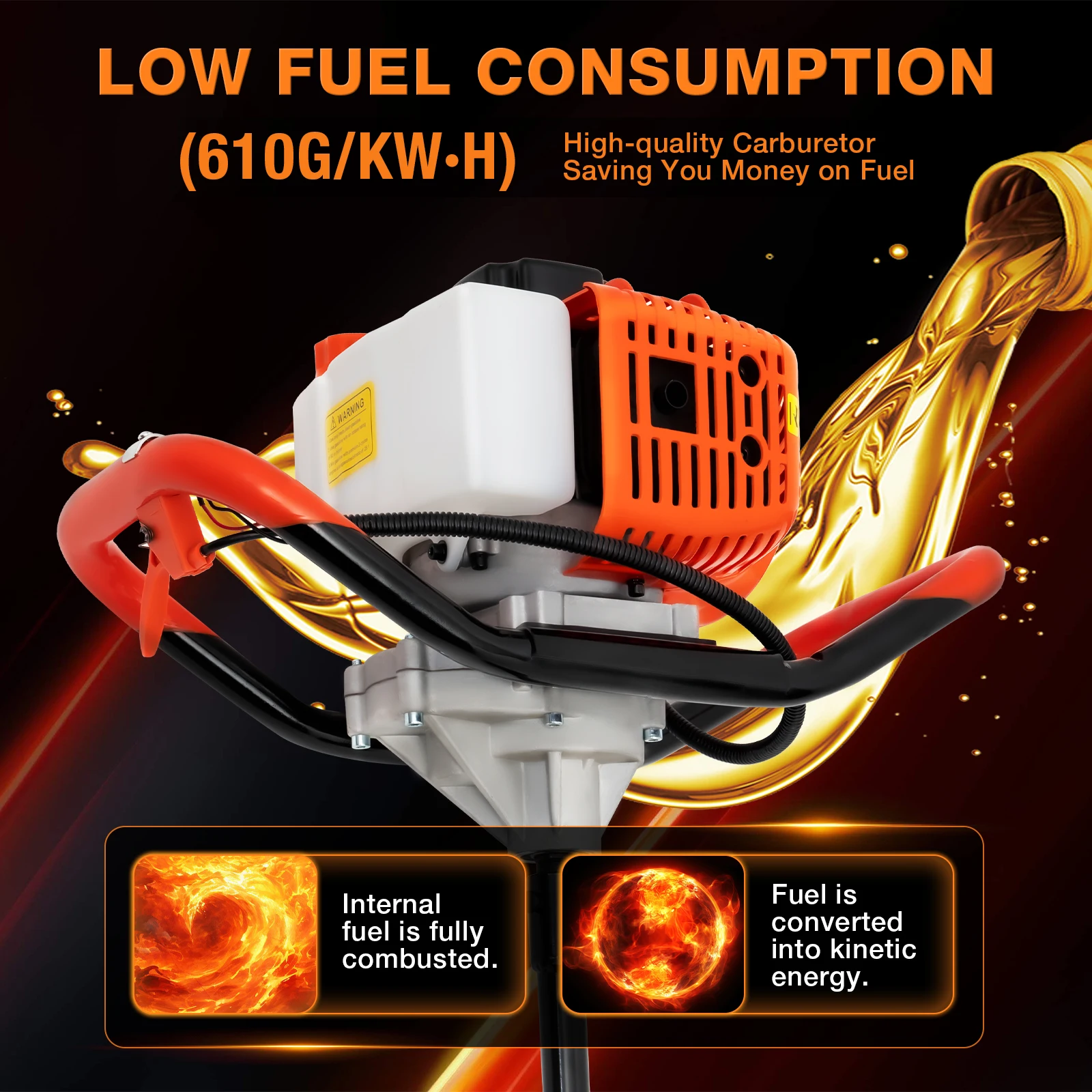

Fuel Consumption: 610g/kw·h

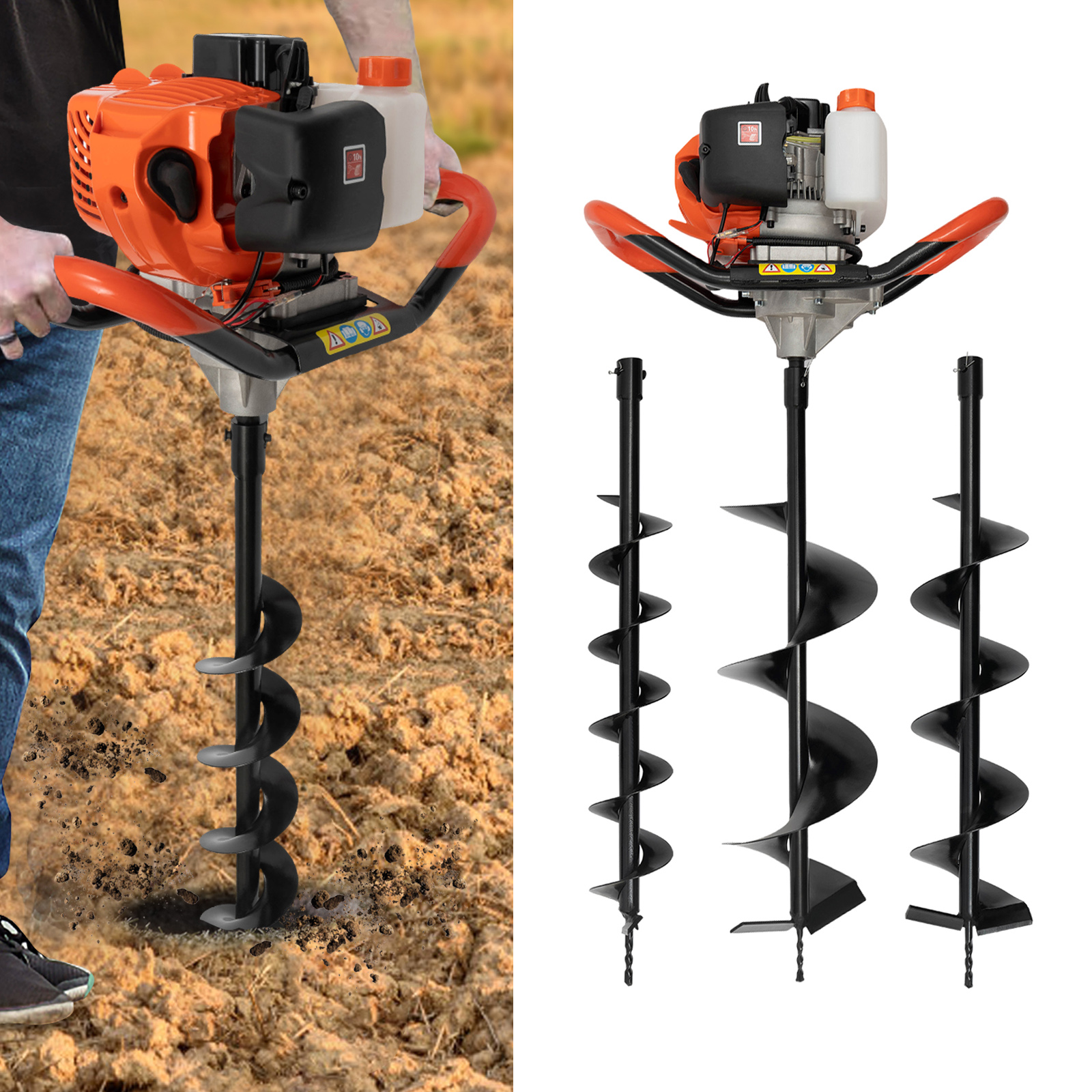

Drill Diameter: 10cm/3.9inch, 15cm/5.9inch, 20cm/7.9inch

Drill Length: 75cm/30inch

Shaft Size: 2*5cm/0.8*2inch

Engine Size: 22.5*22*15cm/8.9*8.7*6inch

Digger Whole Size: 50*23cm/20*9inch

Extension Bar Length: 30cm/11.8inch

Digger Package Size: 35*28.5*29cm/13.8*11.2*11.4inch

Drill Package Size: 80.5*22*33cm/31.7*8.7*13inch

Digger Gross Weight: 9kg/20lbs

Digger Net Weight: 8.1kg/18lbs

Drill Gross Weight: 9.5kg/21 lbs

Drill Net Weight: 7.35kg/16.2lbs

71cc

Material: Alloy Steel, Aluminum Alloy, Metal, Plastic, Rubber

Color: Orange, Black

Process: Painting

Assembly Required: Yes

Cooling System: Air Cooling

Number of Cylinders: 1

Auger Type: Bit

Starting Method: Manual Start

Mode Of Operation: One Person Or Two People

Mixing Ratio: The Ratio Of 93#

Gasoline To Two-Stroke Engine Oil Is 25:1

Output Shaft Diameter: 20mm/0.79in

Applicable Brill Size: 10cm/4in, 15cm/6in, 20cm/8in

Weight: 10Kg/22.05lbs

Displacement: 71cc/0.004cu in

Maximum Power: 2.3kw

Speed: 0-300rpm

Fuel Tank Volume: 1000ml/33.82 Oz

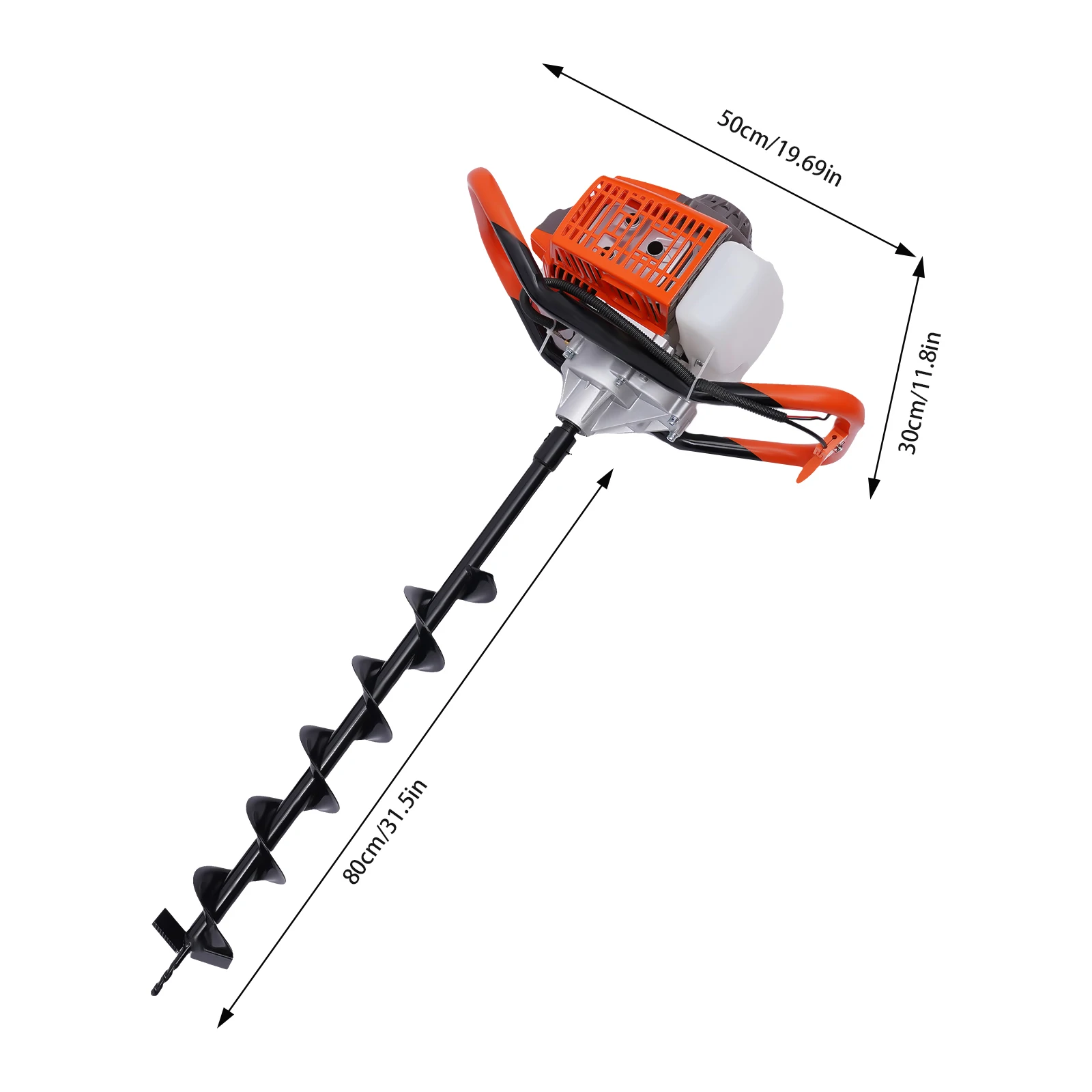

Product Size: 50*30*30 cm /19.69*11.81*11.81 in

Package Size:  46*37*33cm/ 18.11*14.57*12.99in

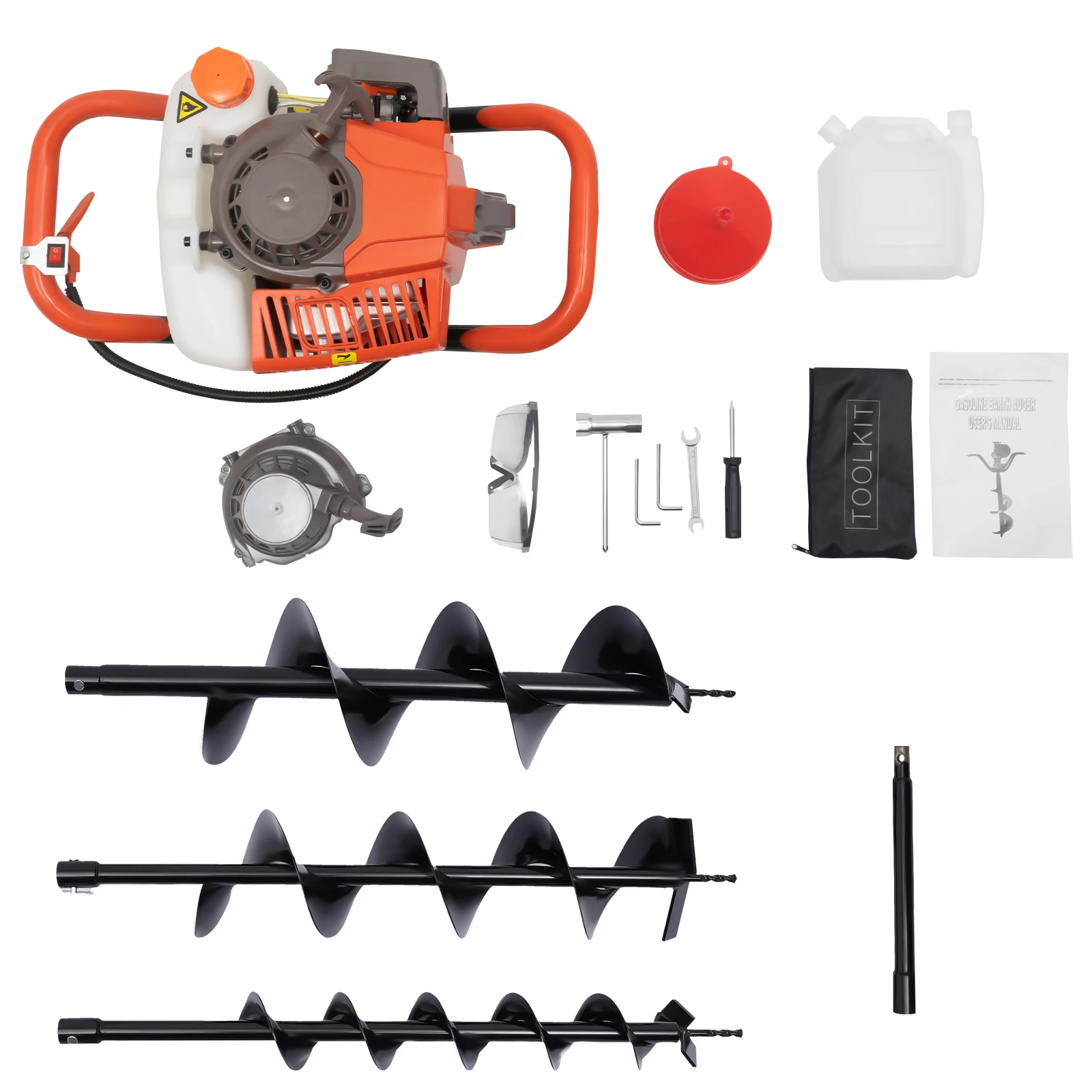

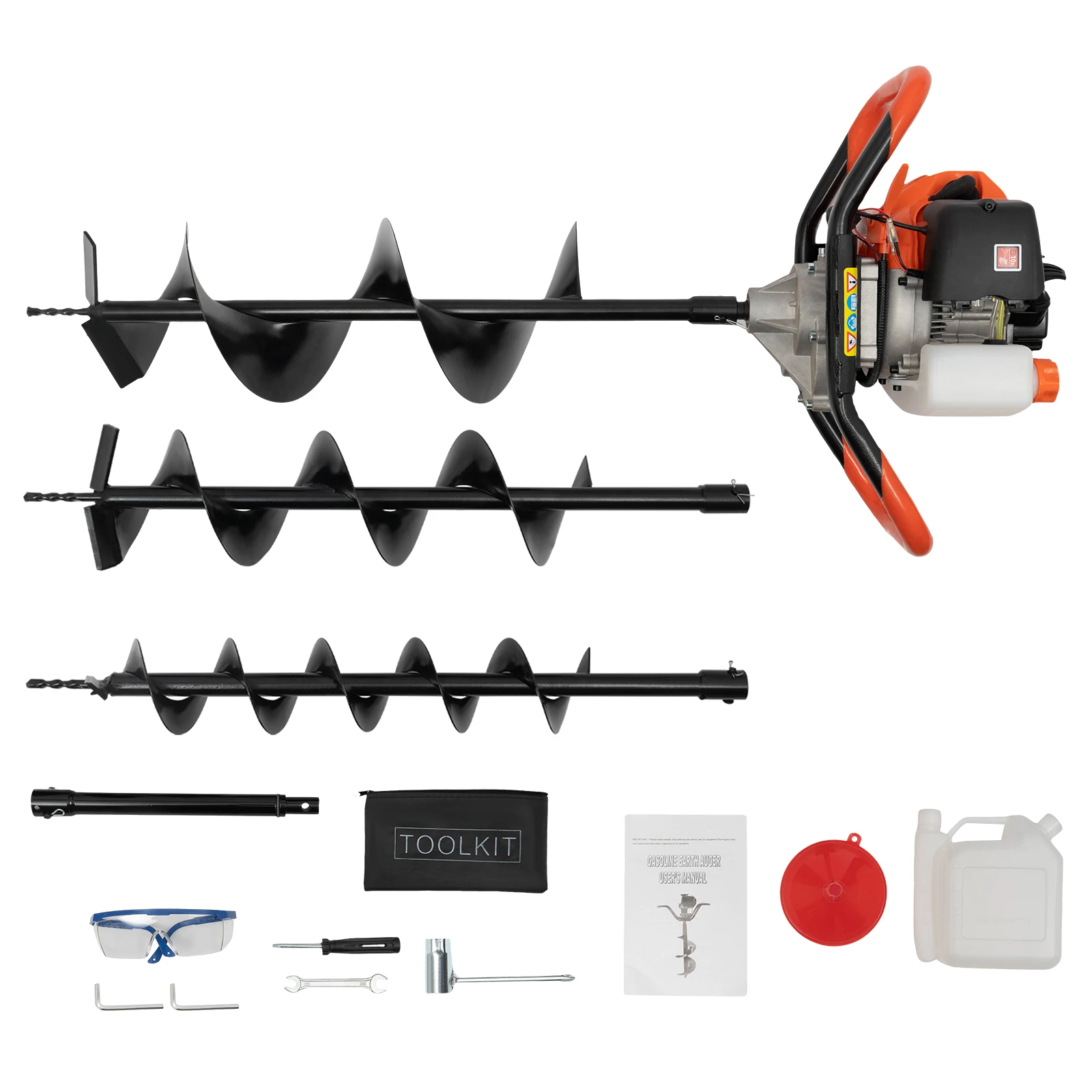

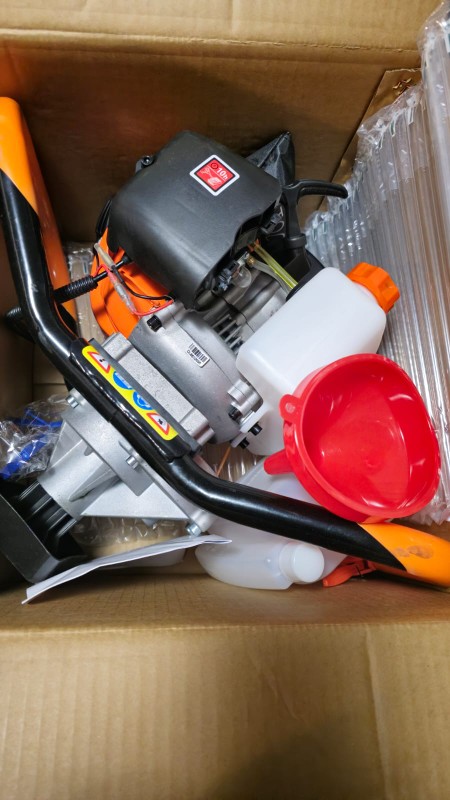

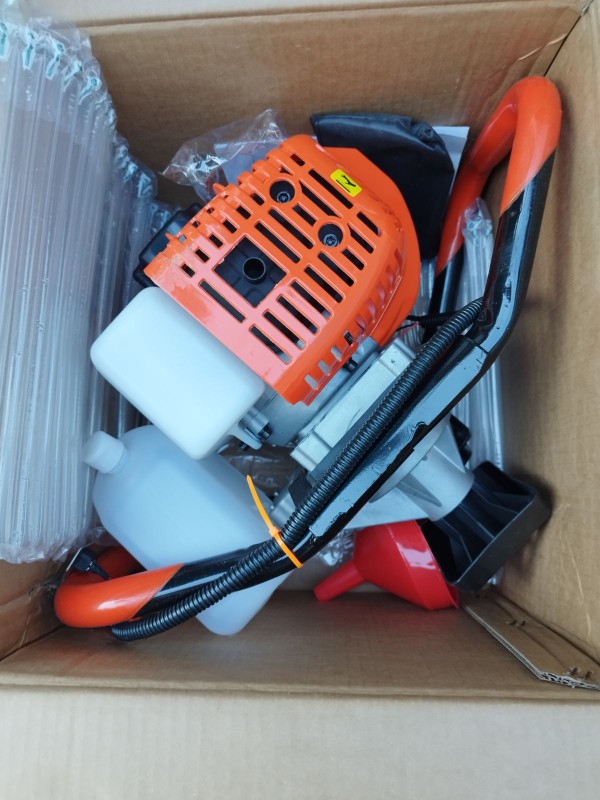

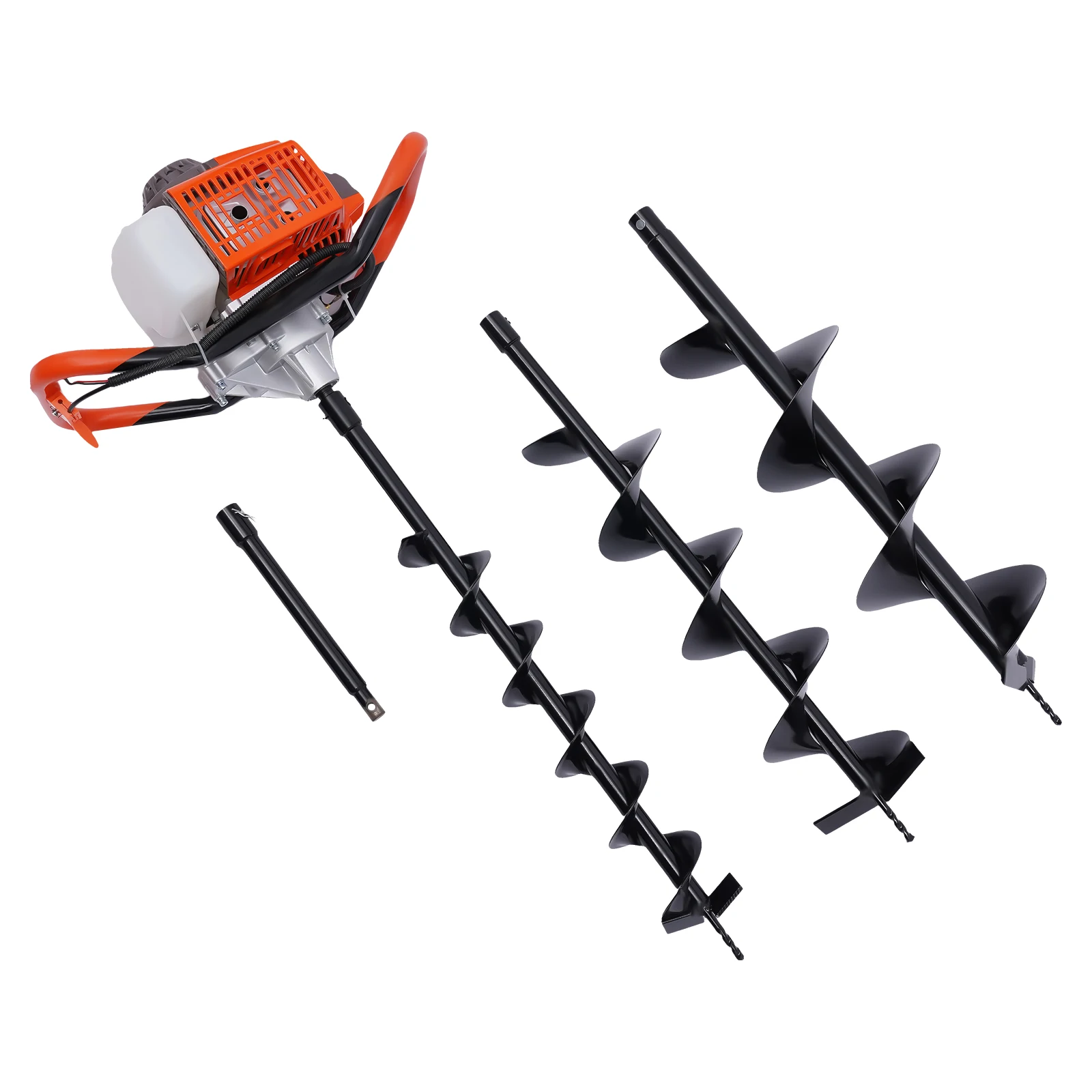

Package Included

52cc

1 x Auger Post Hole Digger

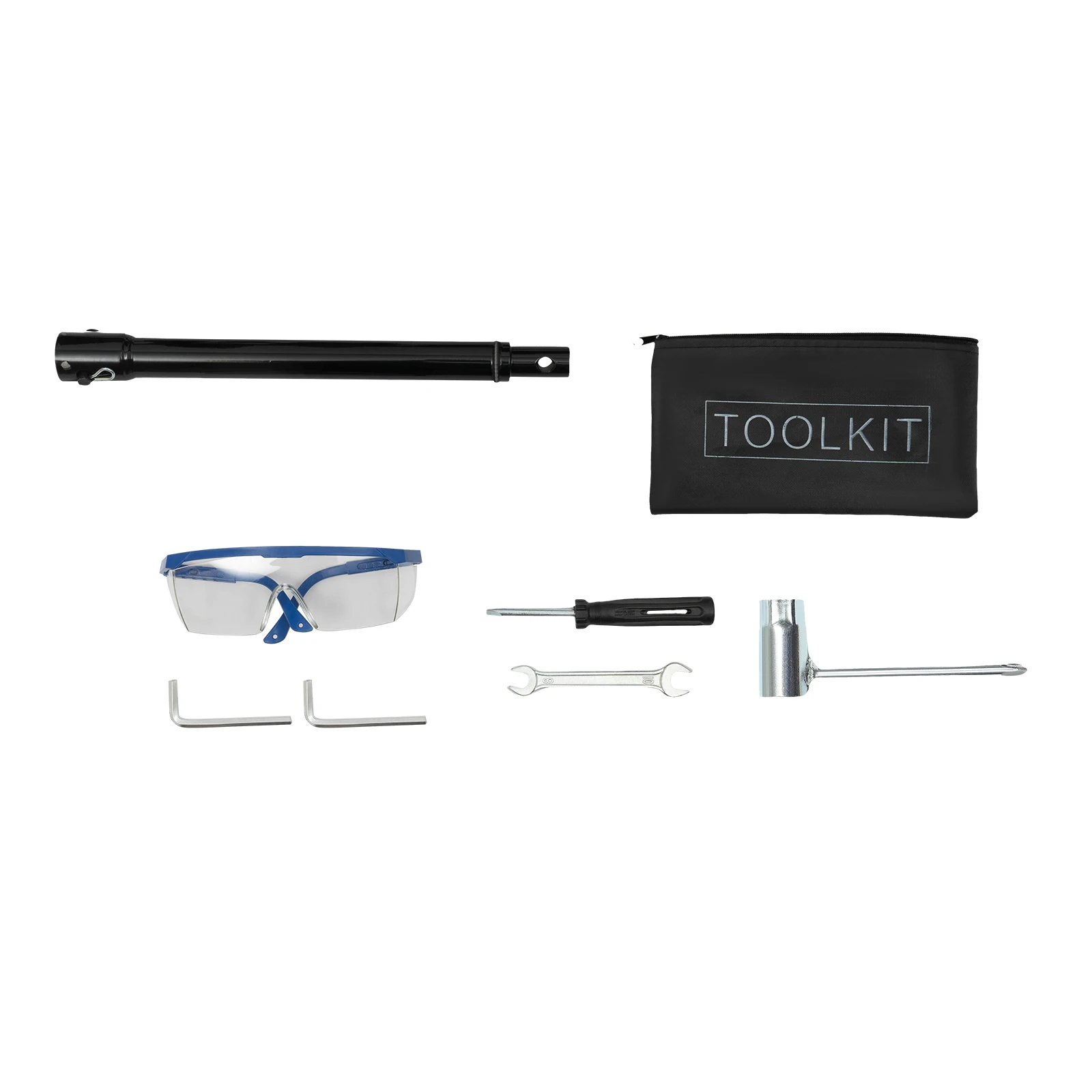

1 x Extension Bar

3 x Drills

1 x Fuel Oil Mixing Bottle

1 x Funnel

1 x Spare Starter

1 Pair x Goggles

1 x English Manual

Tool Kit for Assembly

71cc

1 x Machine

1 x Funnel

1 x Oil Bottle

1 x English Instruction

All Accessories for Installation

Notes

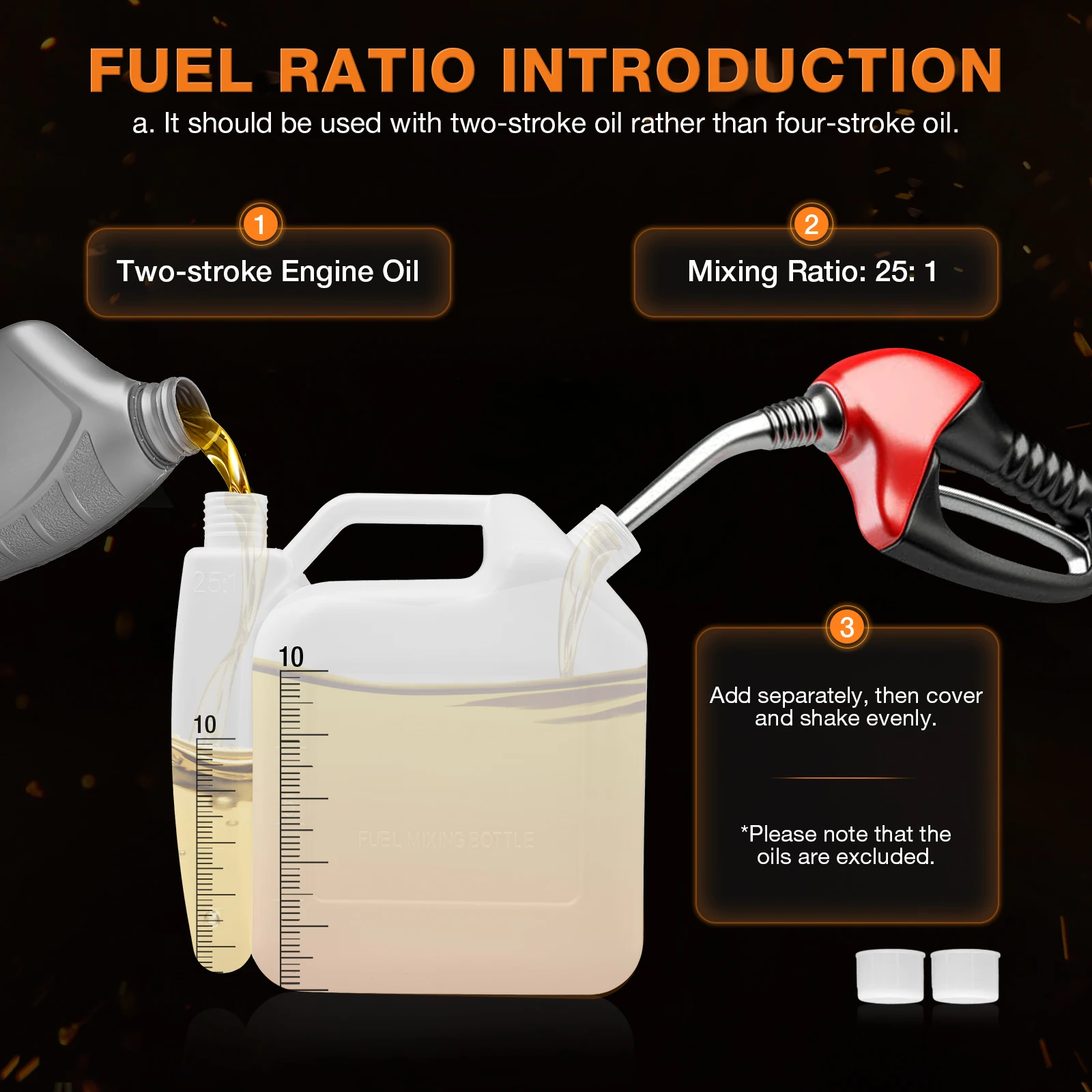

1. The tank should be filled with a mixture of oil (gasoline: two-stroke oil = 25: 1). It should be used with two-stroke oil rather than four-stroke oil, otherwise accidents will occur. All oils are excluded.

2. Please start the machine by pulling the starter quickly without stopping in the middle.

3. Press the oil bubble a few more times before starting. If there is oil coming in and out of the fuel line, which means oil has been supplied.

4. Do not use on steep slopes exceeding 15°.

5. Please do not drill ice, frozen soil, sandy clay, and sand and gravel mixed soil, or the drill bit will bend easily.

6. Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
