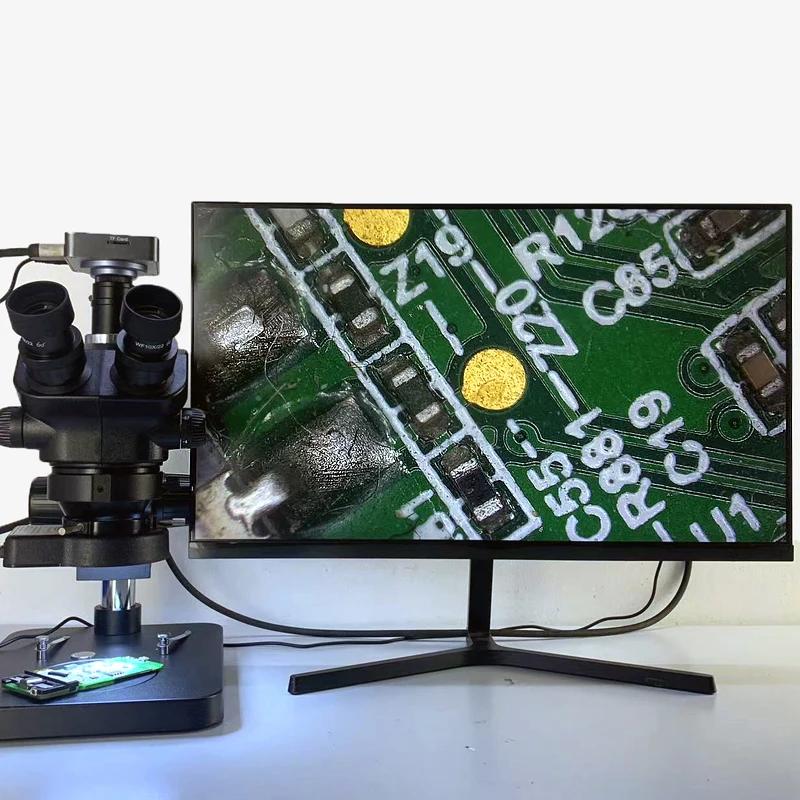

Note: HDMI port output uses HDMI monitor, USB port uses PC, PC needs to install software, VGA port output uses VGA monitor, TF card interface, the function is to store pictures and videos, U disk interface, the function is to store pictures and videos!
Please note. Kit items, including camera and options without camera, the price of the item without camera is the lowest, please pay attention to your choice
Stereo microscopes are easy to operate and widely used.
1. Zoology, biology, botany, entomology, histology, mineralogy, archaeology, geology and dermatology.
2. In the textile industry, it is used in the inspection of raw materials and cotton wool fabrics.
3. In the electronics industry, it is used as operating tools such as transistor soldering, mobile phone electronic maintenance, watch maintenance and inspection.
4. In biological anatomy, applied to local anatomy.
5. In the manufacture of precision parts, it is applied to the device of machine tools, the observation of the working process, the inspection and assembly of precision parts.
6. Surface quality of lenses, prisms or other transparent substances, and quality inspection of precision scales.
7. Cultural relics, books, coins, calligraphy and paintings, the inspection8. Widely used in textile products, chemical chemistry, plastic products, electronic manufacturing, machinery manufacturing, pharmaceutical manufacturing, food processing, printing industry, colleges and universities, archaeological research and many other fields.

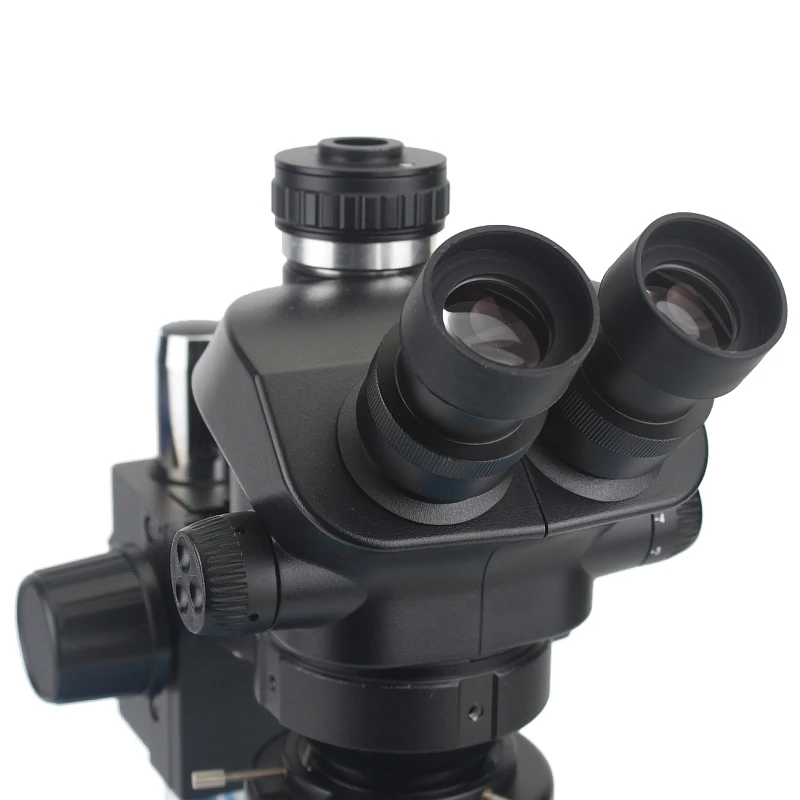

Microscope Head Feature:
Sharp stereo erect image over a wide field of view. Standard working distance is 110mm, to create enough space for the uses
45inclined and 360rotatable binocular head .The interpupillary distance is between 54-75mm. Observation head 45 ° inclined, diopter adjustment in two tubes, easy to operate and feel no fatigue when long time use.
Wide field and high eyepiont eyepiece WF10X/22mm 10X large field of view eyepiece, FOV 22mm，plan and high eye-point design, more suitable for search and observation
Ergonomics design, shift hand wheel level (axial) bilateral settings, high repeatability precision.
Best eye-point height, to ensure that different vision of the user can get a clear image
Head: 360 degree rotatable 45 degree inclined binocular
Eyepieces: WF10X/22MM
Zoom Rate position:0.7-5x
Magnification:7x-50x
Working Distance:110mm
Installation diameter: 76mm
Adjustable eyepiece:Standard WF10X22,High angle wide angle eyepiece,provide convenience for observers wearing glasses

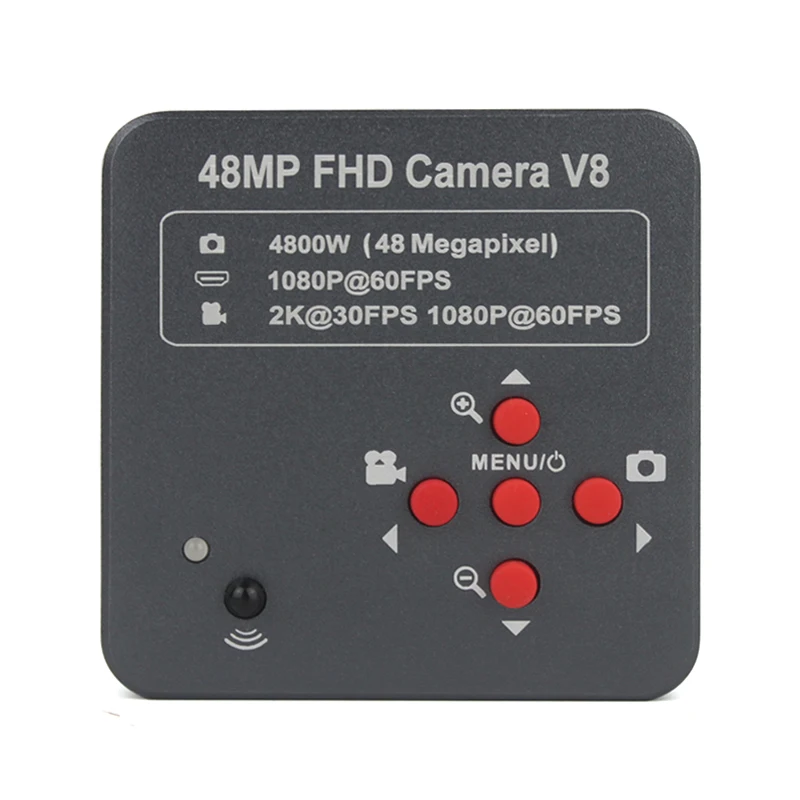

48MP 2K TF HDMI USB Feature:
Optical format:1/2.3 inch
pixel size:1.335μm x1.335μm
Interface:HDMI(Type A).USB(Type B).TF Card
Image resolution:48MegaPixel
Video record resolution:2K@30FPS 1080p@60FPS
HDMI resoltion:1920*1080p 60FPS
Can output with USB at the same time
HDMI scale:Support 4:3,16:9,16:10 screen
USB2.0(Drive free):1920*1080@30FPS 1280*720@30FPS640*480@30FPS
Can output with HDMI at the same time
TF card:MAX 64GB
AWB:WB color correction/Auto/Manual
R.G.B value setting independent
Exposure:Auto/Manual.AE value can set
Cross lines:8lines.Can set color& width& position
Scale mark lines:2lines.
Dotted lines:2lines.Can set color& width& position
Sharpness Contrast Color gain:Support
Mono Negative:Support
Mirror:Horizontal vertical mirror
Language:English/simplified Chinese
Digital Zoom:Support
IR remoter:Support
Voltage in:DC 12V 55-21mm size
Power consumption:MAX 0.15W 12V,0.12A
Lens interface:C/CS
Net weight:180g
Gross weight:400g
Camera size:74*74*35mm
Packaging size:160*100*80mm

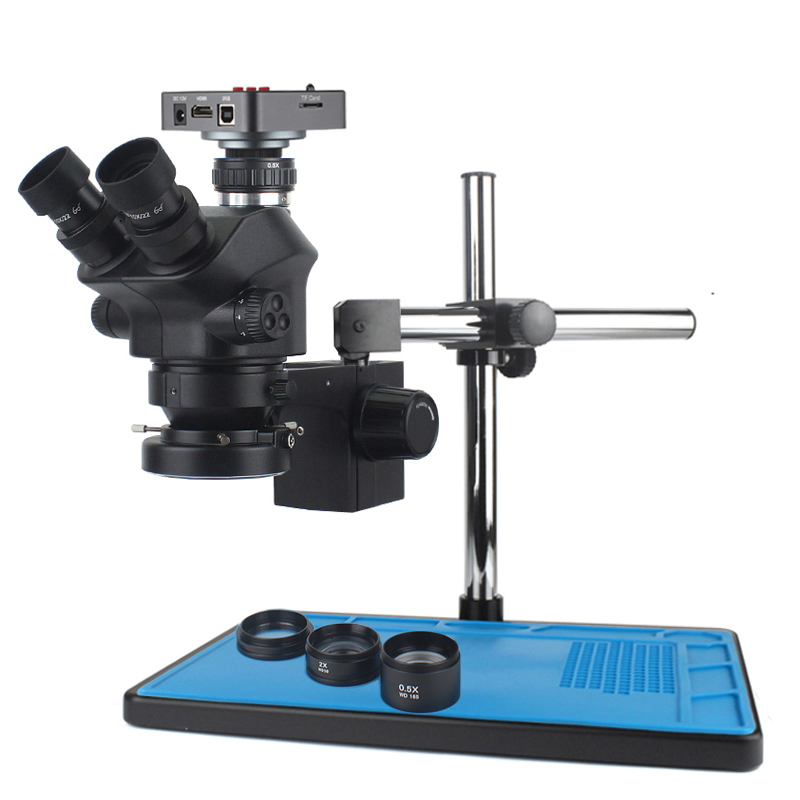

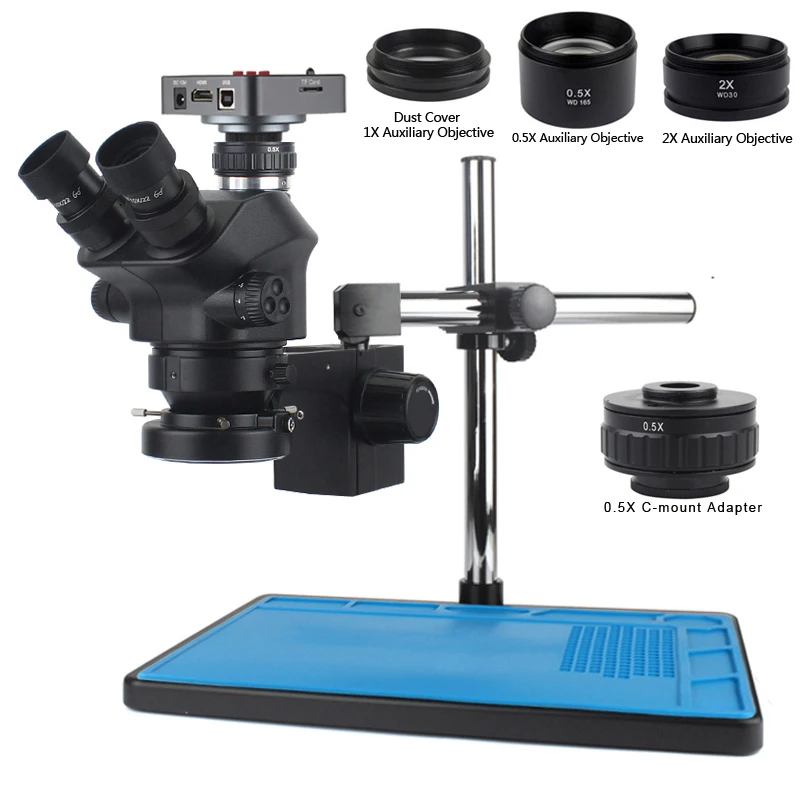

Package Including:
1 x Trinocular Stereo Zoom Head
1 x Pair of Super Widefield 10X20MM Eyepieces
1 x 56-LED Ring Light
1 x Pillar Table Stand
1 x Focusing Rack
1 x 0.5X C-mount Adapter
1 x Pair of Eye-Guards
1 x Dust Cover
1 x Table Stand（Optional）
1 x 0.5X Microscope Auxiliary Objective Lens(Working Distance 160 mm)
1 x 1.0X Microscope Auxiliary Objective Lens(Protection function)
1 x 2.0X Microscope Auxiliary Objective Lens(Working Distance 40 mm)
（Optional）
1 x Microscope Camera
1 x DC Power Adapter
