40X-2500X USB Professional Compound Biological Microscope Adjutable Mechanical XY 3D Stage for Medical Educational Science Lab

40X-2500X Professional Biological Compound Microscope Adjutable Light Mechanical XY 3D Stage for Educational Medical Science Lab

Our new binocular compound microscope is designed for teaching demonstrations, clinical examinations and laboratory applications. It is a perfect microscope for teachers and students including those in medical school or with a major in biology. It comes with a Siedentopf binocular head, double layer mechanical stage with course & fine focusing, and LED illumination system. There are six magnification settings: 40X, 100X, 250X, 400X, 1000X & 2500X. This microscope is an ideal instrument for bacterial, biological, and pharmaceutical researches.

Features :

• 30 degree inclined 360 degree swiveling Siedentopf binocular head

• High quality precise optical glass elements

• Easy to attach a microscope camera or digital imager

• Six magnification settings, 40X, 100X, 250X, 400X, 1000X & 2500X

• Four Achromatic objectives, DIN 4X, 10X, 40X(S), 100X(S,Oil)

• Two pairs of widefield eyepieces: WF10X and WF25X

• Adjustable interpupillary distance

• Adjustable ocular diopter

• Variable intensity illumination

• Coaxial coarse and fine focus adjustment

• Focusing knobs are on both sides

• Stage upward moving lock protects objectives and slides

• Stain-resistant double layer mechanical stage

• NA1.25 Abbe Condenser with iris diaphragm & filters

• Rack and pinion adjustment condenser

Specifications :

• Eyepieces: widefield, WF10X and WF25X

• Objectives: Achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)

• Head: 30 degree inclined 360 degree swiveling binocular

• Interpupillary distance: 2-1/8″ – 3-1/8″ (53mm – 77mm)

• Adjustable ocular diopter

• Nosepiece: revolving quadruple

• Mechanical Stage: 3-D double layer

• – Size: 4-5/8″ x 5″ (118mm x 127mm)

• – Travel Range (X-Y): 70mm x 21mm

• Condenser: NA1.25 Abbe condenser with iris diaphragm

• Illumination: LED light, transmitted, intensity adjustable, GS and CE approved

• Focusing: coaxial coarse & fine knobs on both sides

• Power Supply: 100-240VAC, 50/60Hz, AC/DC adapter (UL approved) Included

• Dimension: 11″ x 7″ x 13-3/4″ (280mm x 178mm x 350mm)

• Power input: 6V/1A

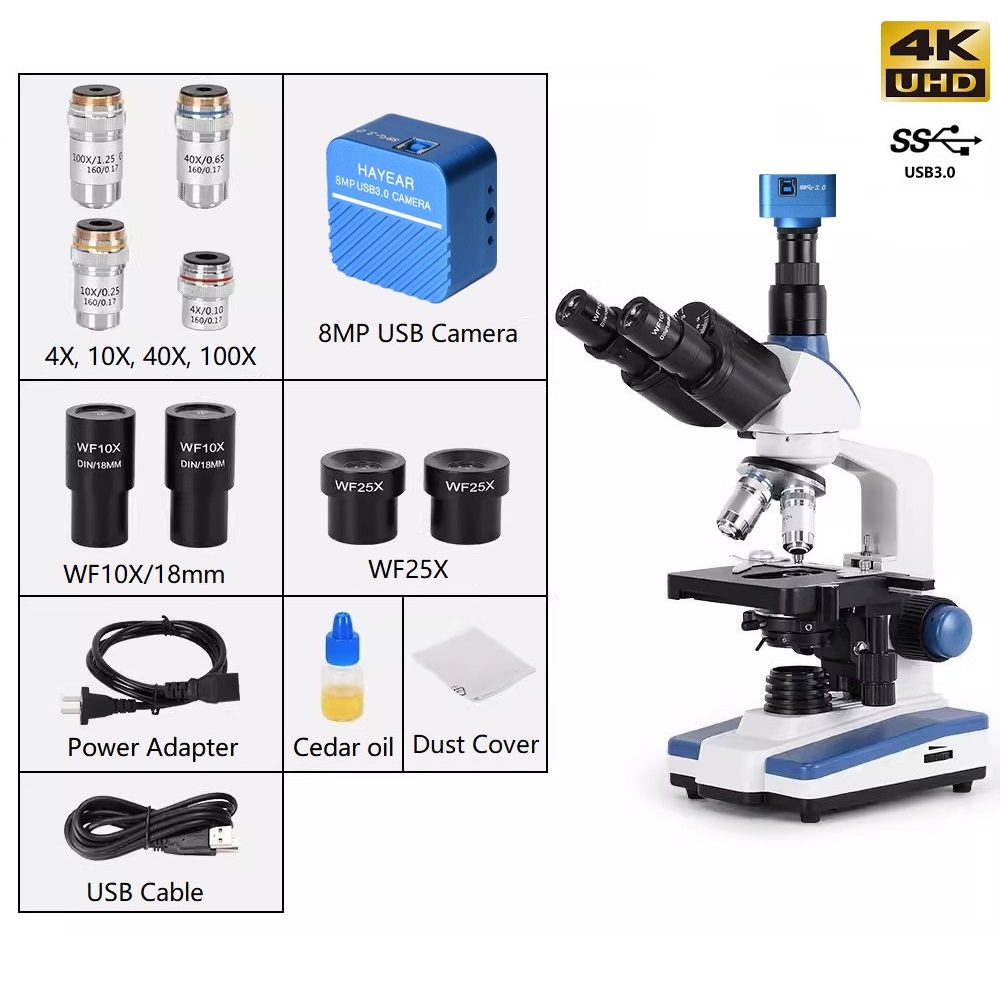

Packing List :

• One Siedentopf Binocular Microscope Head

• One Microscope Body Frame with Double Layer Mechanical Stage and LED Illumination

• Four DIN Standard Objectives, 4X, 10X, 40X and 100X

• One Pair of Widefield 10X Eyepieces

• One Pair of Widefield 25X Eyepieces

• One Blue Color Filter

• One Dust Cover

• User’s Manual Download

• USB Camera(5MP/8MP optional)
