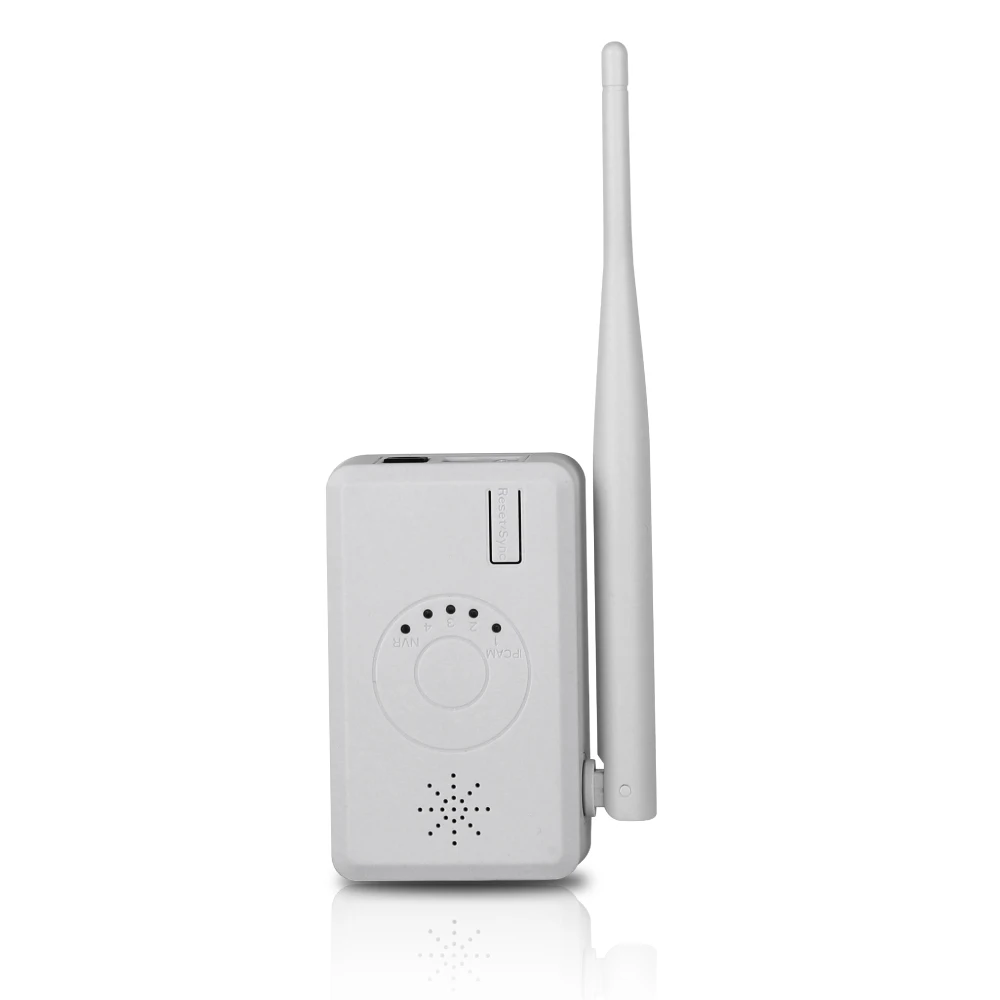

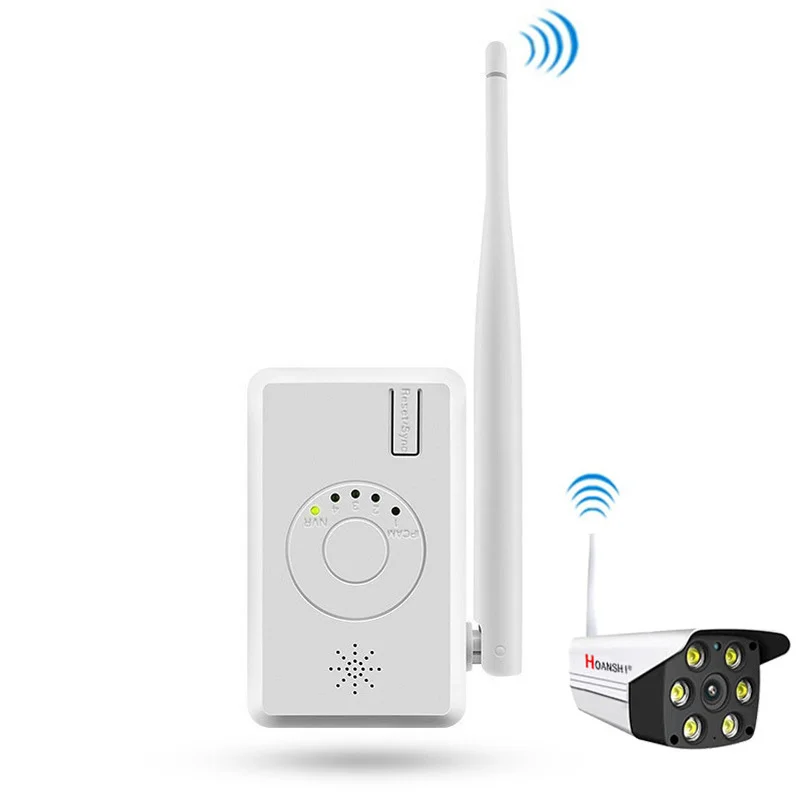

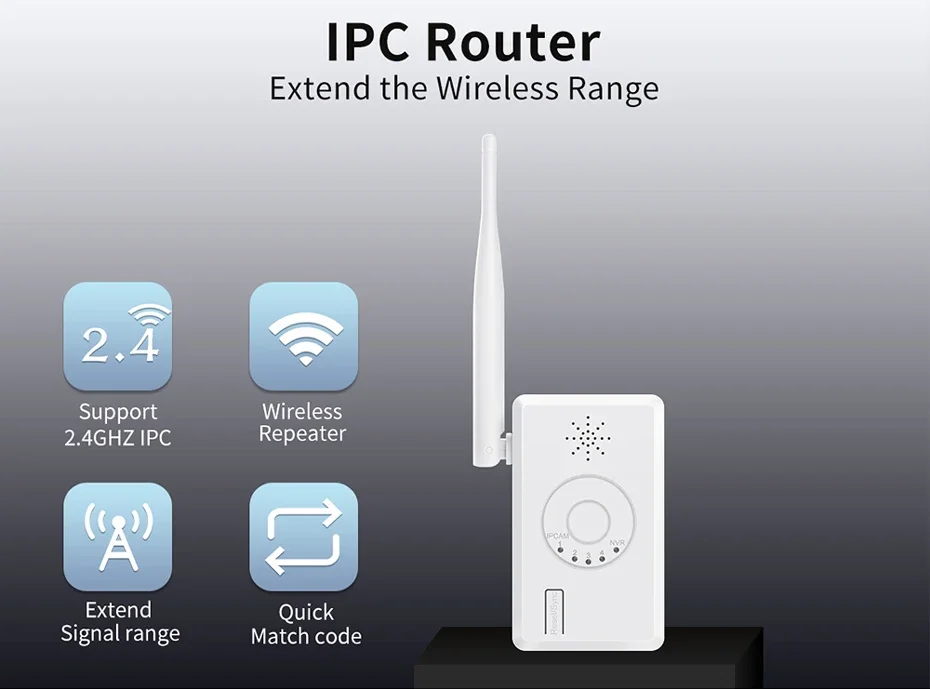

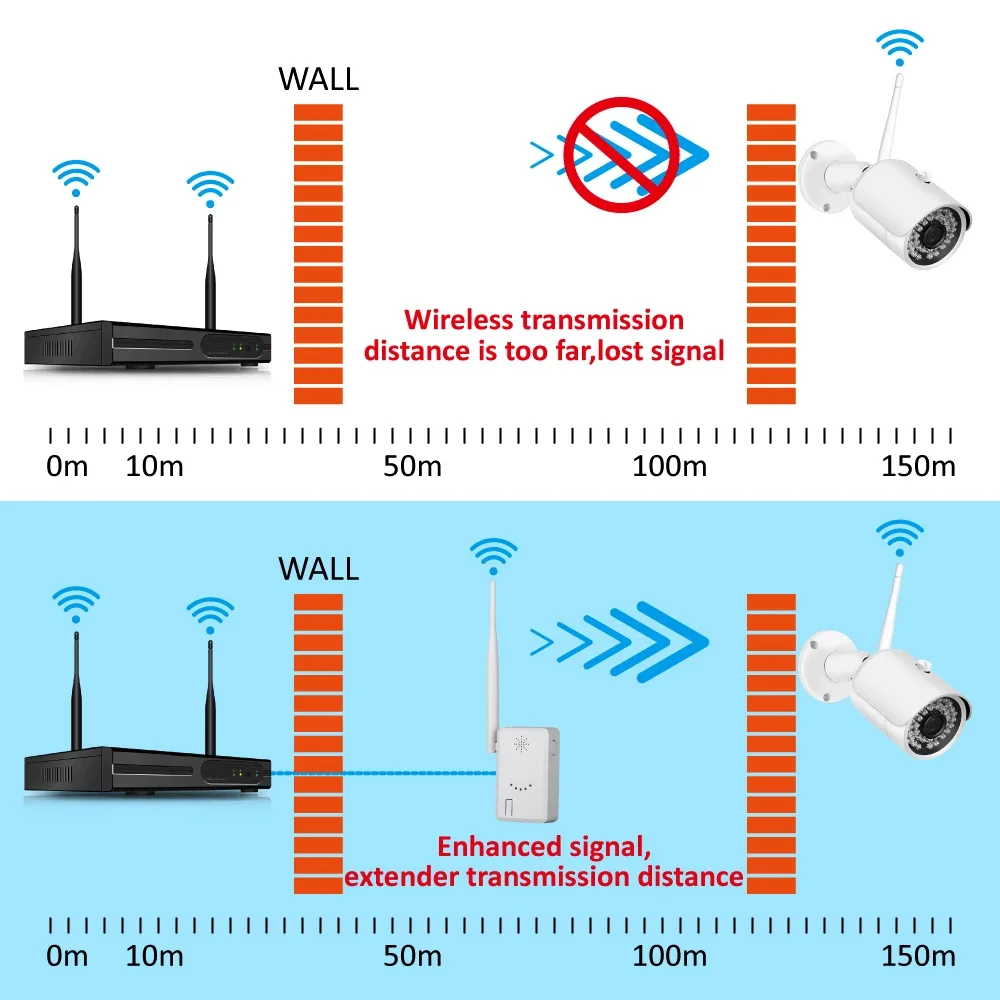

IPC Router Extend WiFi Range for Home Security Camera System Wireless ANRAN Wifi Signal Booster 2.4G Wifi IPC
Wireless Repeater
1. Functional features:

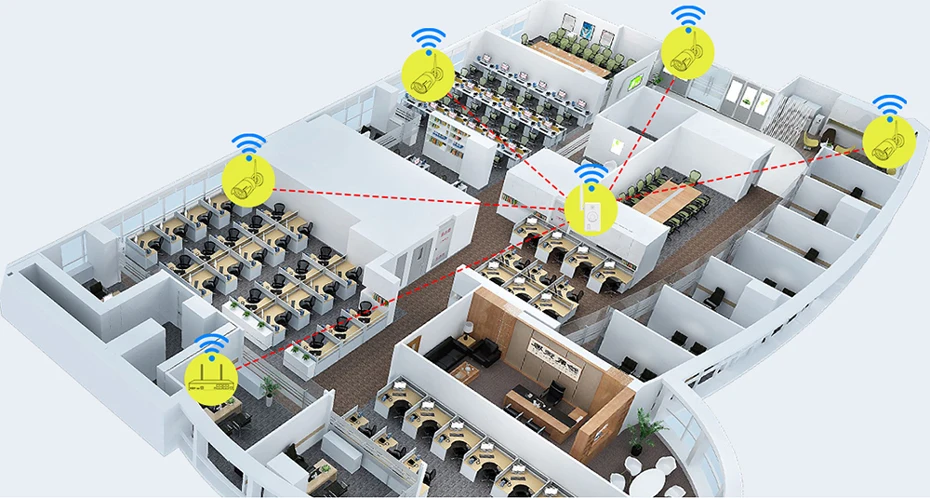

• wireless relay function;
• IPC router function;
• wireless code matching to wireless NVR;
• network cable pair to wireless NVR;
• network cable pair code with network port wireless IPC;
• wireless pairing and wireless IPC;
• support T-mode mode;
• NVR wireless connection status indicator;
• wireless connection status indicator;
2. Specifications and parameters
model
R4S -3
WIFI
802.11b/g/n 2.4G
Number of belt conveyors
4 wireless IPC
Number of indicator lights
5 LED indicators, 4 of which indicate IPCAM connection status and 1 NVR connection
Status light

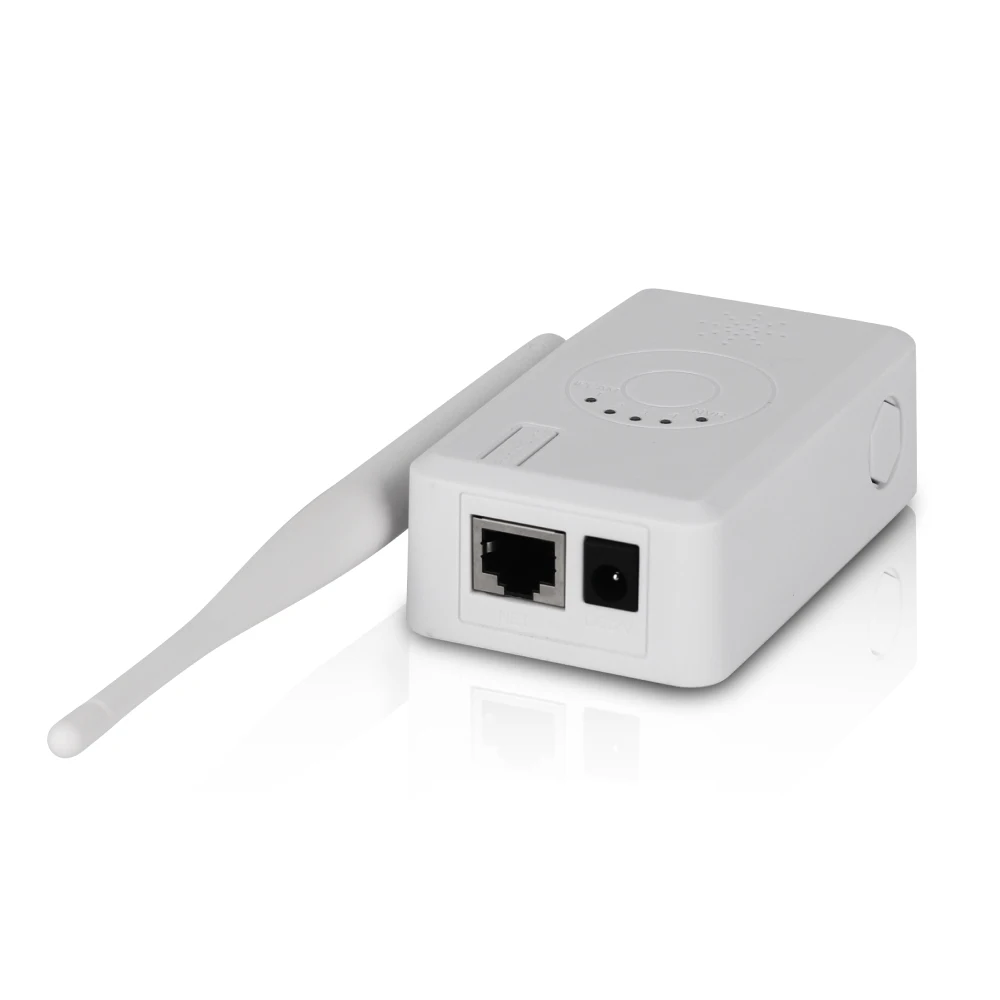

Interface type
1 x RJ45 100Mbits
Network port
Match with IPC to transmit video
1 x code matching key
Trigger code matching and reset
1 x 12V power supply
Supply power to the equipment
size
74x31x186MM3. Interface instructions

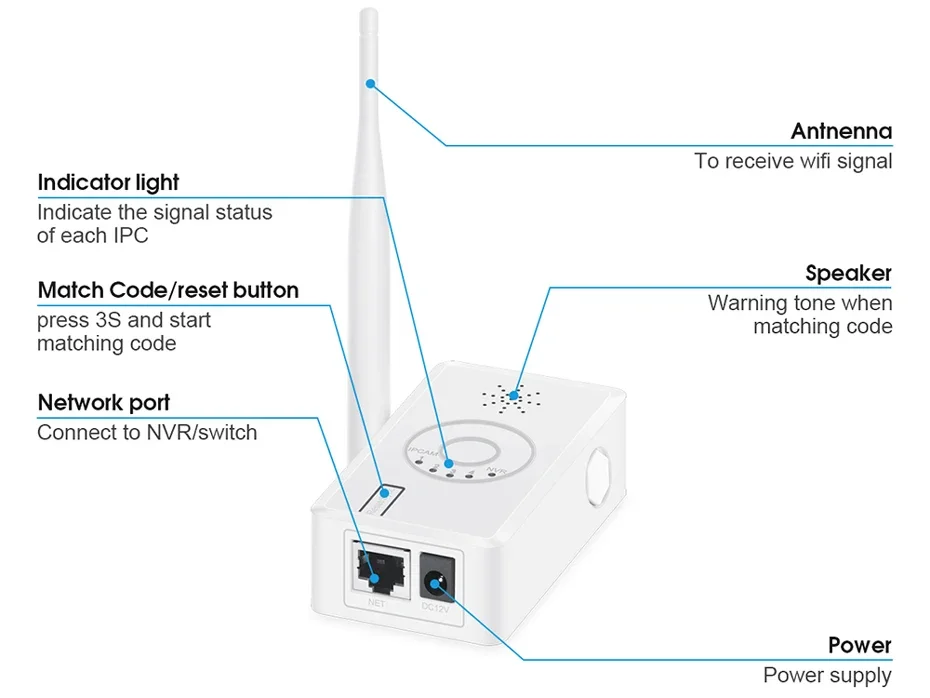

1. Code matching / reset key: trigger code matching status
Press and hold the “reset / sync” key for 3 seconds and release it (3 seconds ＜ t ＜ 10 seconds). The IPC router enters the code matching camera state, and all ipcams
The status lights flash at the same time
Press and hold the “reset / sync” key for 10 seconds and release it (T > 10 seconds). The IPC router enters the NVR status of wireless code matching, and the NVR status light is fast
Flash.
2. NVR status light: indicates the wireless connection status between IPC router and wireless NVR
Flash: IPC router is in code aligned wireless NVR state.
Chang Liang: the IPC router is paired and the wireless connection is normal.
Slow flash: the IPC router is paired, and the wireless connection is disconnected or not in the paired state.
Not on: IPC router equipment is abnormal and needs to be checked.
3. IPCAM status light: indicates the wireless connection status between IPC router and wireless camera
Always on indicates that a camera is connected to the IPC. Several lights indicate that several cameras are connected, and there are four ipcams in total
Status light.
Flash: flash at the same time indicates that the IPC router is in the state of code matching camera. Press and hold the “reset / sync” key for 3 seconds and release it to the IPC router
Enter the code matching camera state, and all IPCAM states flash at the same time.
4. Power supply: equipment power supply

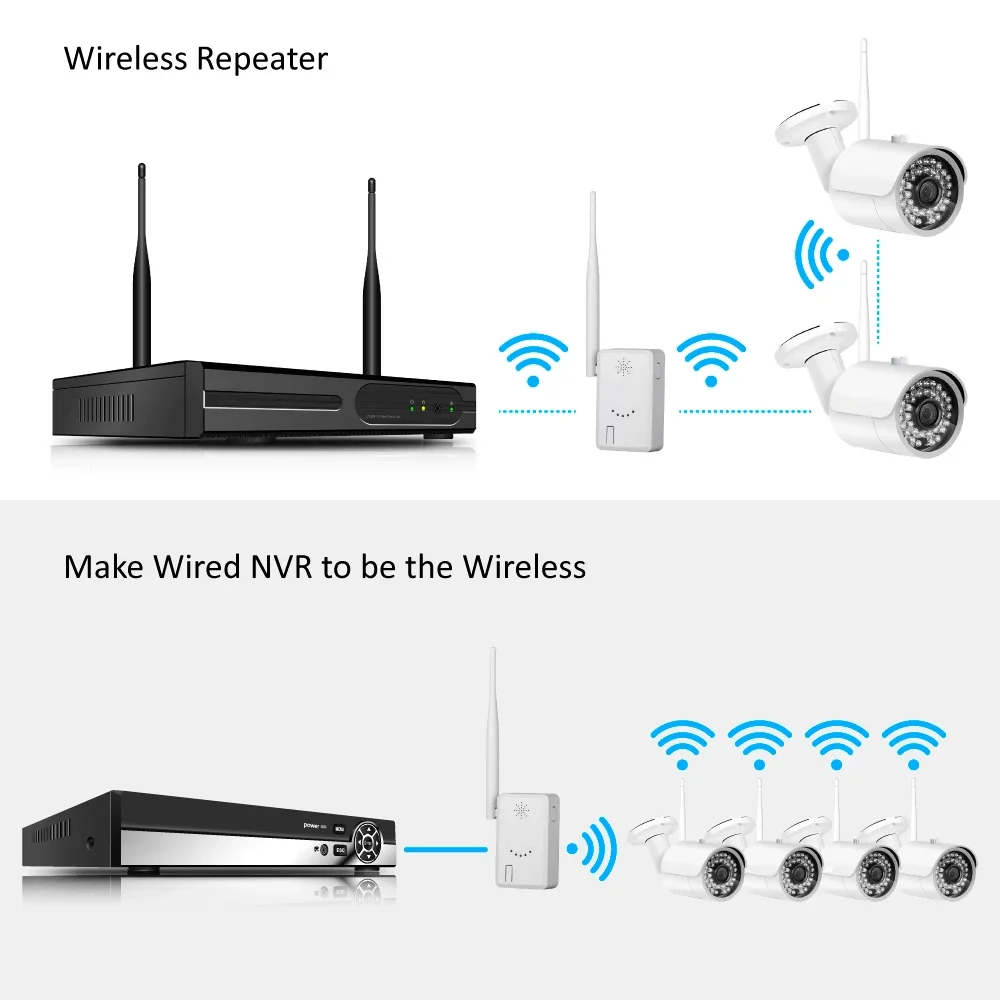

5. Network port: connect NVR / switch
6. Antenna: transmitting and receiving wireless signals
1. Functional features:
• wireless relay function;
• IPC router function;
• wireless code matching to wireless NVR;
• network cable pair to wireless NVR;
• network cable pair code with network port wireless IPC;
• wireless pairing and wireless IPC;
• support T-mode mode;
• NVR wireless connection status indicator;
• wireless connection status indicator;
2. Specifications and parameters
model
R4S -3
WIFI
802.11b/g/n 2.4G
Number of belt conveyors
4 wireless IPC
Number of indicator lights
5 LED indicators, 4 of which indicate IPCAM connection status and 1 NVR connection
Status light
Interface type
1 x RJ45 100Mbits
Network port
Match with IPC to transmit video
1 x code matching key
Trigger code matching and reset
1 x 12V power supply
Supply power to the equipment
size
74x31x186MM3. Interface instructions
1. Code matching / reset key: trigger code matching status
Press and hold the “reset / sync” key for 3 seconds and release it (3 seconds ＜ t ＜ 10 seconds). The IPC router enters the code matching camera state, and all ipcams
The status lights flash at the same time
Press and hold the “reset / sync” key for 10 seconds and release it (T > 10 seconds). The IPC router enters the NVR status of wireless code matching, and the NVR status light is fast
Flash.
2. NVR status light: indicates the wireless connection status between IPC router and wireless NVR
Flash: IPC router is in code aligned wireless NVR state.
Chang Liang: the IPC router is paired and the wireless connection is normal.
Slow flash: the IPC router is paired, and the wireless connection is disconnected or not in the paired state.
Not on: IPC router equipment is abnormal and needs to be checked.
3. IPCAM status light: indicates the wireless connection status between IPC router and wireless camera
Always on indicates that a camera is connected to the IPC. Several lights indicate that several cameras are connected, and there are four ipcams in total
Status light.
Flash: flash at the same time indicates that the IPC router is in the state of code matching camera. Press and hold the “reset / sync” key for 3 seconds and release it to the IPC router
Enter the code matching camera state, and all IPCAM states flash at the same time.
4. Power supply: equipment power supply
5. Network port: connect NVR / switch
6. Antenna: transmitting and receiving wireless signals
Notice:
This WiFi Range Extender only works with the Misecu Wireless Security Camera System. Pls ensure that you already have the Misecu Wireless CCTV System before purchaseing this wifi range extender.Thanks.
