Instruction:

Jewelry electroplating machine uses the chemical reaction between electroplating solution and titanium mesh to decompose ions, which strongly adheres to the metal surface and changes the color of the metal surface. Different Gold plating liquid have trace gold content.
Electroplating does not hurt the surface of the workpiece, does not affect the accuracy of the workpiece, and makes the product more beautiful through electroplating
It is suitable for metal electroplating such as Golden/Silver/copper/aluminum/etc. Clean sample surface before electroplating, and then use electrolytic oil removal powder to remove the surface oxide layer to make electroplating easier to color.

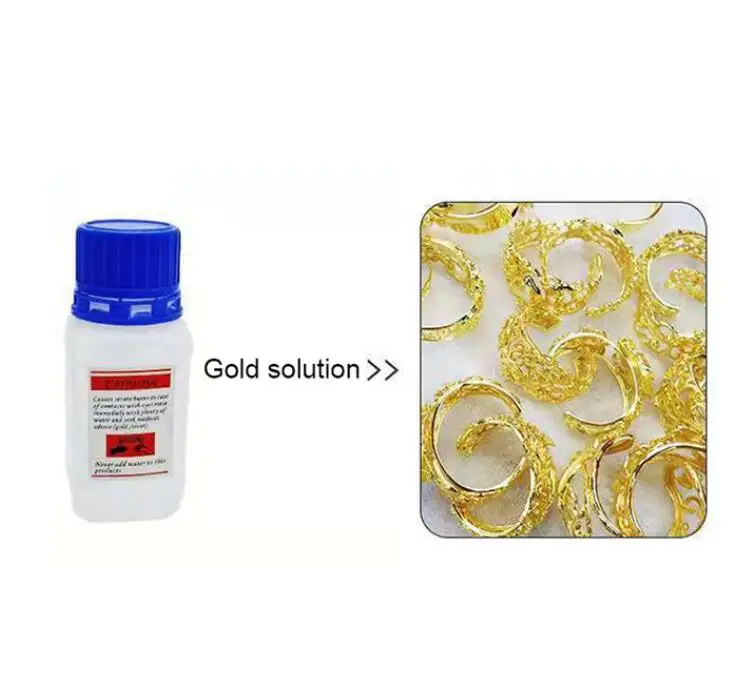

24K Gold Electroplating Method:

Positive electrode(+):Titanium mesh clamp
Negative electrode (-):Clip jewelry
Gold plating time:10-30S
Temperature:60-70℃
Voltage：4-7V
Operation note：When electroplating, shake the objects to ensure uniform Plating. Remember Positive pole and negative pole not to touch and burn out Care solution.
Function：24K gold electroplating water, need to be used together with electroplating machine + titanium mesh, can be used after stainless steel base another layer of 24K yellow is plated, and the color is bright.

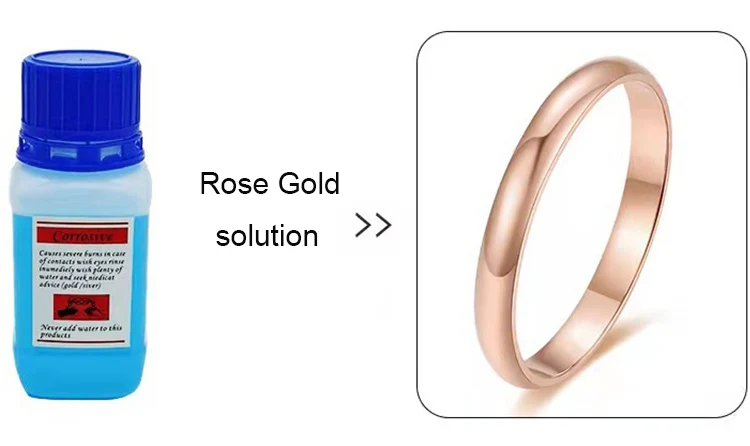

Rose Gold Electroplating Method:

Warm reminder:Rose liquid gold due to different batches, there are two kinds of liquid colors (blue and white), the effect is similar, random hair, do not specify the color, thank you!
Positive electrode (+)：Titanium mesh clamp
Negative electrode (-)：Clip jewelry
Gold plating time：About 20-40 seconds (cannot be plated for too long).
Voltage：3-4V
Temperature：30-40℃
Required accessories：When electroplating, shake the objects to ensure uniform Plating. Remember Positive pole and negative pole not to touch and burn out Care solution.
Function：Rose gold electroplating water should be used together with electroplating machine + titanium mesh, after stainless steel base, plating rose gold, rose gold is easy to turn dark, pay attention to the adjustment of voltage/current/electroplating time, observe at all times.

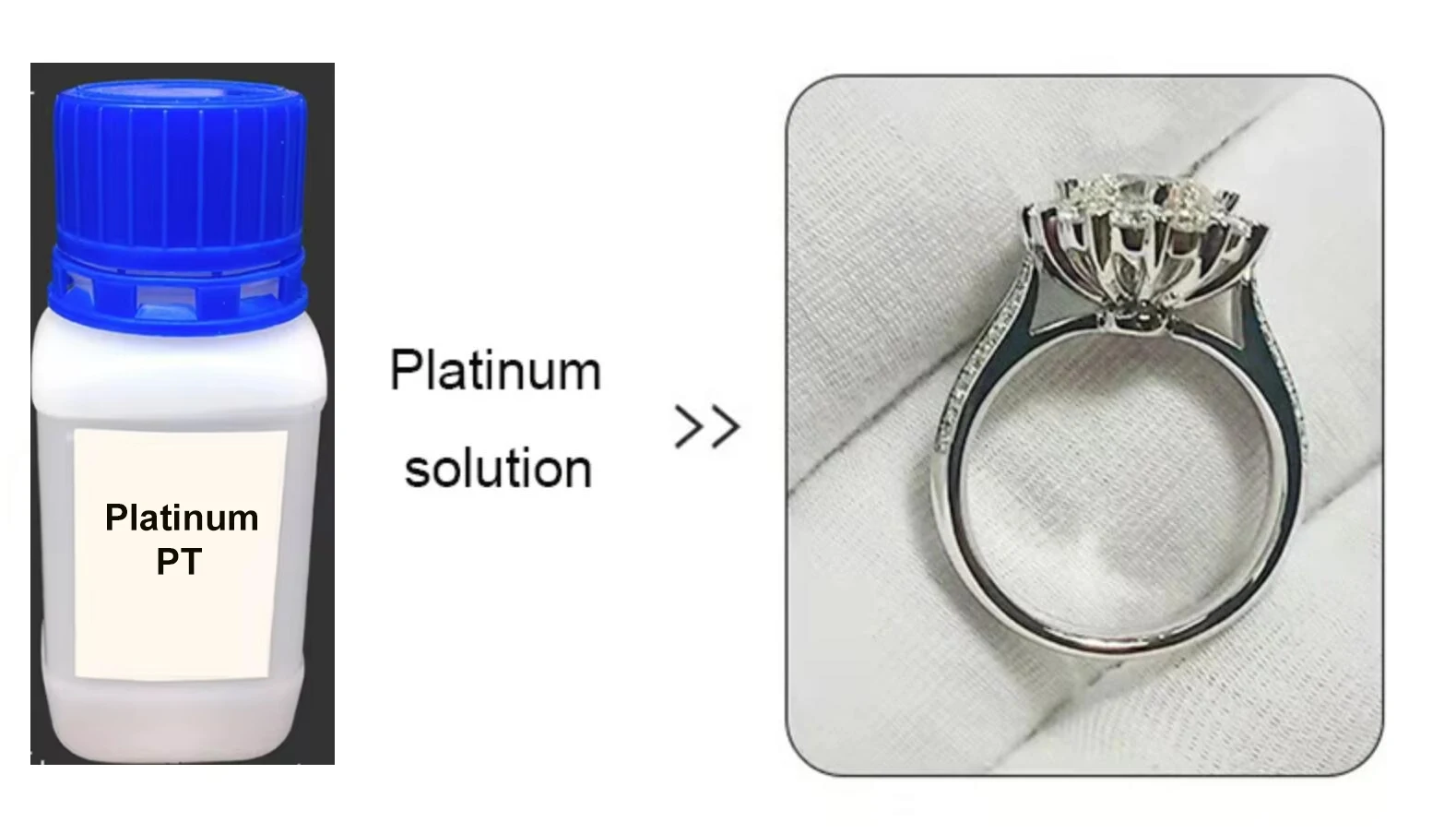

Platinum Electroplating Method:

Positive electrode (+)：Titanium mesh clamp
Negative electrode（-）：Clip jewelry
Gold plating time:About 60-90 seconds (cannot be plated for too long).
Voltage：3-4V
Temperature：30-40℃
Required accessories：Beaker/titanium mesh/gold plating machine/water line/electric furnace/thermometer.
Operation note:When electroplating, shake the objects to ensure uniform Plating. Remember Positive pole and negative pole not to touch and burn out Care solution.
Function:Platinum electroplating water should be used together with electroplating machine + titanium mesh, after stainless steel base, plating 18K platinum is added to achieve silvery white and beautiful, wear-resistant and bright.

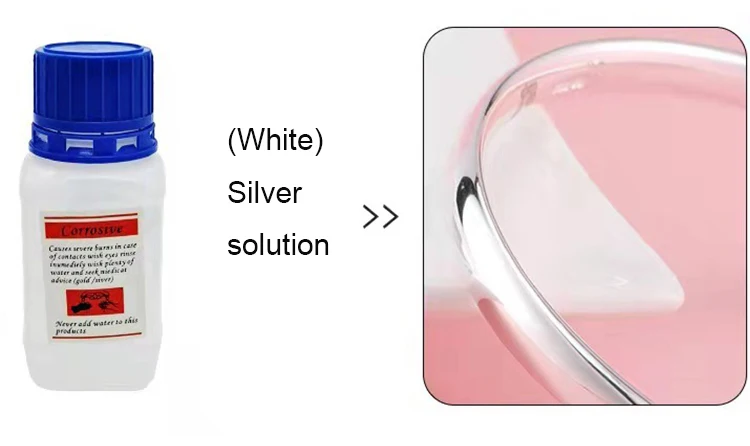

Silver Electroplating Method:

Voltage:0.5-3V
Time:5-10 second
Temperature:20℃

How To Use?

1. Prepare tools before plating titanium mesh bending into beaker.
2. Electrolysis process:Black wire clip jewelry, red wire clip titanium mesh,Shaking water line during electrolysis.
3. After electrolysis, clean the water directly.
4. Electroplating process:
Adjust the voltage parameters,Adjust the voltage parameters,Shaking water line during electroplating.
5. After the electroplating is completed, the protective agent can be soaked later by natural air drying such as clear water.
